Part Number: DUY07C2-B
www.SunLED.com
7mm (0.28") DUAL DIGIT NUMERIC DISPLAY
Features
●
Low power consumption
●
Robust package
●
I.C. Compatible
●
Standard configuration: Gray face w/ white
segments
Package Schematics
●
Optional black face provides superior color
contrast
●
RoHS Compliant
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
V
R
I
F
i
FS
P
D
T
A
Tstg
UY
(GaAsP/GaP)
5
30
140
75
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=10mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
Luminous
Intensity
(I
F
=10mA)
ucd
min.
DUY07C2-B
Mar 25,2011
Yellow
GaAsP/GaP
900
typ.
2490
590
SDSA7974
Common Cathode,
Rt.Hand Decimal.
V1
Layout: Maggie L.
P. 1/3
V
F
V
F
I
R
UY
(GaAsP/GaP)
1.95
2.5
10
Unit
V
V
uA
λP
590
nm
260°C For 3-5 Seconds
λD
588
nm
△λ
35
nm
C
20
pF
Part
Number
Emitting
Color
Emitting
Material
Wavelength
nm
λP
Description
Part Number: DUY07C2-B
www.SunLED.com
7mm (0.28") DUAL DIGIT NUMERIC DISPLAY
UY
Remarks:
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Mar 25,2011
SDSA7974
V1
Layout: Maggie L.
P. 2/3
Part Number: DUY07C2-B
www.SunLED.com
7mm (0.28") DUAL DIGIT NUMERIC DISPLAY

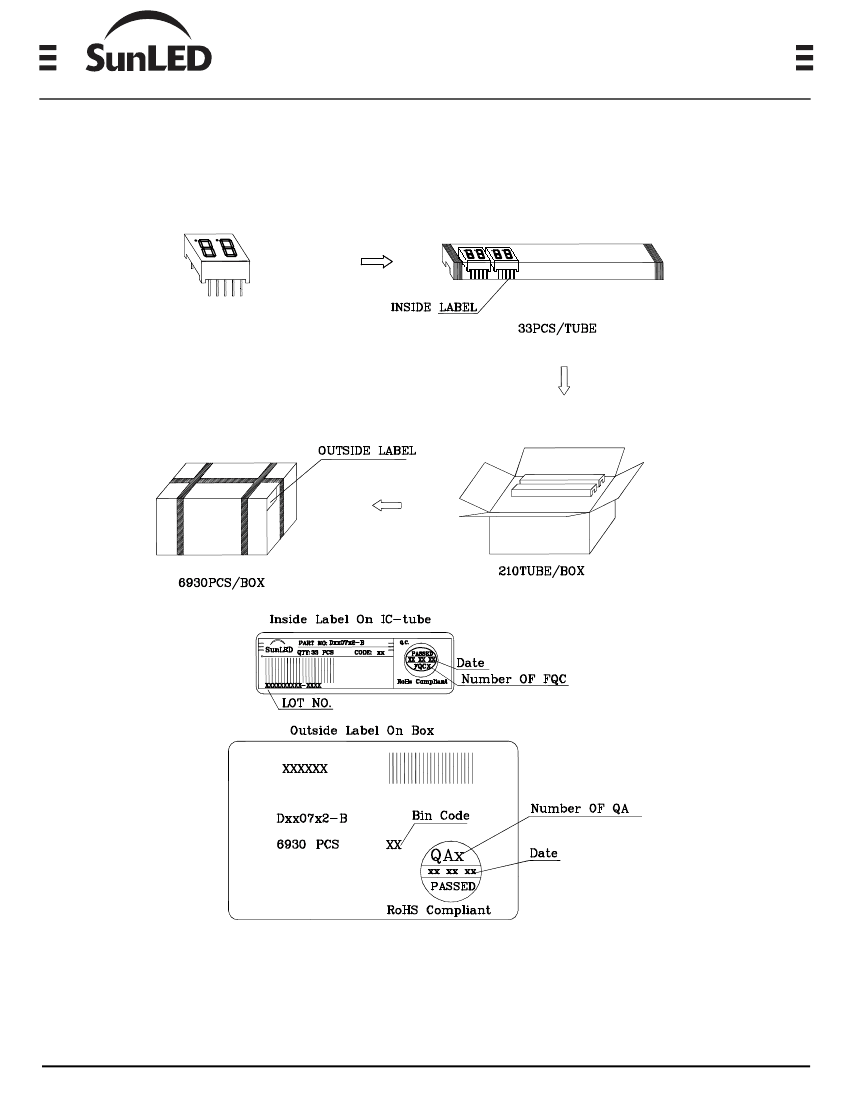

PACKING & LABEL SPECIFICATIONS
Mar 25,2011
SDSA7974
V1
Layout: Maggie L.
P. 3/3
