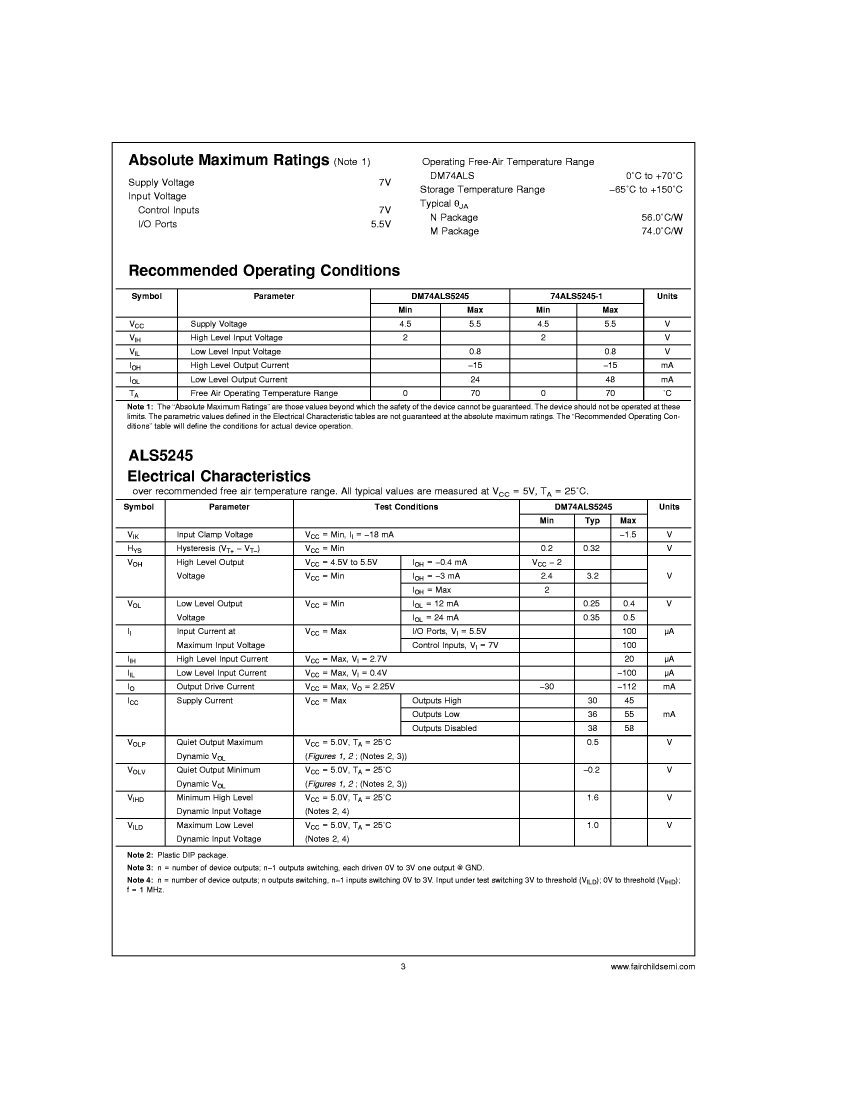

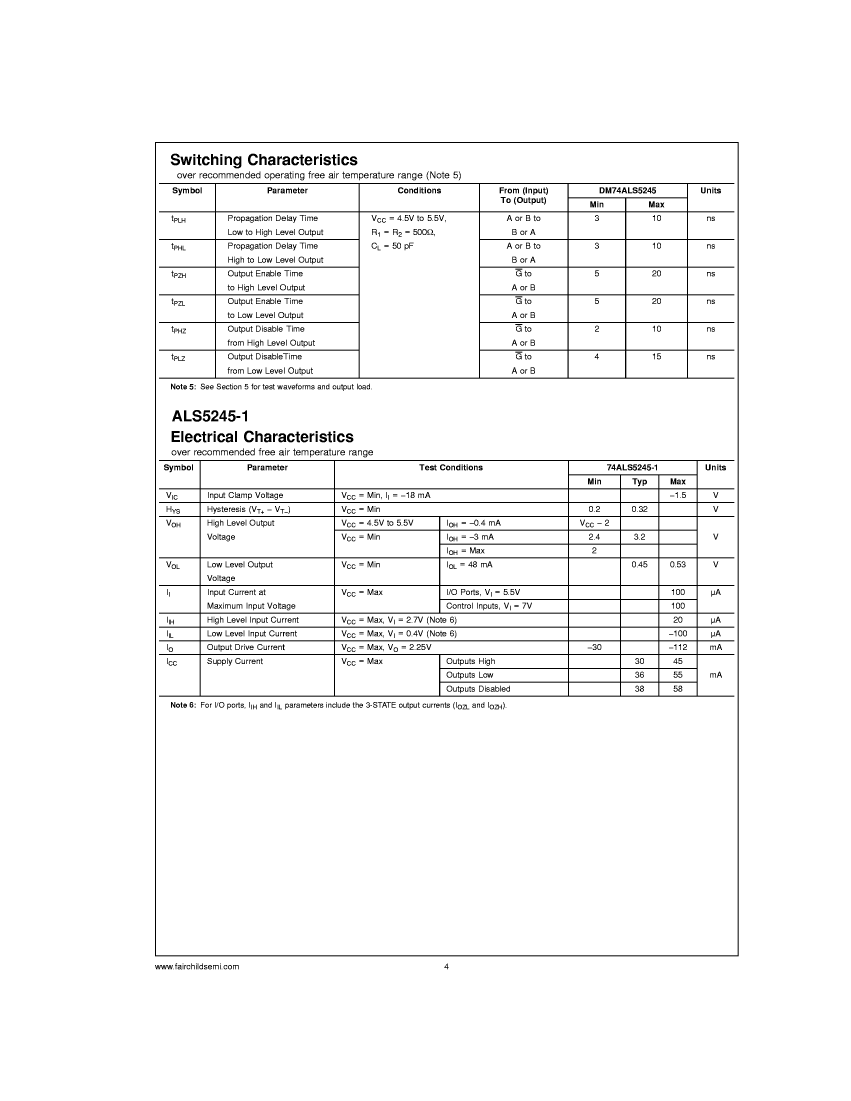

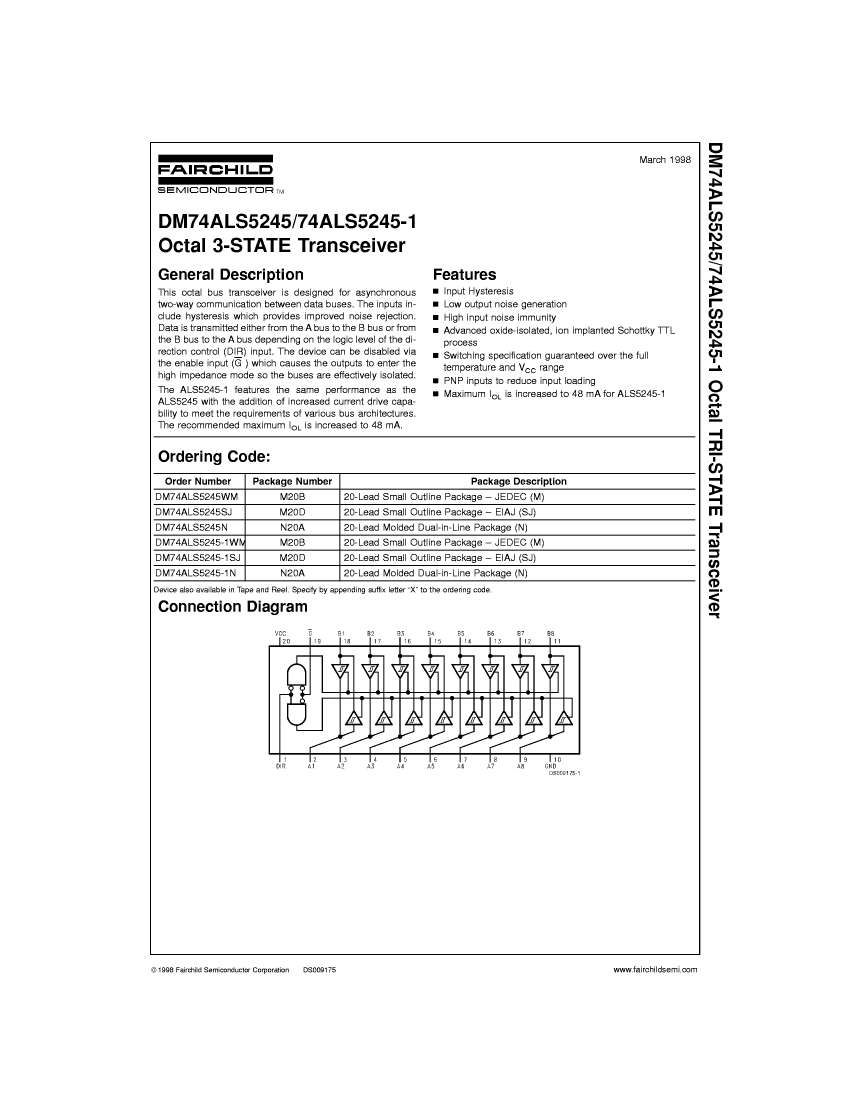

Bus Transceiver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, SOIC-20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | SOIC |
| package instruction | SOIC-20 |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Control type | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL |
| series | ALS |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| length | 12.8 mm |
| Logic integrated circuit type | BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP20,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 58 mA |
| Prop。Delay @ Nom-Sup | 10 ns |
| propagation delay (tpd) | 10 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| translate | N/A |
| width | 7.5 mm |
| DM74ALS5245-1WM | DM74ALS5245-1SJ | DM74ALS5245-1N | |
|---|---|---|---|
| Description | Bus Transceiver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, SOIC-20 | Bus Transceiver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, EIAJ, SOIC-20 | Bus Transceiver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | SOIC | DIP |
| package instruction | SOIC-20 | SOP, SOP20,.3 | DIP, DIP20,.3 |
| Contacts | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown |
| Control type | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | ALS | ALS | ALS |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDIP-T20 |
| JESD-609 code | e0 | e0 | e0 |
| length | 12.8 mm | 12.6 mm | 26.075 mm |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A | 0.048 A | 0.048 A |
| Number of digits | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP |
| Encapsulate equivalent code | SOP20,.4 | SOP20,.3 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 58 mA | 58 mA | 58 mA |
| Prop。Delay @ Nom-Sup | 10 ns | 10 ns | 10 ns |
| propagation delay (tpd) | 10 ns | 10 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.65 mm | 2.1 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| translate | N/A | N/A | N/A |
| width | 7.5 mm | 5.3 mm | 7.62 mm |
| Maker | Fairchild | - | Fairchild |
