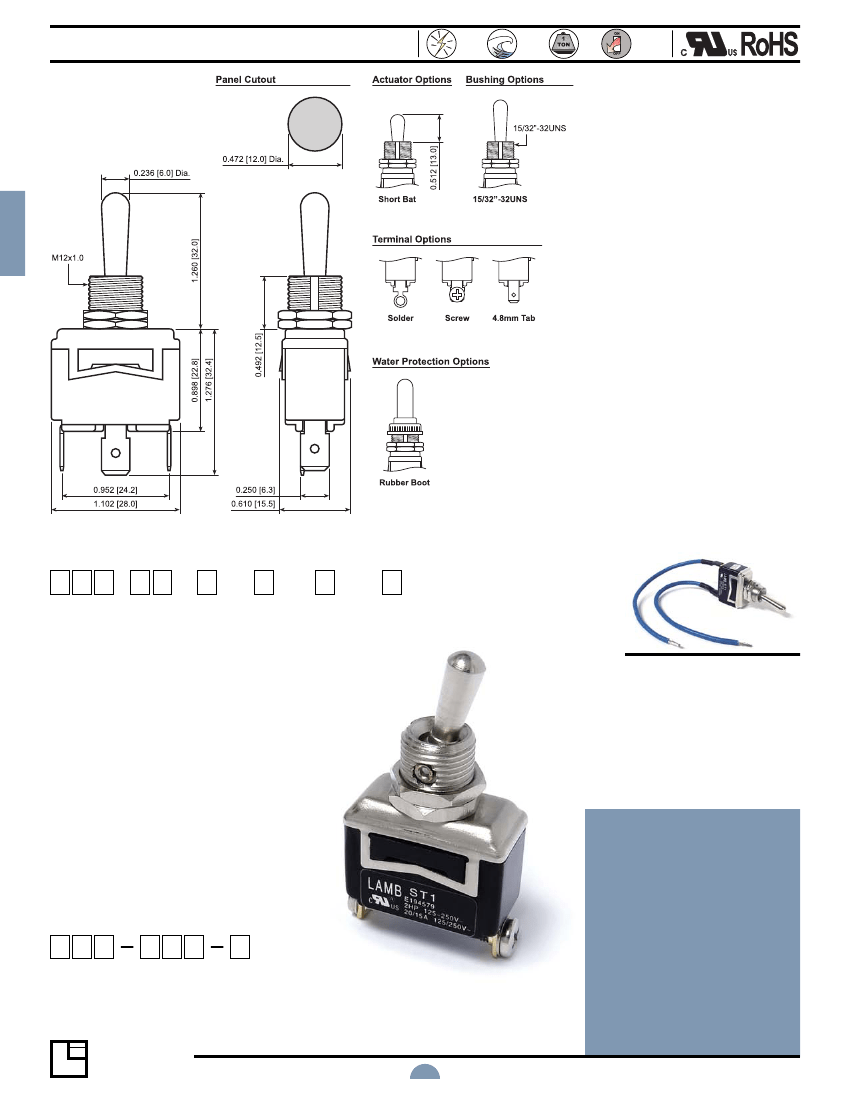

ST1 Series
High
Amperage
Water
Protection
Heavy
Duty
Rear
Panel Mount
FEATURES:
• Heavy Duty Rating with UL Approvals
• Many Functions Available
• Tab, Screw, and Solder Terminal Options
• Rubber Boot for Water and Dust Protection
SPECIFICATIONS:
R
ATING
:
M
AINTAINED
S
WITCHES
:
20A 125VAC [cULus]
15A 250VAC [cULus]
2HP 125-250VAC [cULus]
M
OMENTARY
S
WITCHES
:
20A 125VAC [cULus]
15A 250VAC [cULus]
1.5HP 125-250VAC [cULus]
T
EMPERATURE
:
-20°C to 85°C
E
LECTRICAL
L
IFE
:
6,000 Cycles
C
ONTACT
R
ESISTANCE
:
50m Max.
I
NSULATION
R
ESISTANCE
:
800M Min. at 500VDC
D
IELECTRIC
S
TRENGTH
:
1,500VAC for 1 Minute
ST1W61D00
ST161D10
EXAMPLE PART NUMBERS:
ST121D00
ST123D00
ST124D00
ST125D00
ST12DD00
1P Off-On
1P On-On
1P Off-(On)
1P On-Off-On
1P (On)-Off-(On)
1P Off-On
1P On-On
1P Off-(On)
Standard Actuator/Bushing, Solder
Standard Actuator/Bushing, Solder
Standard Actuator/Bushing, Solder
Accessories Series
Type
Options
Standard Actuator/Bushing, Solder
Standard Actuator/Bushing, Solder
ACC
Rubber Boot:
B03
- For Standard Bat
Marking Plates:
M01
- ON/Off
Hardware:
N02 - Knurled Nut
Colors for Boot:
2
- Black
Colors for Marking Plates:
3
- Black, Red, and Silver
Threading:
3
- 15/32"-32UNS
5
- M12x1.0
ST141D00
ST143D00
ST144D00
Standard Actuator/Bushing, 0.250" QC
Standard Actuator/Bushing, 0.250" QC
Standard Actuator/Bushing, 0.250" QC
LAMB
INDUSTRIES
Ph: 503-297-8878
• Fax:
503-297-8879
24
P.O. Box 25110 • Portland, OR 97298 USA • www.lambind.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
T
OGGLE
Series
Terminal
Function
Rating
Actuator
Type
Bushing
Type
ST1
- 1 Pole
1
- 4.8mm Tabs
2
- Solder
4
- 6.3mm Tabs
6
- Screw
Variable Length:
Wxx
- Wire Leads
(xx in Inches)
1 Pole:
D
- 20A 125VAC
1
- Off-On
3
- On-On
4
- Off-(On), Middle-End
5 -
On-Off-On
C
- On-Off-(On)
D
- (On)-Off-(On)
0
- Standard Bat
1
- Short Bat
0
- M12x1.0
2
- 15/32"-32UNS
MATERIALS:
B
ODY
:
Phenolic, UL94 V-0
A
CTUATOR
:
Nickel Plated Brass
B
USHING
:
Nickel Plated Brass
H
OUSING
:
Stainless Steel
C
ONTACTS
:
Silver Alloy
T
ERMINALS
:
Silver Plated Brass
