P1961PA: DescriptionPushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size79KB，1 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric Compare View All

P1961PA Overview

Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT

P1961PA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	DOMED TOP TYPE
body width	17.6 mm
body height	26.5 mm
Body length or diameter	21 mm
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	250 V
Manufacturer's serial number	1900
Installation features	PANEL MOUNT-THREADED
seal	IP66
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

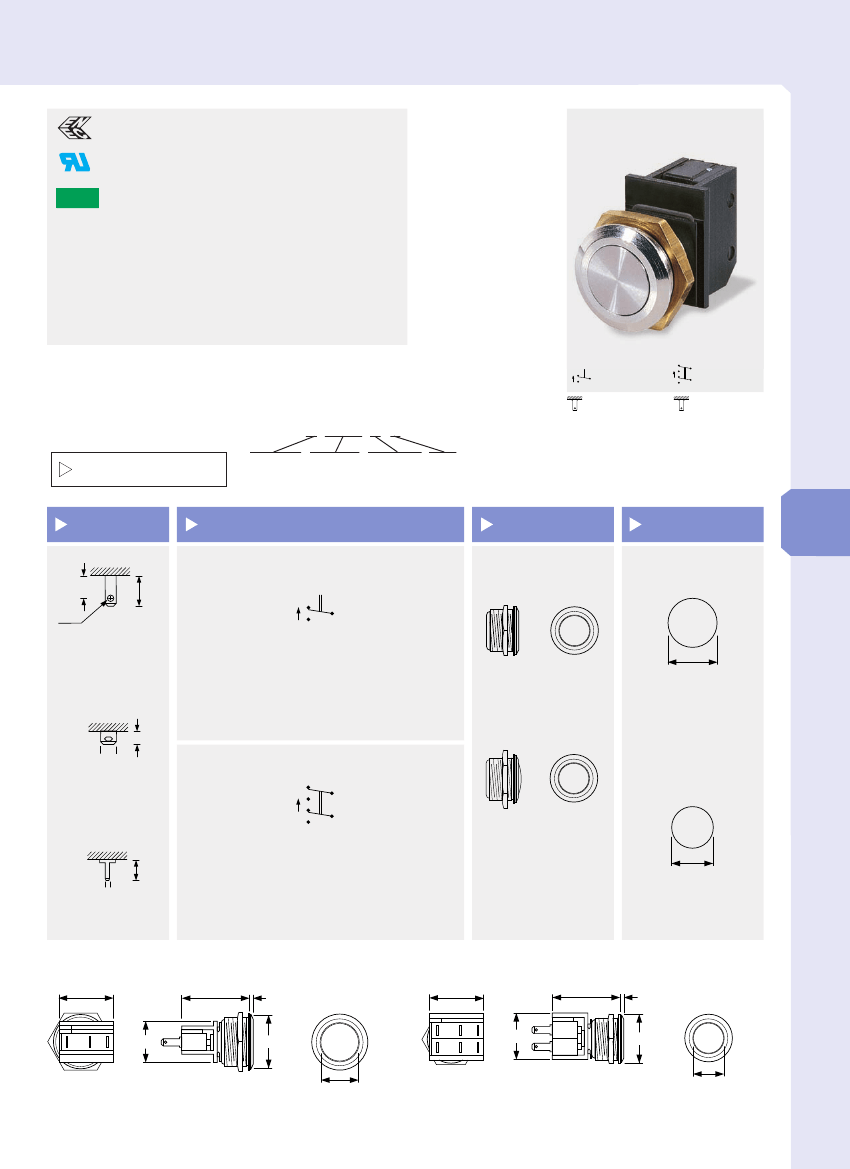

1900 Vandal Resistant Switches - Designed to IP66

3A 125/250Vac T85

Stainless steel button

and bezel

Vandal resistant

construction

Front panel sealed to

IP66

Single and double pole

change-over switching

5A 125/250Vac T85 50E3

RoHS

RoHS compliant

Approvals apply to switch mechanism only.

µ contact gap.

Switching mechanisms are snap action (not sealed).

P1911VL

P1961VL

P 1911 V L

ORDER FORMAT

TERMINAL FUNCTION ACTUATOR BODY

CODE

CODE CODE

vandal resistant

switches

FUNCTION

1911

6.0

7.6

TERMINAL

ACTUATOR

Flat top (stainless steel)

BODY

Stainless steel

Chamfer profile bezel

ø1.65

2.8 x 0.5

ON - ON (momentary 1 side) Single pole

Ø19.2

Domed top (stainless steel)

Panel cut-out

Panel thickness up to 4.0mm

3.4

3.2

1961

Stainless steel

Chamfer profile bezel

Solder

ON - ON (momentary 1 side) Double pole

4.0

1.2

Ø16.0

Panel cut-out

Panel thickness up to 4.0mm

PCB

Dimensions

(mm)

Single pole

(P1911VA shown)

Double pole

(P1961VL shown)

21.0

26.5

1.6

21.0

26.5

1.6

Ø18.3

16.0

Ø21.5

17.6

Ø15.0

Phone: 760-343-3650 •

Arcolectric

• Email: americas@elektron-technology.com

Ø11.8

P1961PA Related Products

	P1961PA	T1911VA	P1911VL	X1911PL	X1961PL	P1911PL	T1911PL	P1911PA	X1911VL	X1911VA
Description	Pushbutton Switch, DPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Solder Terminal, Through Hole-straight, ROHS COMPLIANT	Pushbutton Switch, DPDT, Momentary, Solder Terminal, Through Hole-straight, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Quick Connect Terminal, Panel Mount-threaded, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Solder Terminal, Through Hole-straight, ROHS COMPLIANT	Pushbutton Switch, SPDT, Momentary, Solder Terminal, Through Hole-straight, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	DOMED TOP TYPE	FLAT TOP TYPE	FLAT TOP TYPE	DOMED TOP TYPE	DOMED TOP TYPE	DOMED TOP TYPE	DOMED TOP TYPE	DOMED TOP TYPE	FLAT TOP TYPE	FLAT TOP TYPE
body width	17.6 mm	16 mm	16 mm	16 mm	17.6 mm	16 mm	16 mm	16 mm	16 mm	16 mm
body height	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm	26.5 mm
Body length or diameter	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Manufacturer's serial number	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
seal	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	SPDT	SPDT	SPDT	DPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT	SOLDER	QUICK CONNECT	SOLDER	SOLDER	QUICK CONNECT	SOLDER	QUICK CONNECT	SOLDER	SOLDER
Maker	Arcolectric	-	-	-	-	Arcolectric	Arcolectric	Arcolectric	Arcolectric	Arcolectric
