382824-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 382824-5

382824-5: DescriptionSIMM/DIMM SOCKET,80 CONTACTS,1; CategoryThe connector The connector; File Size239KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

382824-5 Overview

SIMM/DIMM SOCKET,80 CONTACTS,1

382824-5 Parametric

Parameter Name	Attribute value
Objectid	302500649
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SYNC.DRAM,3.3VOLT
Board mount options	LOCATING POSTS
body width	0.297 inch
subject depth	0.52 inch
body length	5.55 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	1.112 N
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	382824
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Evacuation force-minimum value	.417 N

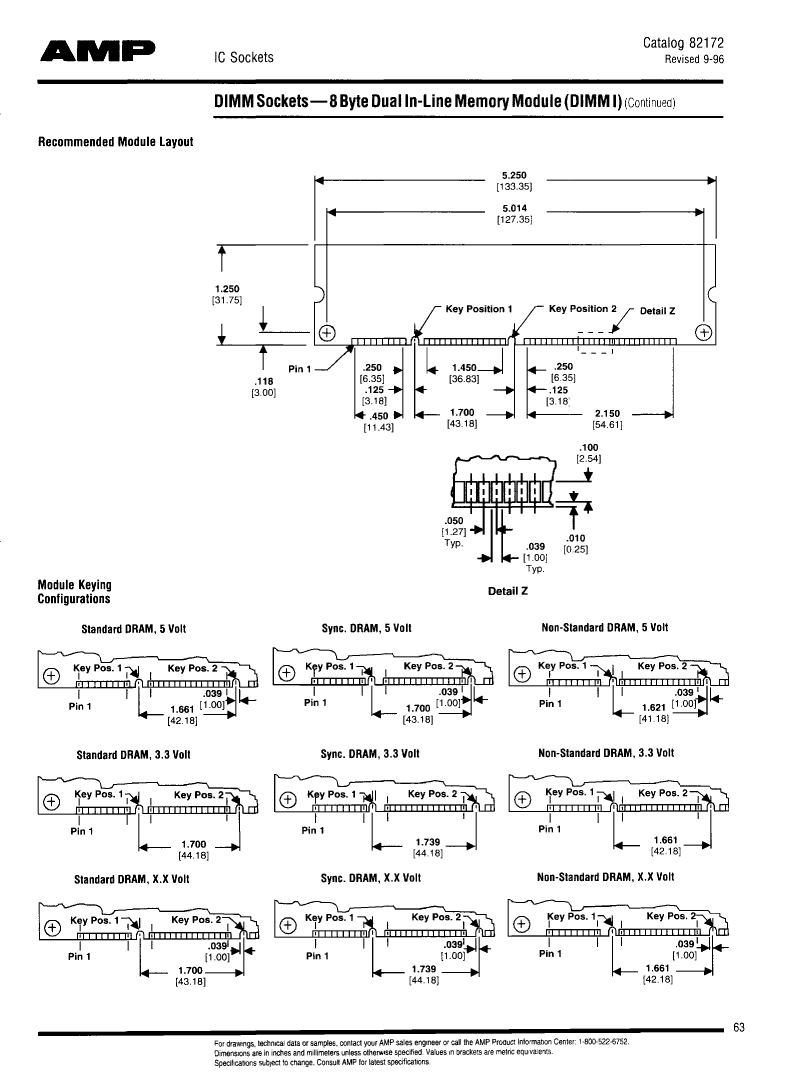

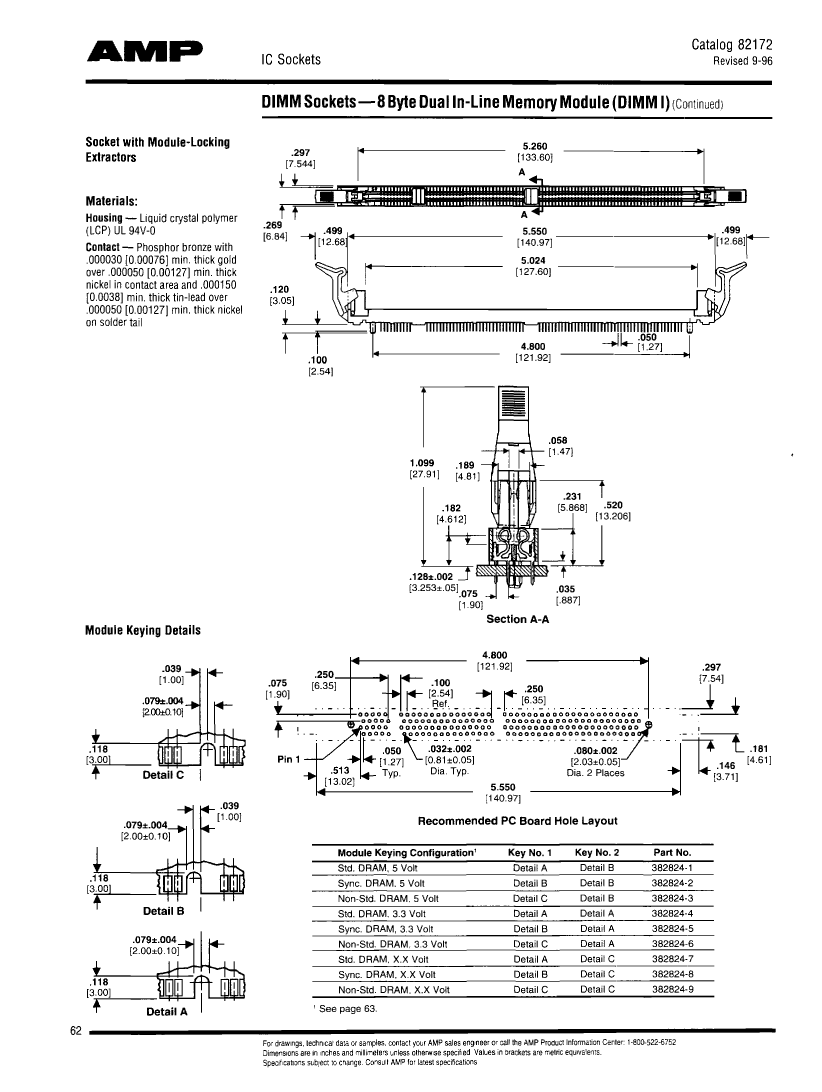

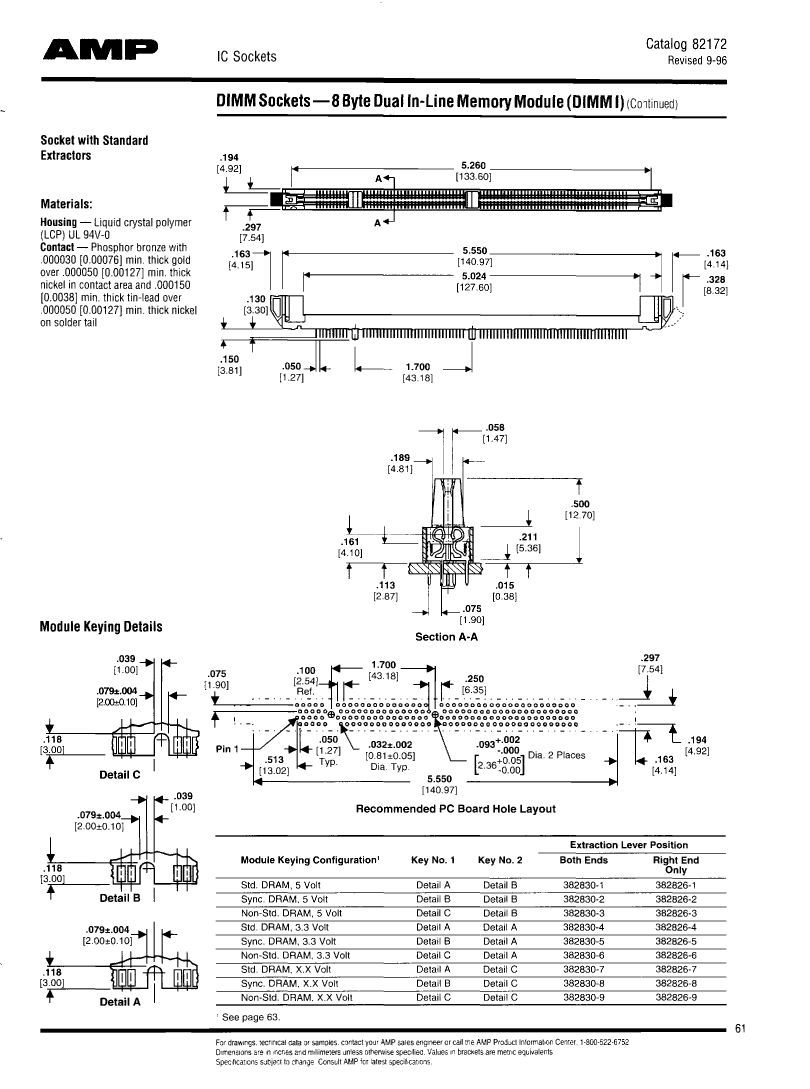

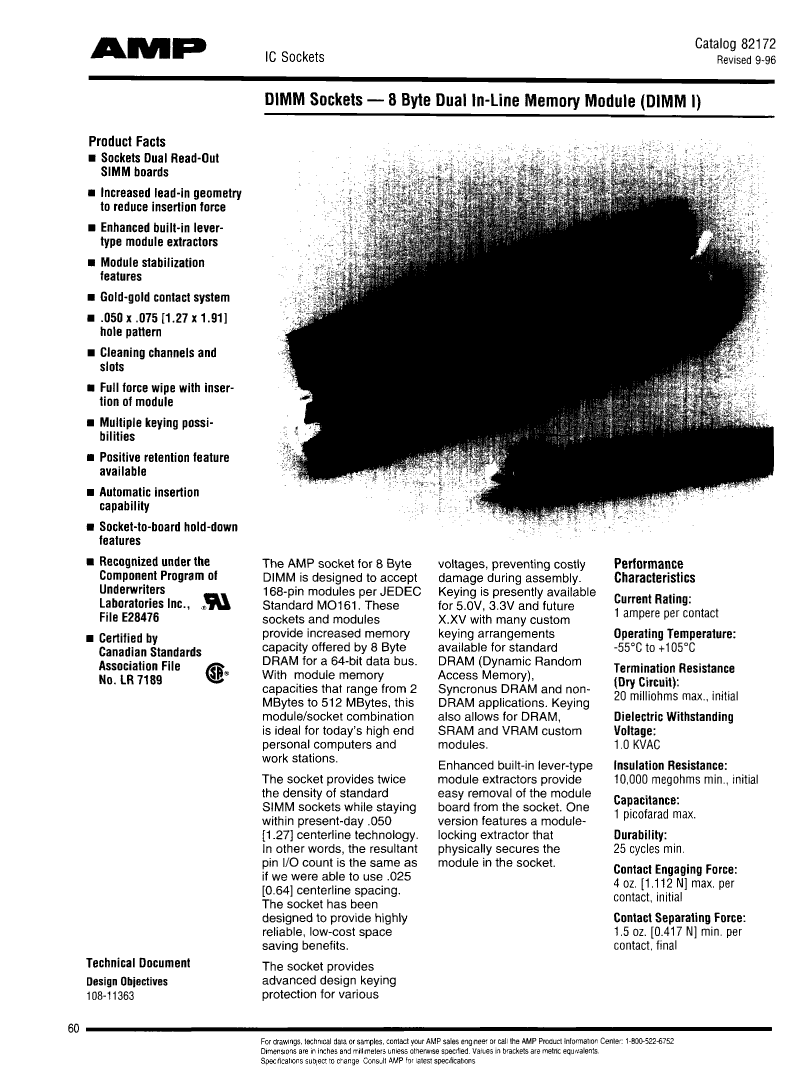

Preview

Download Datasheet

View All

382824-5 Related Products

	382824-5	382824-3	382824-6	382824-7	382824-8	382824-9	382826-3	382824-1	382824-2	382824-4
Description	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	SIMM/DIMM SOCKET,80 CONTACTS,1	168 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	168 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	SIMM/DIMM SOCKET,80 CONTACTS,1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SYNC.DRAM,3.3VOLT	NON-STD.DRAM,5VOLT	NON-STD.DRAM,3.3VOLT	STD.DRAM,X.XVOLT	SYNC.DRAM,X.XVOLT	NON-STD.DRAM,X.XVOLT	NON-STD.DRAM,5VOLT	MODULE ORIENTATION: VERTICAL	MODULE ORIENTATION: VERTICAL	STD.DRAM,3.3VOLT
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	SOCKET	SOCKET	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Manufacturer's serial number	382824	382824	382824	382824	382824	382824	382826	382824	382824	382824
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	80	80	80	80	80	80	168	168	80
Objectid	302500649	-	302500650	-	302500652	302500653	-	1420473283	1420473285	302500648
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	-	-	LOCATING POSTS
body width	0.297 inch	0.297 inch	0.297 inch	0.297 inch	0.297 inch	0.297 inch	0.297 inch	-	-	0.297 inch
subject depth	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.5 inch	-	-	0.52 inch
body length	5.55 inch	5.55 inch	5.55 inch	5.55 inch	5.55 inch	5.55 inch	5.876 inch	-	-	5.55 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	-	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-	-	GOLD
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-	-	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	-	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-	-	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	-	-	25 Cycles
maximum insertion force	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	-	-	1.112 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	-	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-	-	LIQUID CRYSTAL POLYMER (LCP)
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	EJECT LEVER	-	-	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-	-	LOCKING
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	-	-	ONE
PCB row number	4	4	4	4	4	4	4	-	-	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-	-	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-	STAGGERED
PCB contact row spacing	0.075 mm	0.075 mm	0.075 mm	0.075 mm	0.075 mm	0.075 mm	0.075 mm	-	-	0.075 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	-	-	30u inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	-	-	POLAR PIN POSITION
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-	-	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Terminal length	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.13 inch	-	-	0.1 inch
Evacuation force-minimum value	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	-	-	.417 N
