3-382489-5: DescriptionSIMM/DIMM SOCKET,35 CONTACTS,1; CategoryThe connector The connector; File Size167KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-382489-5 Overview

SIMM/DIMM SOCKET,35 CONTACTS,1

3-382489-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Board mount options	POLARIZATION POST
body width	0.45 inch
subject depth	0.607 inch
body length	4.3 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	LIF N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	3-382489
Plug contact pitch	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZING PEG
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	35

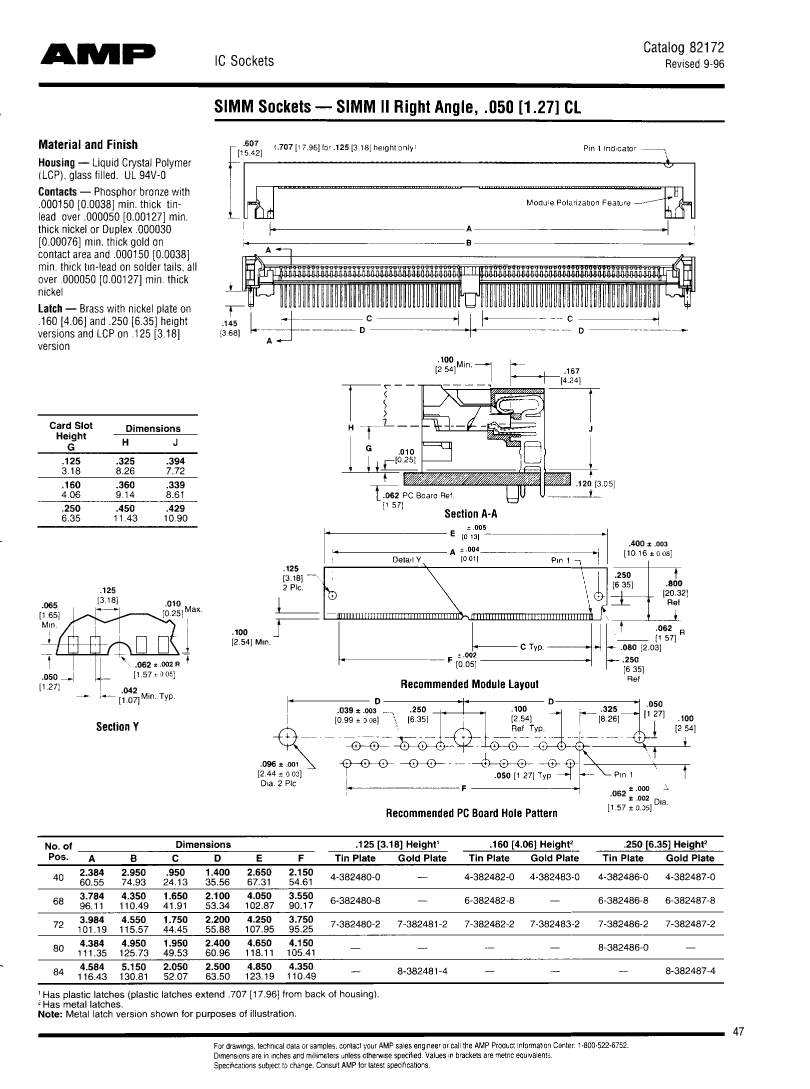

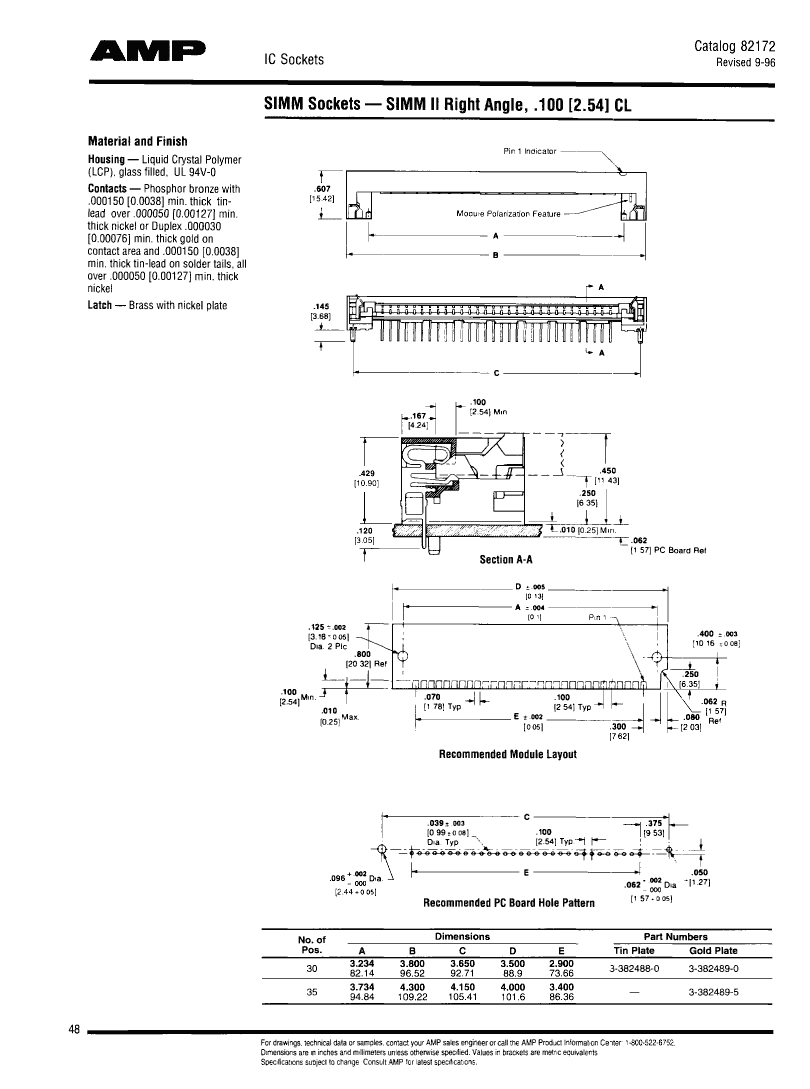

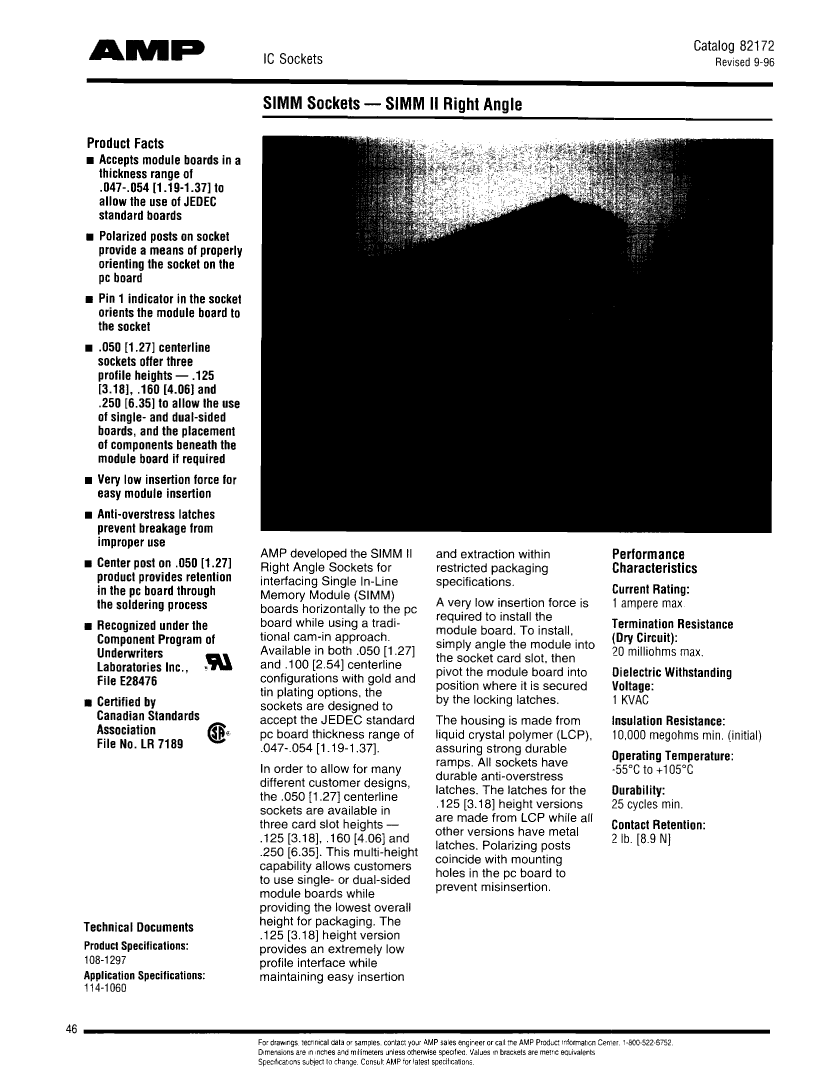

Preview

Download Datasheet

View All

3-382489-5 Related Products

	3-382489-5	6-382480-8	3-382489-0	3-382488-0
Description	SIMM/DIMM SOCKET,35 CONTACTS,1	SIMM/DIMM SOCKET,68 CONTACTS,1	SIMM/DIMM SOCKET,30 CONTACTS,1	SIMM/DIMM SOCKET,30 CONTACTS,1
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	unknown	compliant	compliant
Board mount options	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.45 inch	0.325 inch	0.45 inch	0.45 inch
subject depth	0.607 inch	0.607 inch	0.607 inch	0.607 inch
body length	4.3 inch	4.35 inch	3.8 inch	3.8 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	SN-PB	AU	SN-PB
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	LIF N	LIF N	LIF N	LIF N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	3-382489	6-382480	3-382489	3-382488
Plug contact pitch	0.1 inch	0.05 inch	0.1 inch	0.1 inch
Installation option 1	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	2	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	STAGGERED	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	150u inch	30u inch	150u inch
polarization key	POLARIZING PEG	CENTER	POLARIZING PEG	POLARIZING PEG
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.11 inch	0.12 inch	0.12 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	35	68	30	30
Is it Rohs certified?	incompatible	-	incompatible	incompatible
