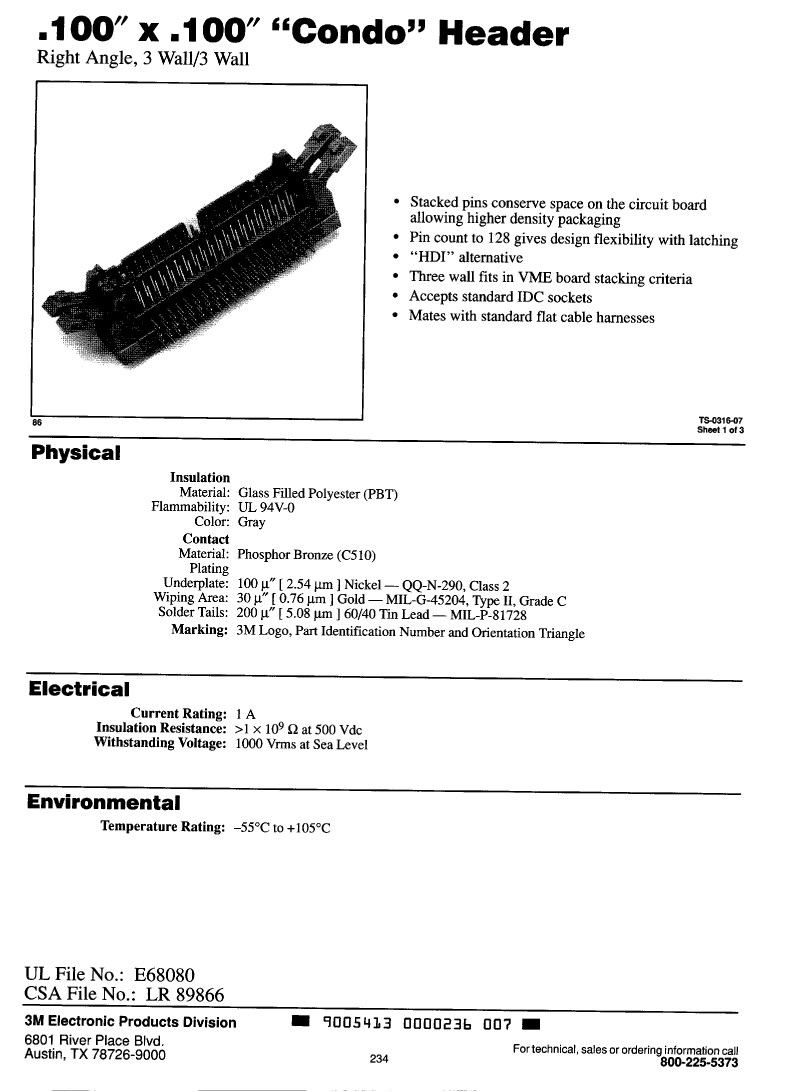

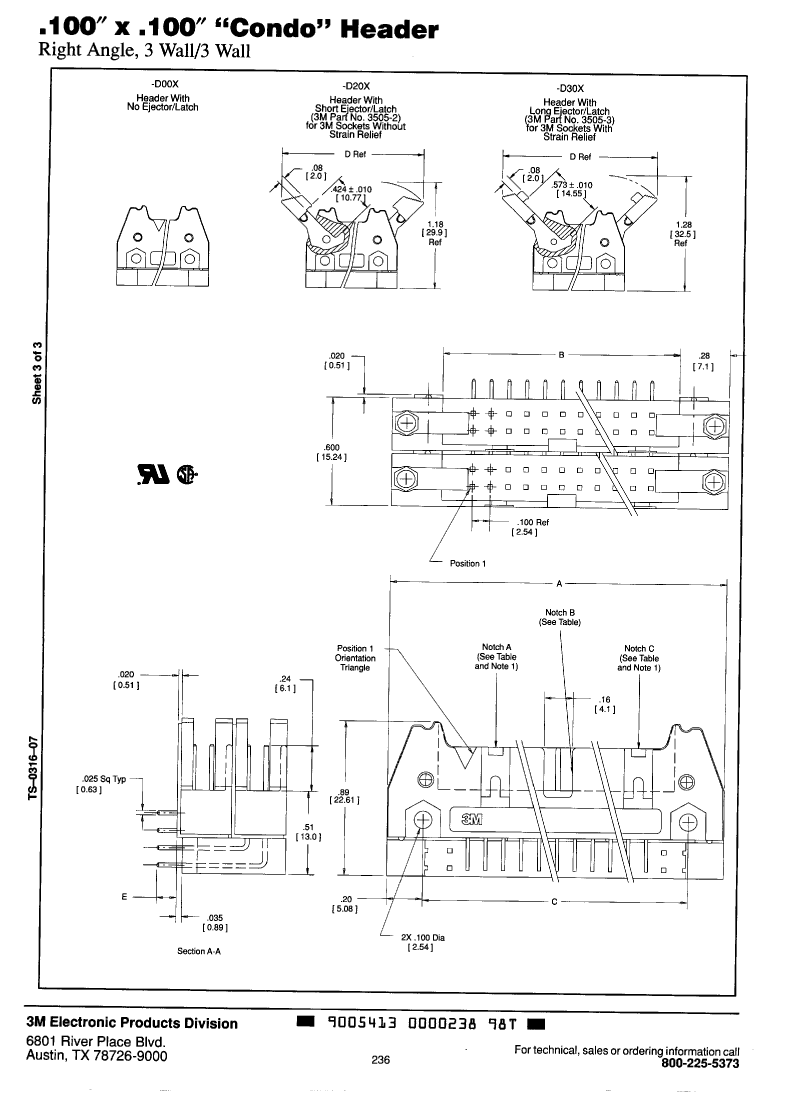

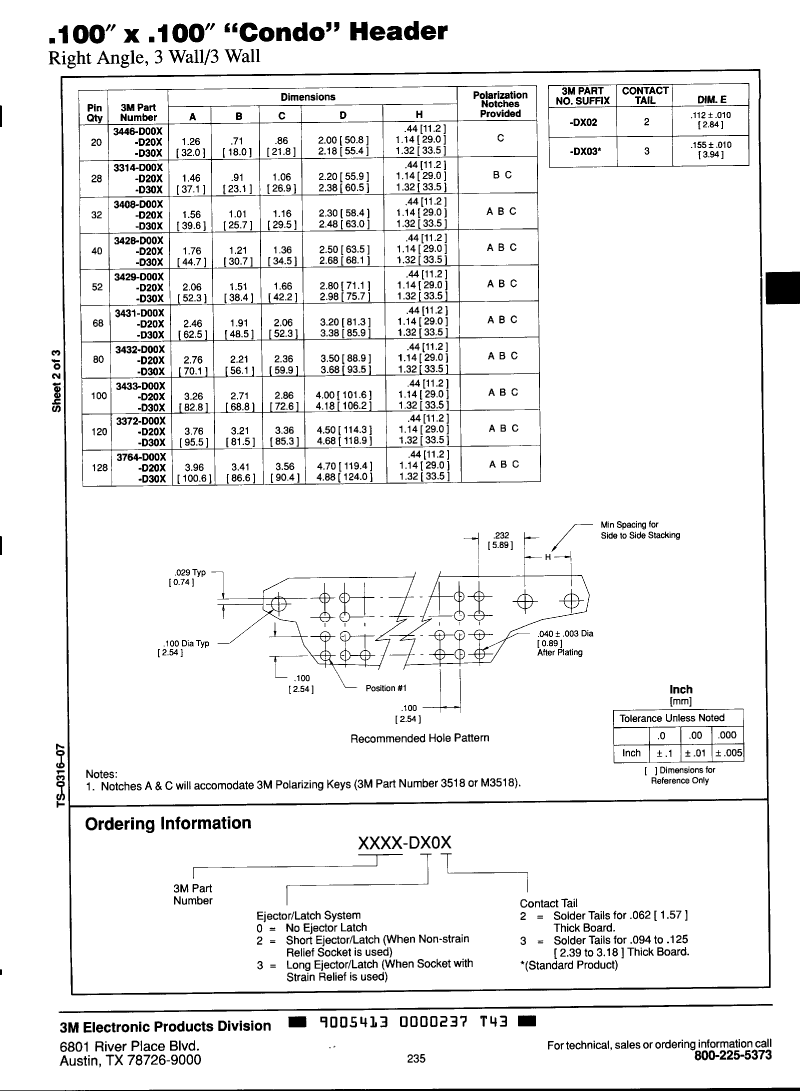

20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Maker | 3M |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| Board mount options | HOLE .099-.111 |
| body width | 0.62 inch |
| subject depth | 0.89 inch |
| body length | 1.26 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 3446 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | TWO |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | TRIPOLARIZED |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.112 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
