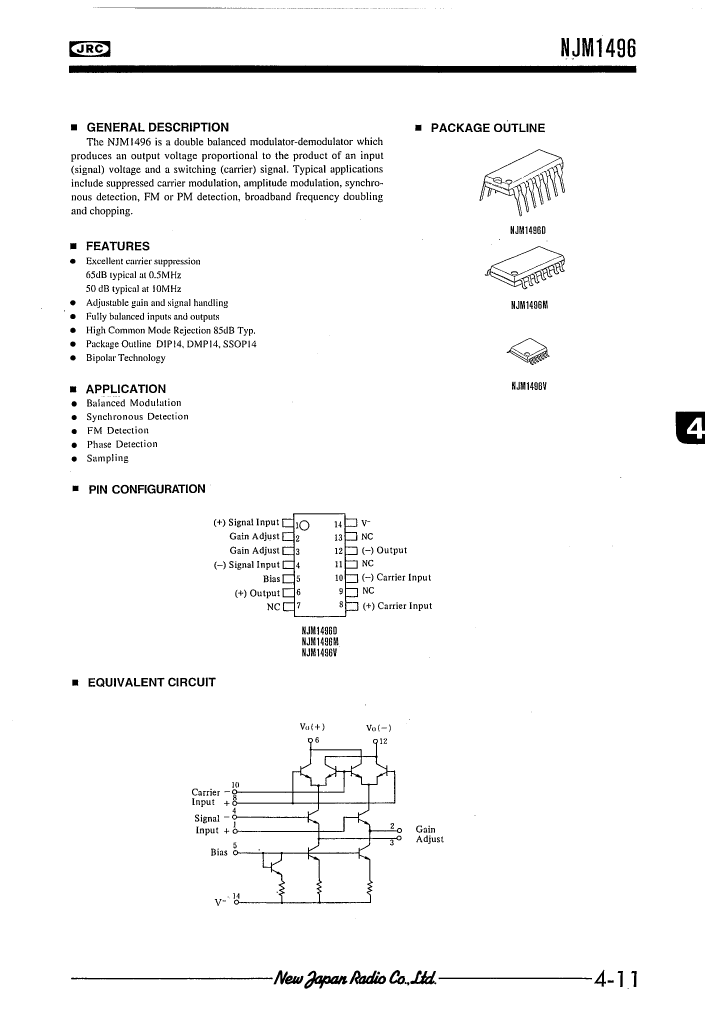

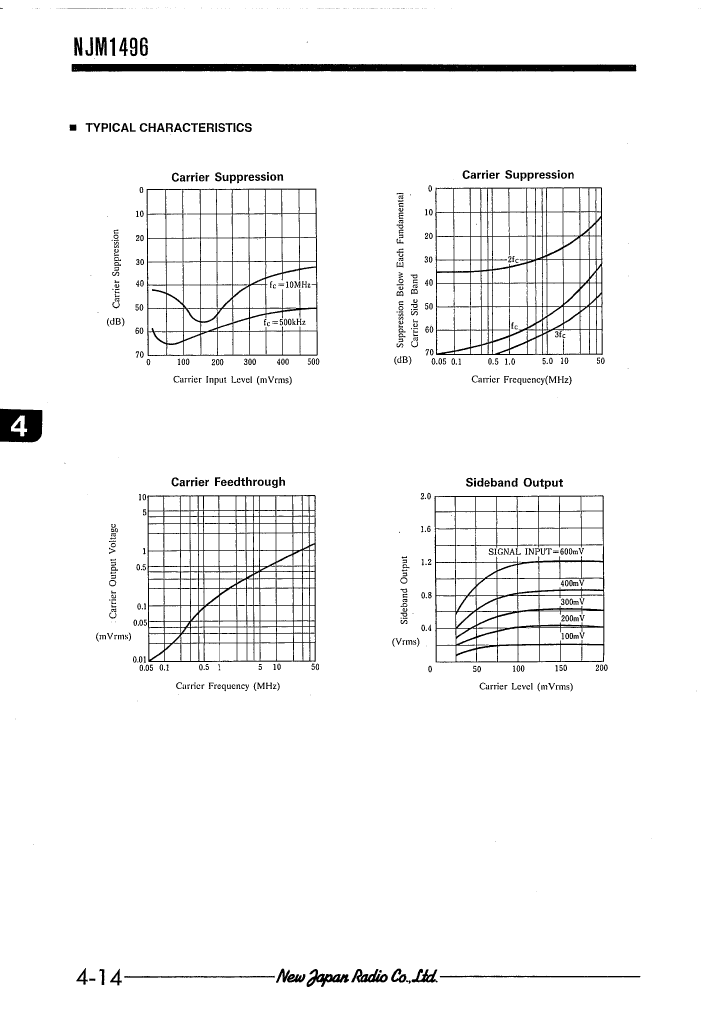

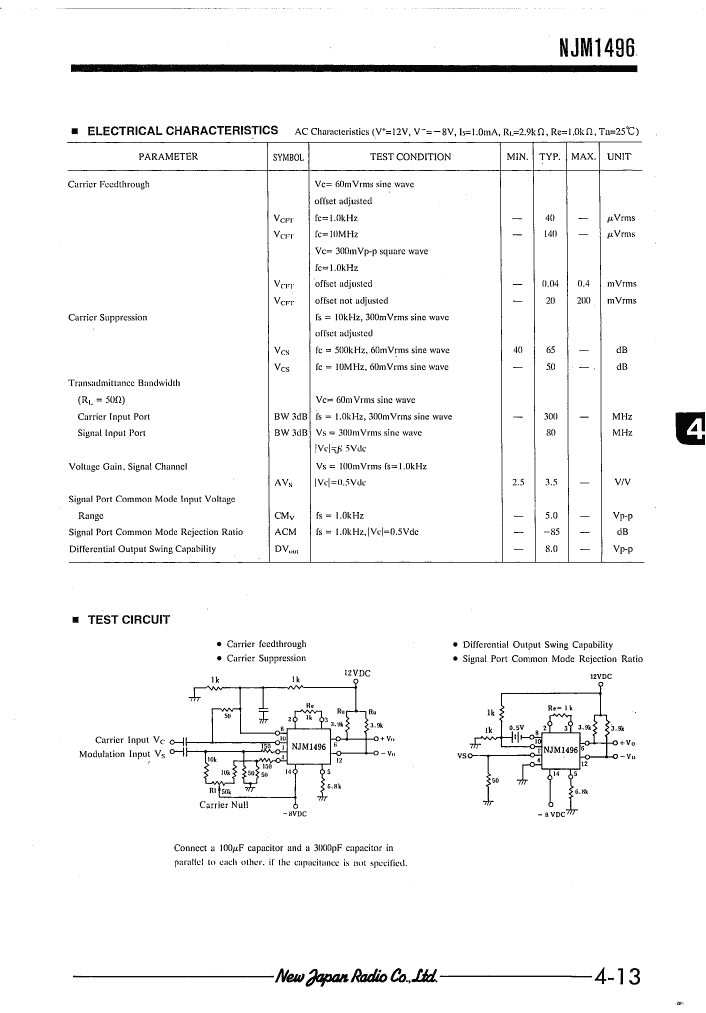

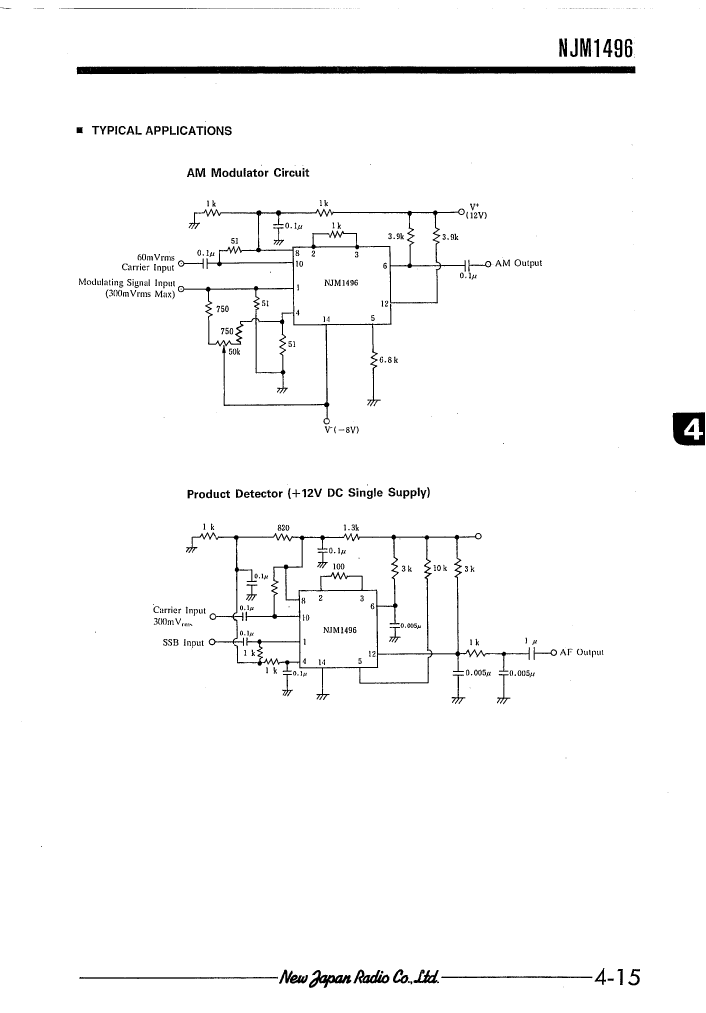

Telecom Circuit, 1-Func, Bipolar, PDSO14, SSOP-14

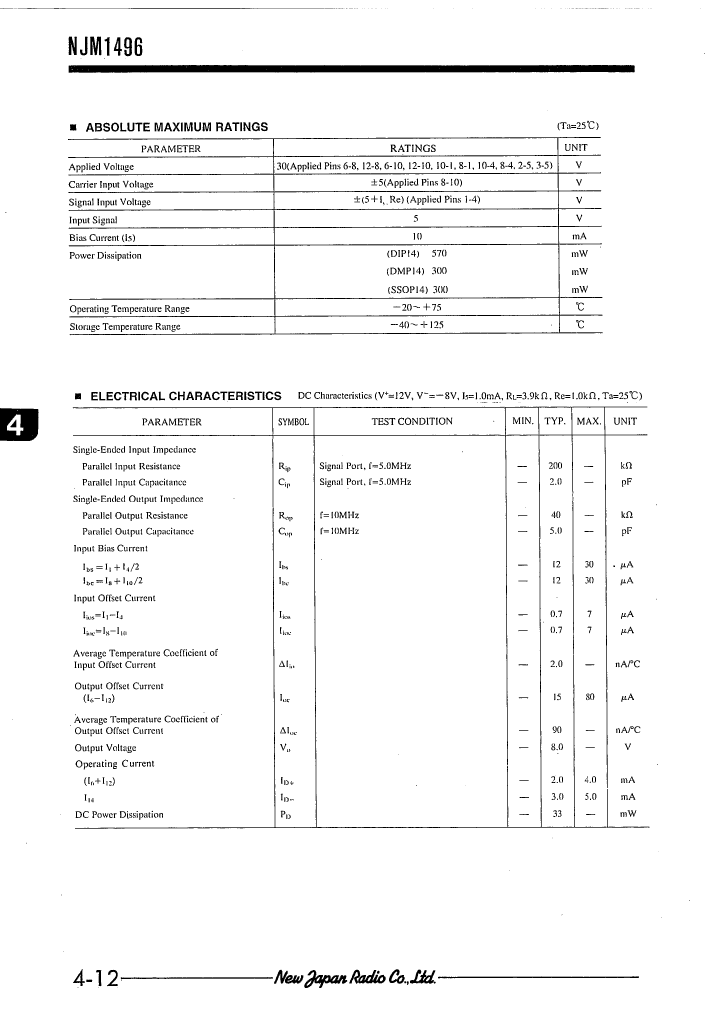

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | New Japan Radio Co., Ltd.. |
| Parts packaging code | SSOP |
| package instruction | SSOP-14 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e6 |
| length | 5 mm |
| Negative supply voltage rating | -8 V |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | TSSOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 12,-8 V |
| Certification status | Not Qualified |
| Maximum seat height | 1.45 mm |
| Maximum slew rate | 5 mA |
| Nominal supply voltage | 12 V |
| surface mount | YES |
| technology | BIPOLAR |
| Telecom integrated circuit types | TELECOM CIRCUIT |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| width | 4.4 mm |
| NJM1496V-(TE1) | NJM1496M-(TE2) | NJM1496M-(TE1) | NJM1496M-(T2) | NJM1496V-(TE2) | |
|---|---|---|---|---|---|
| Description | Telecom Circuit, 1-Func, Bipolar, PDSO14, SSOP-14 | Telecom Circuit, 1-Func, Bipolar, PDSO14, DMP-14 | Telecom Circuit, 1-Func, Bipolar, PDSO14, DMP-14 | Telecom Circuit, 1-Func, Bipolar, PDSO14, DMP-14 | Telecom Circuit, 1-Func, Bipolar, PDSO14, SSOP-14 |
| Maker | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. |
| Parts packaging code | SSOP | SOIC | SOIC | SOIC | SSOP |
| package instruction | SSOP-14 | DMP-14 | DMP-14 | DMP-14 | SSOP-14 |
| Contacts | 14 | 14 | 14 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| JESD-609 code | e6 | e6 | e6 | e6 | e6 |
| length | 5 mm | 10 mm | 10 mm | 10 mm | 5 mm |
| Negative supply voltage rating | -8 V | -8 V | -8 V | -8 V | -8 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.45 mm | 2 mm | 2 mm | 2 mm | 1.45 mm |
| Maximum slew rate | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Nominal supply voltage | 12 V | 12 V | 12 V | 12 V | 12 V |
| surface mount | YES | YES | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Telecom integrated circuit types | TELECOM CIRCUIT | TELECOM CIRCUIT | TELECOM CIRCUIT | TELECOM CIRCUIT | TELECOM CIRCUIT |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | Tin/Bismuth (Sn/Bi) | TIN BISMUTH | Tin/Bismuth (Sn/Bi) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 1.27 mm | 1.27 mm | 1.27 mm | 0.65 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 4.4 mm | 5 mm | 5 mm | 5 mm | 4.4 mm |
| Is it Rohs certified? | conform to | conform to | conform to | - | conform to |
| Encapsulate equivalent code | TSSOP14,.25 | SOP14,.3 | SOP14,.3 | - | TSSOP14,.25 |
| power supply | 12,-8 V | 12,-8 V | 12,-8 V | - | 12,-8 V |
