REF08BZ/883C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> REF08BZ/883C

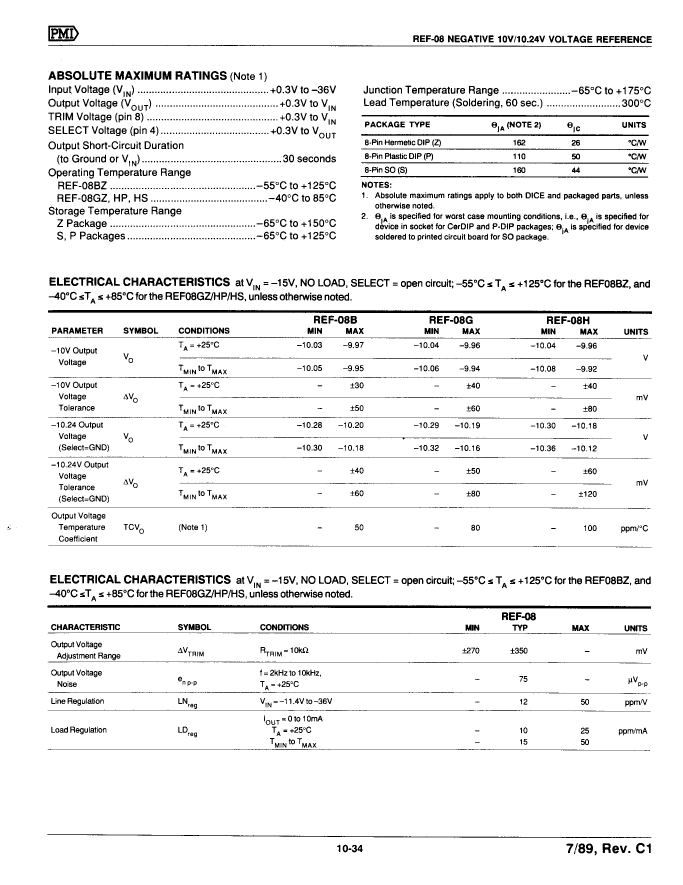

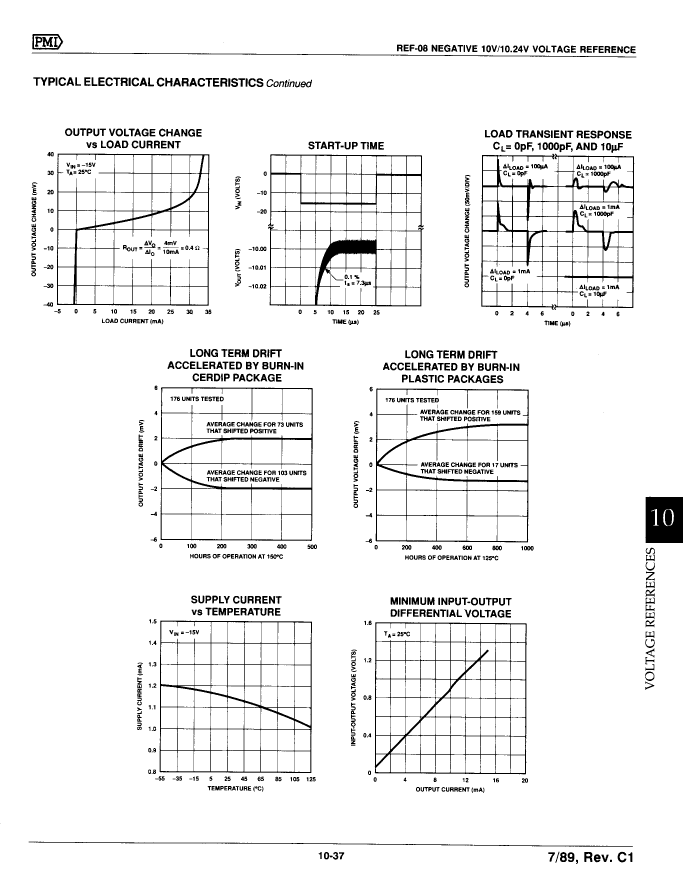

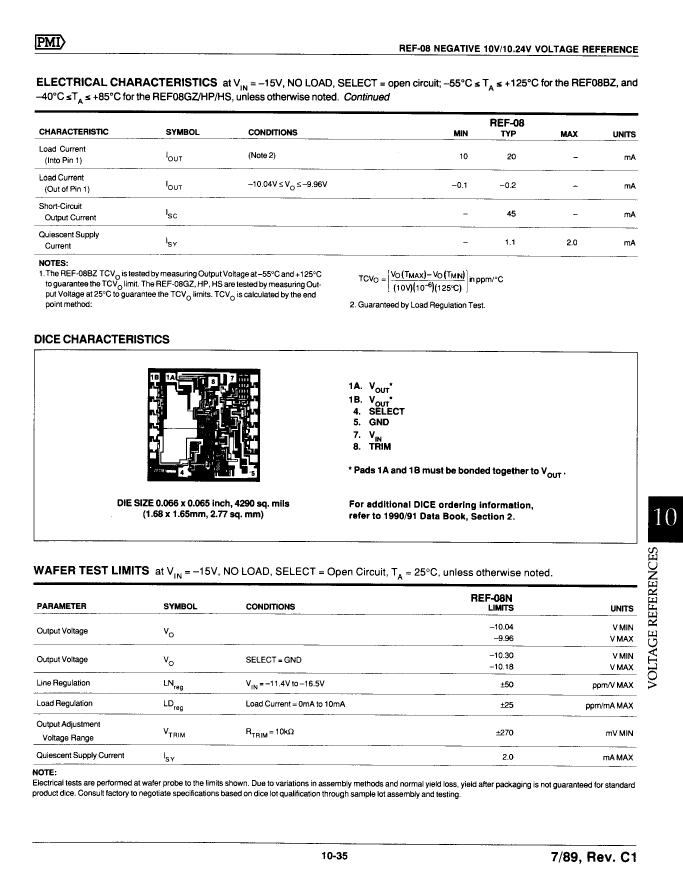

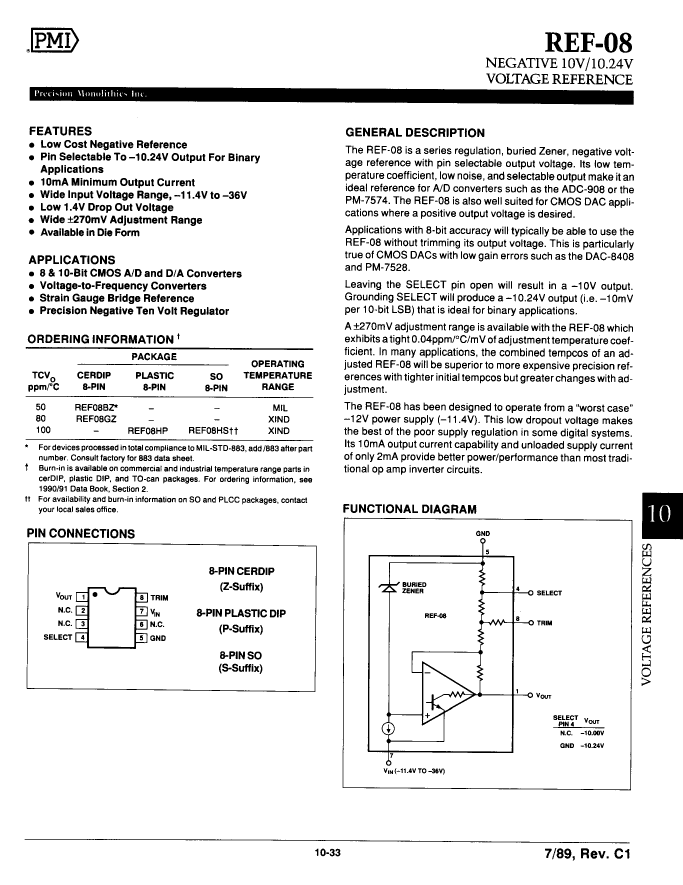

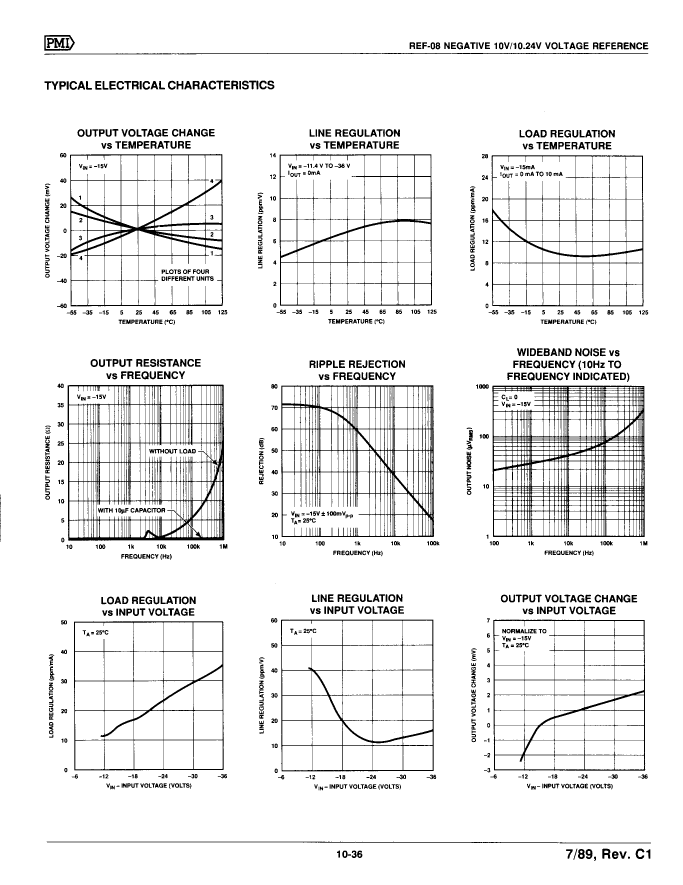

Preview

REF08BZ/883C: DescriptionVoltage Reference, -10.24V, CMOS, CDIP8,; CategoryPower/power management The power supply circuit; File Size428KB，8 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

REF08BZ/883C Overview

Voltage Reference, -10.24V, CMOS, CDIP8,

REF08BZ/883C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	-10.24 V
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Maximum voltage temperature coefficient	50 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum voltage tolerance	0.6%

Preview

Download Datasheet

View All

REF08BZ/883C Related Products

	REF08BZ/883C	REF08HP	REF08HS	REF08GZ	REF08BZ/883	REF08BZ
Description	Voltage Reference, -10.24V, CMOS, CDIP8,	Three Terminal Voltage Reference, -10.24V, CMOS, PDIP8,	Three Terminal Voltage Reference, -10.24V, CMOS, PDSO8,	Three Terminal Voltage Reference, -10.24V, CMOS, CDIP8,	Three Terminal Voltage Reference, -10.24V, CMOS, CDIP8,	Three Terminal Voltage Reference, -10.24V, CMOS, CDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T8	R-PDIP-T8	R-PDSO-G8	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C
Nominal output voltage	-10.24 V	-10.24 V	-10.24 V	-10.24 V	-10.24 V	-10.24 V
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	SOP8,.25	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Maximum voltage temperature coefficient	50 ppm/°C	100 ppm/°C	100 ppm/°C	80 ppm/°C	50 ppm/°C	50 ppm/°C
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum voltage tolerance	0.6%	1.2%	1.2%	0.8%	0.6%	0.6%
Maker	Precision Monolithics Inc	-	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
Analog Integrated Circuits - Other Types	-	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
