PLUS105-45N3 datasheet, PDF - EEWORLD Datasheet

PLUS105-45N3: DescriptionOT PLD, 9ns, PDIP28; CategoryProgrammable logic devices Programmable logic; File Size528KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

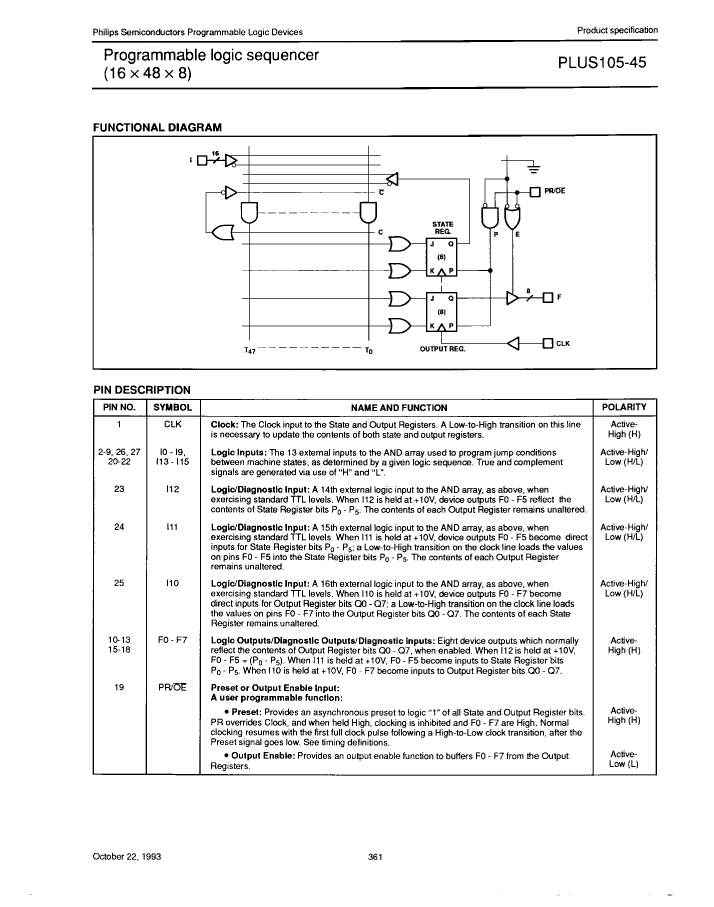

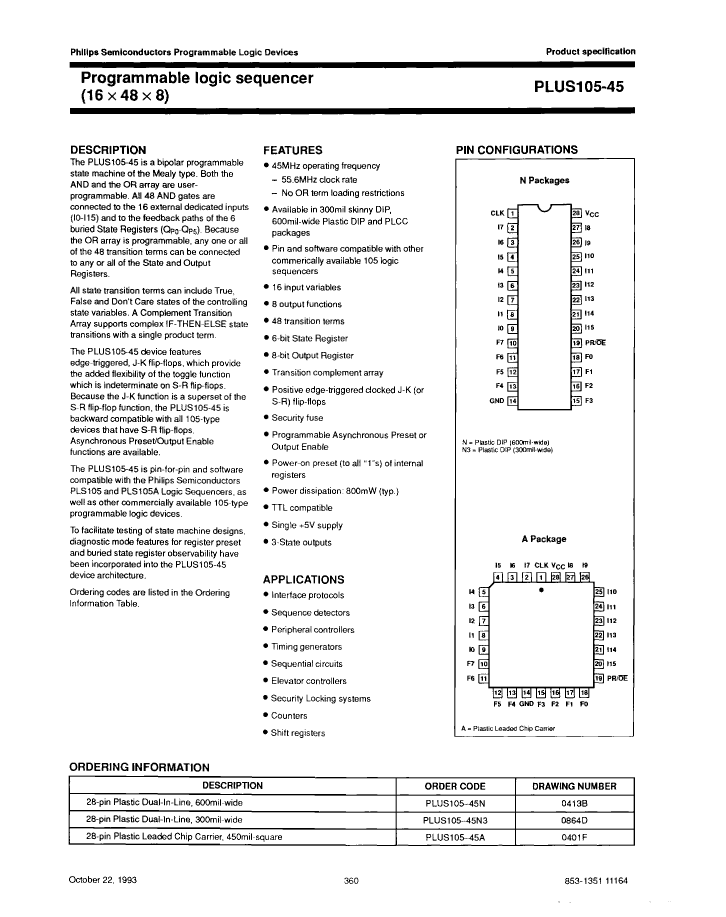

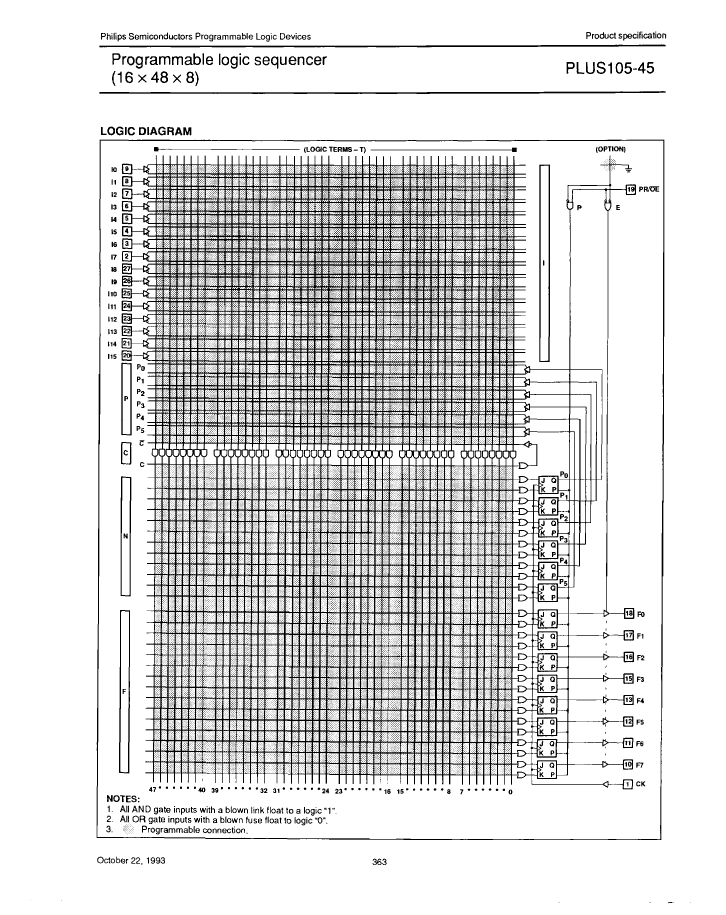

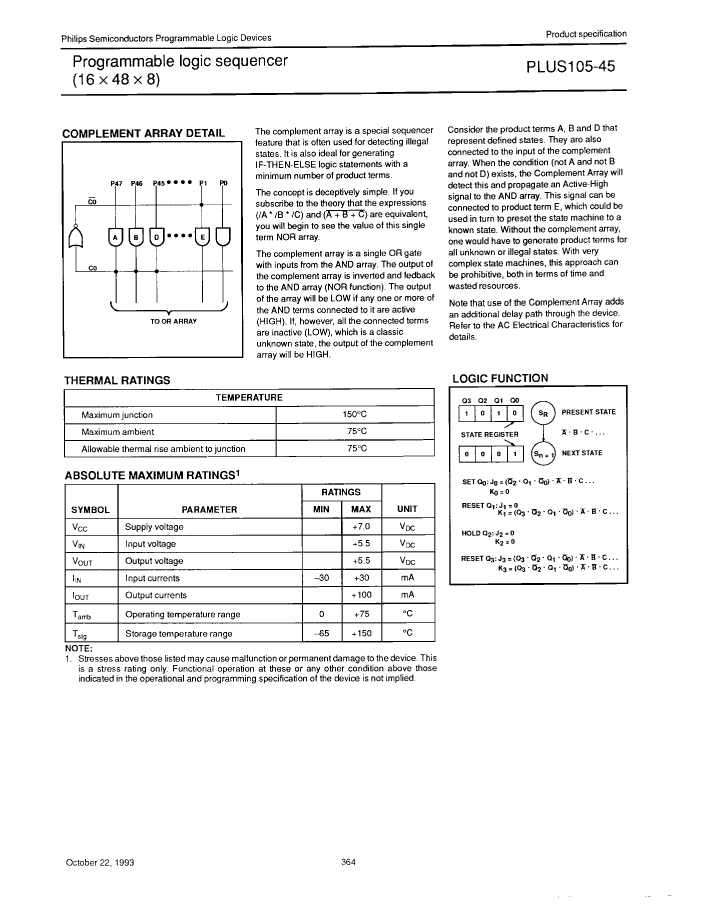

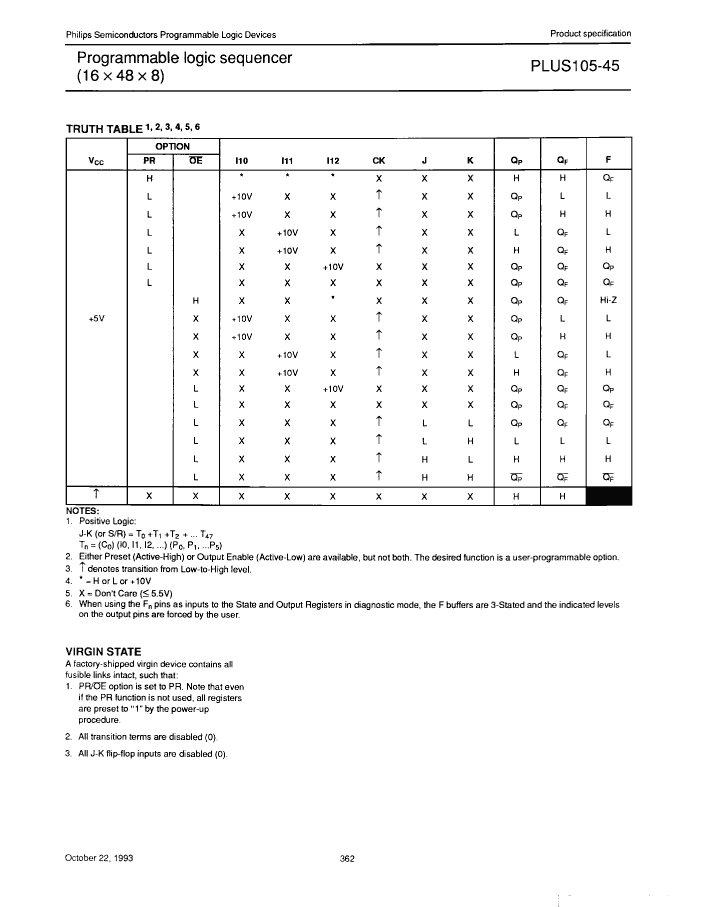

PLUS105-45N3 Overview

OT PLD, 9ns, PDIP28

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
Other features	PROGRAMMABLE LOGIC SEQUENCER; 1 EXTERNAL CLOCK
maximum clock frequency	31.3 MHz
JESD-30 code	R-PDIP-T28
length	35.505 mm
Dedicated input times	16
Number of I/O lines
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature
organize	16 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	9 ns
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	PLUS105-45N3	PLUS105-45A	PLUS105-45N
Description	OT PLD, 9ns, PDIP28	OT PLD, 9ns, PQCC28	OT PLD, 9ns, PDIP28
Maker	NXP	NXP	NXP
package instruction	DIP,	QCCJ,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	PROGRAMMABLE LOGIC SEQUENCER; 1 EXTERNAL CLOCK	PROGRAMMABLE LOGIC SEQUENCER; 1 EXTERNAL CLOCK	PROGRAMMABLE LOGIC SEQUENCER; 1 EXTERNAL CLOCK
maximum clock frequency	31.3 MHz	31.3 MHz	31.3 MHz
JESD-30 code	R-PDIP-T28	S-PQCC-J28	R-PDIP-T28
length	35.505 mm	11.505 mm	36.51 mm
Dedicated input times	16	16	16
Number of terminals	28	28	28
Maximum operating temperature	75 °C	75 °C	75 °C
organize	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O	16 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED	REGISTERED	REGISTERED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
Programmable logic type	OT PLD	OT PLD	OT PLD
propagation delay	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	4.57 mm	5.08 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
width	7.62 mm	11.505 mm	15.24 mm
