PLUS173-10A-T datasheet, PDF - EEWORLD Datasheet

PLUS173-10A-T: DescriptionOT PLD, 10ns, TTL, PQCC28; CategoryProgrammable logic devices Programmable logic; File Size223KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

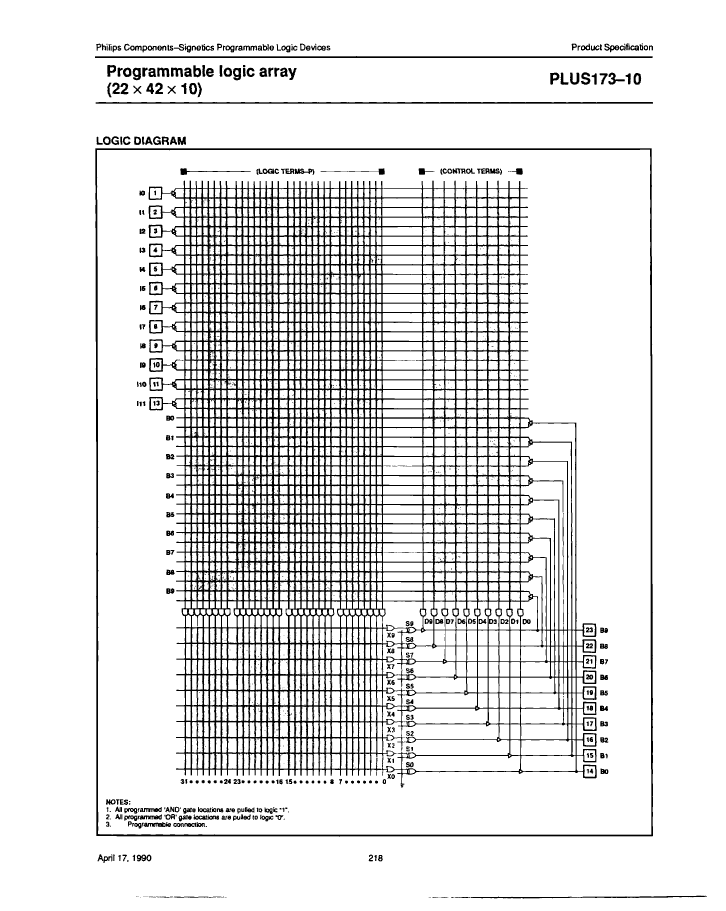

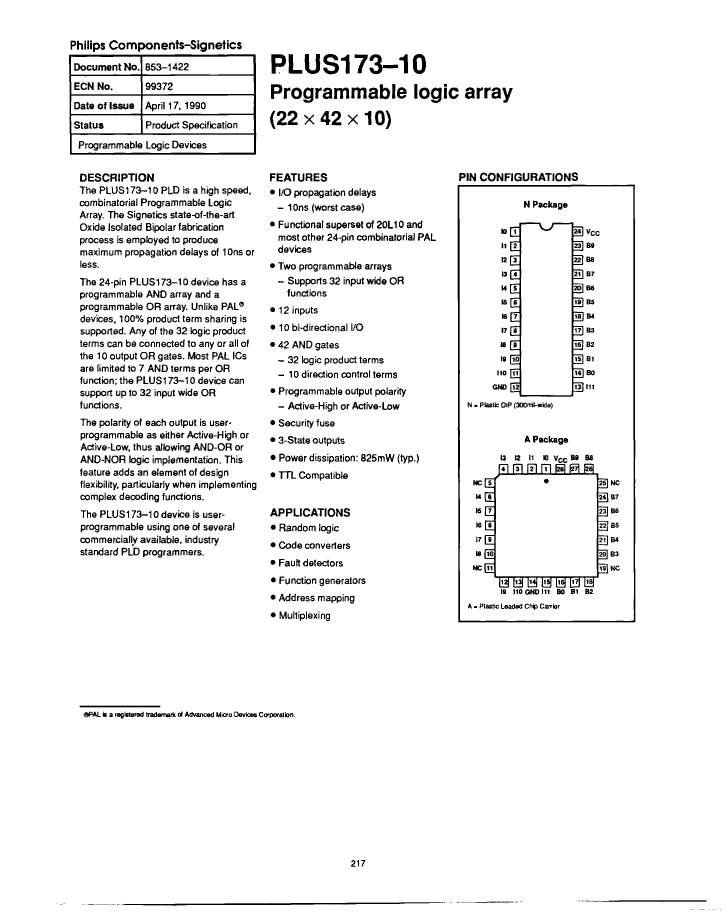

PLUS173-10A-T Overview

OT PLD, 10ns, TTL, PQCC28

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	PROGRAMMABLE OUTPUT POLARITY; SECURITY FUSE
JESD-30 code	S-PQCC-J28
Dedicated input times	12
Number of I/O lines	10
Number of terminals	28

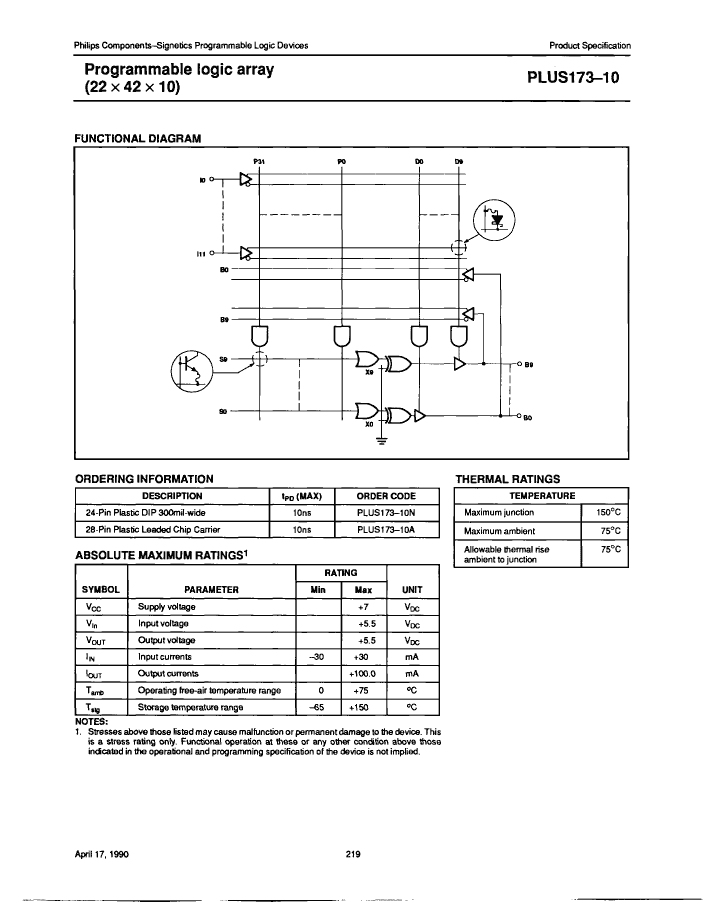

Maximum operating temperature	75 °C
Minimum operating temperature
organize	12 DEDICATED INPUTS, 10 I/O
Output function	COMBINATORIAL
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD

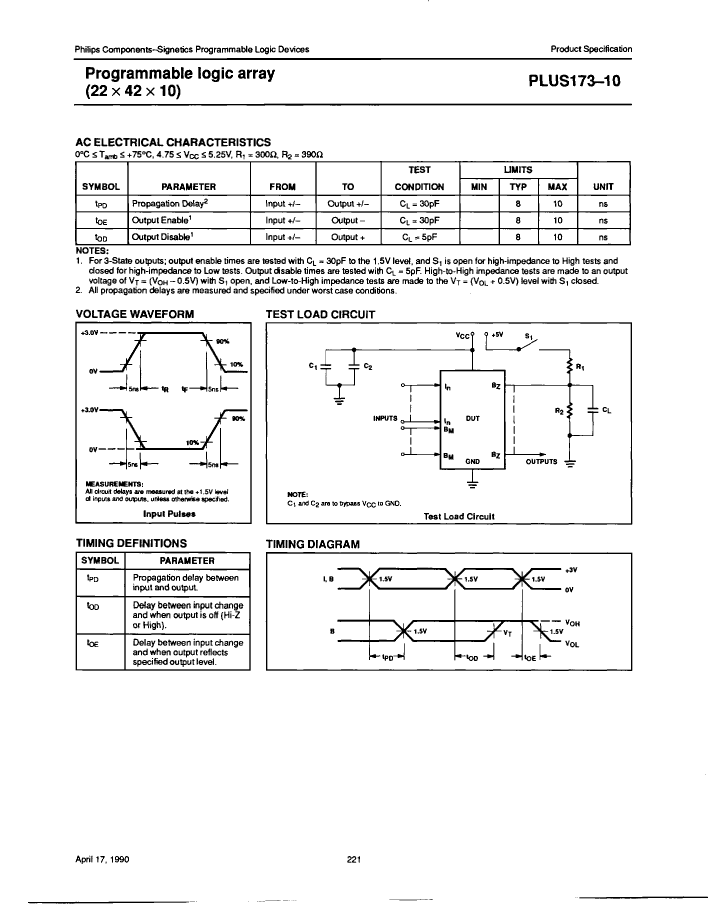

propagation delay	10 ns
Certification status	Not Qualified

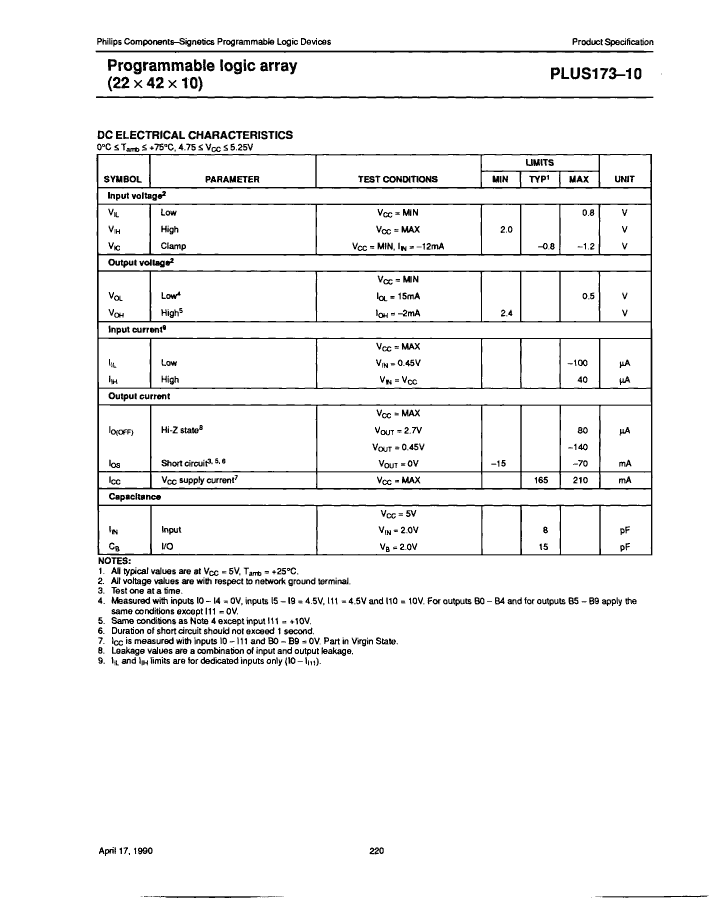

Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal location	QUAD

	PLUS173-10A-T	PLUS173-10A	PLUS173-10N
Description	OT PLD, 10ns, TTL, PQCC28	OT PLD, 10ns, TTL, PQCC28	OT PLD, 10ns, TTL, PDIP24
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
Other features	PROGRAMMABLE OUTPUT POLARITY; SECURITY FUSE	PROGRAMMABLE OUTPUT POLARITY; SECURITY FUSE	PROGRAMMABLE OUTPUT POLARITY; SECURITY FUSE
JESD-30 code	S-PQCC-J28	S-PQCC-J28	R-PDIP-T24
Dedicated input times	12	12	12
Number of I/O lines	10	10	10
Number of terminals	28	28	24
Maximum operating temperature	75 °C	75 °C	75 °C
organize	12 DEDICATED INPUTS, 10 I/O	12 DEDICATED INPUTS, 10 I/O	12 DEDICATED INPUTS, 10 I/O
Output function	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE
Programmable logic type	OT PLD	OT PLD	OT PLD
propagation delay	10 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	J BEND	J BEND	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL
