PLUS173-10N datasheet, PDF - EEWORLD Datasheet

PLUS173-10N: DescriptionOT PLD, 10ns, PDIP24, 0.300 INCH, PLASTIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size305KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

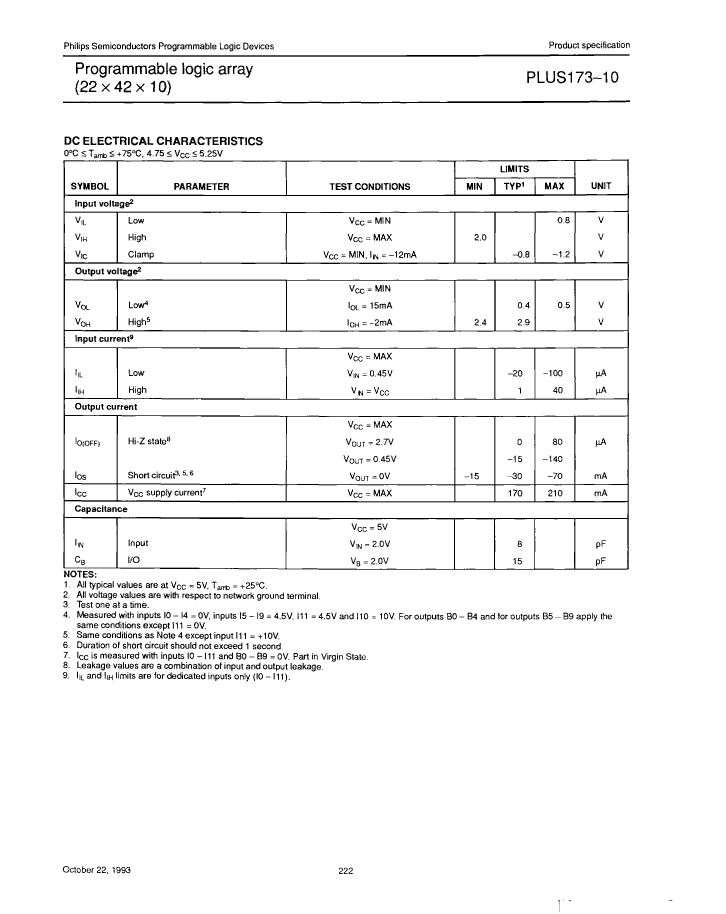

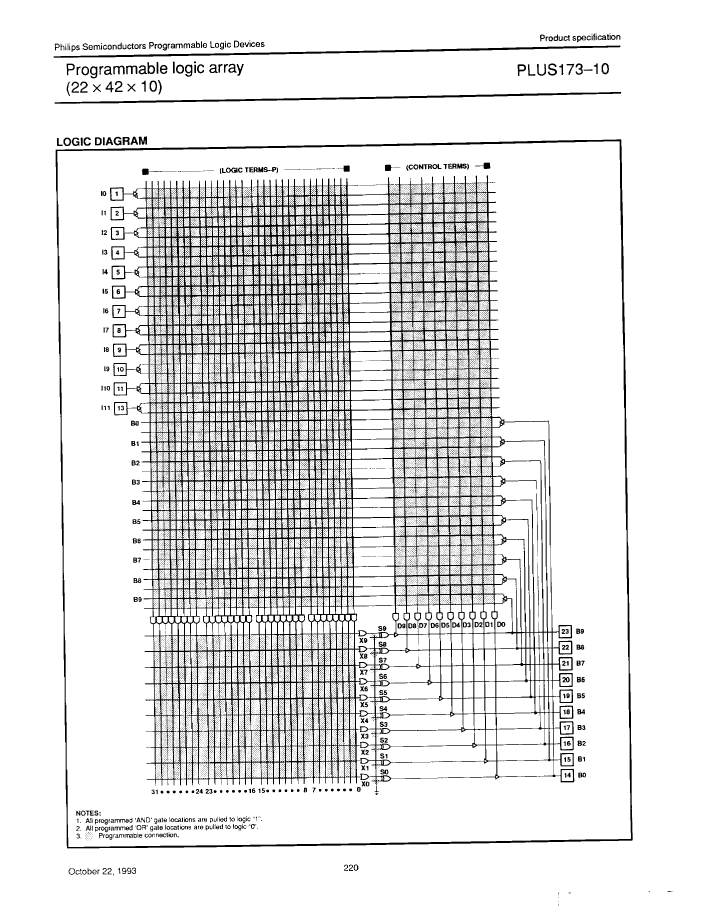

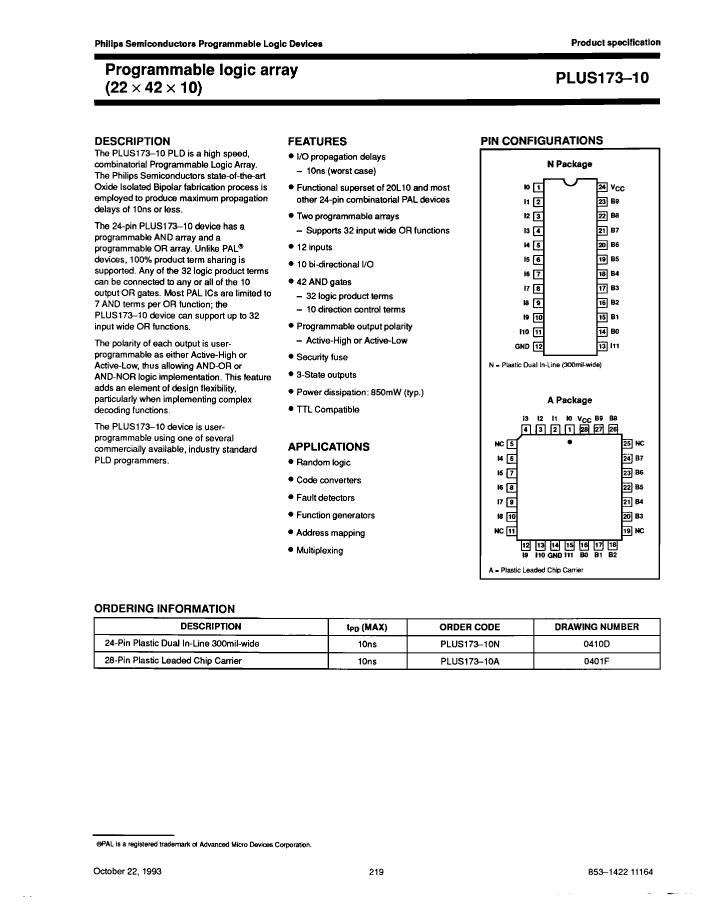

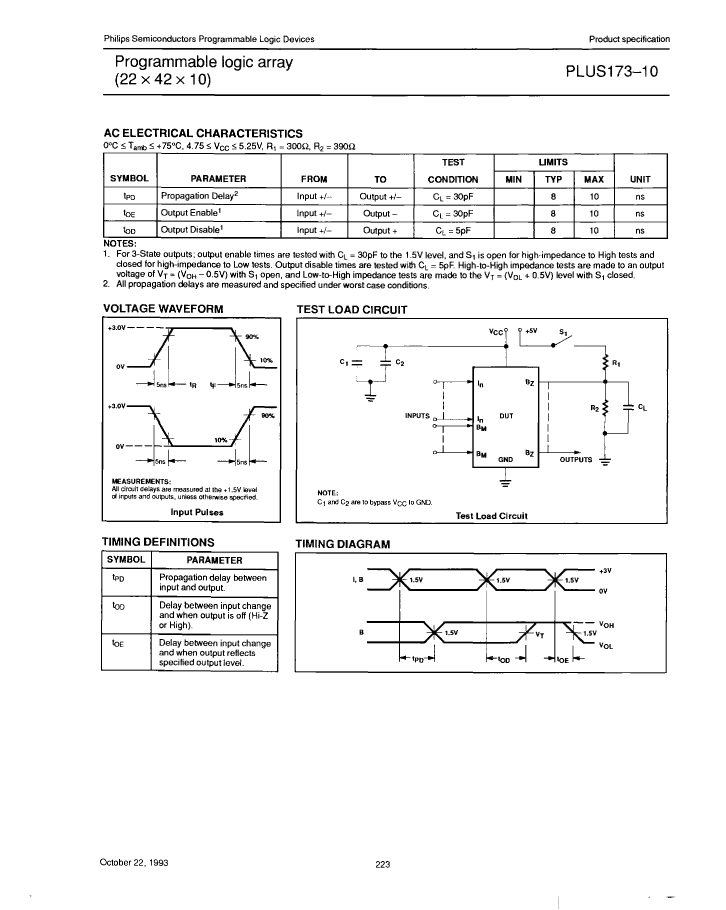

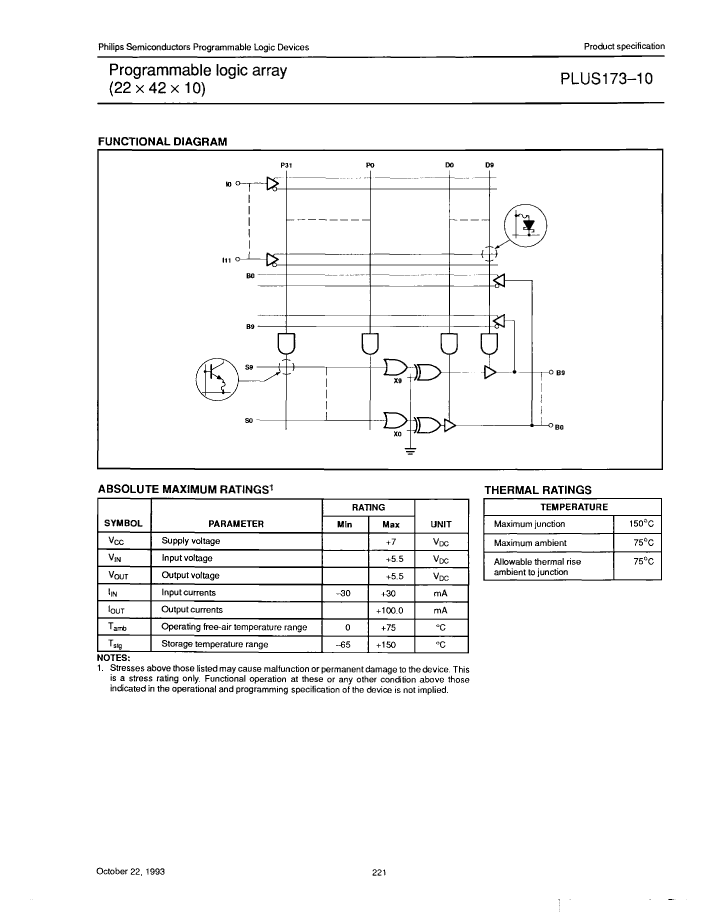

PLUS173-10N Overview

OT PLD, 10ns, PDIP24, 0.300 INCH, PLASTIC, DIP-24

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Other features	PROGRAMMABLE OUTPUT POLARITY
JESD-30 code	R-PDIP-T24
length	31.7 mm
Dedicated input times	12
Number of I/O lines	10
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature
organize	12 DEDICATED INPUTS, 10 I/O
Output function	COMBINATORIAL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	10 ns
Certification status	Not Qualified
Maximum seat height	4.7 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	PLUS173-10N	PLUS173-10A
Description	OT PLD, 10ns, PDIP24, 0.300 INCH, PLASTIC, DIP-24	OT PLD, 10ns, PQCC28, PLASTIC, LCC-28
Maker	NXP	NXP
Parts packaging code	DIP	QLCC
package instruction	DIP,	QCCJ,
Contacts	24	28
Reach Compliance Code	unknown	unknown
Other features	PROGRAMMABLE OUTPUT POLARITY	PROGRAMMABLE OUTPUT POLARITY
JESD-30 code	R-PDIP-T24	S-PQCC-J28
length	31.7 mm	11.505 mm
Dedicated input times	12	12
Number of I/O lines	10	10
Number of terminals	24	28
Maximum operating temperature	75 °C	75 °C
organize	12 DEDICATED INPUTS, 10 I/O	12 DEDICATED INPUTS, 10 I/O
Output function	COMBINATORIAL	COMBINATORIAL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Programmable logic type	OT PLD	OT PLD
propagation delay	10 ns	10 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.7 mm	4.57 mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
width	7.62 mm	11.505 mm
