ML2111BCP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> ML2111BCP

ML2111BCP: DescriptionSwitched Capacitor Filter, 2 Func, Resistor Programmable, Universal, PDIP20, PLASTIC, DIP-20; CategoryAnalog mixed-signal IC filter; File Size805KB，24 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

ML2111BCP Overview

Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, PDIP20, PLASTIC, DIP-20

ML2111BCP Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Active filter type	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	150 kHz
Center frequency or cutoff frequency minimum range	0.025 kHz
JESD-30 code	R-PDIP-T20
length	25.97 mm
Maximum negative supply voltage (Vsup)	-6 V
Negative supply voltage minimum (Vsup)	-2.25 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
poles and zeros	2 AND 0
Certification status	Not Qualified
response	UNIVERSAL
Maximum seat height	4.32 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
transfer characteristics	RESISTOR PROGRAMMABLE
width	7.62 mm

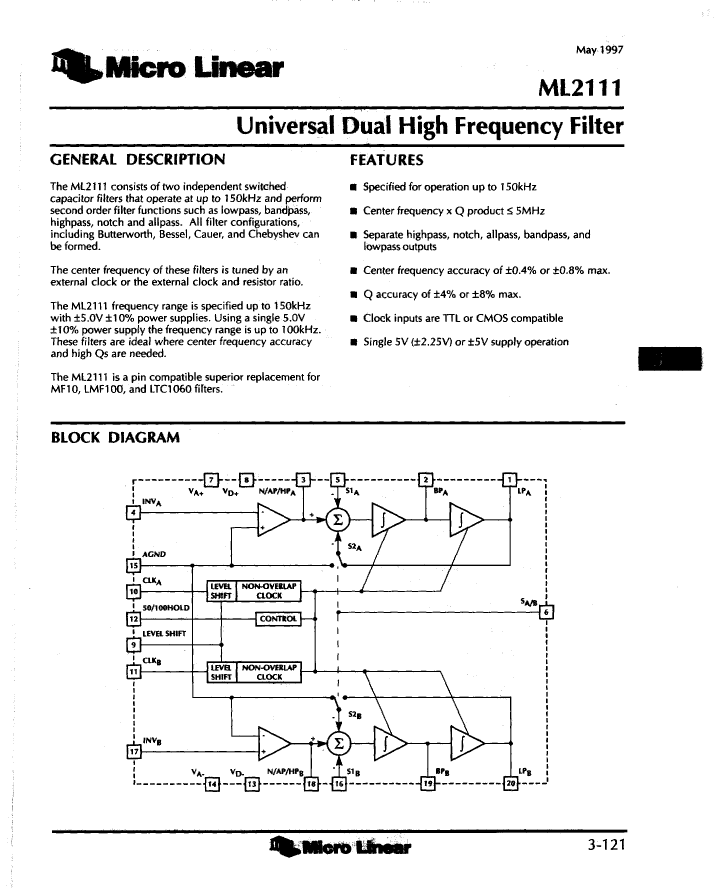

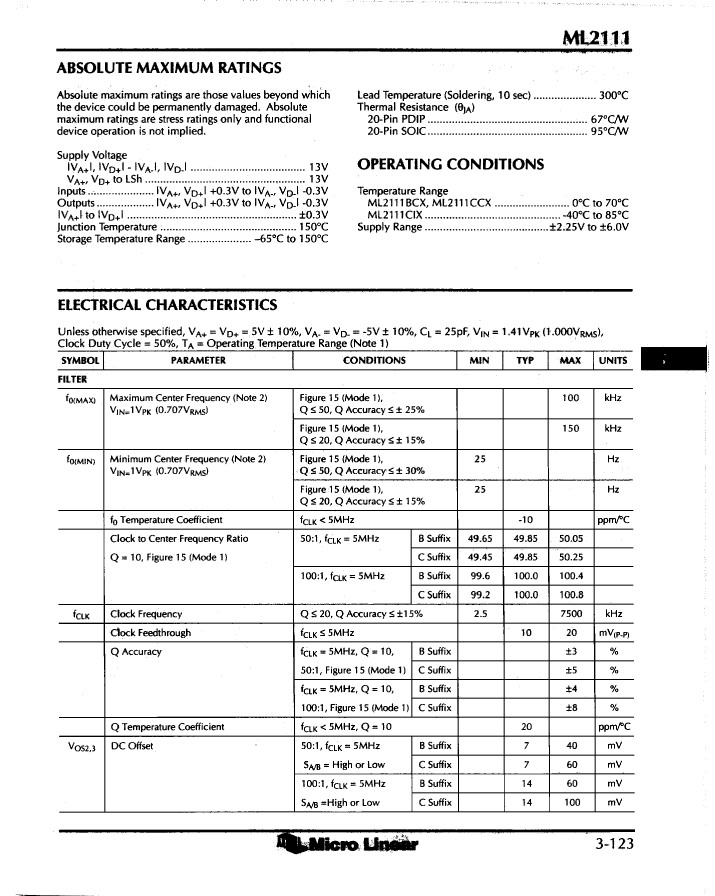

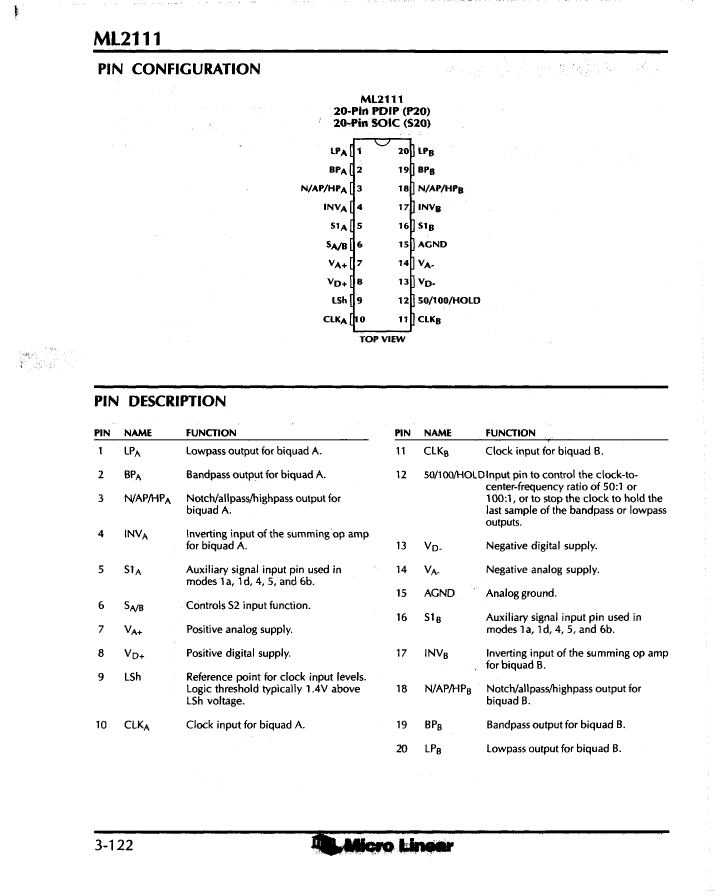

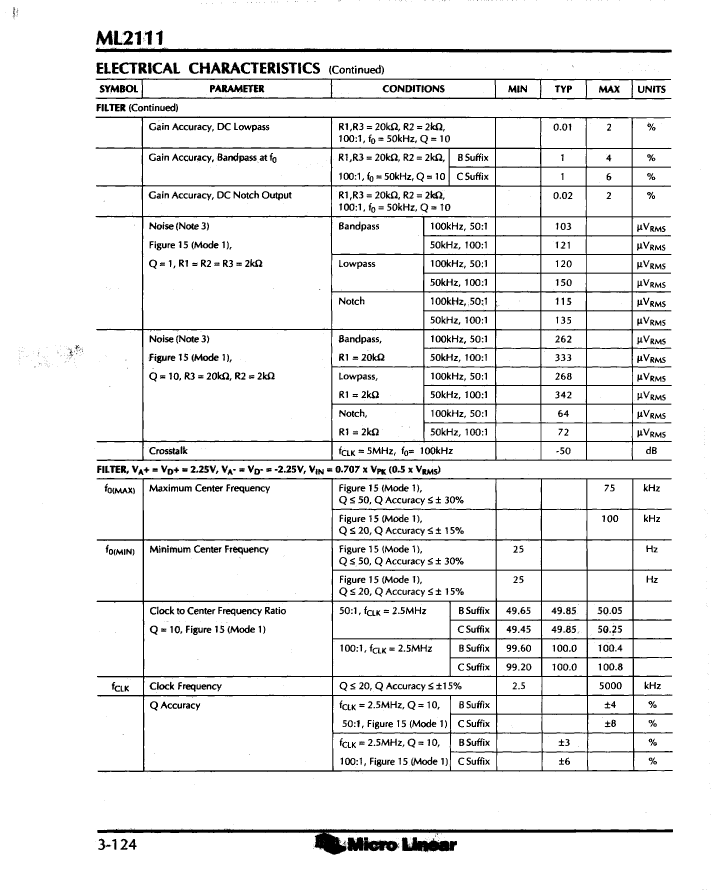

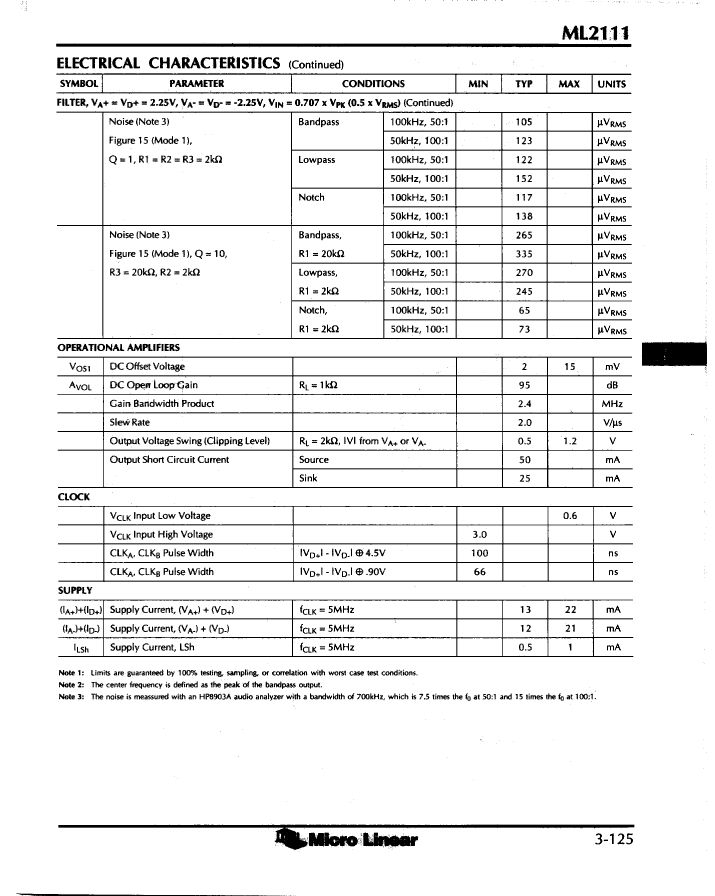

ML2111BCP Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ML2111BCP Related Products

	ML2111BCP	ML2111CIS	ML2111BCS
Description	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, PDIP20, PLASTIC, DIP-20	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, PDSO20, SOIC-20	Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, PDSO20, SOIC-20
Maker	Fairchild	Fairchild	Fairchild
Parts packaging code	DIP	SOIC	SOIC
package instruction	DIP,	SOP,	SOP,
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Active filter type	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	150 kHz	150 kHz	150 kHz
Center frequency or cutoff frequency minimum range	0.025 kHz	0.025 kHz	0.025 kHz
JESD-30 code	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20
length	25.97 mm	12.8 mm	12.8 mm
Maximum negative supply voltage (Vsup)	-6 V	-6 V	-6 V
Negative supply voltage minimum (Vsup)	-2.25 V	-2.25 V	-2.25 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V
Number of functions	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	70 °C	85 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
poles and zeros	2 AND 0	2 AND 0	2 AND 0
Certification status	Not Qualified	Not Qualified	Not Qualified
response	UNIVERSAL	UNIVERSAL	UNIVERSAL
Maximum seat height	4.32 mm	2.72 mm	2.72 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2.25 V	2.25 V	2.25 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
transfer characteristics	RESISTOR PROGRAMMABLE	RESISTOR PROGRAMMABLE	RESISTOR PROGRAMMABLE
width	7.62 mm	7.5 mm	7.5 mm
