TECHNICAL DATA SHEET
FAKRA - HF
RIGHT ANGLE PLUG

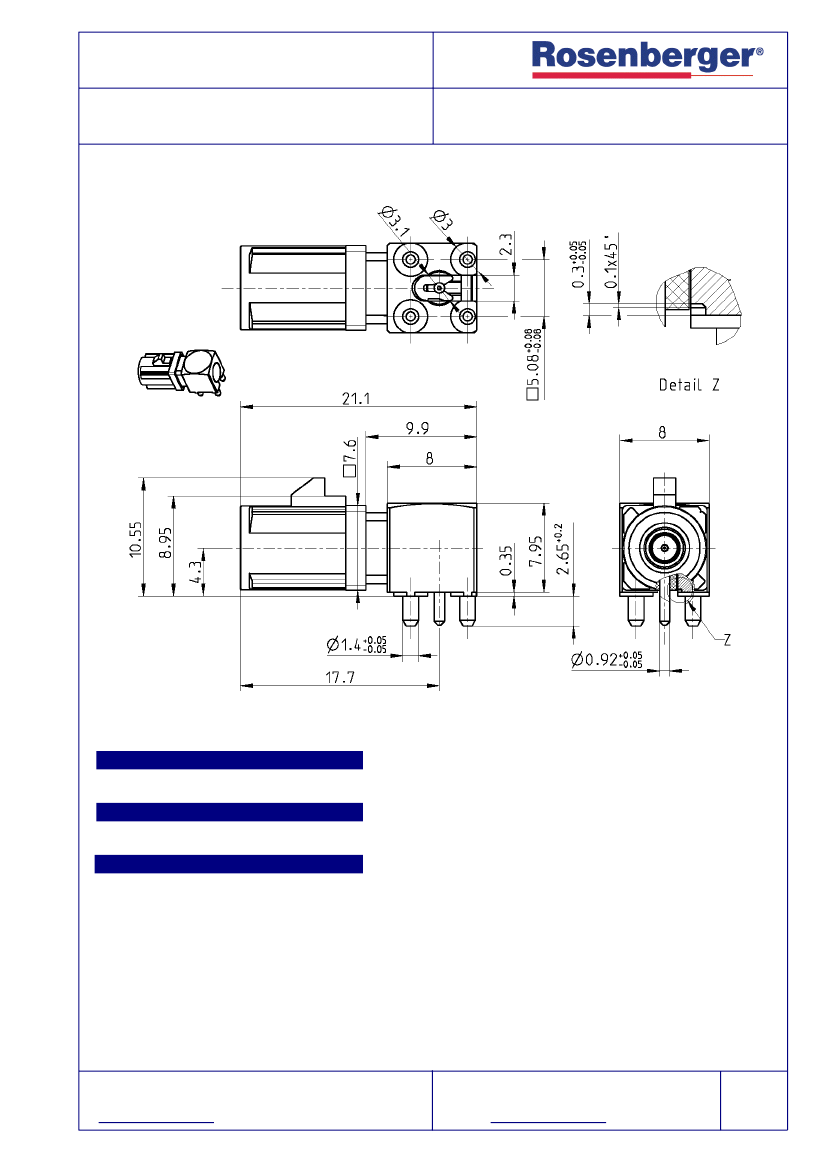

59S2AX-400A5-Y
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1
Documents
Panel piercing
MB_190
Material and plating
Connector parts
Center contact
Outer contact
Body
Cover
Dielectric
Housing
Material
Brass
Brass
Brass
Alpaca
PA 6.6T
PA 6T/66
Plating
Gold, min. 0.15 µm, over chemical nickel
Nickel, 2.5-5 µm
Tin, 6-8 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/3
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
50
Ω
DC to 6 GHz
≥
18 dB
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
RIGHT ANGLE PLUG
59S2AX-400A5-Y
- Connector only, VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Engagement force
Disengagement force
Retention force latch
Coding efficiency
≥
25
≤
25 N
≥
2N
≥
110 N
≥
40 N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
Soldering profile
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause 6.2
DIN 72594-2 clause 6.3
DIN 72594-2 clause 6.1
DIN 72594-2 clause 6.4
acc. IEC 60068-2-58 group 3&4
compliant
Tooling
N/A
Packing
Standard
Weight
100 pcs in blister tray
5.5 g/pce
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/3
TECHNICAL DATA SHEET
FAKRA - HF
RIGHT ANGLE PLUG
59S2AX-400A5-Y

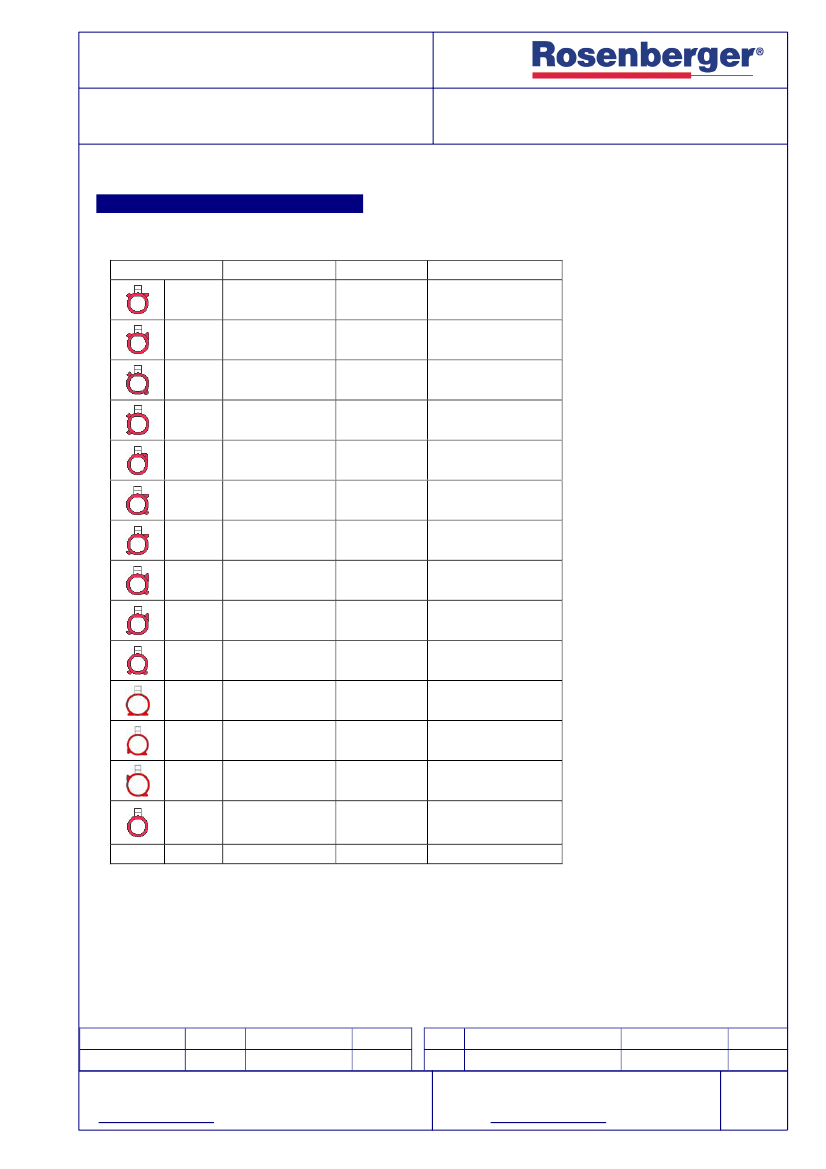

Coding
Coding
A
B
C
D
E
F
G
H
I
K
L
M
N
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
carmine-red
pastell-orange
white-green
waterblue
traffic purple
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 3002
sim. 2003
sim. 6019
sim. 5021
sim. 4006
Part-Number
59S2AX-400A5_A
59S2AX-400A5_B
59S2AX-400A5_C
59S2AX-400A5_D
59S2AX-400A5_E
59S2AX-400A5_F
59S2AX-400A5_G
59S2AX-400A5_H
59S2AX-400A5_I
59S2AX-400A5_K
59S2AX-400A5_L
59S2AX-400A5_M
59S2AX-400A5_N
59S2AX-400A5_Z
secondary lock
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Thomas Höfling
Date
01/08/06
Approved
T. Höfling
Date
04/02/09
Rev.
b00
Engineering change number
08-0666
Name
M. Singhammer
Date
04/02/09
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
3/3
