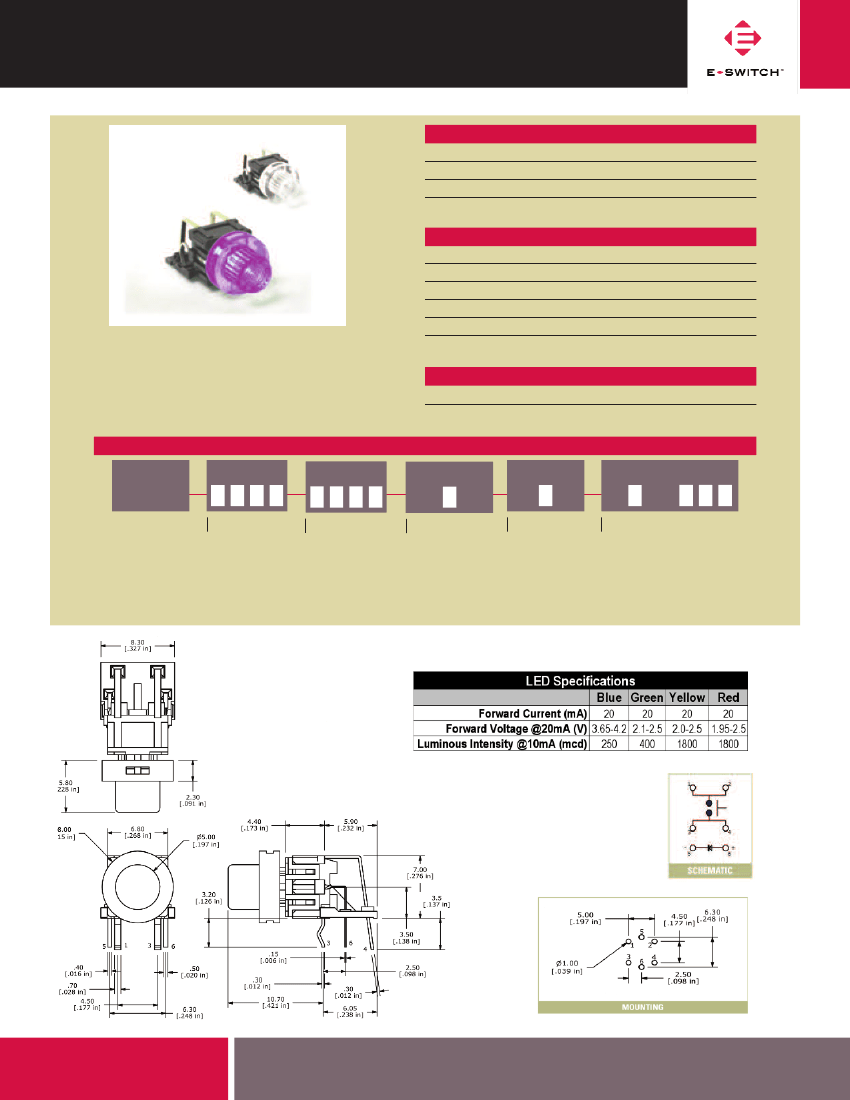

SERIES TL 1250 SWITCHES

ILLUMInATED RIGhT AnGLE TACT SWITCh

MECHANICAL SPECIFICATIONS

Mechanical Life:

Force:

Travel:

50,000 cycles

120 ± 60 gf; 180 ± 60 gf; 280 ± 70 gf

0.2mm ± 0.1mm

ELECTRICAL SPECIFICATIONS

Contact Rating:

Contact Resistance (Initial Max.):

Insulation Resistance (min.@100V):

Dielectric Strength (1 Min.):

Bounce:

12VDC @ 50mA

100 mohms @ 5VDC

100 Mohms

250VAC

5m Second Max

FEATURES & BENEFITS

• Right-angle, thru hole termination

• Single color LED options available

• Sharp, tactile response

• Long travel

APPLICATIONS / MARKETS

• Telecommunications

• Consumer Electronics

• Audio/visual

• Medical

• Testing/instrumentation

• Computer/servers/peripherals

ENVIRONMENTAL SPECIFICATIONS

operating Temperature:

-20°C to +70°C

HOW TO ORDER

SERIES

MODEL NO.

1250

OPERATING

FORCE

LED OPTION

CONTACT

MATERIAL

CAP OPTION

CAPCOLOR

F120 = 120 gf

F180 = 180 gf

F280 = 280 gf

Example Ordering Number

TL1250 F180AQ RCLR

A = None

B = Blue

R = Red

G = Green

y = yellow

Q = Silver

R = Gold

R = Round Style

N = No Cap

BLK = Black *

RED = Red*

GRy = Gray*

CLR = Clear

WHT = White*

*Denotes an opaque cap, not to be used

with an LED

Specifications subject to change without notice.

www.e-switch.com

email: info

e-switch.com

7153 NORTHLAND DRIVE NORTH

BROOKLyN PARK, MN 55428

PhonE: 763.504.3525

FAx: 763.531.8235
