T-1 3/4 (5mm) FULL COLOR LED LAMP
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
P/N: L-154A4SURKPBVGC
HYPER RED
BLUE
GREEN
Features
;UNIFORM
LIGHT OUTPUT.
;I.C.COMPATIBLE.
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
The Blue source color devices are made with InGaN
on SiC Light Emitting Diode.
The Green source color devices are made with InGaN
on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
;LOW
POWER CONSUMPTION.
;LONG
LIFE-SOLID STATE RELIABILITY.
;RoHS
COMPLIANT.

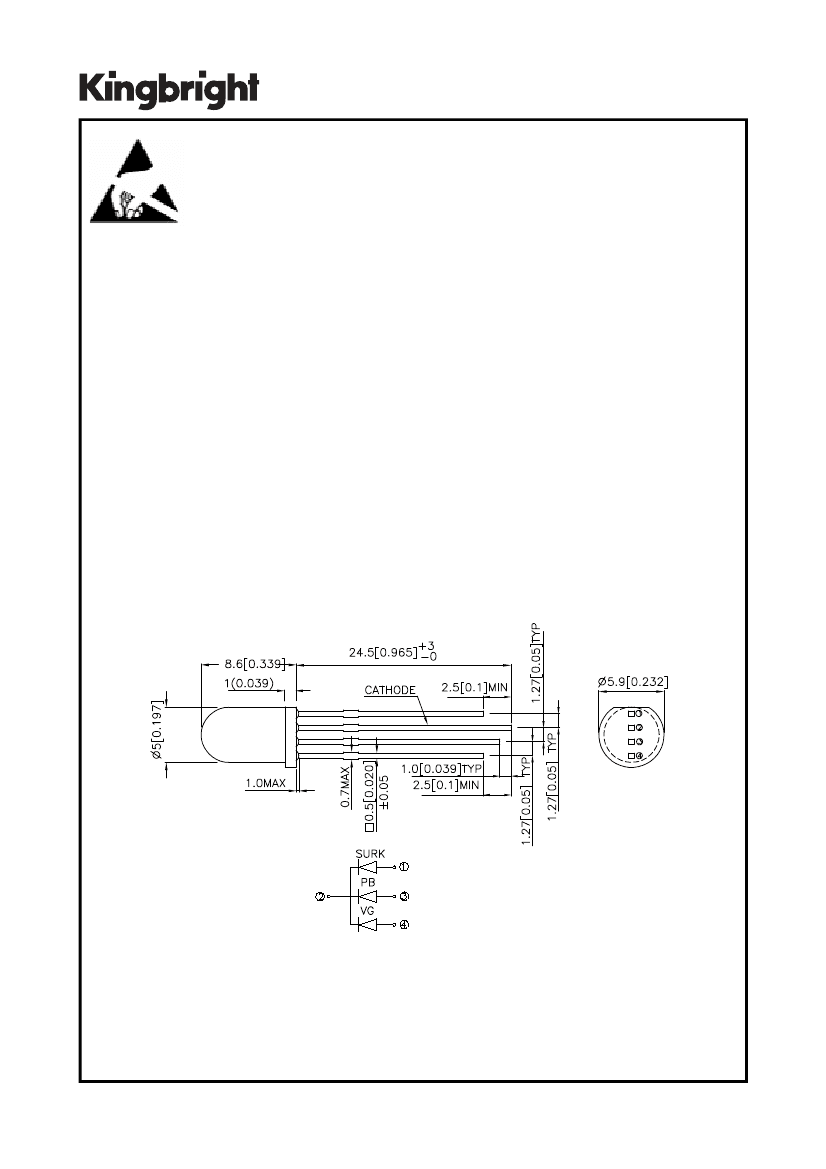

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAE5653
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: NOV/16/2005
DRAWN: F.LI
PAGE: 1 OF 5
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
HYPER RED (InGaAIP)
L-154A4SURKPBVGC
BLUE (InGaN)
GREEN (InGaN)
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Viewing
Angle
2θ1/2
50
°
Typ.
700
500
1200
380
WATER CLEAR
180
480
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
Parameter
Peak Wavelength
Device
Hyper Red
Blue
Green
Hyper Red
Blue
Green
Hyper Red
Blue
Green
Hyper Red
Blue
Green
Hyper Red
Blue
Green
Hyper Red
Blue
Green
Typ.
650
468
520
635
470
525
28
25
38
35
65
45
1.95
3.65
3.5
2.5
4.2
4.5
10
10
10
Max.
Units
nm
Test Conditions
I
F
=20mA
λD
Dominant Wavelength
nm
I
F
=20mA
∆λ1/2
Spectral Line Half-width
nm
I
F
=20mA
C
Capacitance
pF
V
F
=0V;f=1MHz
V
F
Forward Voltage
V
I
F
=20mA
I
R
Reverse Current
uA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Hyper Red
170
30
185
5
Blue
102
30
160
Green
105
30
150
Units
mW
mA
mA
V
-40
°
C TO +85
°
C
260°C For 3 Seconds
260°C For 5 Seconds
SPEC NO: DSAE5653
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: NOV/16/2005
DRAWN: F.LI
PAGE: 2 OF 5
L-154A4SURKPBVGC

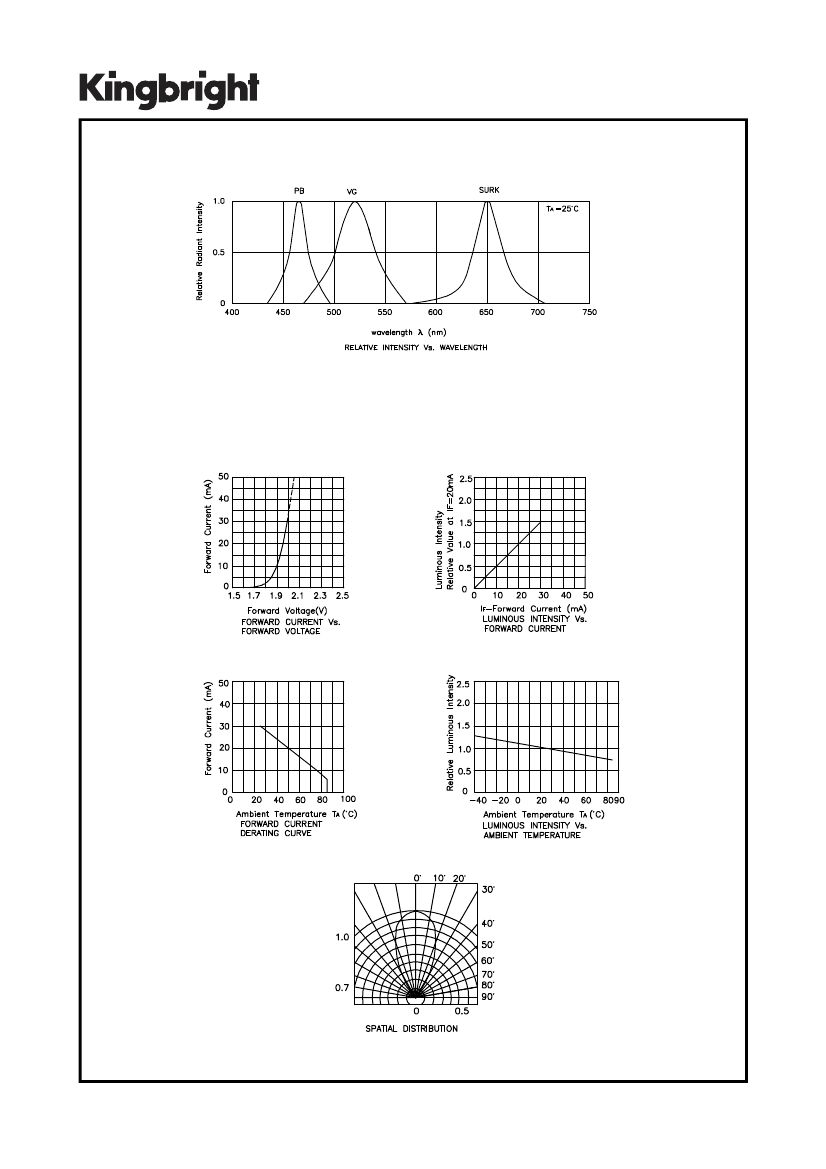

Hyper Red
SPEC NO: DSAE5653
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: NOV/16/2005
DRAWN: F.LI
PAGE: 3 OF 5

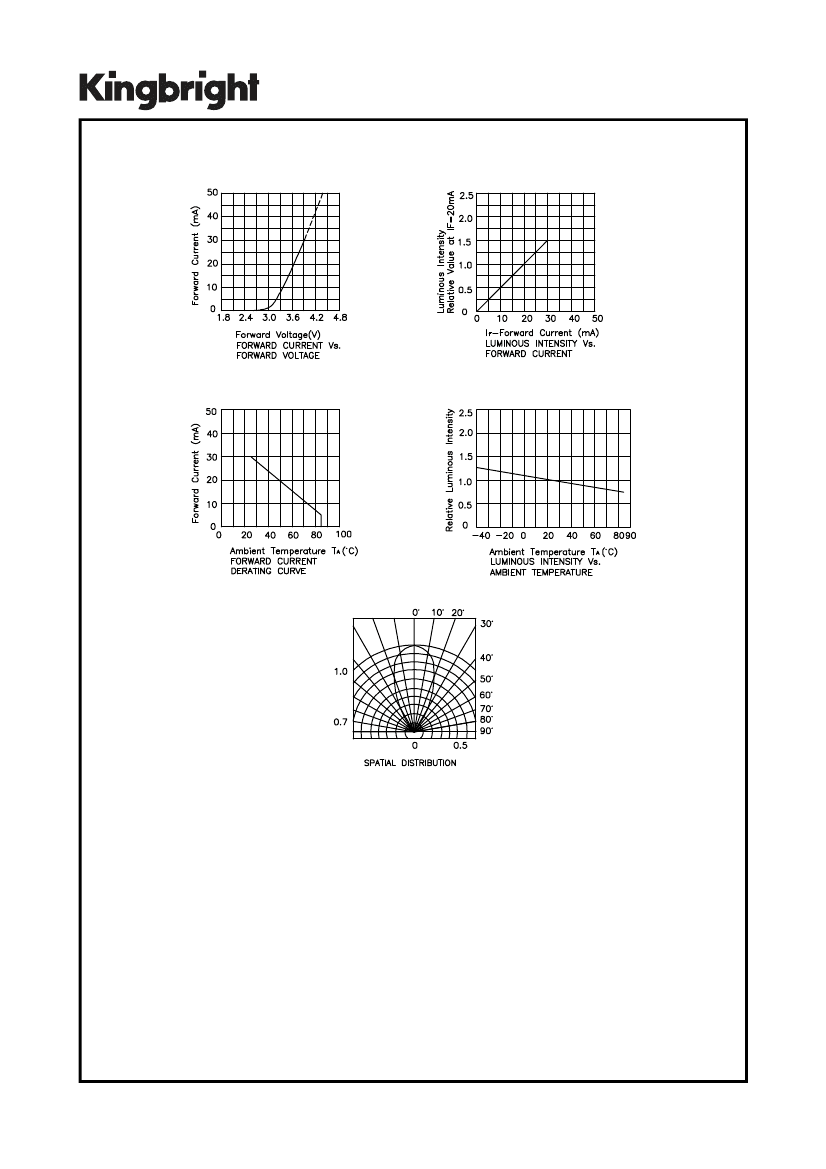

Blue
SPEC NO: DSAE5653
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: NOV/16/2005
DRAWN: F.LI
PAGE: 4 OF 5

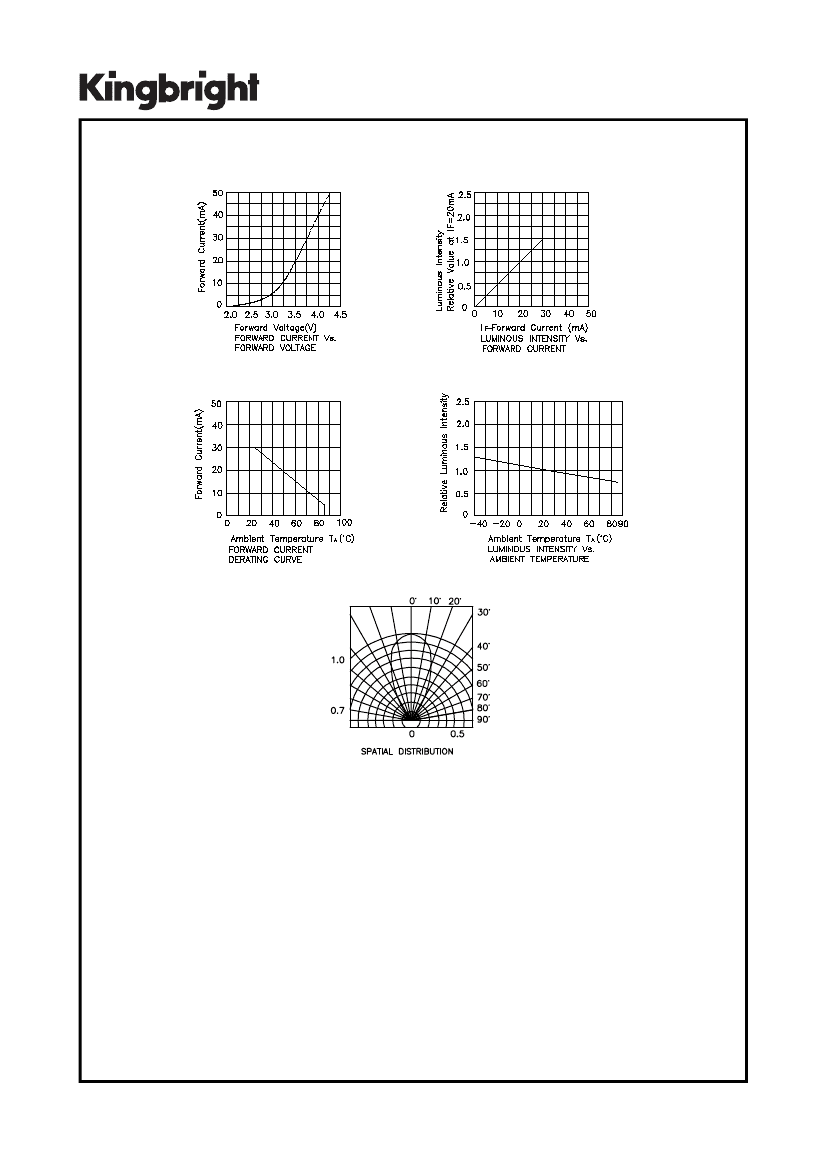

Green
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAE5653
APPROVED: J. Lu
REV NO: V.4
CHECKED: Allen Liu
DATE: NOV/16/2005
DRAWN: F.LI
PAGE: 5 OF 5
