SFAF2001G - SFAF2008G
20.0AMPS. Isolated Glass Passivated Super Fast Rectifiers

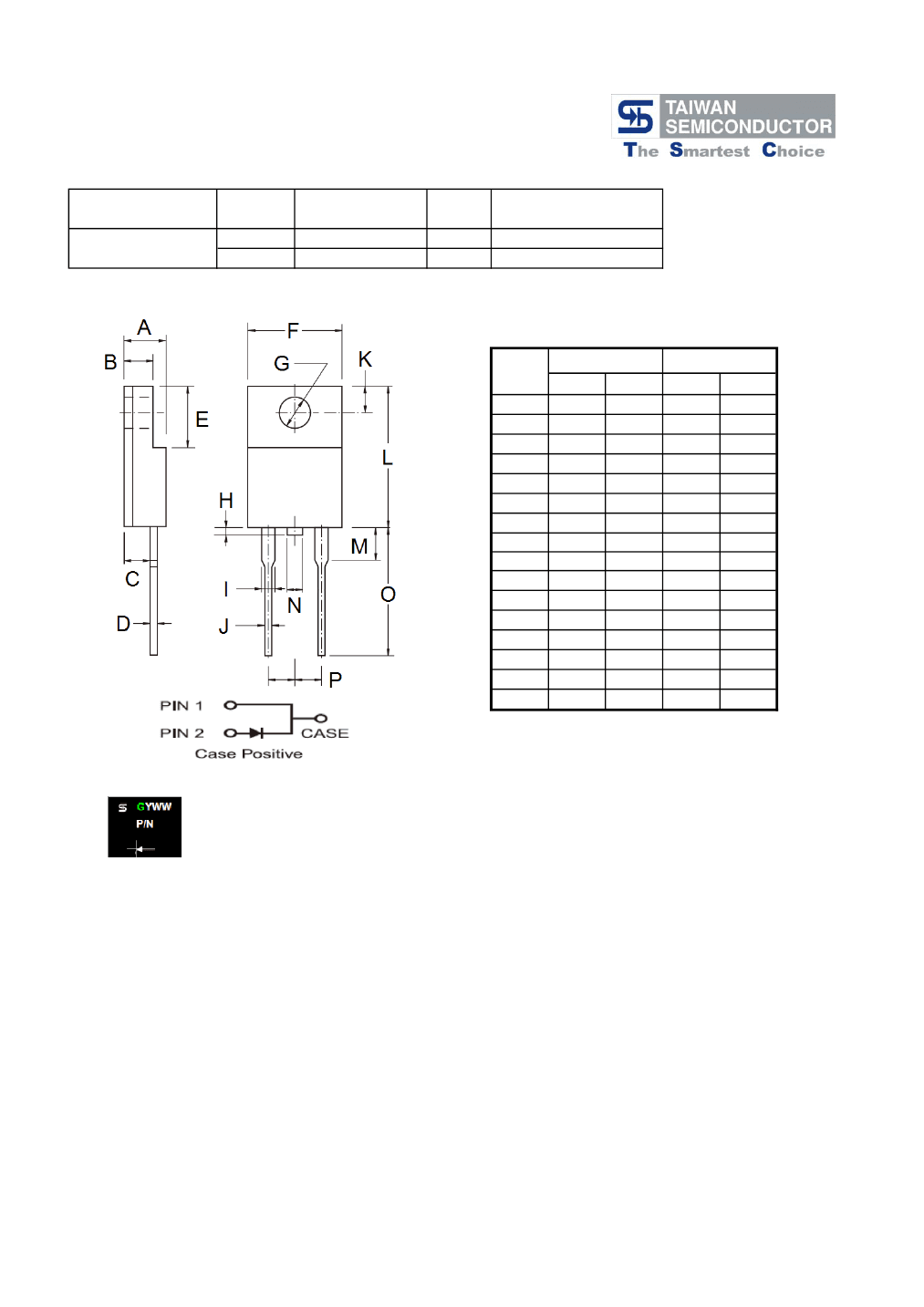

ITO-220AC
Features
UL Recognized File # E-326243
High efficiency, low VF
High current capavility
High reliability
High surge current capability
Low power loss.
For use in low voltage, high frequency inverter,
free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode.
Mechanical Data
Cases: ITO-220AC molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260
o
C/10 seconds 16".,(4.06mm) from case.
Weight: 1.70 grams
Ordering Information(example)
Part No.
Package
Packing
Packing
code
D0
Packing code
(Green)
D0G
SFAF2001G ITO-220AC 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 20 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=100
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
T
J
T
STG
SFAF
2001G
50
35
50
SFAF
2002G
100
70
100
SFAF
2003G
150
105
150
SFAF
2004G
200
140
200
SFAF
2005G
300
210
300
SFAF
2006G
400
280
400
SFAF
2007G
500
350
500
SFAF
2008G
600
420
600
Units
V
V
V
A
A
20
200
0.975
10
400
35
170
3
- 65 to + 150
- 65 to + 150
150
O
1.3
1.7
V
uA
uA
nS
pF
C/W
O
O
Maximum Reverse Recovery Time (Note 2)
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:F13

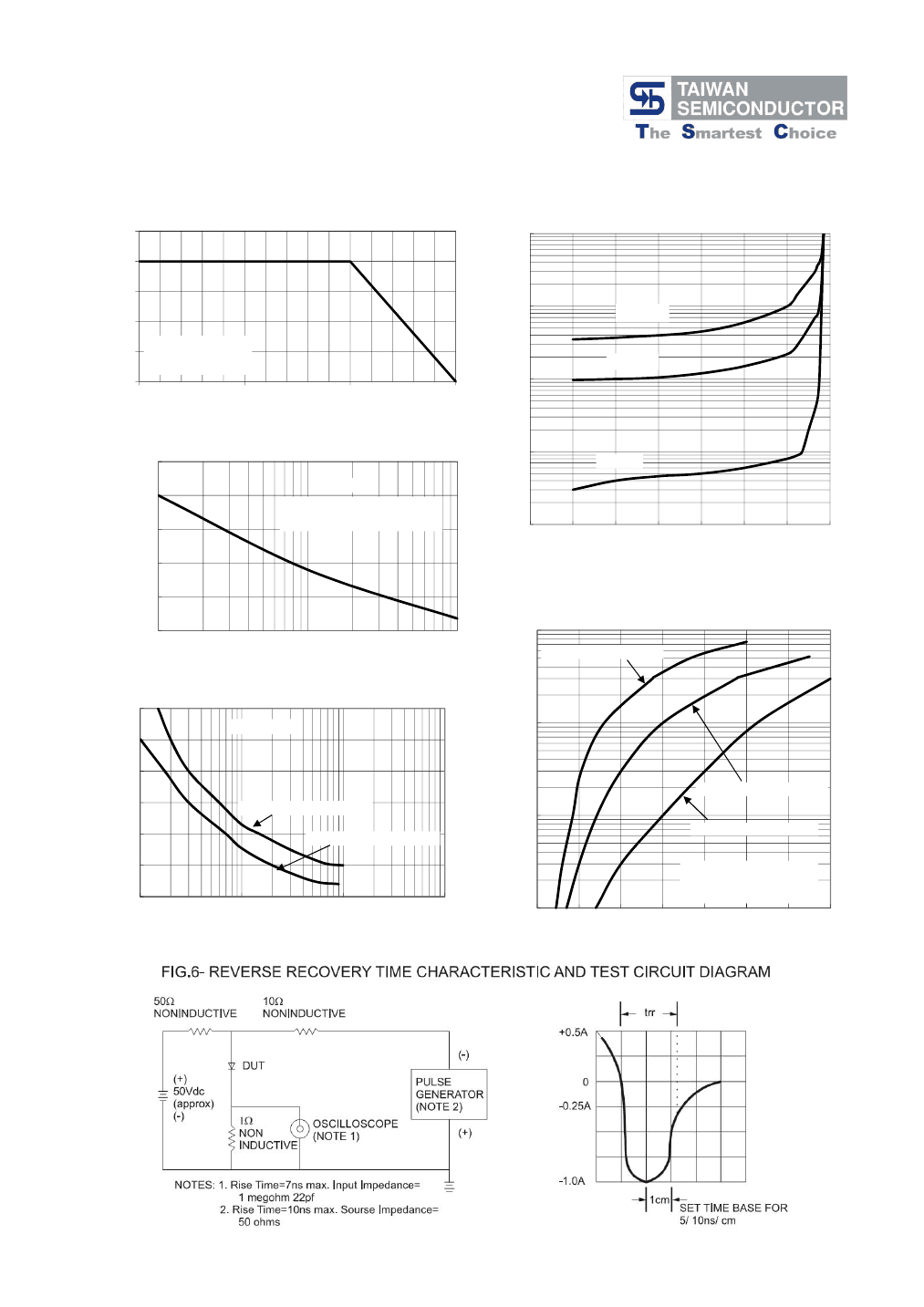

RATINGS AND CHARACTERISTIC CURVES (SFAF2001G THRU SFAF2008G)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
25
AVERAGE FORWARD
A
CURRENT (A)
1000
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
20
15
INSTANTANEOUS REVERSE CURRENT. (uA)
100
10
5
0
0
50
100
150
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVELOAD
WITH HEAT SINK
TA=100
TA=75℃
10
PEAK FORWARD SURGE
CURRENT
(A)
250
200
150
100
50
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
TA=25℃
8.3ms Single Half Sine Wave
JEDEC Method
1
TA=25
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
100
SFAF2001G-
INSTANTANEOUS FORWARD CURRENT. (A)
FIG. 4- TYPICAL JUNCTION CAPACITANCE
300
250
CAPACITANCE (pF)
200
150
100
50
0
1
10
100
1000
REVERSE VOLTAGE. (V)
TA=25
o
C
10
SFAF2005G-SFAF2006G
1
SFAF2007G-SFAF2008G
SFAF2001G~SFAF2004G
SFAF2005G~SFAF2008G
TA=25
o
C
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE. (V)
1.6
1.8
Version:F13
