Fixed Thick Film Low Ohmic Chip Resistors For Current Detection
UCR18
(3216(1206) size : 1 / 2W)
Features
1) Chip resistors ideal for current detection. (11mΩ to 100mΩ)
2) Unique chip and terminal configuration reduces resistance shifting during the mounting process.
3) Superior rated power.
4) ROHM resistors have approved ISO9001- / ISO/TS 16949- certification
Ratings
Design and specifications are subject to change without notice. Carefully check the specification sheet before using or ordering it.
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.5W (1 / 2W)
at 70°C
60
40
20
0
−55
0
70
100
155
AMBIENT TEMPERATURE (
°
C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
E: Rated voltage (V)
E= P×R
P: Rated power (W)
R: Nominal resistance (Ω)
Nominal resistance
Operating temperature
See Table 1.
−55°
C to
+ 155°C
Table 1
Resistance range
(Ω)
Resistance tolerance
Special specification
Resistance temperature
coefficient (ppm/°C)
0.011 to 0.018 (E24)
0.020 to 0.039 (E24)
0.043 to 0.091 (E24)
0.1
F (±1%)
J (±5%)
L
S
0 to 350
0 to 200
0 to 150
0 to 150
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be certain to evaluate the
component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that
is greater than its rated voltage.
www.rohm.com
c
○
2010 ROHM Co., Ltd. All rights reserved.
1/3
2010.04 - Rev.D
UCR18
Characteristics
Item
Guaranteed value
Resistor type
Test conditions (JIS C 5201-1)
Data Sheet
JIS C 5201-1 4.5
Measuring method : Measure under termination
Resistance
F :
±1%
J :
±5%
Under termination
Terminal
Variation of resistance
with temperature
Overload
See Table.1
JIS C 5201-1 4.8
Measurement :
−55
/
+25
/
+125°C
JIS C 5201-1 4.13
Rated voltage (current)
×
2.5, 2s.
JIS C 5201-1 4.17
Rosin·Ethanol (25%WT)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s.
JIS C 5201-1 4.18
Soldering condition : 260±5°C
Duration of immersion : 10±1s.
JIS C 5201-1 4.19
Test temp. :
−55°C
to
+125°C
5cyc
JIS C 5201-1 4.24
40°C, 93%RH
Test time : 56 days
JIS C 5201-1 4.25.1
Rated voltage (current), 70°C
1.5h : ON
−
0.5h : OFF
Test time : 1,000h
JIS C 5201-1 4.25.3
155°C
Test time : 1,000h to 1,048h
JIS C 5201-1 4.29
23±5°C
Solvent : 2-propanol
JIS C 5201-1 4.33
±
(2.0%+0.005Ω)
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.005Ω)
No remarkable abnormality on the appearance.
±
(1.0%+0.005Ω)
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
±
(3.0%+0.005Ω)
Endurance at 70°C
±
(3.0%+0.005Ω)
Endurance
±
(3.0%+0.005Ω)
Resistance to solvent
Bend strength of
the end face plating
±
(0.5%+0.005Ω)
Without open.
www.rohm.com
c
○
2010 ROHM Co., Ltd. All rights reserved.
2/3

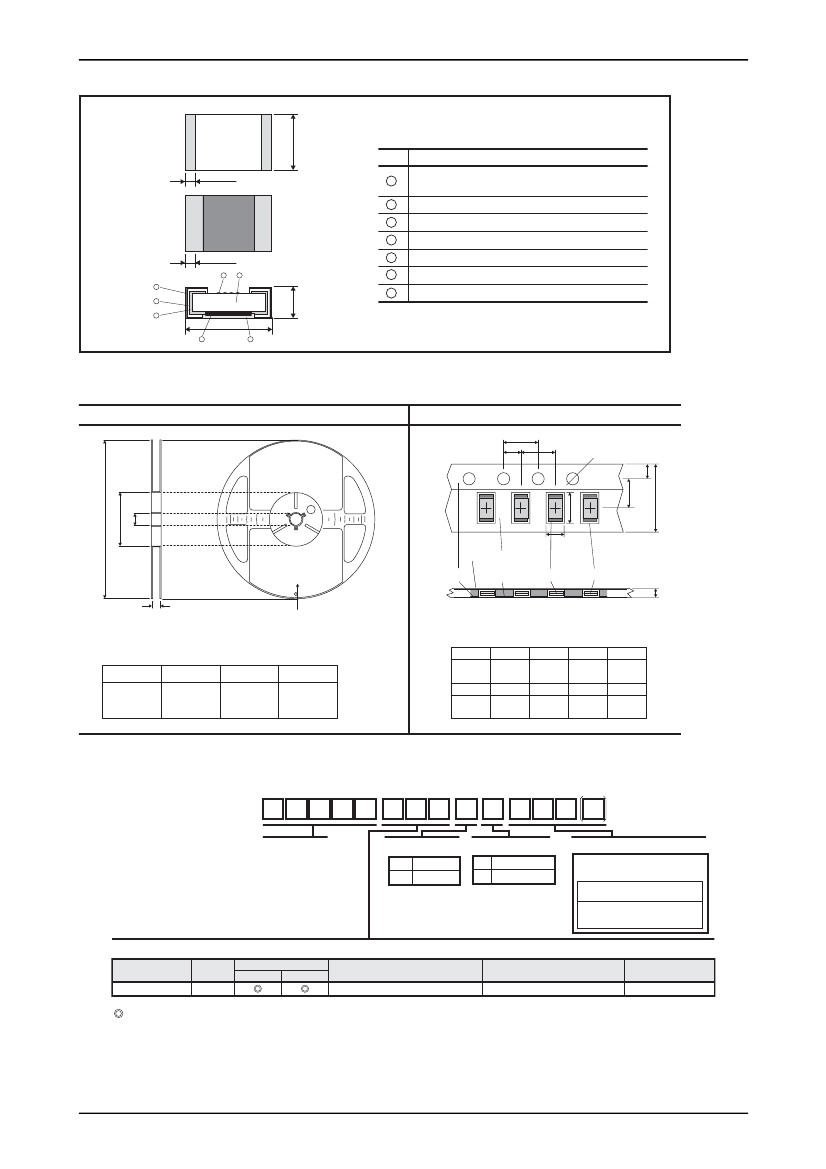

2010.04 - Rev.D
