B630-0ER-028N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> B630-0ER-028N

Preview

B630-0ER-028N: DescriptionSingle Color LED Display Cluster, Super Red, 33.6mm; CategoryLED optoelectronic/LED photoelectric; File Size36KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

B630-0ER-028N Overview

Single Color LED Display Cluster, Super Red, 33.6mm

B630-0ER-028N Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	SUPER RED
Display height	33.6 mm
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER

Preview

Download Datasheet

View All

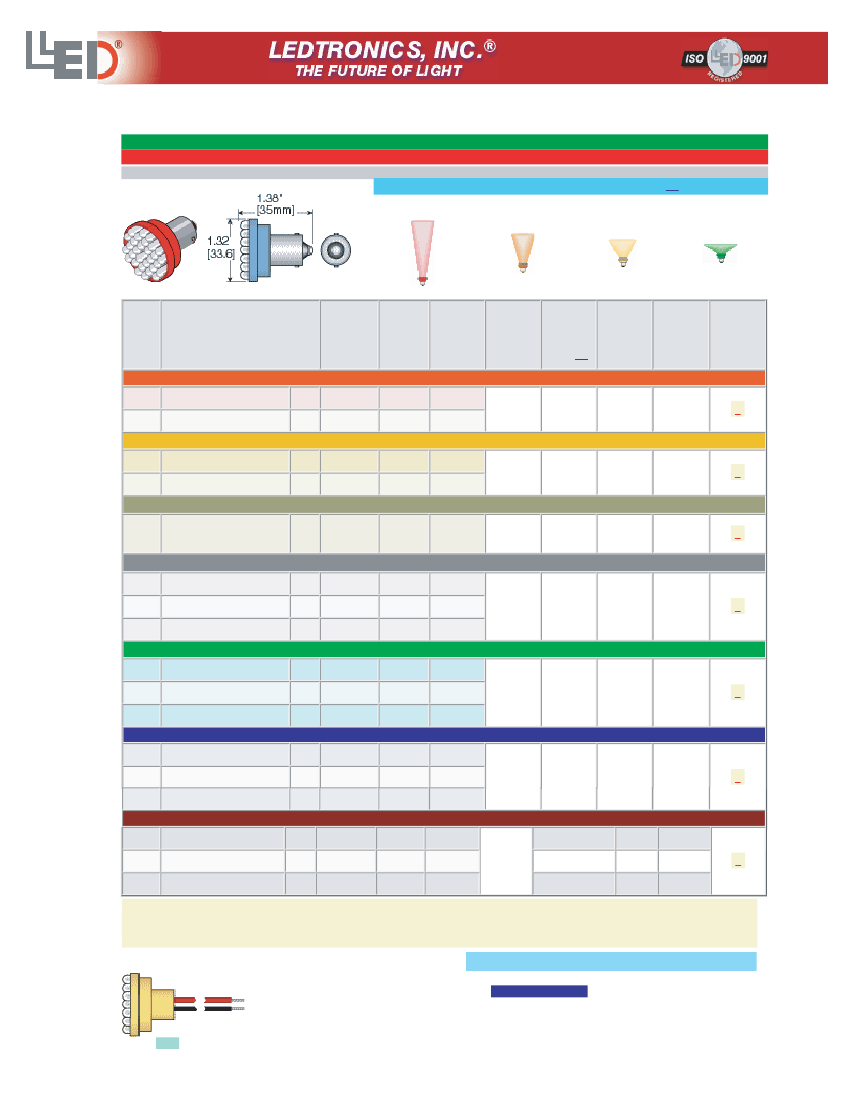

30 LED Cluster, 15mm SC Bayonet Based Lamps, Series B630

Direct Incandescent Replacement -- Up to 90% Energy Savings

30-LED 15mm Automotive SC Bayonet Base Bulbs

Ideal for use with Alternate or Renewable Energy Resources like Solar & Wind Power

Major Energy Reduction, Reduces Light Pollution, "Dark Skies" Initiative Friendly

Replaces Incandescent:

309, 311, 1383, 1384, 1723, 3011

Custom Optional Viewing Angles

(1)

see table

12º to 15º

option

20º to 30º

option

45º to 50º

option

120º to 125º

Wide Angle (W)

Standard Angle (S)

Narrow Angle (N)

Retail Price

(Volume

Price

Available)

Min.

Order

Qty

Input

Voltage

Power

Watts

(typ)

Medium Angle (M)

Part Number

Intensity /

LED

Ι

v

mcd

(typ)

(2)

λ

p

(nm)

View

Angle

2θ

1/2

Custom

Options

633nm Super Red

B630-0ER-014N

B630-0ER-028N

InGaAlP

B630 (30-LED)

3

12/14V

24/28V

1.2W

to

2.0W

3500

633

12° to 15°

*

595nm Super Yellow InGaAlP B630 (30-LED)

B630-0UY-014N

B630-0UY-028N

3

12/14V

24/28V

1.2W

to

2.0W

5500

595

12° to 15°

*

4500K Incand White SiC/GaN

B630-0IW-014S

B630 (30-LED)

2

12/14V

1.2W

to

2.0W

2000

4500K

20°

*

8000K Cool White SiC/GaN B630 (30-LED)

B630-0CW-014S

B630-0CW-028S

B630-0WW-014S

2

12/14V

24/28V

12/14V

1.2W

to

2.0W

6000

8000K

20°

*

525nm Aqua Green SiC/GaN B630 (30-LED)

B630-0AG-014N

B630-0AG-028N

B630-2AG-014N

2

12/14V

24/28V

12/14V

1.2W

to

2.0W

10,000

525

12° to 15°

*

470nm Super Blue SiC/GaN B630 (30-LED)

B630-0PB-014N

B630-0PB-028N

B630-2PB-014N

2

12/14V

24/28V

12/14V

1.2W

to

2.0W

3000

470

12° to 15°

*

High Power Invisible InfraReds in 850nm, 880nm, 940nm

B630-851-014S

B630-881-014S

B630-941-014S

Custom Options

*

Replace N in part number with

required viewing angle

2

12/14V

1.2W

to

2.0W

**10mW

**11mW

***26mW

850

880

940

20°

40°

*

**Radiant

Power Unit (mW/cm

2

) @Ι

f

=50mA

***milliwatts

per steradian @

f

=50mA

S - Standard Angle (25° to 30°) M - Medium Angle (45° to 50°)

W - Wide Angle (120° to 125°)

Custom Options

Baseless

with

12" wire leads

Notes:

1.

Not all possible combinations of

voltage, intensity, and angle are

available

2.

Intensity shown is for narrow

angle. Intensity is reduced 12 to 15

times when using extra-wide angles

Low Cost Specials

8000K Cool White

525nm Aqua Green

505nm Blue Green

470nm Super Blue

3500K Incand.White

Part Number Example

B630-2CW-120AN

B630-2AG-120AN

B630-2BG-120AN

B630-2PB-120AN

B630-2IW-120AN

Series:

L630

PN Example:

L630-0UY-014N

23105 Kashiwa Ct, Torrance, CA 90505 - PH: (800) 579-4875/(310) 534-1505 - FAX: (310) 534-1424

Webmaster@ledtronics.com

B630-0ER-028N Related Products

	B630-0ER-028N	B630-0WW-014S	B630-2AG-014N	B630-941-014S	B630-0UY-014N	B630-2PB-014N	B630-851-014S	B630-881-014S
Description	Single Color LED Display Cluster, Super Red, 33.6mm	Single Color LED Display Cluster, Cool White, 33.6mm	Single Color LED Display Cluster, Aqua Green, 33.6mm	Infrared Cluster, 33.6mm	Single Color LED Display Cluster, Super Yellow, 33.6mm	Single Color LED Display Cluster, Super Blue, 33.6mm	Infrared Cluster, 33.6mm	Infrared Cluster, 33.6mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Display height	33.6 mm	33.6 mm	33.6 mm	33.6 mm	33.6 mm	33.6 mm	33.6 mm	33.6 mm
Number of functions	1	1	1	1	1	1	1	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	INFRARED CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	INFRARED CLUSTER	INFRARED CLUSTER
Maker	LEDtronics	LEDtronics	LEDtronics	-	-	LEDtronics	LEDtronics	LEDtronics
color	SUPER RED	COOL WHITE	AQUA GREEN	-	SUPER YELLOW	SUPER BLUE	-	-
