UF1007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> UF1007

Preview

UF1007: Description1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41; Categorysemiconductor Discrete semiconductor; File Size3MB，2 Pages; ManufacturerTAYCHIPST; Websitehttp://www.taychipst.com

Download Datasheet Compare View All

UF1007 Overview

1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41

Preview

Download Datasheet

View All

UF1001

THRU

UF1007

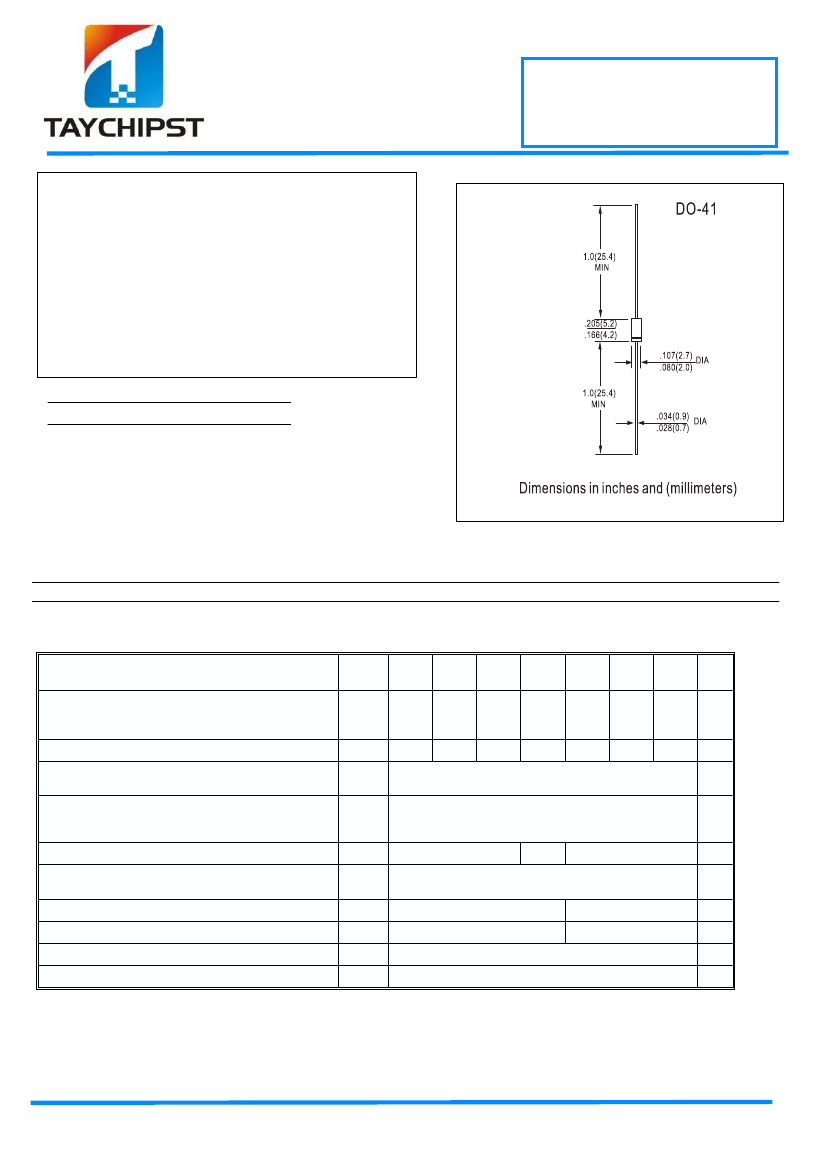

ULTRA-FAST RECTIFIER

FEATURES

50V-1000V

1.0 A

Diffused Junction

Ultra-Fast Switching for High Efficiency

High Current Capability and Low Forward

Voltage Drop

Low Reverse Leakage Current

Surge Overload Rating to 30A Peak

Low Reverse Leakage Current

Plastic Material: UL Flammability

Classification Rating 94V-0

Mechanical Data

Case: Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Weight: 0.35 grams (approx.)

Mounting Position: Any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

@ T

= 55°C

(Note 1)

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave Superimposed on Rated Load

(JEDEC Method)

Forward Voltage

Peak Reverse Current

at Rated DC Blocking Voltage

Reverse Recovery Time (Note 3)

Typical Junction Capacitance (Note 2)

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Notes:

@ I

= 1.0A

@ T

= 25°C

@ T

= 100°C

Symbol

RRM

RWM

R(RMS)

FSM

qJA

STG

-65 to +150

1.0

1001

1002

100

1003

200

140

1004

400

280

1.0

1.3

5.0

100

1.7

1005

600

420

1006

800

560

1007

1000

700

Unit

K/W

°C

1. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

3. Measured with I

= 0.5A, I

= 1.0A, I

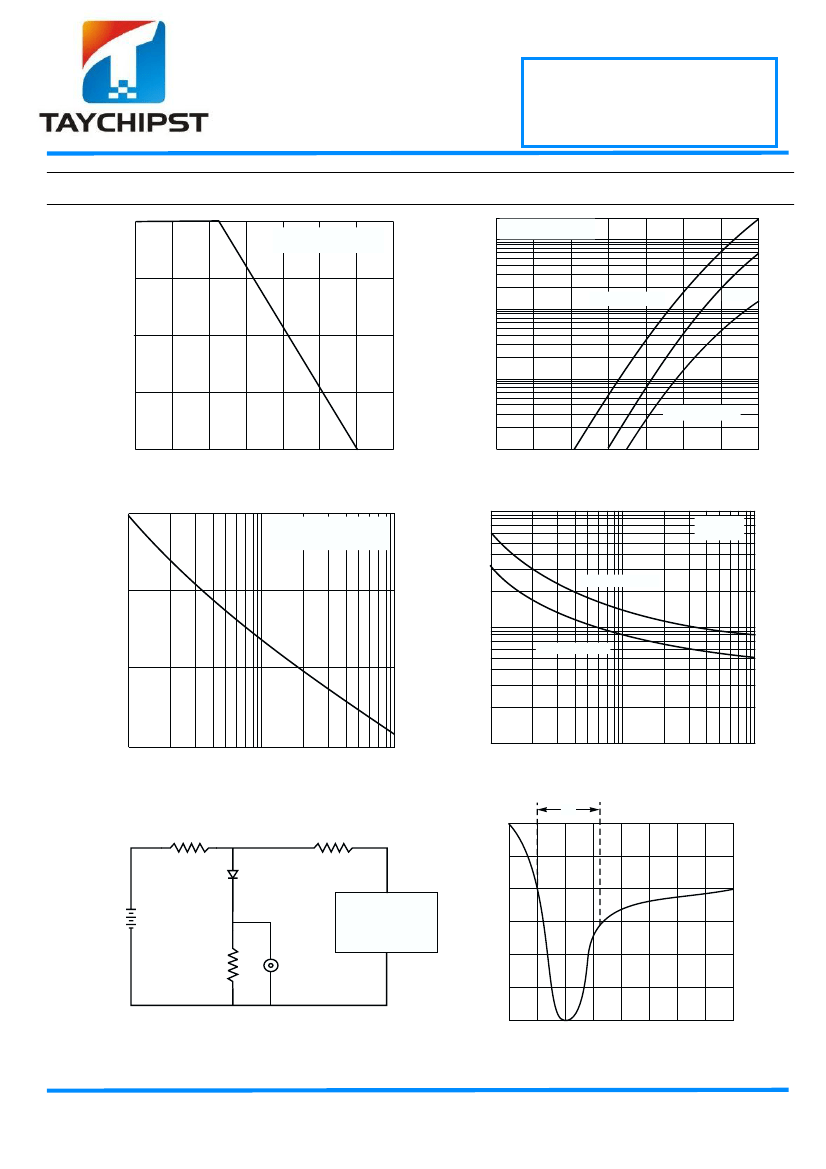

= 0.25A. See figure 5.

E-mail: sales@taychipst.com

1 of 2

Web Site: www.taychipst.com
