208-501-04-38 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 208-501-04-38

208-501-04-38: DescriptionSingle Color LED, Red, Water Clear, T-1 3/4, 4.8mm,; CategoryLED optoelectronic/LED photoelectric; File Size277KB，1 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk

Download Datasheet Parametric Compare View All

208-501-04-38 Overview

Single Color LED, Red, Water Clear, T-1 3/4, 4.8mm,

208-501-04-38 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	WATER CLEAR
Nominal luminous intensity	2750.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	40 mm
method of packing	BULK
peak wavelength	660 nm
shape	CYLINDRICAL
size	4.8 mm
surface mount	NO
T code	T-1 3/4
Base Number Matches	1

Preview

Download Datasheet

View All

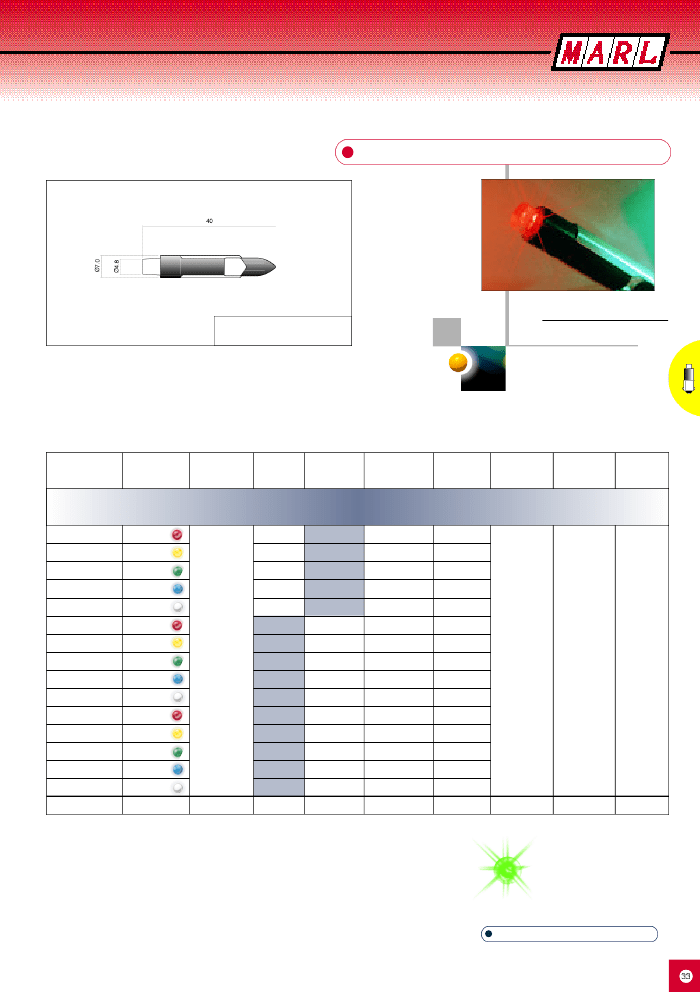

FILAMENT REPLACEMENT LEDs - T6.8SB

•

Direct replacement

for T6.8 SB

•

Flat-topped for

enhanced, even

illumination of large

lens areas

•

Durable to shock

and vibration

208

SERIES

Dimensions in mm (Typical)

Scale 1:1

Printed

⊕

on base denotes Anode. Colour dot

on product denotes LED colour.

MLQ = 20

LEDs

Ordering Information & Typical Technical Characteristics (Ta = 25°C)

Mean Time Between Failure = 100,000 Hours. Luminous intensity figures refer to the unmodified discrete LED.

PART NUMBER

COLOUR

LENS

VOLTAGE

Vopr

CURRENT

lopr

LUMINOUS

INTENSITY

lv@20mA

WAVE

LENGTH

λp

VIEWING

ANGLE

OPERATING

TEMP

Topr

STORAGE

TEMP

Tstg

HIGH INTENSITY

208-501-04-38

208-521-04-38

208-532-04-38

208-930-04-38

208-997-04-38

208-501-20-38

208-521-20-38

208-532-20-38

208-930-20-38

208-997-20-38

208-501-21-38

208-521-21-38

208-532-21-38

208-930-21-38

208-997-21-38

UNITS

Red

Yellow

Green

Blue

White

Red

Yellow

Green

Blue

White

Red

Yellow

Green

Blue

White

Water Clear

1.9*

2.0*

3.4*

5/6

Vdc

2750

4500

6000

2000

3000

2750

4500

6000

2000

3000

2750

4500

6000

2000

3000

mcd

660

590

525

470

•

660

590

525

470

•

660

590

525

470

•

°C

Wide

-40~+80

* =Voltage DC for 20mA product is Vf@20mA, not Vopr

• = Typical emission colour: x=0.31, y=0.32. Colour temperature 8000K .

Intensities (Iv) and colour shades of white (x,y co-ordinates) may vary between LEDs within a batch.

Please note - This product is also available at 24, 28 and 48Vdc. Please contact our Sales department for further details.

CUSTOM DESIGN SERVICE

Fax: +44 (0)1229 585155

•

email: sales@marl.co.uk

•

website: www.marl.co.uk

•

website: www.marl-leds.com

•

Telephone

+44 (0)1229 582430

208-501-04-38 Related Products

	208-501-04-38	208-501-20-38	208-521-20-38	208-532-04-38	208-532-20-38	208-930-04-38	208-997-04-38	208-997-20-38	208-930-20-38
Description	Single Color LED, Red, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Red, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Yellow, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Green, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Green, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Blue, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, White, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, White, Water Clear, T-1 3/4, 4.8mm,	Single Color LED, Blue, Water Clear, T-1 3/4, 4.8mm,
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli
color	RED	RED	YELLOW	GREEN	GREEN	BLUE	WHITE	WHITE	BLUE
color@wavelength	Red	Red	Yellow	Blue-Gree	Blue-Gree	Blue	White	White	Blue
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.016 A	0.015 A	0.02 A	0.014 A	0.02 A	0.02 A	0.014 A	0.014 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	2750.0 mcd	2750.0 mcd	4500.0 mcd	6000.0 mcd	6000.0 mcd	2000.0 mcd	3000.0 mcd	3000.0 mcd	2000.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
size	4.8 mm	4.8 mm	4.8 mm	4.8 mm	4.8 mm	4.8 mm	4.8 mm	4.8 mm	4.8 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Base Number Matches	1	1	1	1	1	1	1	1	1
peak wavelength	660 nm	660 nm	590 nm	525 nm	525 nm	470 nm	-	-	470 nm
