SRN5147 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SRN5147

SRN5147: Description20 MHz - 1100 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size205KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

SRN5147 Overview

20 MHz - 1100 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN

SRN5147 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1100 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

SRN5147 Preview

Cross Reference Guide

RN5147 / SRN5147*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

20.0 - 1100.0 MHz

14.0 dB Typical

13.0 dB Min

3.5 dB Typical

4.0 dB Max

11.0 dBm Typical

9.0 dBm Min

23.0 dBm Typical

33.0 dBm Typical

1.6/2.0 Input Typ/Max

1.6/2.0 Output Typ/Max

-18.0 dB Typical

-17.0 dB Min

15.0 Volts

27.0 mA

-55.0 - 85.0 °C

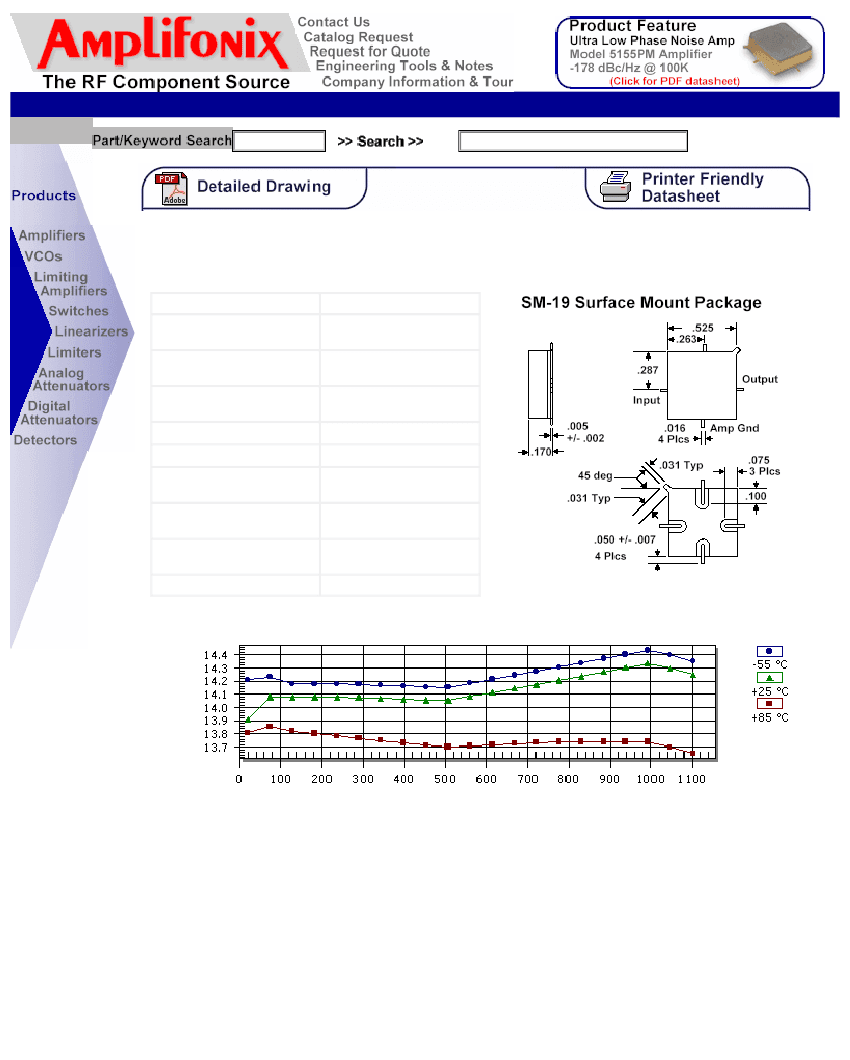

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

Frequency (MHz)

Input VSWR

Frequency (MHz)

Output VSWR

Frequency (MHz)

S-Parameters

Frequency S11 Mag S11 Ang S21 Mag S21 Ang S12 Mag S12 Ang S22 Mag S22 Ang

20.0

50.0

100.0

250.0

500.0

750.0

1000.0

1100.0

0.220

0.210

0.180

0.130

0.080

0.100

-155.00

-179.00

175.00

158.00

135.00

117.00

121.00

153.00

4.960

5.060

5.040

5.120

5.210

5.160

-173.00

176.00

169.00

150.00

121.00

91.00

59.00

23.00

0.120

0.140

0.150

0.160

0.170

8.00

3.00

2.00

1.00

0.00

-6.00

-14.00

-21.00

0.250

0.220

0.210

0.220

0.230

0.240

0.210

0.170

164.00

155.00

128.00

82.00

42.00

6.00

-26.00

Absolute Maximum Conditions

Maximum Operating Temperature

Maximum Case Temperature

Continuous RF Input Power

Maximum Peak Power

(3 µsec max)

-55.0 - 100.0 °C

125.0 °C

13.0 dBm

0.2 W

Maximum Storage Temperature

Maximum Supply Voltage

Short Term RF Input Power

(1 minute max)

-62.0 - 125.0 °C

18.0 Volts

50.0 mW

Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154

Tel: 215.464.4000 | FAX: 215.464.4001 | Email:

info@amplifonix.com

i2 Technologies US, Inc.

15445 Innovation Drive

San Diego, CA 92128

i2 Technologies US, Inc.

HTML Pages converted to PDF Document

This document contain component information from the

manufacturer's website which are not available in a revision

controlled document from the manufacturer. To facilitate the

addition of these parts into the Electronics Database, we are

converting the HTML pages related to that part, from the

manufacturer's website into Adobe PDF format. The contents of this

document is based on the information provided on the

manufacturer's website, therefore the information may have been

changed by the manufacturer since this was created.

Powering the Bottom Line ®

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SRN5147 Related Products

	SRN5147	RN5147
Description	20 MHz - 1100 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN	20 MHz - 1100 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COMPONENT
Gain	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	1100 MHz	1100 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
