RN8310 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> RN8310

RN8310: DescriptionWide Band Low Power Amplifier, 0MHz Min, 1000MHz Max, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size177KB，3 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

RN8310 Overview

Wide Band Low Power Amplifier, 0MHz Min, 1000MHz Max, SM-19, 4 PIN

RN8310 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	3.5

RN8310 Preview

Cross Reference Guide

RN8310 / SRN8310*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

0.0 - 1000.0 MHz

8.0 dB Typical

7.0 dB Min

7.0 dB Typical

8.0 dB Max

-1.5 dBm Typical

-4.0 dBm Min

7.0 dBm Typical

8.0 dBm Typical

2.5/3.5 Input Typ/Max

2.5/3.5 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

1.6 Volts

10.0 mA

-55.0 - 125.0 °C

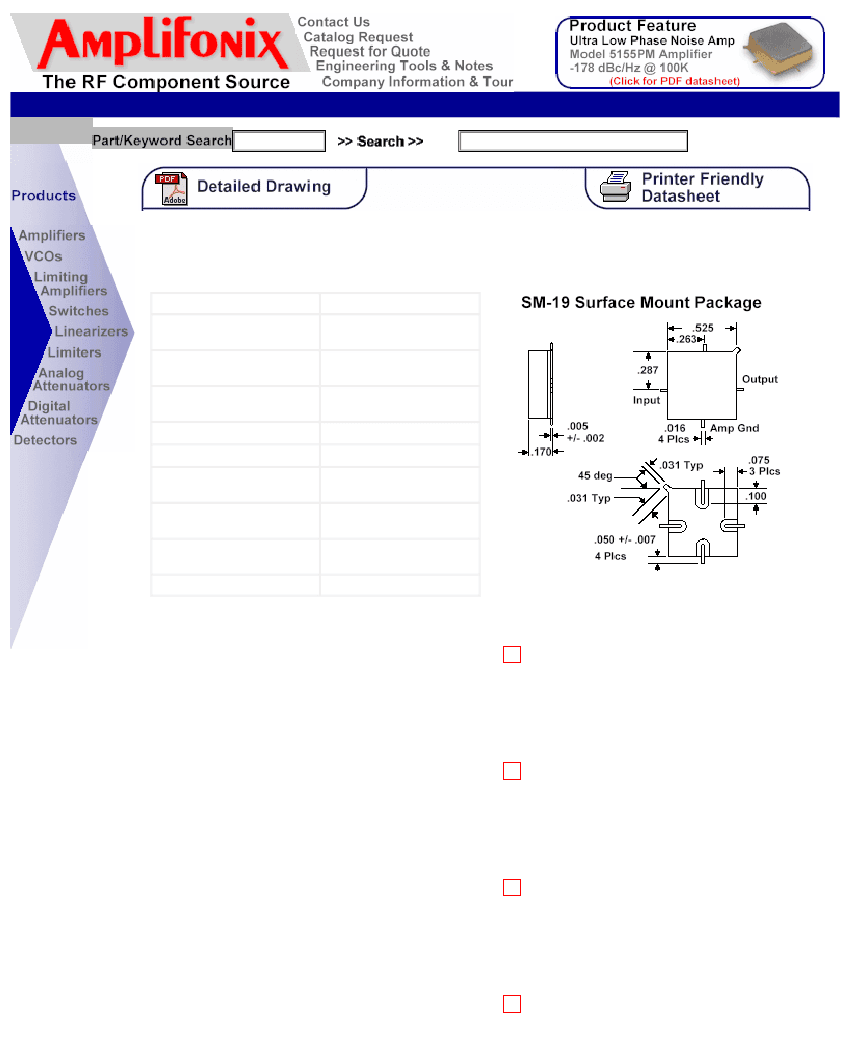

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

Frequency (MHz)

Input VSWR

Frequency (MHz)

Output VSWR

Frequency (MHz)

Absolute Maximum Conditions

Maximum Operating Temperature

Maximum Case Temperature

Continuous RF Input Power

Maximum Peak Power

(3 µsec max)

-55.0 - 125.0 °C

125.0 °C

6.0 dBm

0.2 W

Maximum Storage Temperature

Maximum Supply Current

Short Term RF Input Power

(1 minute max)

-62.0 - 125.0 °C

25.0 mA

25.0 mW

Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154

Tel: 215.464.4000 | FAX: 215.464.4001 | Email:

info@amplifonix.com

i2 Technologies US, Inc.

15445 Innovation Drive

San Diego, CA 92128

i2 Technologies US, Inc.

HTML Pages converted to PDF Document

This document contain component information from the

manufacturer's website which are not available in a revision

controlled document from the manufacturer. To facilitate the

addition of these parts into the Electronics Database, we are

converting the HTML pages related to that part, from the

manufacturer's website into Adobe PDF format. The contents of this

document is based on the information provided on the

manufacturer's website, therefore the information may have been

changed by the manufacturer since this was created.

Powering the Bottom Line ®

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

RN8310 Related Products

	RN8310	SRN8310
Description	Wide Band Low Power Amplifier, 0MHz Min, 1000MHz Max, SM-19, 4 PIN	Wide Band Low Power Amplifier, 0MHz Min, 1000MHz Max, SM-19, 4 PIN
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COMPONENT
Gain	7 dB	7 dB
Maximum input power (CW)	6 dBm	6 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	3.5	3.5
