PALC16R8L-25VCR datasheet, PDF

PALC16R8L-25VCR: DescriptionOT PLD, 20ns, CMOS, PDSO20, PLASTIC, SOJ-20; CategoryProgrammable logic devices Programmable logic; File Size442KB，15 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

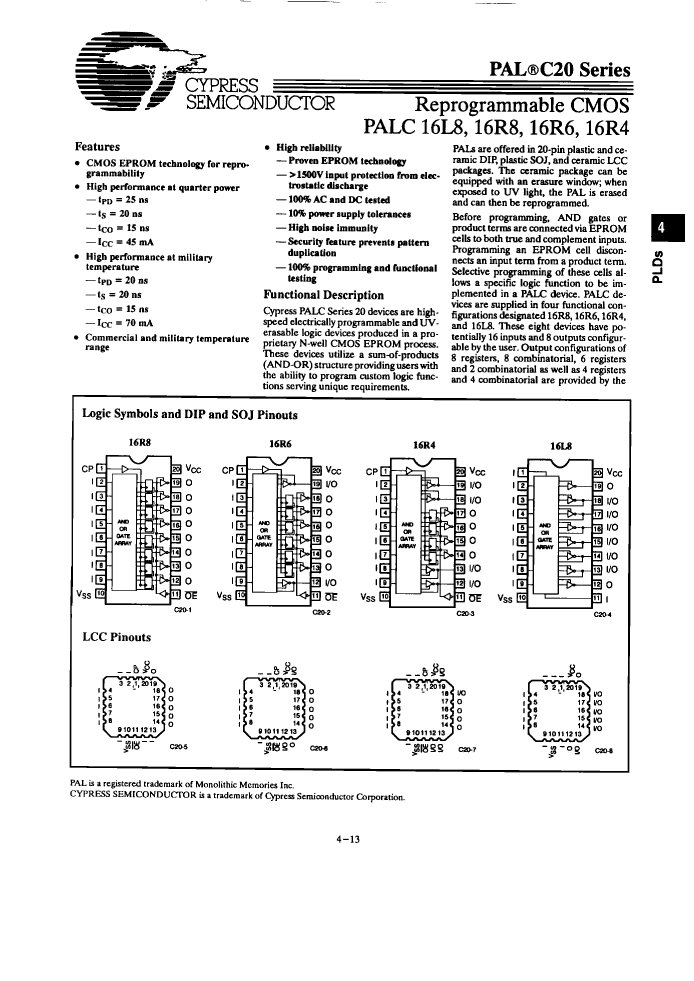

PALC16R8L-25VCR Overview

OT PLD, 20ns, CMOS, PDSO20, PLASTIC, SOJ-20

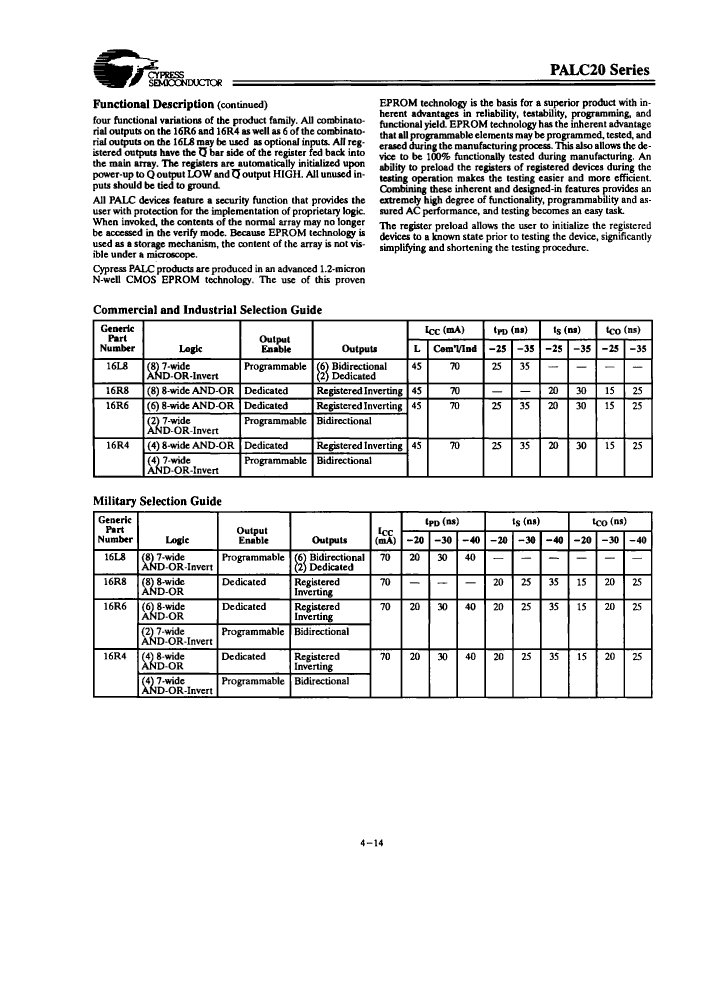

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	20
Reach Compliance Code	unknown
Other features	1 EXTERNAL CLOCK

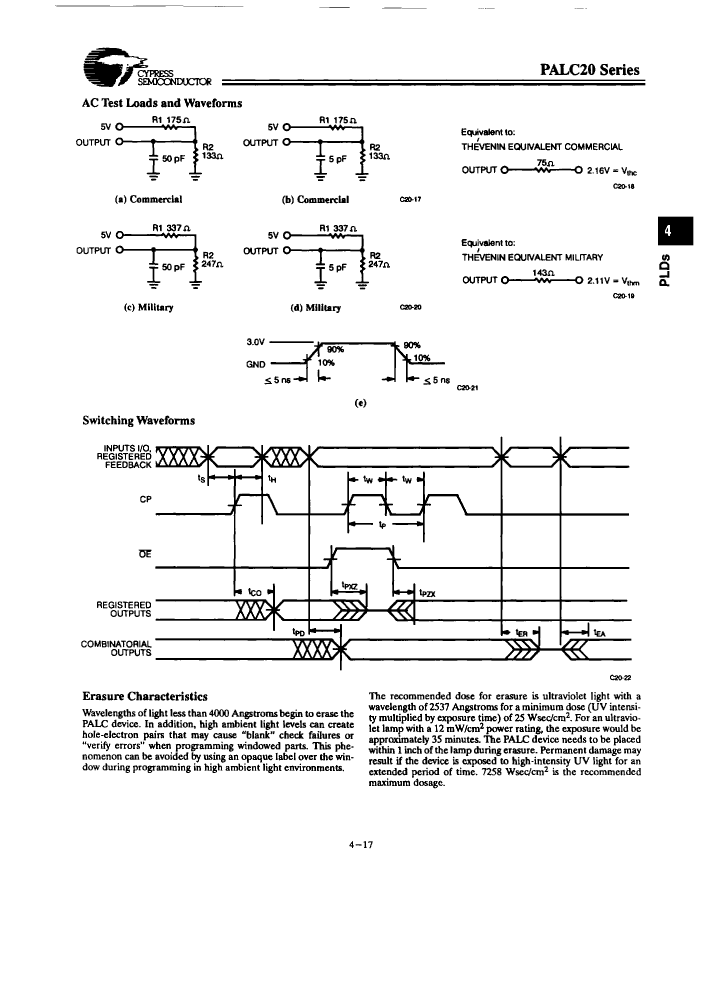

maximum clock frequency	28.5 MHz
JESD-30 code	R-PDSO-J20
length	12.8 mm
Dedicated input times	8
Number of I/O lines
Number of terminals	20

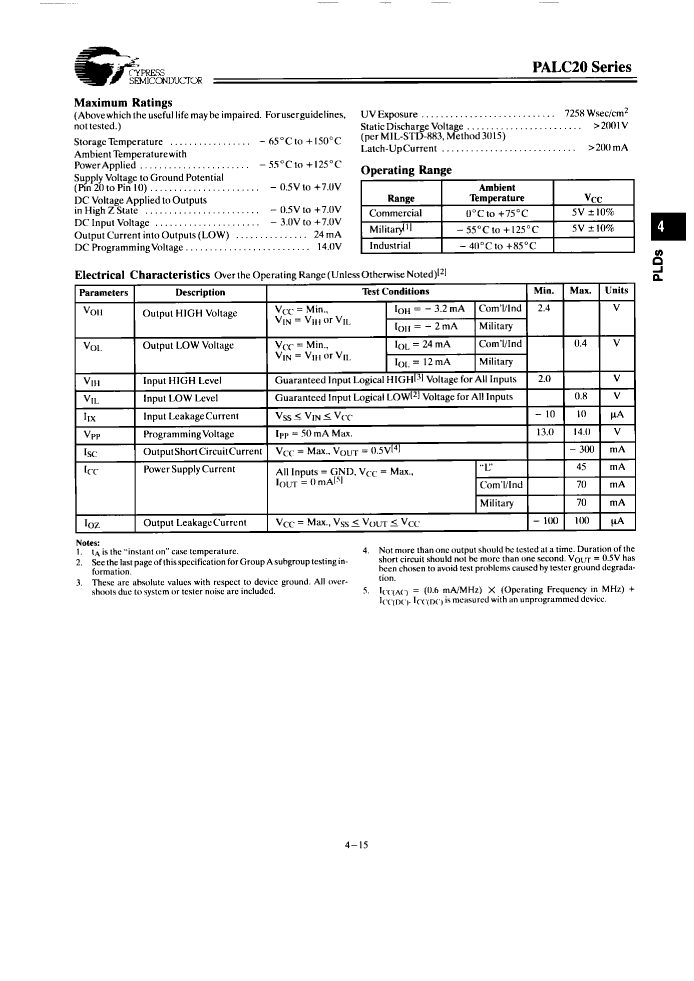

Maximum operating temperature	75 °C
Minimum operating temperature
organize	8 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Programmable logic type	OT PLD

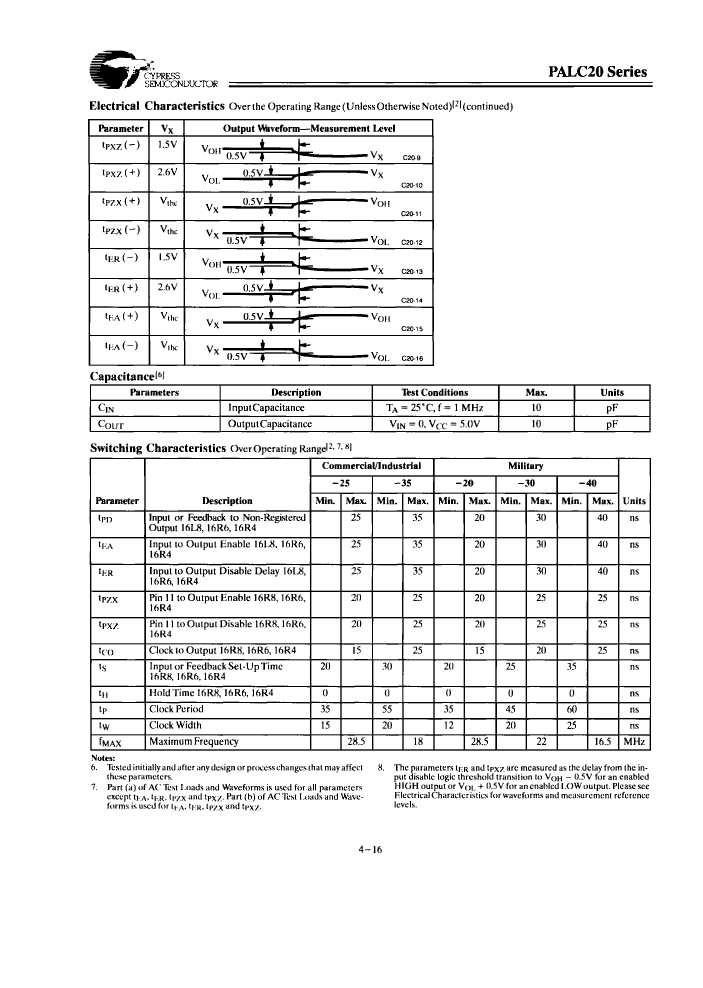

propagation delay	20 ns
Certification status	Not Qualified
Maximum seat height	3.56 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
