LA3051-16: Description7 Seg Numeric LED Display, 1-Character, 8mm; CategoryLED optoelectronic/LED photoelectric; File Size257KB，1 Pages; ManufacturerLedtech Electronics

Download Datasheet Parametric Compare View All

LA3051-16 Overview

7 Seg Numeric LED Display, 1-Character, 8mm

LA3051-16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Ledtech Electronics
Reach Compliance Code	unknown
color@wavelength	Red
Configuration	Common Anode
Display height	8 mm
JESD-609 code	e0
Number of characters	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY
peak wavelength	700 nm
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

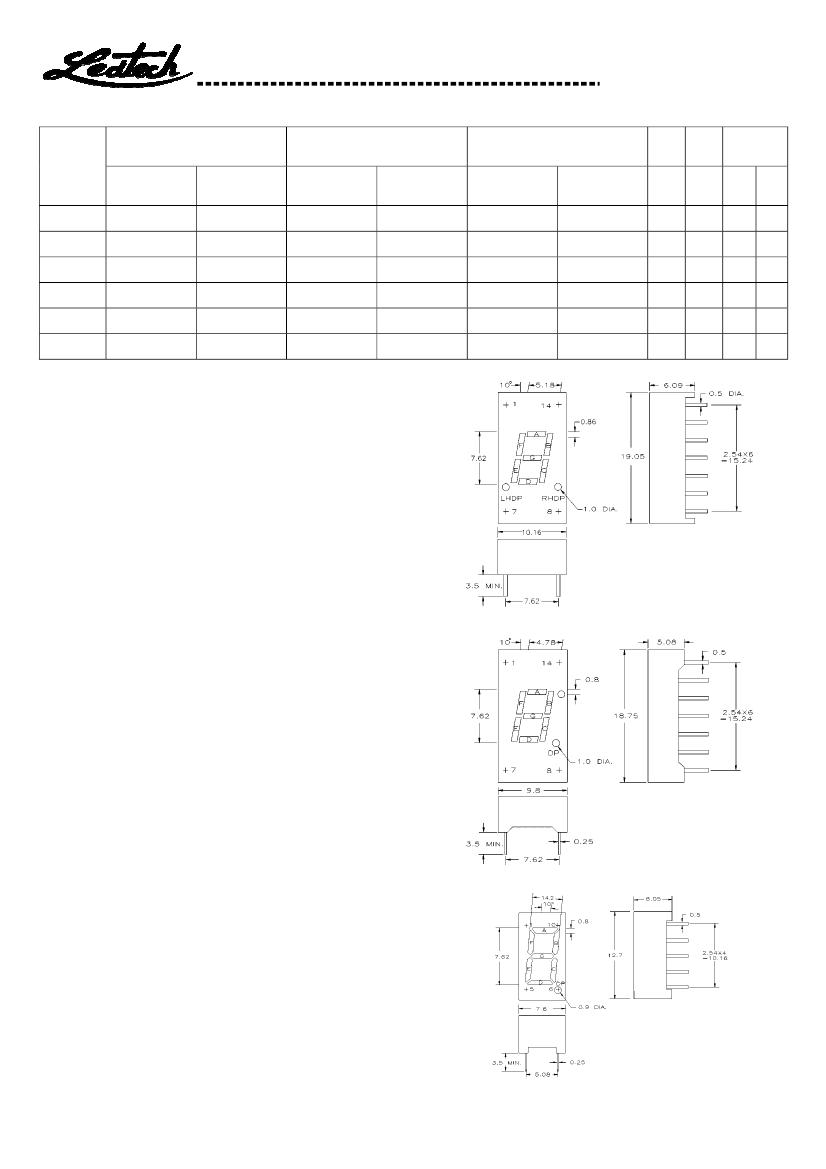

SINGLE DIGIT DISPLAY

0.3” SINGLE DIGIT DISPLAY

Electrical/Optical Characteristics at T

A

=25℃ & I

F

=20mA

℃

CHIP

COLOR

λ

p V

F

0.3 inch STANDARD

0.3 inch SPECIAL D.P.

0.3 inch STANDARD

SINGLE DIGIT(H.P. TYPE) SINGLE DIGIT(G.I. TYPE) SINGLE DIGIT(H.P. TYPE) (nm) (V)

COMMON

ANODE

COMMON

CATHODE

LC3021-16

LC3031-16

LC3041-16

LC3041R-16

COMMON

ANODE

LA3021-12

LA3031-12

LA3041-12

LA3041R-12

COMMON

CATHODE

LC3021-11

LC3031-11

LC3041-11

LC3041R-11

COMMON

ANODE

LA3021-13

LA3031-13

LA3041-13

LA3041R-13

COMMON

CATHODE

LC3021-13

LC3031-13

LC3041-13

LC3041R-13

I

V

(mcd)

TYP. TYP. MIN. TYP.

572

589

630

2.1

1.7

2.1

3.9

3.1

4.5

6.5

5.2

7.4

GREEN LA3021-16

YELLOW LA3031-16

ORANGE LA3041-16

ORANGE LA3041R-16

RED

LA3071R-16-M1 LC3071R-16-M1 LA3071R-12-M1 LC3071R-11-M1 LA3071R-13-M1 LC3071R-13-M1 660

LA3051-16

LC3051-16

LA3051-12

LC3051-11

LA3051-13

LC3051-13

700

17.4 29.0

1.1

1.8

LA30X1-16

COMMON ANODE

NO.

FUNCTION

1. CATHODE

A

2. CATHODE

F

3. COMMON

ANODE

4. NO PIN

5. NO PIN

6. CATHODE

LHDP

7. CATHODE

E

8. CATHODE

D

9. CATHODE

RHDP

10. CATHODE

C

11. CATHODE

G

12. NO PIN

13. CATHODE

B

14. COMMON

ANODE

LC30X1-16

COMMON CATHODE

NO.

FUNCTION

1. NO PIN

2. COMMON

CATHODE

3. ANODE

F

4. ANODE

G

5. ANODE

E

6. ANODE

D

7. NO PIN

8. NO PIN

9. COMMON

CATHODE

10. ANODE

RHDP

11. ANODE

C

12. ANODE

B

13. ANODE

A

14. NO PIN

LA30X1-12

COMMON ANODE

NO.

FUNCTION

1. CATHODE

A

2. CATHODE

F

3. COMMON

ANODE

4. NO PIN

5. NO PIN

6. NO CONNECTION

7. CATHODE

E

8. CATHODE

D

9. CATHODE

DP

10. CATHODE

C

11. CATHODE

G

12. NO PIN

13. CATHODE

B

14. COMMON

ANODE

LC30X1-11

COMMON CATHODE

NO.

FUNCTION

1. ANODE

F

2. ANODE

G

3. NO PIN

4. COMMON CATHODE

5. NO PIN

6. ANODE

E

7. ANODE

D

8. ANODE

C

9. ANODE

DP

10. NO PIN

11. NO PIN

12. COMMON CATHODE

13. ANODE

B

14. ANODE

A

LA30X1-13

COMMON ANODE

NO.

FUNCTION

1. COMMON

ANODE

2. CATHODE

F

3. CATHODE

G

4. CATHODE

E

5. CATHODE

D

6. COMMON

ANODE

7. CATHODE

DP

8. CATHODE

C

9. CATHODE

B

10. CATHODE

A

LC30X1-13

COMMON CATHODE

NO.

FUNCTION

1. COMMON CATHODE

2. ANODE

F

3. ANODE

G

4. ANODE

E

5. ANODE

D

6. COMMON CATHODE

7. ANODE

DP

8. ANODE

C

9. ANODE

B

10. ANODE

A

NOTES：1.ALL DIMENSIONS ARE IN mm, TOLERANCE IS

±

0.25mm (0.01”) UNLESS OTHERWISE NOTED.

：

2.THE SLOPE ANGLE OF ANY PIN MAY BE

±

5°MAX.

°

LA3051-16 Related Products

	LA3051-16	LA3021-12	LA3031-12	LA3041-12	LA3051-12	LA3041-16
Description	7 Seg Numeric LED Display, 1-Character, 8mm	7 Seg Numeric LED Display, 1-Character, 8mm	7 Seg Numeric LED Display, 1-Character, 8mm	7 Seg Numeric LED Display, 1-Character, 8mm	7 Seg Numeric LED Display, 1-Character, 8mm	7 Seg Numeric LED Display, 1-Character, 8mm
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Ledtech Electronics	Ledtech Electronics	Ledtech Electronics	Ledtech Electronics	Ledtech Electronics	Ledtech Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color@wavelength	Red	Green	Yellow	Orange	Red	Orange
Configuration	Common Anode	Common Anode	Common Anode	Common Anode	Common Anode	Common Anode
Display height	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of characters	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY
peak wavelength	700 nm	567 nm	585 nm	635 nm	700 nm	635 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum forward voltage	-	3 V	3 V	3 V	3 V	-
Base Number Matches	-	1	1	1	1	-

Recommended Resources

Bedside lamp safety switch circuit (3)

Preamplifier Practical Circuit Diagram

Zero volt switch circuit diagram

Cultural relic anti-theft alarm circuit

Computer motherboard circuit diagram 815 4_38

AC coupled audio amplifier circuit
