87901-0002 datasheet, PDF - EEWORLD Datasheet

87901-0002: DescriptionCard Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size182KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

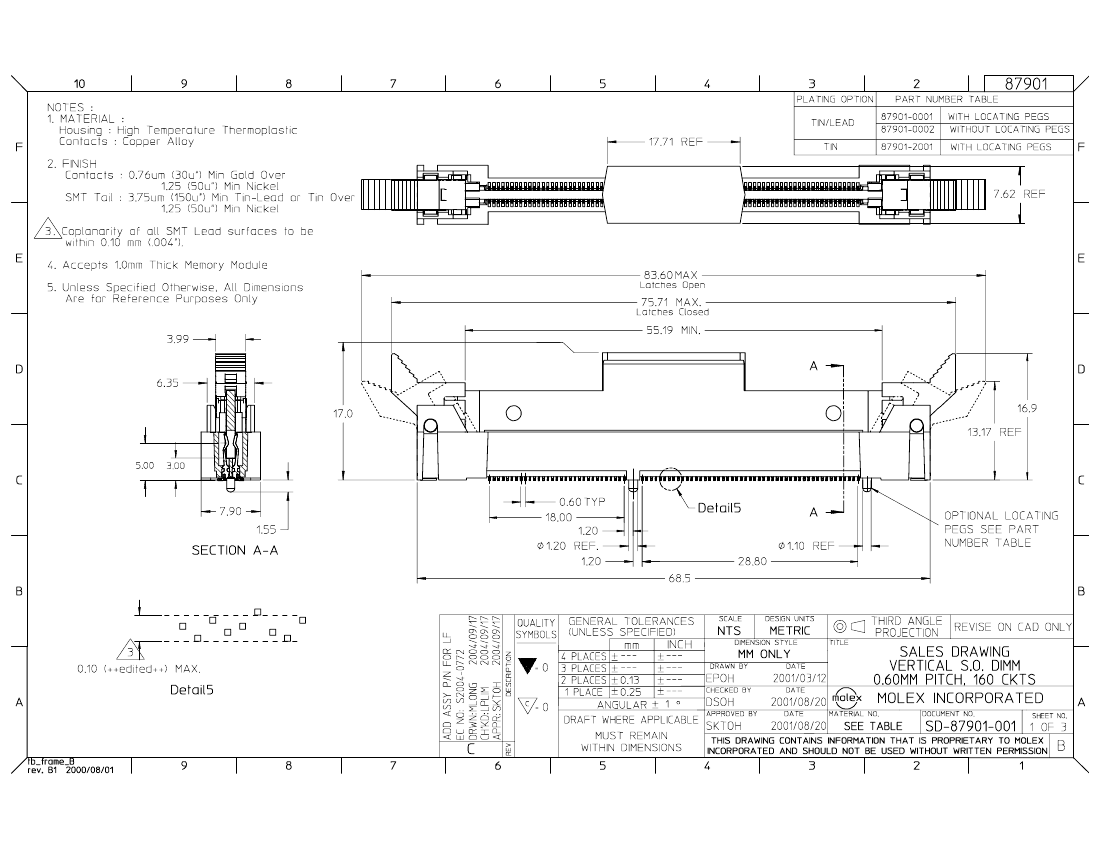

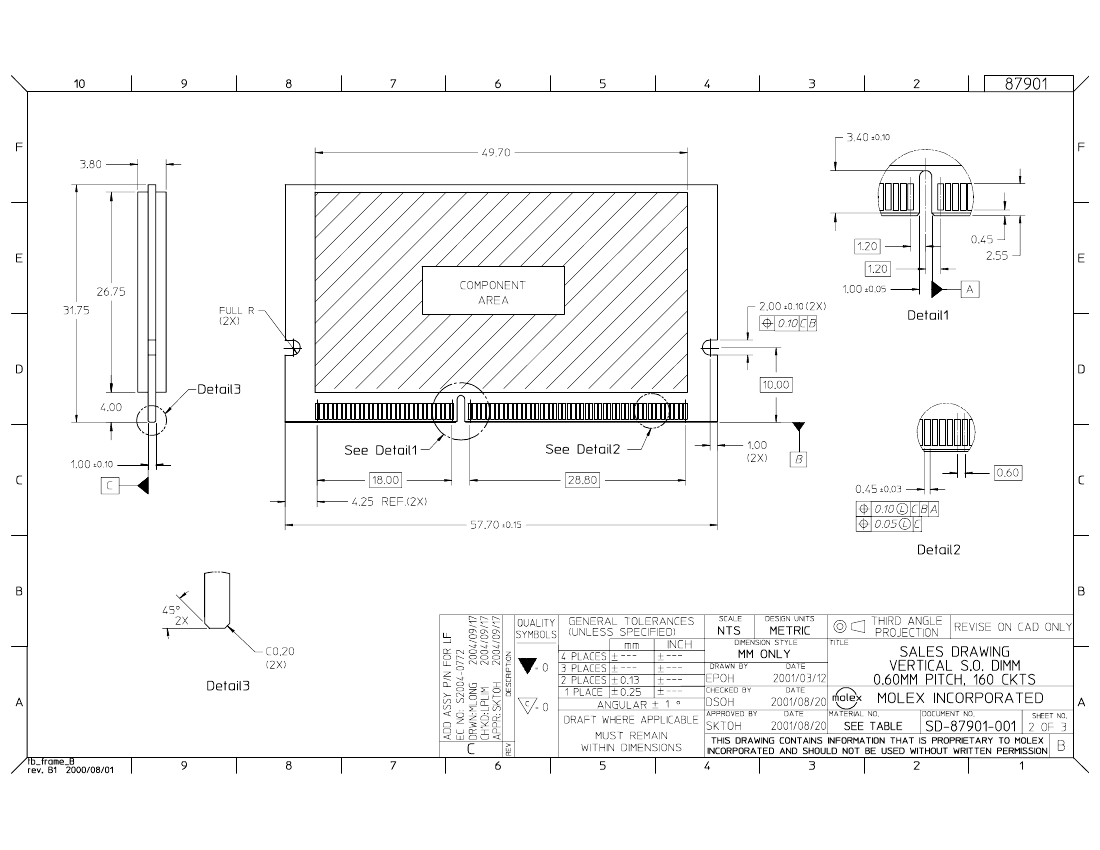

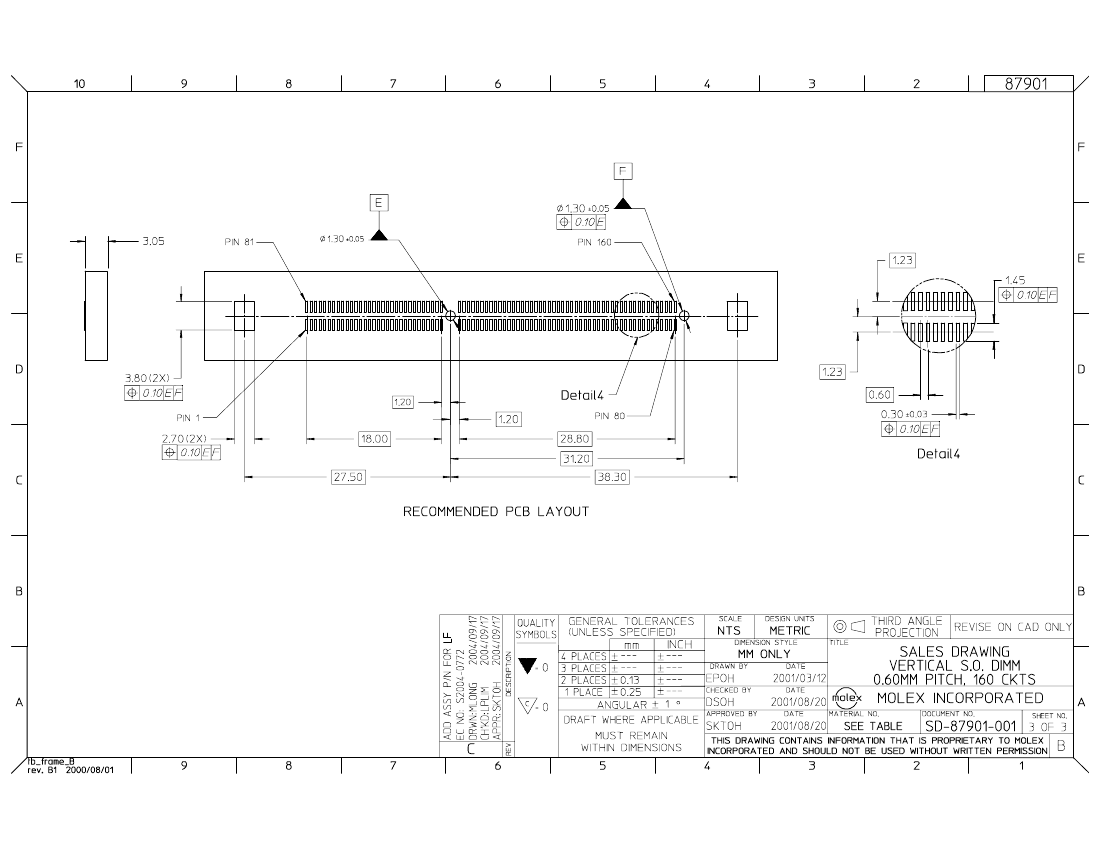

87901-0002 Overview

Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87901
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	160

	87901-0002	87901-0001	87901-2001
Description	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Latch & Eject, Receptacle	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	87901	87901	87901
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	160	160	160
