PALC16R8-40LMB datasheet, PDF - EEWORLD Datasheet

PALC16R8-40LMB: DescriptionOT PLD, 25ns, CMOS, CQCC20, CERAMIC, LCC-20; CategoryProgrammable logic devices Programmable logic; File Size778KB，14 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

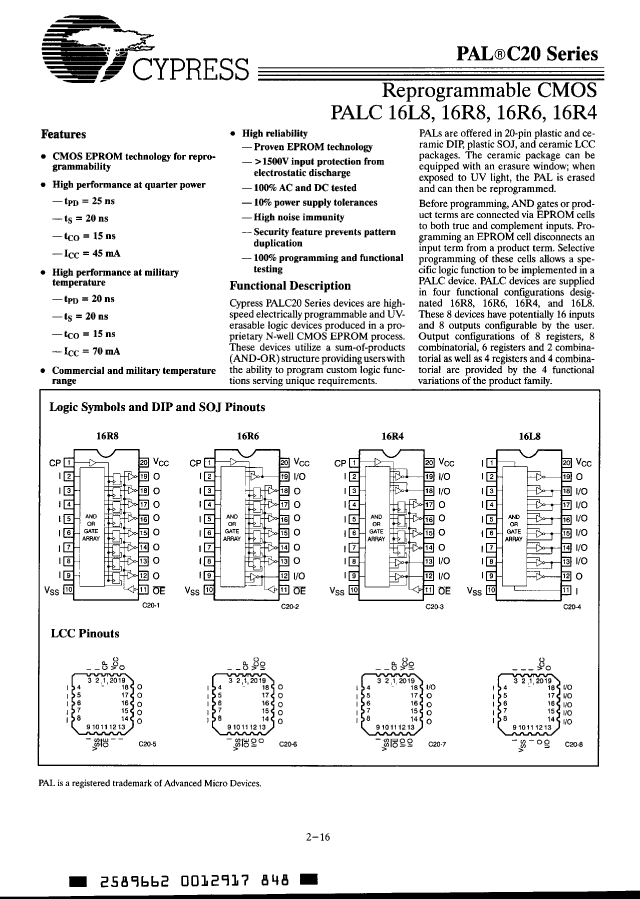

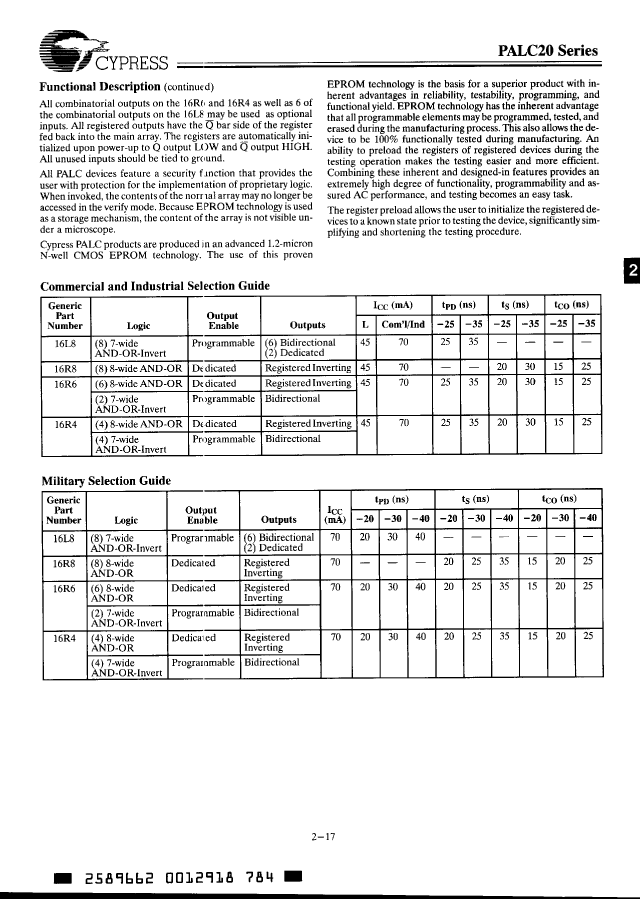

PALC16R8-40LMB Overview

OT PLD, 25ns, CMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	1 EXTERNAL CLOCK

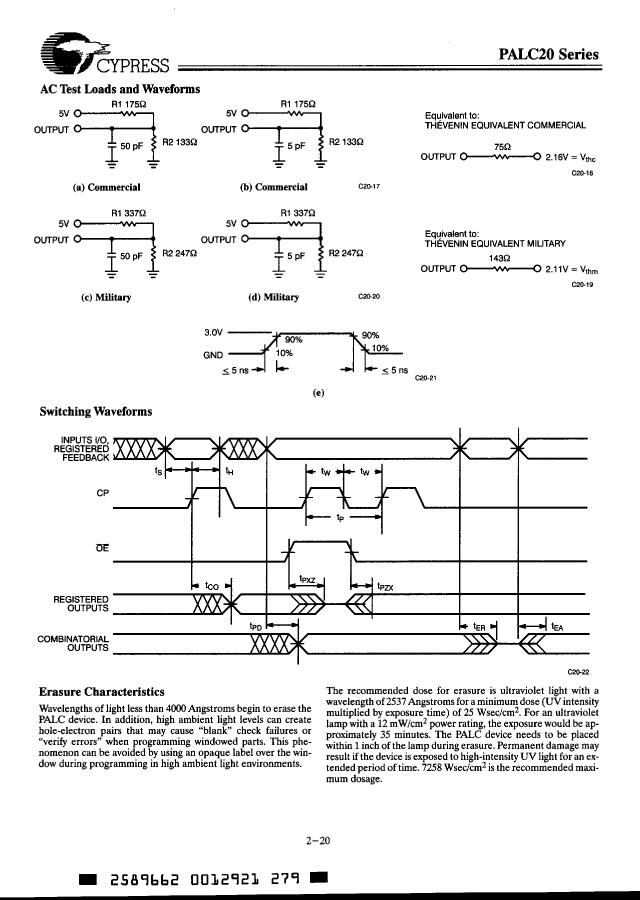

maximum clock frequency	16.5 MHz
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Dedicated input times	8
Number of I/O lines
Number of terminals	20

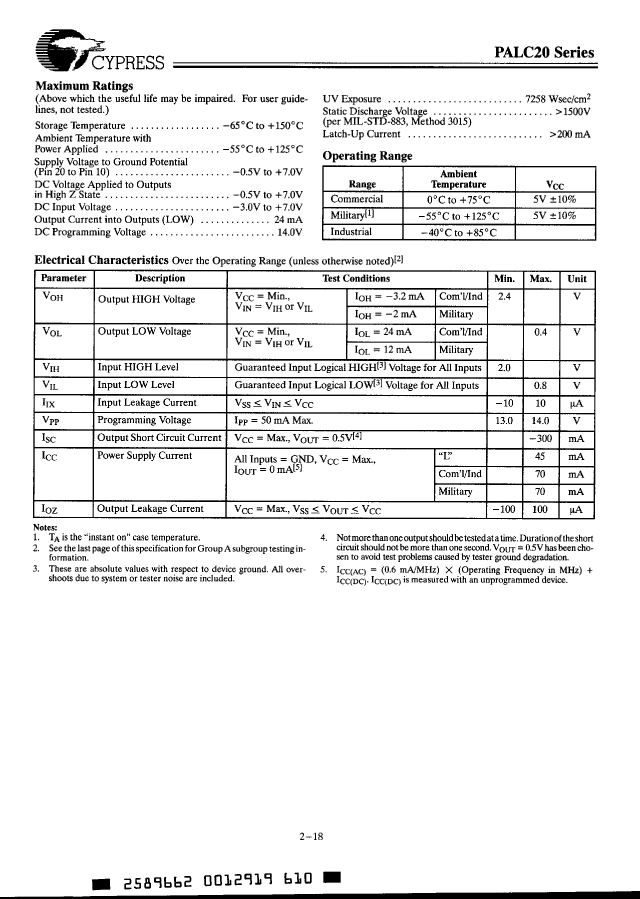

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8 DEDICATED INPUTS, 0 I/O
Output function	REGISTERED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD

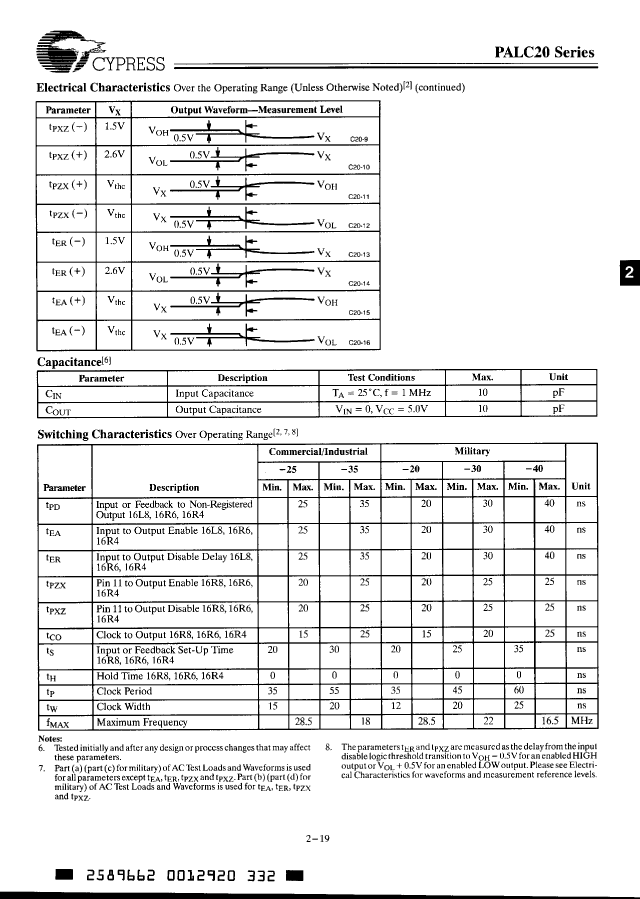

propagation delay	25 ns
Maximum seat height	1.905 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
