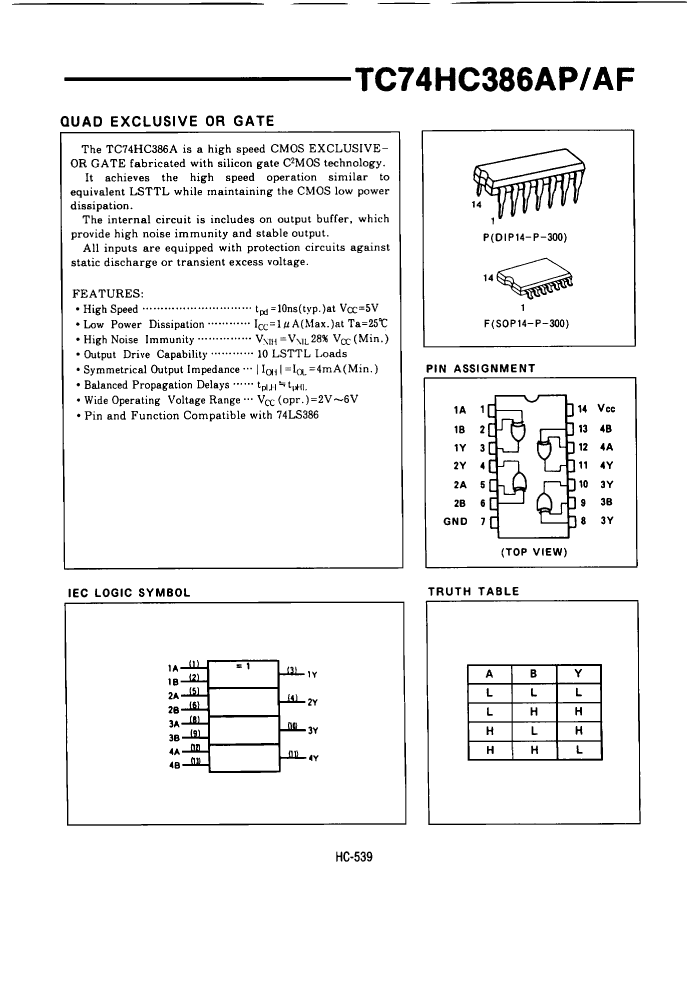

IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate

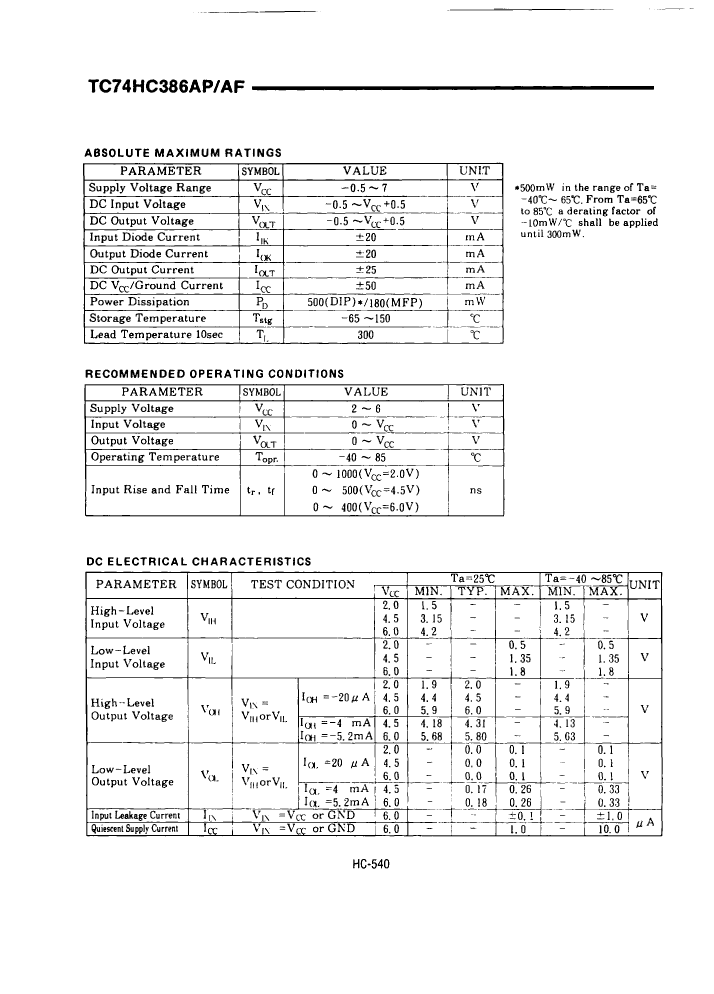

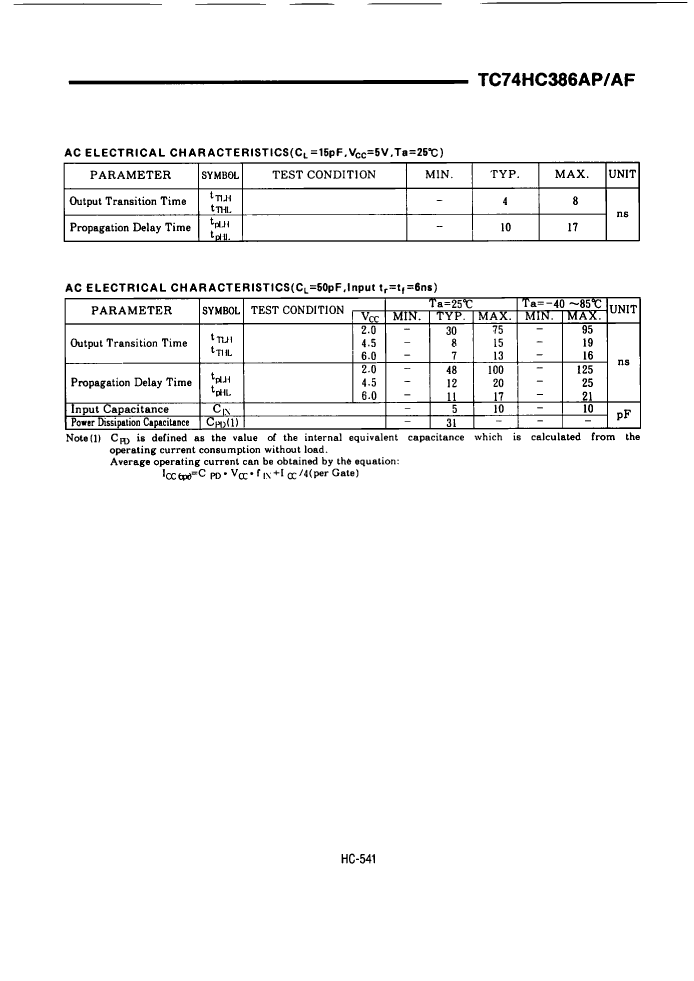

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | HC/UH |
| JESD-30 code | R-PDSO-G14 |
| length | 10.3 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | XOR GATE |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 |
| propagation delay (tpd) | 25 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 5.3 mm |
| TC74HC386AF(EL) | TC74HC386AF(TP2) | TC74HC386AF(TP1) | |
|---|---|---|---|
| Description | IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate | IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate | IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | SOIC | SOIC |
| package instruction | SOP, | SOP, | 0.300 INCH, PLASTIC, SOIC-14 |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| length | 10.3 mm | 10.3 mm | 10.3 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | XOR GATE | XOR GATE | XOR GATE |
| Number of functions | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 | 240 | 240 |
| propagation delay (tpd) | 25 ns | 25 ns | 25 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 1.9 mm | 1.9 mm |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 5.3 mm | 5.3 mm | 5.3 mm |
| Maker | Toshiba Semiconductor | - | Toshiba Semiconductor |
