Image Sensor
Sockets
Proteksion
TM
Image Sensor Sockets

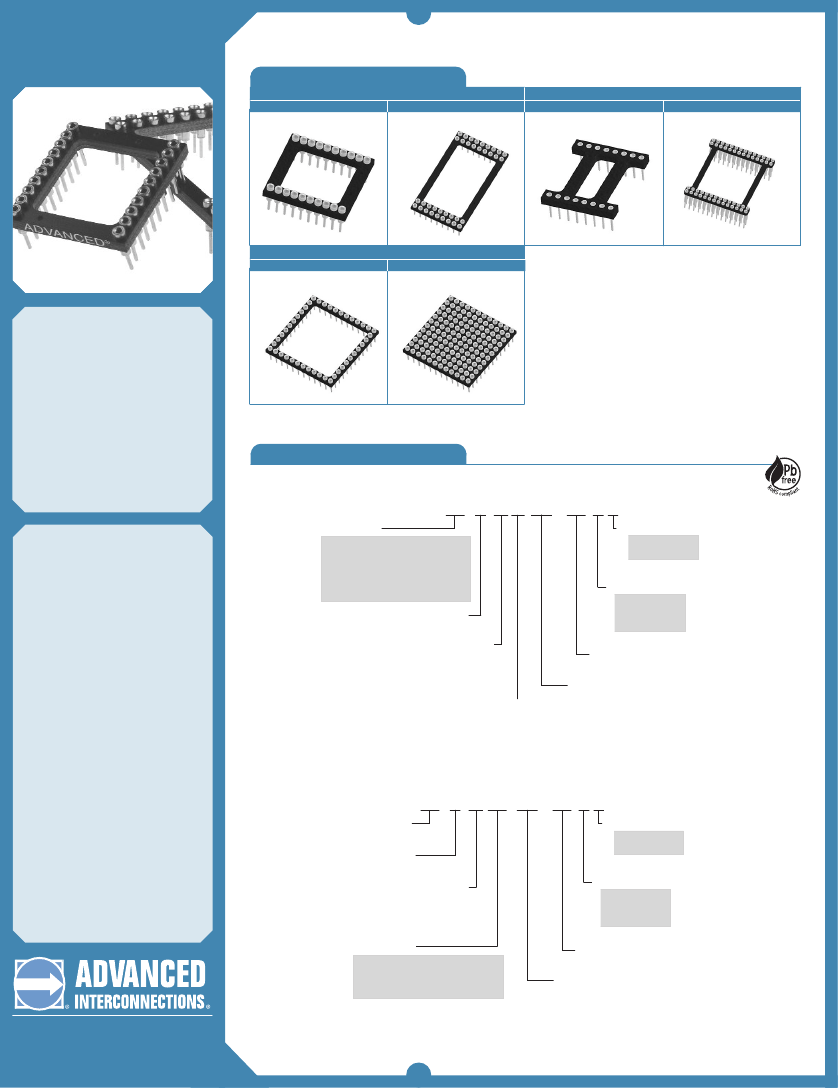

Table of Models
Standard Body
PS
Dual Row
Recessed Body
PD
Quad Row
PR
Dual Row
PL
Quad Row
Footprint-Specific Sockets
PC
Open (Cutout)
PF
Full (Solid)
Features:
• Protect sensor performance by
inserting after the reflow
soldering process.
• Eliminate the chance for damage
to valuable sensors during
exposure to heat and errant
solder flux on glas components.
• Reduce costs by eliminating the
need for glass cleaning
operations.
How To Order
Dual Row and Quad Row Standard Sockets
PS F 04 A 056 - 141 M G
Model Type
Contact Plating
RoHS Compliant:
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Body Material:
F: FR-4 Glass Epoxy,
U.L. Rated 94V-0
Thermal Index:
-40°C to 140°C (-40°F to 284°F)
Gold per MIL-G-45204
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
RoHS Compliant Insulators:
PS - Dual Row Standard
PR - Dual Row Recessed
PD - Quad Row Standard
PL - Quad Row Recessed
Body Type
F - FR-4
Row to Row Spacing
See table on next page
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options on next page
Number of Positions
Total number of pins per socket
Pitch (Pin to Pin)
A = .100/(2.54mm)
B = .070/(1.78mm) [dual row models only]
C = .050/(1.27mm) [dual row models only]
Footprint-Specific Sockets
1
Footprint Dash #
If Applicable
*
F B PC 056 - 141 T G
Contact Plating
RoHS Compliant:
Body Type
F - FR-4
Pitch (Pin to Pin)
A = .100/(2.54mm)
B = .070/(1.78mm)
C = .050/(1.27mm)
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options on next page
Number of Positions
Total number of pins per socket
Model Type
RoHS Compliant Insulators:
PC - Open Body (Cutout)
PF - Full Body (Solid Wafer)
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Cat. 16 Rev. 1
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Proteksion
TM
Image Sensor Sockets

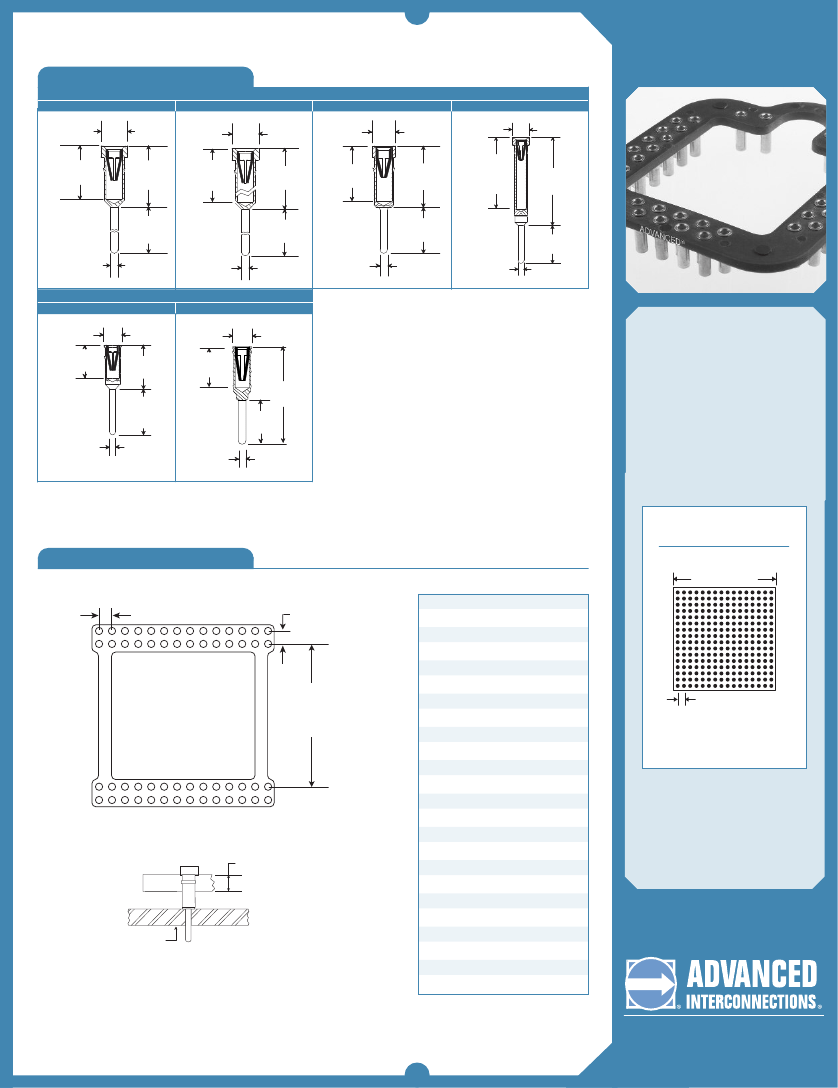

Standard Terminals
Type -01
.072 Dia.
(1.83)
Image Sensor
Sockets
Type -346
.072 Dia.
(1.83)
.100” (2.54mm) Pitch
Type -141
Type -217
.072 Dia.
(1.83)
.062 Dia.
(1.57)
.145
(3.68)
.165
(4.19)
.150
(3.81)
Hole Depth
.430
(10.92)
.150
(3.81)
.165
(4.19)
.300
(7.62)
.370
(9.40)
.125
(3.18)
.020 Dia.
(.51)
.024 Dia.
(.61)
.120
(3.05)
.020 Dia.
(.51)
.125
(3.18)
.024 Dia.
(.61)
.160
(4.06)
1.78mm and 1.27mm Pitch
Type -385
Type -674
.042 Dia.
(1.07)
.080
(2.03)
.105
(2.67)
.042 Dia.
(1.07)
.092
(2.33)
.212
(5.38)
Custom Options:
• Molded insulators
• Peel-A-Way
®
Removable Terminal
Carriers for low profile
applications
• Low, medium and high insertion
force contacts
.110
(2.79)
.015 Dia.
(.38)
.095
(2.41)
.018 Dia.
(.46)
Footprints:
256 Pins
Footprint Number 256
Row to Row Spacing
Example Part Number: PLF18A056-141TG
?
Pitch (Pin to Pin)
PC Board
Pitch
(Pin to Pin)
Row to Row
Spacing
(see table for
standard sizes)
.062
(1.57)
Code
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
inch
0.300
0.400
0.450
0.600
0.610
0.700
0.800
0.802
0.880
0.900
0.910
1.005
1.010
1.200
1.300
1.320
1.400
1.410
1.520
1.700
1.800
2.000
2.010
2.600
mm
m
7.62
10.16
11.43
15.24
15.49
17.78
20.32
20.37
22.35
22.86
23.11
25.53
25.65
30.48
33.02
33.53
35.56
35.81
38.61
43.18
45.72
50.80
51.05
66.04
1.600 Sq.
(40.64)
.100/(2.54) Typ.
16 x 16 rows
• Virtually any footprint available
• Submit your device's mechanical
specs and we will create a
footprint number for you
• Fully customizable
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Cat. 16 Rev. 1
