Datasheet> All Categories > Discrete semiconductor> diode> BYW31-200

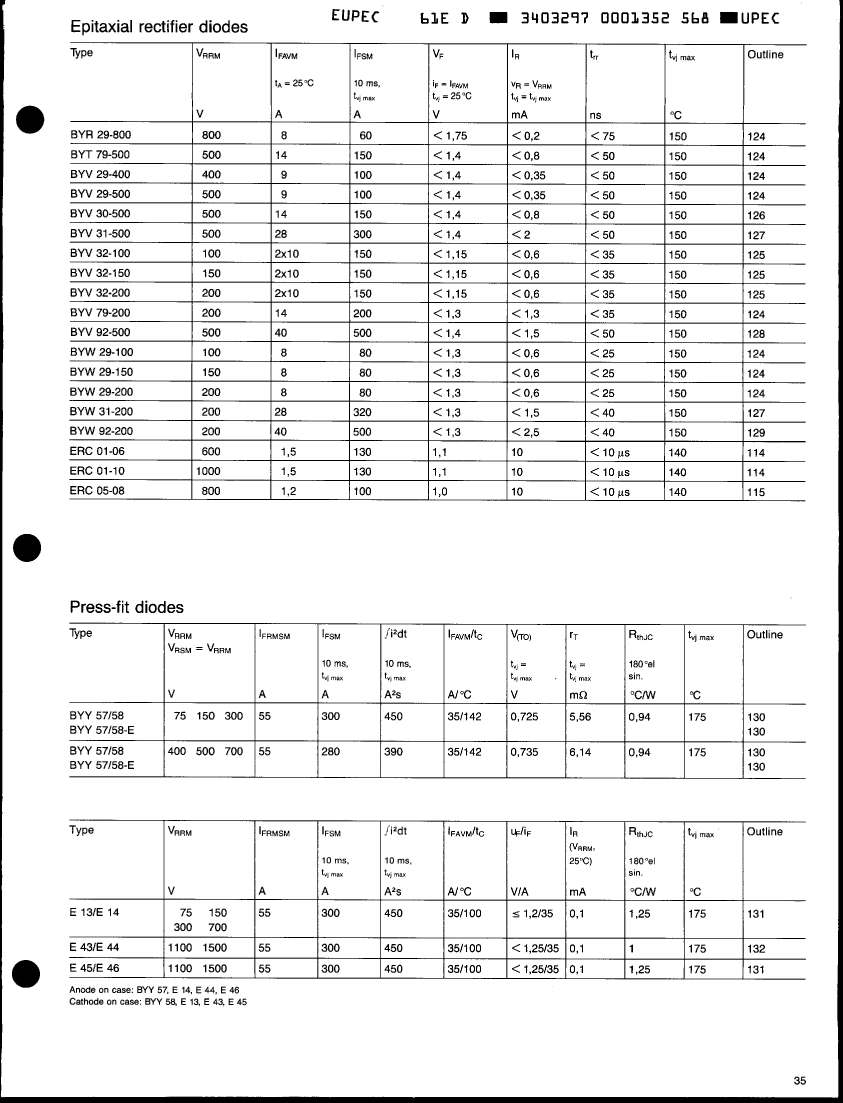

Preview

BYW31-200: DescriptionRectifier Diode, 1 Phase, 1 Element, 28A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size39KB，1 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

BYW31-200 Overview

Rectifier Diode, 1 Phase, 1 Element, 28A, 200V V(RRM), Silicon,

BYW31-200 Parametric

Parameter Name	Attribute value
Maker	EUPEC [eupec GmbH]
Reach Compliance Code	unknown
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	320 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	28 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	1500 µA
Maximum reverse recovery time	0.04 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

BYW31-200 Related Products

	BYW31-200	BYW92-200	BYV31-500	BYV92-500
Description	Rectifier Diode, 1 Phase, 1 Element, 28A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 28A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 500V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER	POWER	POWER	POWER
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.4 V	1.4 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	320 A	500 A	300 A	500 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	28 A	40 A	28 A	40 A
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	200 V	500 V	500 V
Maximum reverse current	1500 µA	2500 µA	2000 µA	1500 µA
Maximum reverse recovery time	0.04 µs	0.04 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
Maker	EUPEC [eupec GmbH]	-	EUPEC [eupec GmbH]	EUPEC [eupec GmbH]
