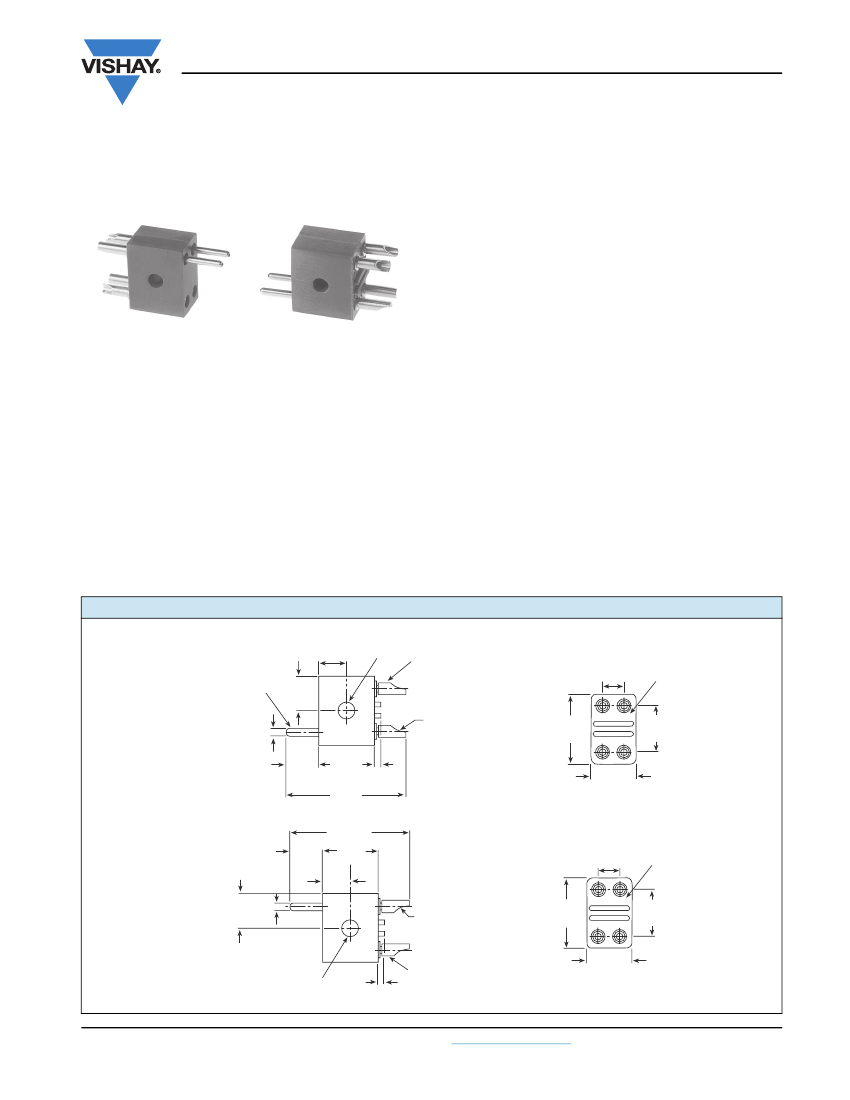

A20 and WA20
Vishay Dale
Rack and Panel Connectors Side Mount
FEATURES
• Body components available with any desired pin and
socket combination
• Floating contacts
• Polarization accomplished by reversed pin and socket
combination
• Model A20 has barriers for increased creepage distance
• Thru hole permits use of building block technique or flat
mounting
A20
WA20
MATERIAL SPECIFICATIONS
Standard Body:
Glass-filled diallyl phthalate per ASTM
D 5948-96 green, flame retardant
Pin Contacts:
Brass
Socket Contacts:
Phosphor bronze
Contact Plating:
Gold, 10 micro-inches
APPLICATIONS
Broad-limited only by those applications requiring physical,
electrical and/or materials specifications exceeding those
indicated.
PHYSICAL SPECIFICATIONS
Minimum Creepage Path between Contacts:
A20 = 0.08" [2.03 mm]; WA20 = 0.05" [1.27 mm]
Minimum Air Space between Contacts:
A20 = 0.08" [2.03 mm]; WA20 = 0.05" [1.27 mm]
Contact, Center to Center:
A20 = 0.150" [3.18 mm];
WA20 = 0.125" [3.17 mm]
ELECTRICAL SPECIFICATIONS
Current Rating:
7.5 A
Breakdown Voltage (Contact to Contact):
At sea level: 2000 V
RMS
At 70 000 feet [21 336 meters]: 500 V
RMS
DIMENSIONS
in inches [millimeters]
A20P-CD
0.180
[4.57]
0.093 [2.36]
Dia. Thru
Contact
Socket
0.150
[3.81]
Lettering on
Wire Side
Only
B
D
0.265
[6.73]
Contact Pin
0.218
[5.54]
Solder Cups
Accommodate
#20 AWG Wire
0.200
[5.08]
0.360
[9.14] 0.031
[0.79]
0.750
[19.05]
0.750
[19.05]
0.360
[9.14]
0.180
[4.57]
Solder Cups
Accommodate
#20 AWG Wire
B
0.437
[11.11]
D
0.275
[6.99]
A
C
0.437
[11.10]
A
C
0.040
[1.02]
Dia.
0.275
[6.99]
A20S-CD
0.200
[5.08]
0.040
[1.02]
Dia.
0.218
[5.54]
0.150
[3.81]
Lettering on
Wire Side
Only
0.265
[6.73]
Contact
Socket
0.093 [2.36]
Dia. Thru
0.031
[0.79]
Document Number: 36018
Revision: 08-Feb-07
For technical questions contact:
connectors@vishay.com
www.vishay.com
20
A20 and WA20
Vishay Dale
Rack and Panel Connectors Side Mount
DIMENSIONS
in inches [millimeters]
WA20P-CD
0.170
[4.32]
0.093 [2.36]
Dia. Thru
Contact
Socket
0.125
[3.18]
Lettering on
Wire Side
Only
Contact
Pin
0.040
[1.02]
Dia.
0.220
[5.59]
82 °C-sink
(Far Side)
Solder Cups
Accommodate
#20 AWG Wire
0.340
[8.64]
0.750
[19.05]
0.440
[11.18]
A
B
DALE
WA20P
C
D
0.281
[7.14]
0.220
[5.59]
0.250
[6.35]
WA20S-CD
0.220
[5.59]
0.040
[1.02]
Dia.
0.220
[5.59]
0.750
[19.05]
0.340
[8.64]
0.170
[4.32]
Solder Cups
Accommodate
#20 AWG Wire
0.440
[11.18]
B
A
DALE
WA20S
D
C
0.125
[3.18]
Lettering on
Wire Side
Only
0.281
[7.14]
82° C-sink
0.172
[4.37]
Contact
Socket
0.093 [2.36]
Dia. Thru
0.250
[6.35]
ORDERING INFORMATION
A20
WA20
MODEL
P
BODY STYLE
AB
CONTACT LOCATION
A
EMPTY CONTACT
POSITIONS
Specify
by
contact
identification letter
(A, B, etc.) any contact
positions
which
are to
be
left empty (omit, if none
required)
Side Mount
with
4 positions
for #20 AWG contacts
P - Designates pin style
body.
S - Designates socket style
body.
These designations are
used
to
identify mating connectors, however,
any combination of pin and socket
contacts may
be
ordered in either
style
body.
Therefore,
when
designators 3 and 4 are the same,
a connector designated A20P or
WA20P will
mate
with
a connector
designated A20S or
WA20S.
Example:
A20P-CD mates
with
A20S-CD
A20S-AB mates
with
A20P-CD
Designates pin contact
positions in an A20P or
WA20P
connector or socket
contact positions in an A20S
or
WA20S
connector
(specify “A”, “B”, “C”, “D” or
any combination of the four)
EXAMPLE 1:
A20P-CD or WA20P-CD
= Connector
with
pin contacts in positions “C” and
“D” and socket contacts in positions
“A” and “B”
EXAMPLE 2:
A20S-CD or WA20S-CD
= Connector
with
socket contacts in positions “C”
and “D” and pin contacts in positions
“A” and “B” (would mate
with
Example 1
at left)
EXAMPLE 3:
A20P-BC or WA20P-BC-A
= Connector
with
pin
contacts in positions “B” and “C”,socket contact in
position “D” and no contact in position “A” (would
mate
with
A20S-BC or
WA20S-BC-A)
www.vishay.com
21
For technical questions contact:
connectors@vishay.com
Document Number: 36018
Revision: 08-Feb-07
