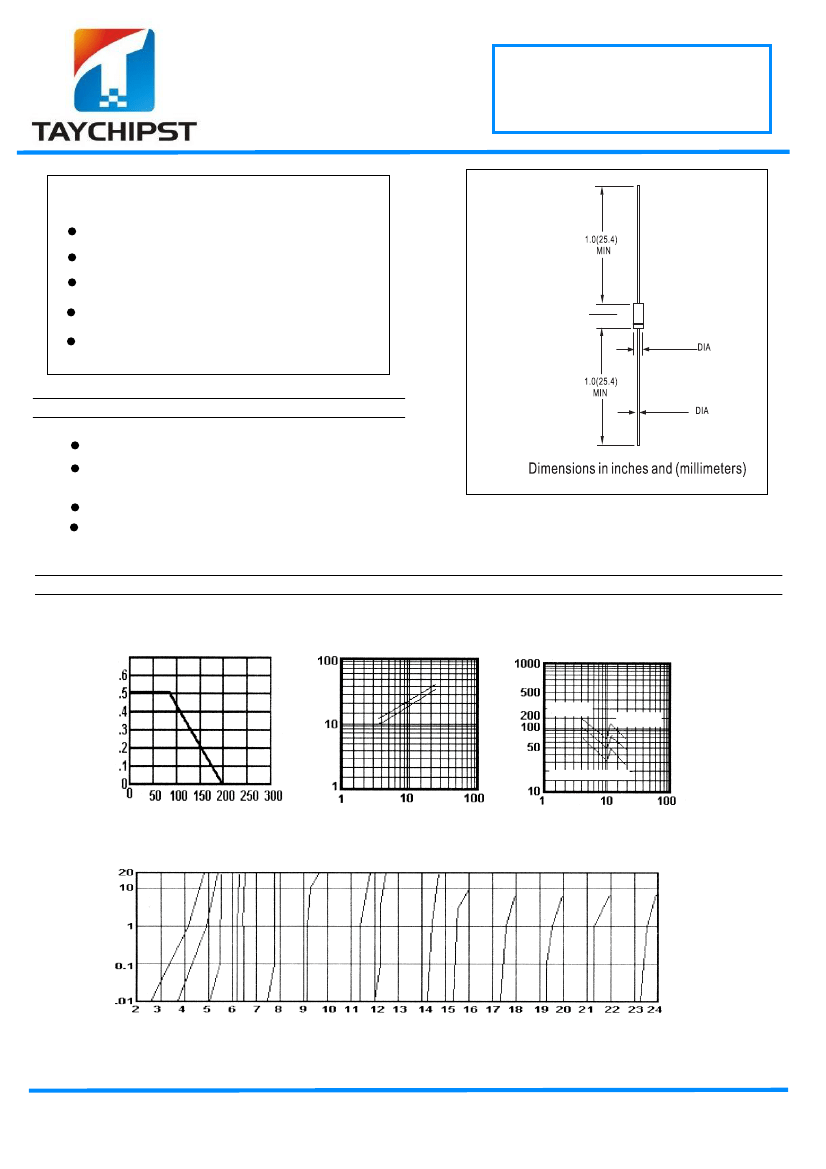

1N5221B THRU 1N5267B
EPITAXIAL ZENER DIODE
2.4V-75V
1.7A-20A
FEATURES
D0-35
D
Average Power Dissipation
D
Zener Voltage
D
Withstand Hard Envirnment
D
Plastic Mold Package
D
Can be use for an automatic mounting machine
MECHANICAL DATA
.120(3.0)
.200(5.1)
0.60(1.5)
0.90(2.3)
0.024(0.60)
D
D
D
D
Case: DO-35, Glass
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: Cathode Band
Approx. Weight: 0.13 grams
RATINGS AND CHARACTERISTIC CURVES
Steady State Power Derating
Power Dissipation (W)
1N5221B THRU 1N5267B
Typical Junction Capacitance
Junction Capacitance (pF)
Temperature Coefficients vs. Voltage
Temperature
Coefficient (mV/
o
C)
1 V Bias
0 V Bias
50% Vz Bias
Lead Temperature (°C)
°
Zener Voltage (V)
Zener Current vs. Zener Voltage
Zener Voltage (V)
Zener Current (mA)
Zener Voltage (V)
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
1N5221B THRU 1N5267B
EPITAXIAL ZENER DIODE
2.4V-75V
1.7A-20A
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Electrical Characteristics
Type
Number
Nom (V)
1N5221B
1N5222B
1N5223B
1N5224B
1N5225B
1N5226B
1N5227B
1N5228B
1N5229B
1N5230B
1N5231B
1N5232B
1N5233B
1N5234B
1N5235B
1N5236B
1N5237B
1N5238B
1N5239B
1N5240B
1N5241B
1N5242B
1N5243B
1N5244B
1N5245B
1N5246B
1N5247B
1N5248B
1N5249B
1N5250B
1N5251B
1N5252B
1N5253B
1N5254B
1N5255B
1N5256B
1N5257B
1N5258B
1N5259B
1N5260B
1N5261B
1N5262B
1N5263B
1N5264B
1N5265B
1N5266B
1N5267B
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
@ T
A
= 25°C unless otherwise specified
Test
Current
I
ZT
Max (V)
2.52
2.63
2.84
2.94
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
14.70
15.75
16.80
17.85
18.90
19.95
21.00
23.10
25.20
26.25
28.35
29.40
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
63.00
65.10
71.40
78.75
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9.0
8.5
7.8
7.4
7.0
6.6
6.2
5.6
5.2
5.0
4.6
4.5
4.2
3.8
3.4
3.2
3.0
2.7
2.5
2.2
2.1
2.0
1.8
1.7
Maximum Zener
Impedance
Z
ZT
@ I
ZT
W
30
30
30
30
29
28
24
23
22
19
17
11
7.0
7.0
5.0
6.0
8.0
8.0
10
17
22
30
13
15
16
17
19
21
23
25
29
33
35
41
44
49
58
70
80
93
105
125
150
170
185
230
270
Z
ZK
@ I
ZK
=
0.25mA
W
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
900
1000
1100
1300
1400
1400
1600
1700
Maximum Reverse
Current
I
R
µA
100
100
75
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
10
11
12
13
14
14
15
17
18
19
21
21
23
25
27
30
33
36
39
43
46
47
52
56
Maximum
Temperature
Coefficient
@ I
ZT
%/°C
-0.085
-0.085
-0.080
-0.080
-0.075
-0.070
-0.065
-0.060
+0.055
+0.030
+0.030
+0.038
+0.038
+0.045
+0.050
+0.058
+0.062
+0.065
+0.068
+0.075
+0.076
+0.077
+0.079
+0.082
+0.082
+0.083
+0.084
+0.085
+0.086
+0.086
+0.087
+0.087
+0.089
+0.090
+0.091
+0.091
+0.092
+0.093
+0.094
+0.095
+0.095
+0.096
+0.096
+0.097
+0.097
+0.097
+0.098
Zener Voltage Range
(Note 2)
V
Z
@ I
ZT
Min (V)
2.28
2.38
2.57
2.66
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
16.15
17.10
18.05
19.00
20.90
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
57.00
58.90
64.60
71.25
