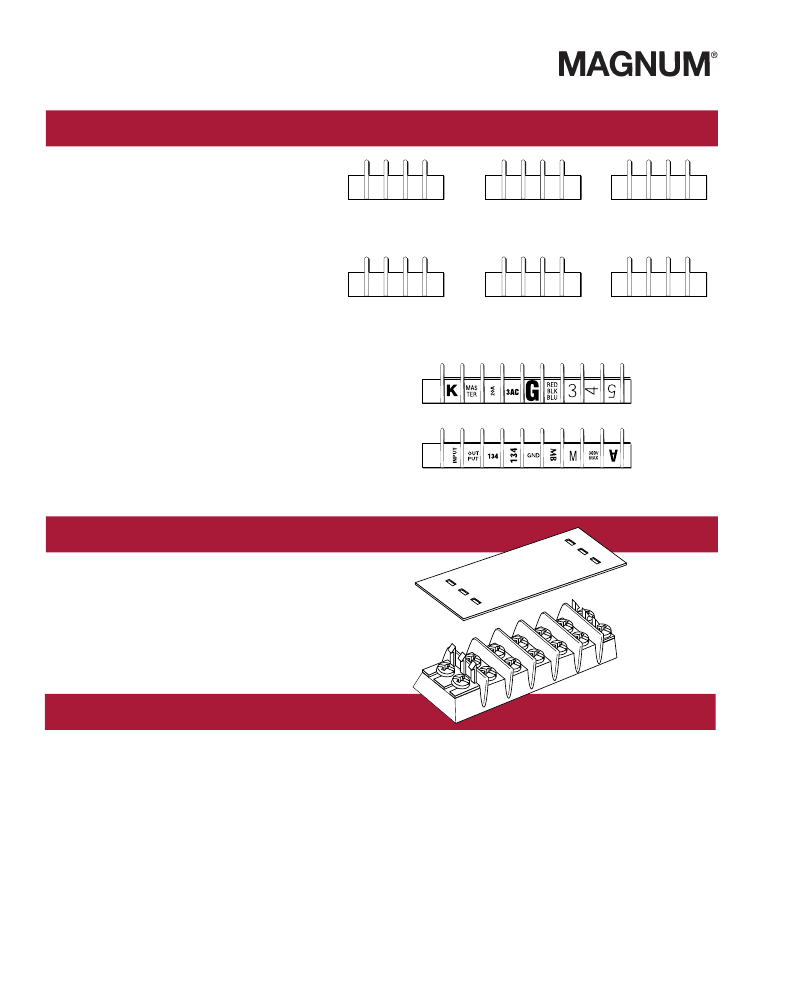

All Series Marking Options & Accessories
Double Row Terminal Blocks
Marking Options
Standard Marking
Standard markings are applied directly to the side(s) of a
block. Standard color is white. Standard height is .125”.
Note: Blocks marked on both sides require a different
code for each side. Example Style L1 on one side of the
block requires Style L2 on the other side to ensure com-
mon terminal marking. To order, add appropriate suffix
(L1, L2, L3, L4, L5 and/or L6) to block part number in the
proper sequence.
Note: Not available on TB400 Series
GET CONNECTED WITH US
1 2 3
L1
3 2 1
L2
L4
L5
Special Marking
Special markings are available at an additional charge for
preparation. Production charges for setup, handling and
marking are the same as for standard marking. Drawing(s)
must be submitted to ensure accuracy of part required.
Consult factory for price and delivery.
Covers
Covers prevent personnel, screws and foreign items from
contacting live terminals. Available in white or clear
plastic. Two cover clips supplied with each cover. Cover
width is 1.31 inches.
All covers must be ordered separately. Consult factory for
special legends.
Example: 10 position cover, white, TB100 Series, no
legends . . . Part # is X12010.
Part Numbering System
Series
Cover Strip
Poles
Cover Clips – Bulk
Part Number
DD1 – TB100 Series
DD2 – TB200 Series
DD2HB – TB200HB Series
DD3 – TB300 Series
s
X
sss
120
-
119
-
220
-
219
-
320
-
319
-
TB100/white
TB100/clear
TB200 & TB200HB* - white
TB200 & TB200HB* - clear
TB300 & TB345 - white
TB300 & TB345 - clear
ss
02
to
36
(TB100)
02
to
30
(TB200/TB200HB)
02
to
24
(TB300/TB345)
Note: Not available on TB400 Series.
* For use on TB200HB, specify HB
after Part No. i.e., X21902HB
1
2
3
L3
3 2 1
L6
1 2 3
1
2
3
