1N5397G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5397G

1N5397G: Description1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size125KB，4 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/

Download Datasheet Parametric Compare View All

1N5397G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5397G	-	-	View	Buy Now

1N5397G Overview

1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-15

1N5397G Parametric

Parameter Name	Attribute value
Maker	TAITRON Components
package instruction	O-PALF-W2
Reach Compliance Code	unknow
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Reverse test voltage	600 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

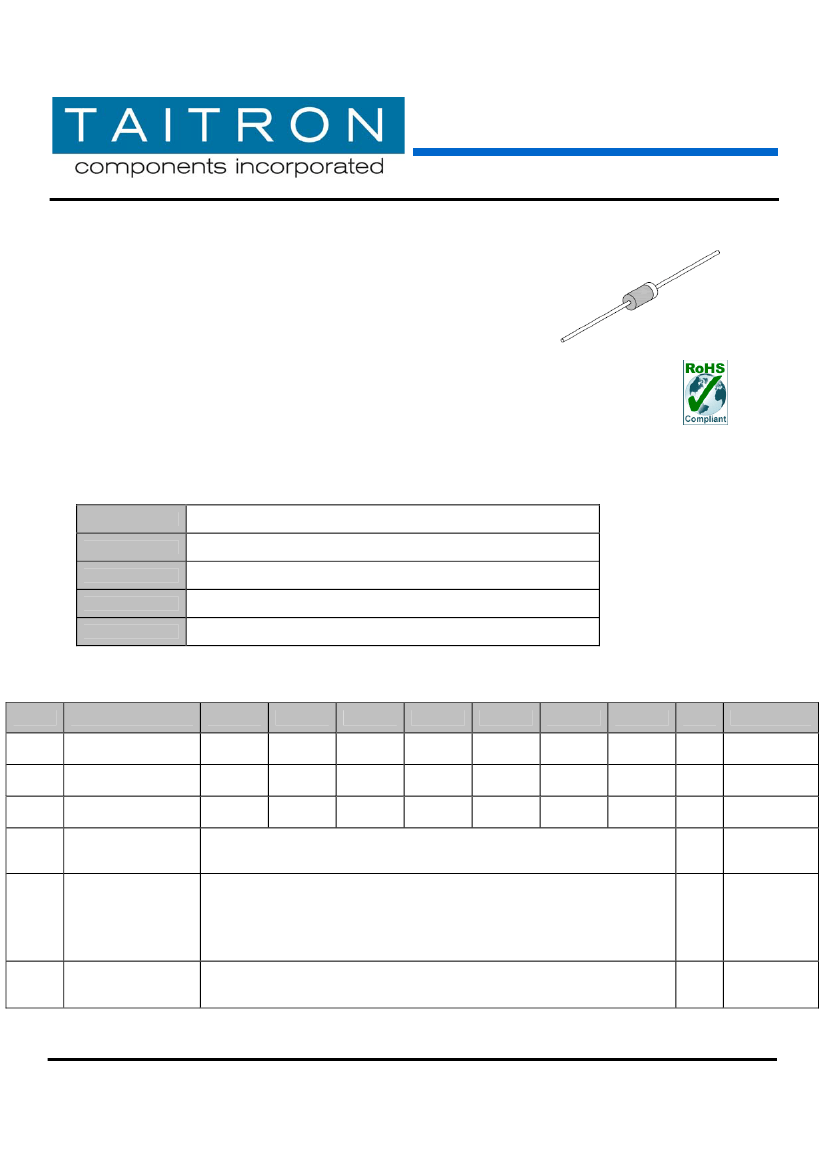

1.5A Glass Passivated Rectifiers

1N5391G

–

1N5399G

1.5A Glass Passivated Rectifiers

Features

•

Glass passivated chip junction

Low forward voltage drop

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260°C/10 seconds

/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension

•

RoHS compliance

DO-15

Mechanical Data

Case:

Epoxy:

Terminals:

Polarity:

Weight:

DO-15 molded plastic body

Plastic package has UL flammability classification 94V-0

Plated axial leads, solderable per MIL-STD-202E, Method 208C

Color band denotes cathode end

0.015 ounces, 0.4 gram

Maximum Ratings and Electrical Characteristics

=25ºC unless noted otherwise)

Symbol

Description

Maximum Repetitive

Peak Reverse Voltage

Maximum RMS

Voltage

Maximum DC

Blocking Voltage

Maximum Average

Forward Rectified

Current

1N5391G

1N5392G

100

1N5393G

200

140

200

1N5395G

400

280

400

1.5

1N5397G

600

420

600

1N5398G

800

560

800

1N5399G

1000

700

1000

Unit

0.375”(9.5mm)

lead length at

=75° C

8.3ms single

half sine-wave

superimposed

on rated load

(JEDEC

Method)

=1.5 A

Conditions

RRM

RMS

F(AV)

FSM

Peak Forward Surge

Current

Maximum

Instantaneous

Forward Voltage

1.1

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel:

Fax:

(800)-TAITRON

(800)-TAITFAX

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. A/AH 2008-04-24

Page 1 of 4

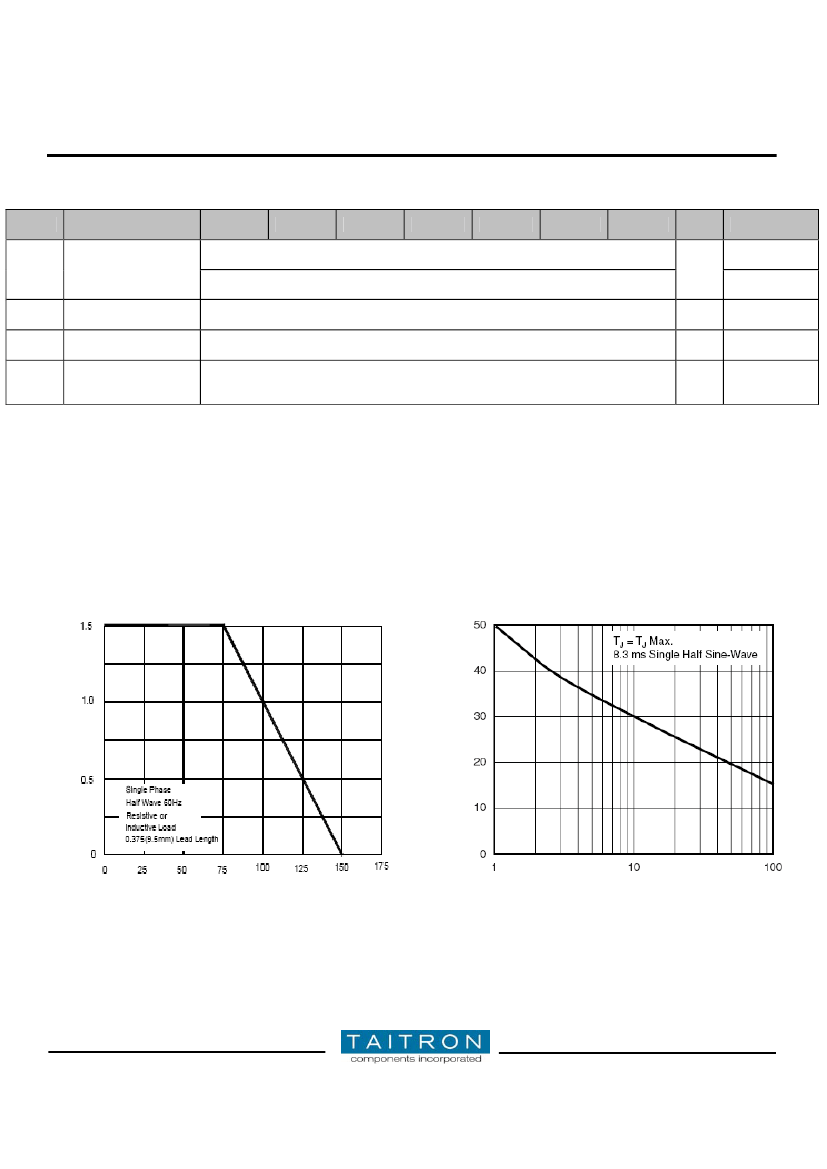

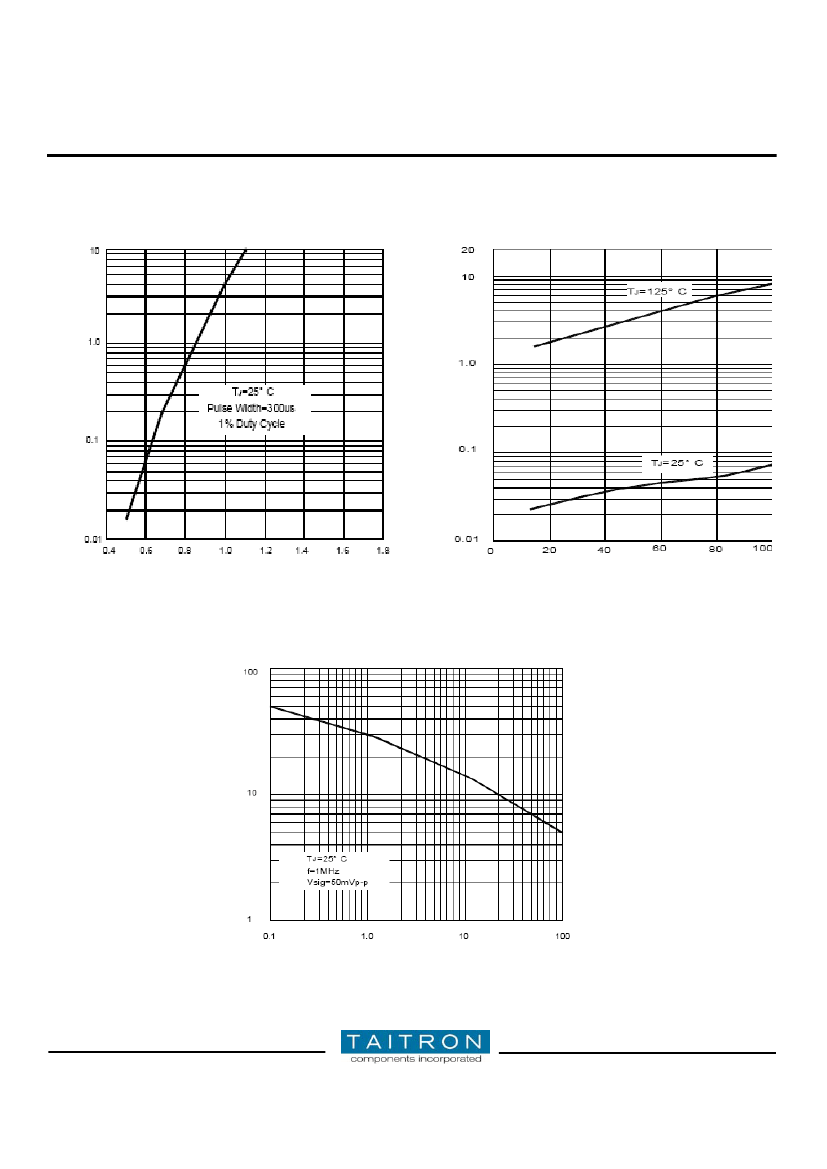

1N5397G Related Products

	1N5397G	1N5398G	1N5399G
Description	1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-15	RECTIFIER DIODE, DO-15	RECTIFIER DIODE, DO-15
Maker	TAITRON Components	TAITRON Components	TAITRON Components
Reach Compliance Code	unknow	unknow	unknow
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	600 V	800 V	1000 V
Maximum reverse current	5 µA	5 µA	5 µA
Reverse test voltage	600 V	800 V	1000 V
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL
