DAC-10FD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-10FD

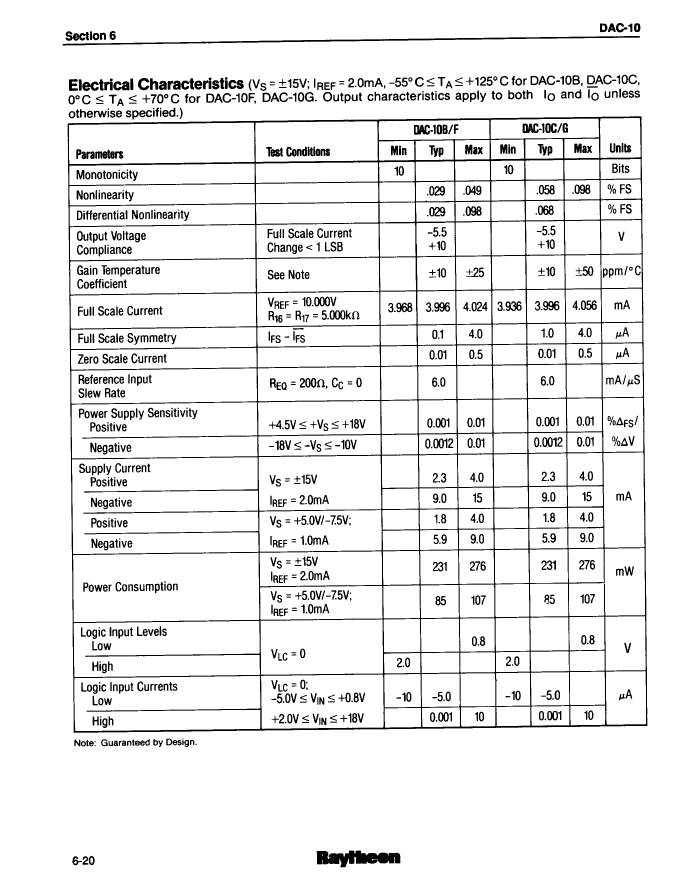

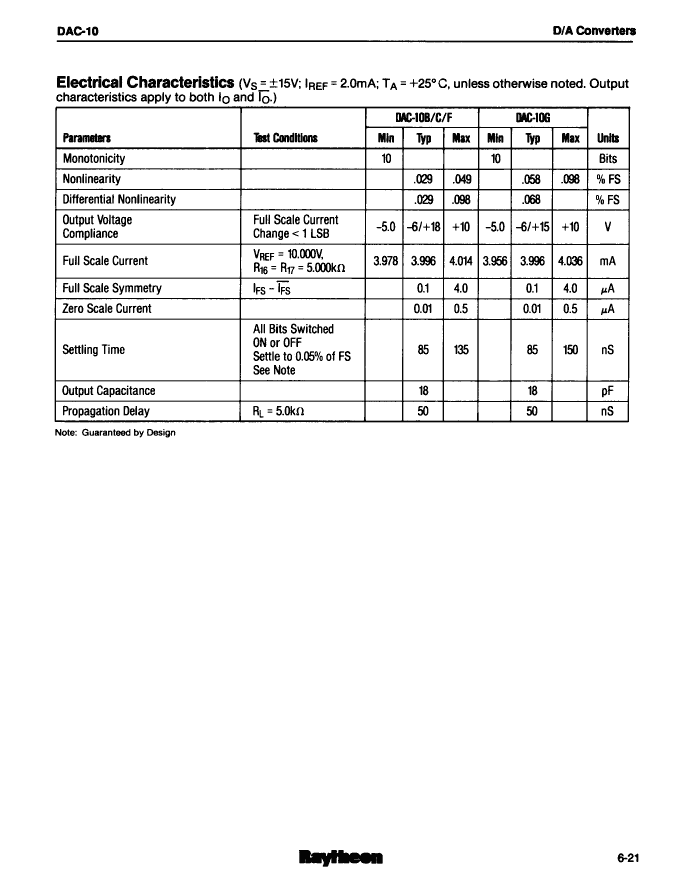

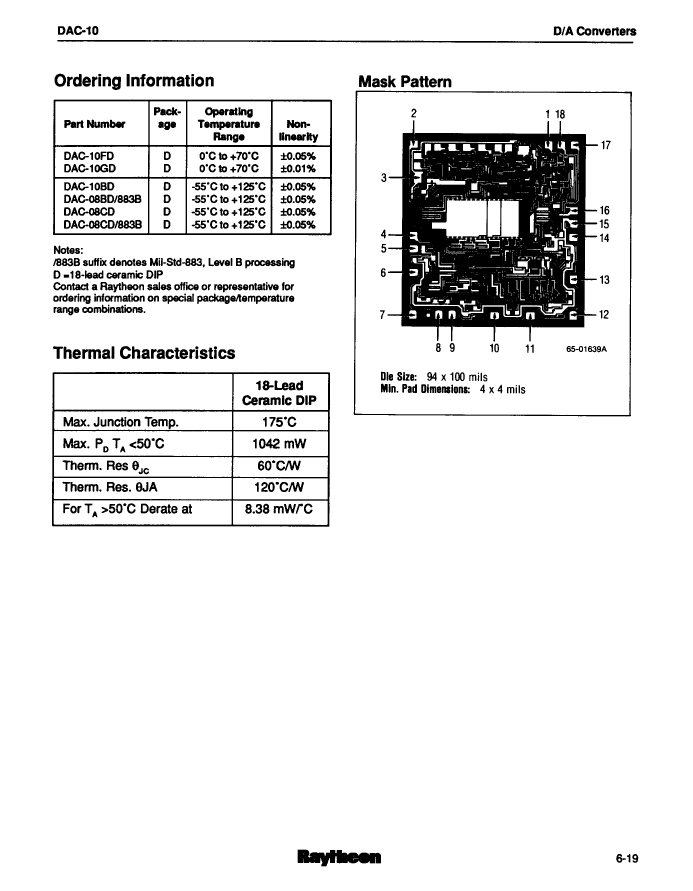

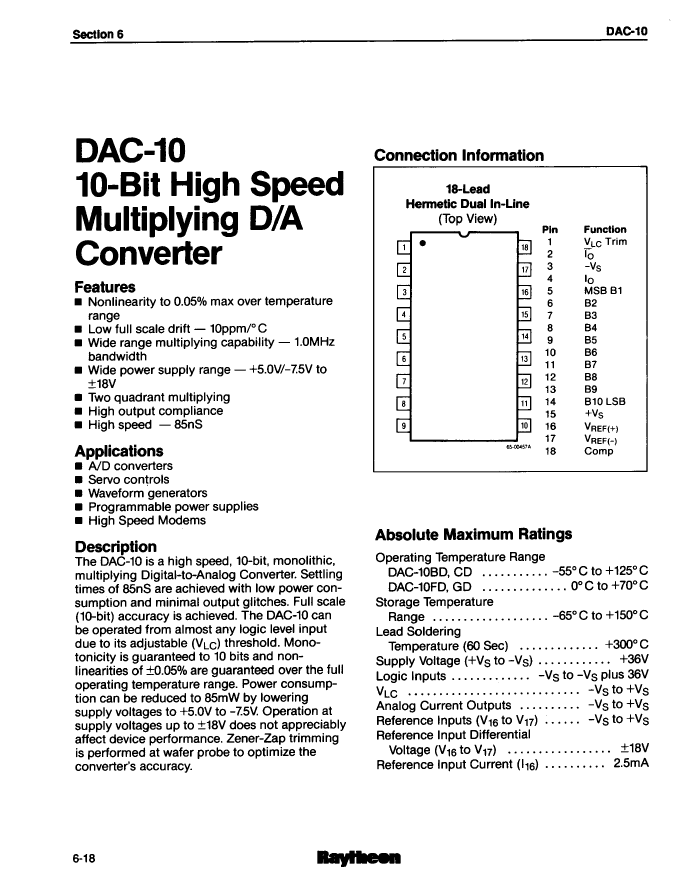

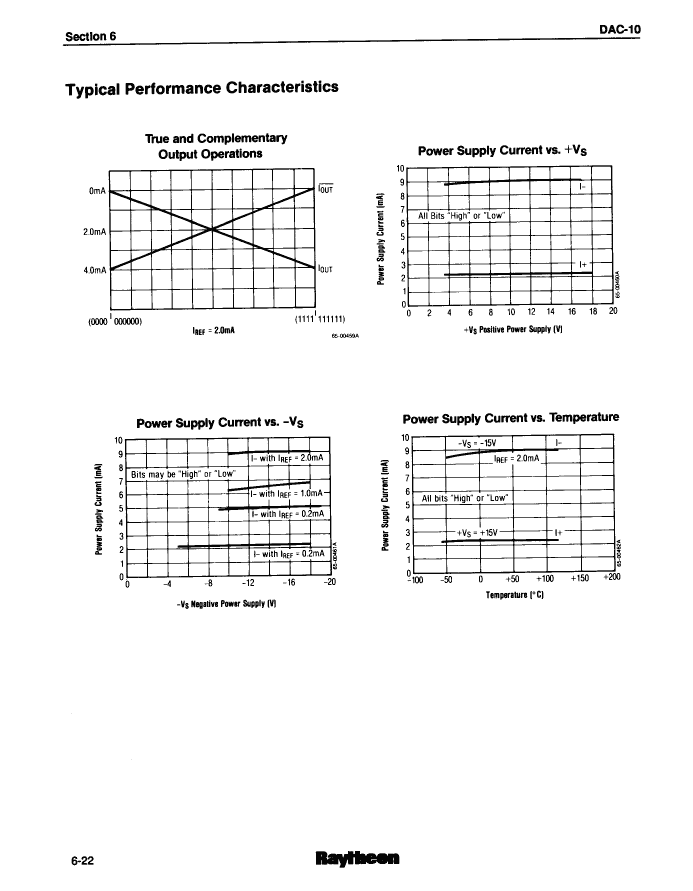

DAC-10FD: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 0.085us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18; CategoryAnalog mixed-signal IC converter; File Size789KB，18 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

DAC-10FD Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.085us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18

DAC-10FD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1450414340
package instruction	HERMETIC SEALED, CERAMIC, DIP-18
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T18
JESD-609 code	e0
Maximum linear error (EL)	0.049%
Nominal negative supply voltage	-15 V
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum stabilization time	0.135 µs
Nominal settling time (tstl)	0.085 µs
Maximum slew rate	19 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

DAC-10FD Related Products

	DAC-10FD	DAC-10GDC	DAC-10GD	DAC-10BD/883B	DAC-10BD	DAC-10FDC
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.085us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.085us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.085us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	1450414340	100160273	1450414345	1516353510	1450414335	100160272
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	OFFSET BINARY	BINARY	OFFSET BINARY	BINARY	OFFSET BINARY	BINARY
JESD-30 code	R-CDIP-T18	R-XDIP-T18	R-CDIP-T18	R-XDIP-T18	R-CDIP-T18	R-XDIP-T18
JESD-609 code	e0	e0	e0	e0	e0	e0
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum linear error (EL)	0.049%	-	0.098%	0.049%	0.049%	-
power supply	+-15 V	-	+-15 V	+-15 V	+-15 V	+-15 V
Maximum stabilization time	0.135 µs	-	0.15 µs	0.135 µs	0.135 µs	-
Maximum slew rate	19 mA	-	19 mA	19 mA	19 mA	-
