POTS CPE Splitter Filter Module for standard ADSL and ADSL2+ VOIP
applications
Complies with ANSI TI.421 standard for applications in North America
Footprint is compatible with a range of Pulse Splitter Filter Modules
RoHS-6 compliant
Electrical Specifications @ 25°C
DC Characteristics
Network port at 20mA
Tip and Ring to Ground at
≤
100dc /
≥
100Vc and
≤200Vdc
Operating Current
Operating Voltages
Network tip to ring
Network tip to ring level with ringing signal of 17 to 23Hz and 40 to 106Vrms
On-hook Voice Band Insertion Loss
Single filter / With 5 filters
On-hook Voice Band Insertion Loss Distortion
Single filter, 200 to 1000Hz / With 5 filters
Single filter, 1 to 2.8kHz / With 5 filters
On - or Off - hook Envelope Delay 300Hz - 2800Hz
Off-hook Voice Band Insertion Loss
Single filter / With 5 filters
Off-hook Voice Band Insertion Loss Distortion
Single filter, 200 to 3400Hz / With 5 filters
Single filter, 3.4 o 4kHz / With 5 filters
Off-hook impedance distortion
Phone Port: SRL Low / ERL / SRL High
Network Port: SRL Low / ERL / SRL High
Inter-Modulation Distortion Second and Third order products
On-hook High Band Stopband Attenuation
From 25 to 50kHz and from 50kHz to 12MHz, between 20 and 90mA
Off-hook High Band Stopband Attenuation
From 25 to 50kHz, between 20 and 90mA / between 7 and 20mA
From 50 to 12kHz, between 20 and 90mA / between 7 and 20mA
Bridging Loss
Single filter, 25 kHz to 1.2MHz / With 5 filters
Single filter, 25 kHz to 1.2MHz / With 5 filters
< 0.5dB / < 1.25dB
< 3.0dB / < 4.0dB
> 21dB / > 13dB
> 25dB / > 22dB
> 12dB
> 13dB / > 9dB / >3dB
> 12dB / > 10dB / >5dB
> 60dB
-1.0dB to 0.5dB / -1.5dB to 2.5dB
-1.5dB to 1.0dB / -2.0dB to 3.25dB
-0.5dB to 1.5dB / -1.0dB to 6.5dB
-1.5dB to 1.5dB / -5.5dB to 2.0dB
-1.5dB to 1.5dB / -2.0dB to 2.0dB
<250μs
-0.5dB to 1.5dB / -1.0dB to 6.5dB
0 to -80Vdc
-20 to -80Vdc
≤
25Ω
>10MΩ / >30kΩ
5 to 90mA
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B871.A (02/12)
pulseelectronics.com
ADSL POTS CPE Splitter
BX8296NL
Smart Series

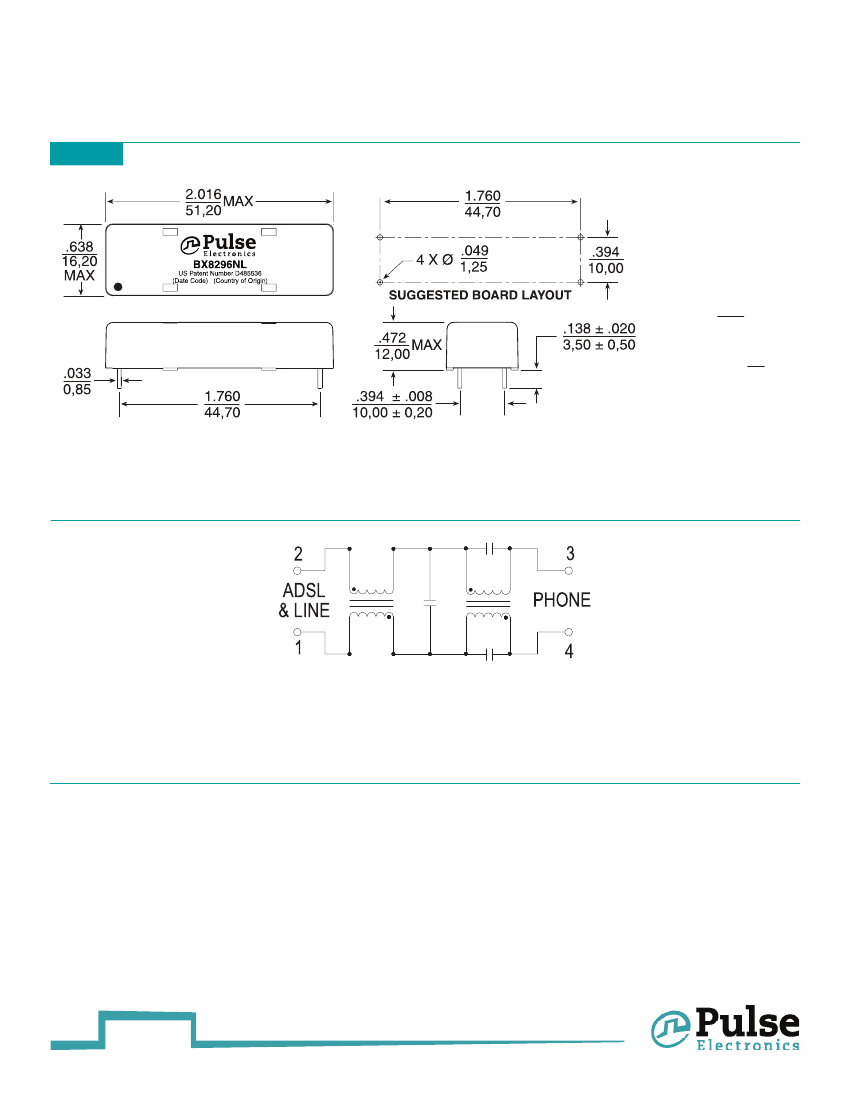

Mechanical
BX8296NL
Weight
...................15 grams
Tray
...........................35/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
Schematic
