HYB514400AZ-80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HYB514400AZ-80

HYB514400AZ-80: DescriptionFast Page DRAM, 1MX4, 80ns, CMOS, PZIP20,; Categorystorage storage; File Size1MB，23 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

HYB514400AZ-80 Overview

Fast Page DRAM, 1MX4, 80ns, CMOS, PZIP20,

HYB514400AZ-80 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Reach Compliance Code	not_compliant
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PZIP-T20
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of terminals	20
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP20,.1
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.09 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG

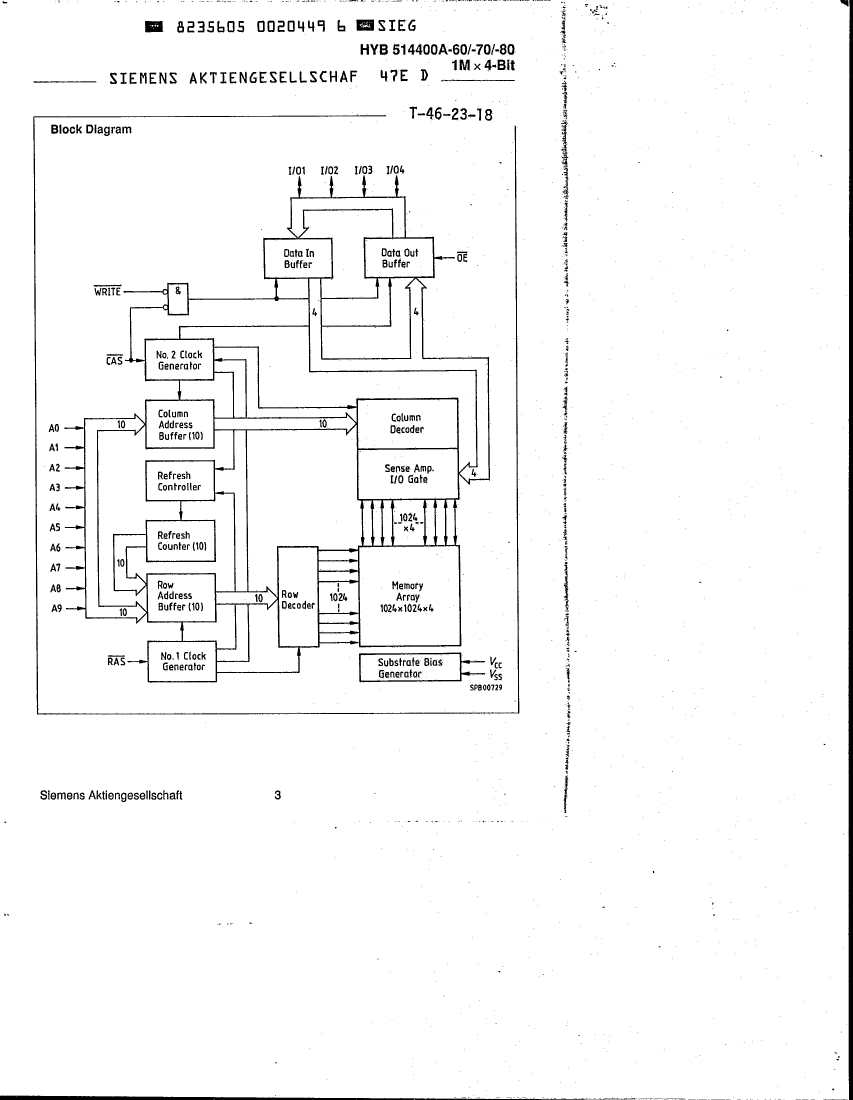

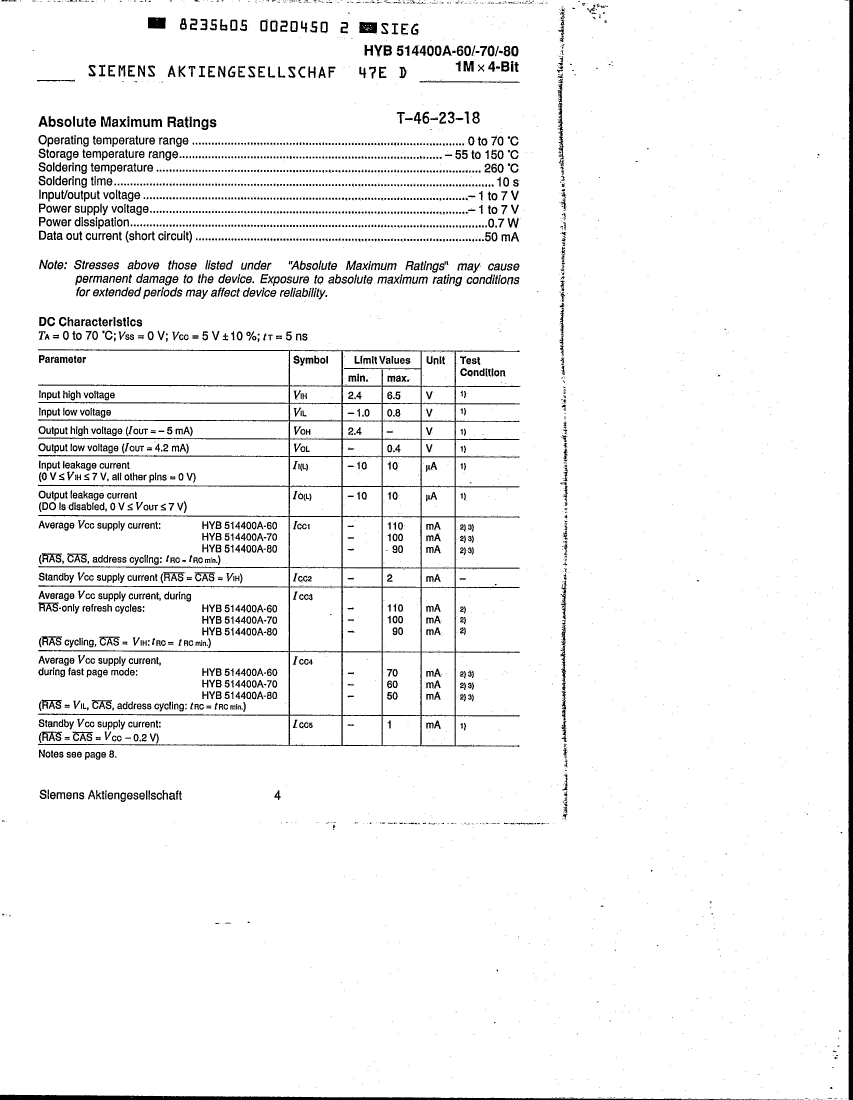

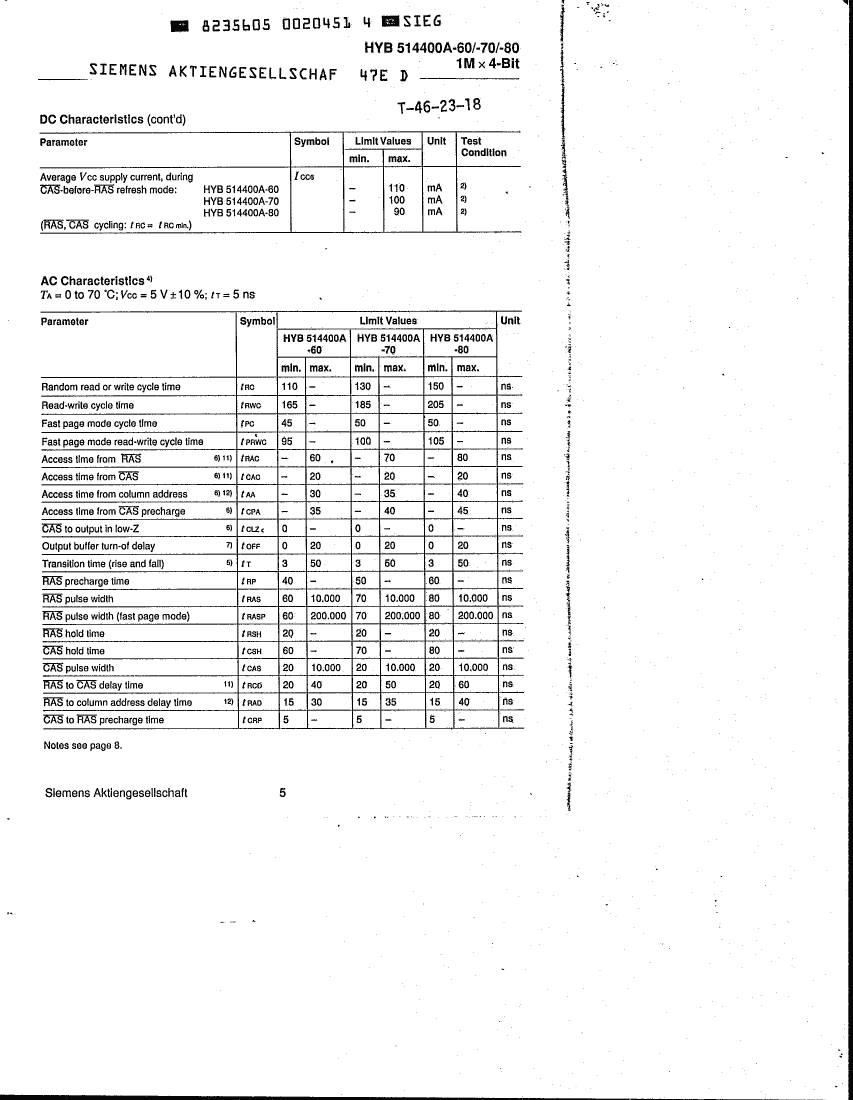

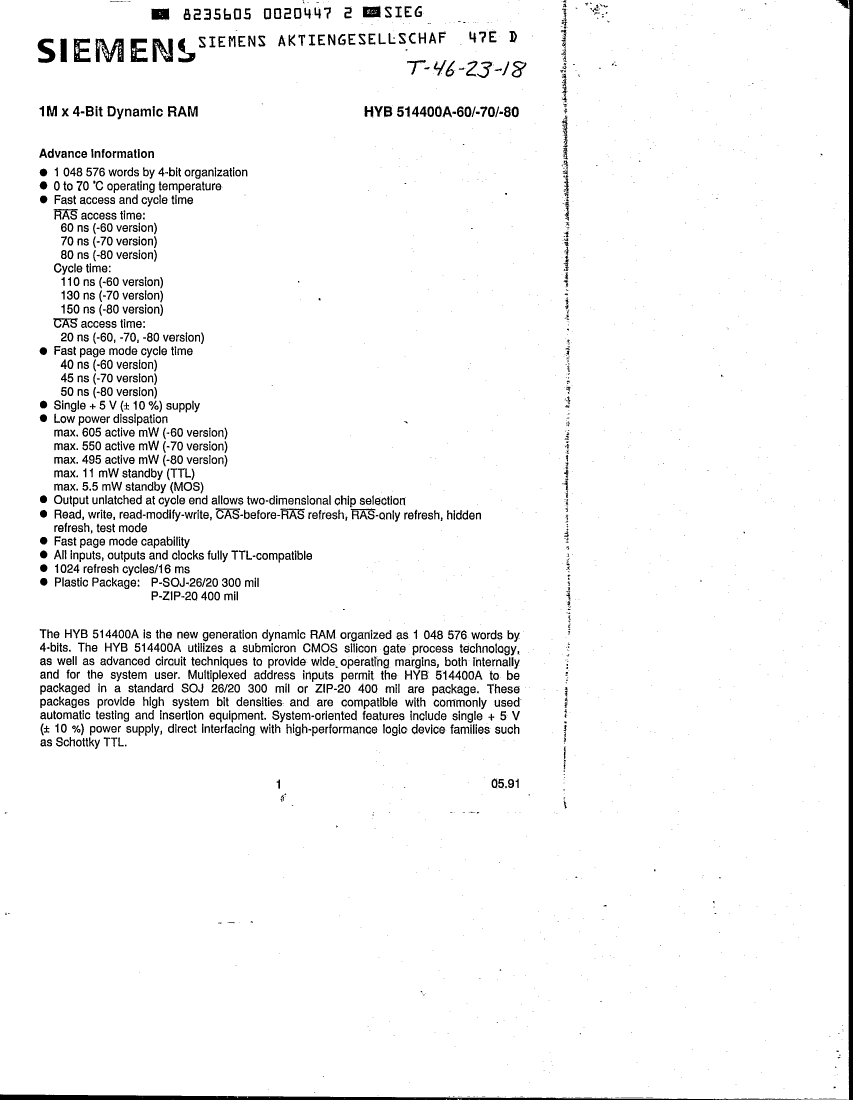

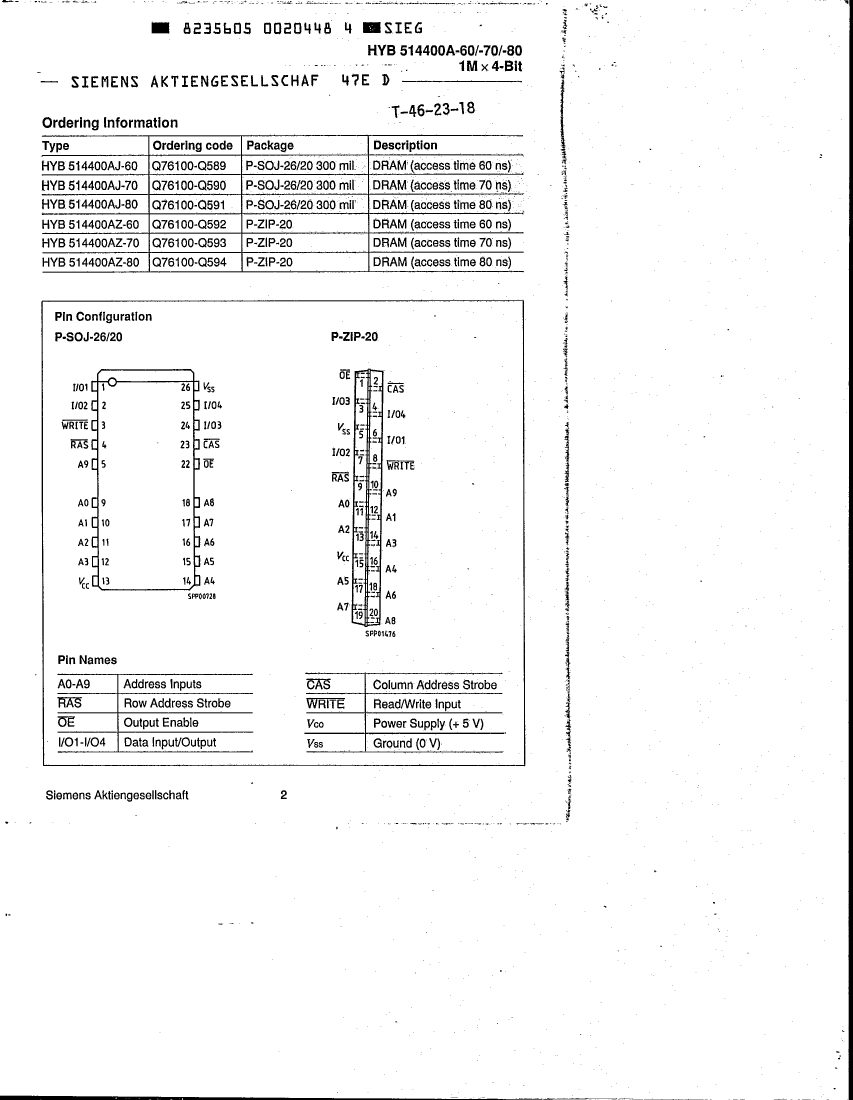

Preview

Download Datasheet

View All

HYB514400AZ-80 Related Products

	HYB514400AZ-80	HYB514400BJ-70	HYB514400AJ-60	HYB514400AJ-70	HYB514400AJ-80	HYB514400AZ-60	HYB514400AZ-70
Description	Fast Page DRAM, 1MX4, 80ns, CMOS, PZIP20,	Fast Page DRAM, 1MX4, 70ns, CMOS, PDSO20	Fast Page DRAM, 1MX4, 60ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 70ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 80ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 60ns, CMOS, PZIP20,	Fast Page DRAM, 1MX4, 70ns, CMOS, PZIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum access time	80 ns	70 ns	60 ns	70 ns	80 ns	60 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PZIP-T20	R-PDSO-J20	R-PDSO-J20	R-PDSO-J20	R-PDSO-J20	R-PZIP-T20	R-PZIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4
Number of terminals	20	20	20	20	20	20	20
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	SOJ	SOJ	SOJ	ZIP	ZIP
Encapsulate equivalent code	ZIP20,.1	SOJ20/26,.34	SOJ20/26,.34	SOJ20/26,.34	SOJ20/26,.34	ZIP20,.1	ZIP20,.1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024
self refresh	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.09 mA	0.1 mA	0.11 mA	0.1 mA	0.09 mA	0.11 mA	0.1 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	DUAL	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG
