MAX9788EBP+T

Description
2.4W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA20, 2 X 2.50 MM, LEAD FREE, UCSP-20
CategoryAnalog mixed-signal IC    Consumption circuit
File Size984KB，17 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

MAX9788EBP+T Overview

2.4W, 1 CHANNEL, AUDIO AMPLIFIER, PBGA20, 2 X 2.50 MM, LEAD FREE, UCSP-20

MAX9788EBP+T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
MakerRochester Electronics
Parts packaging codeBGA
package instruction2 X 2.50 MM, LEAD FREE, UCSP-20
Contacts20
Reach Compliance Codeunknown
Commercial integrated circuit typesAUDIO AMPLIFIER
JESD-30 codeR-PBGA-B20
length2.54 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Nominal output power2.4 W
Package body materialPLASTIC/EPOXY
encapsulated codeVFBGA
Package shapeRECTANGULAR
Package formGRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)260
Certification statusCOMMERCIAL
Maximum seat height0.67 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.7 V
surface mountYES
technologyBICMOS
Temperature levelINDUSTRIAL
Terminal surfaceNOT SPECIFIED
Terminal formBALL
Terminal pitch0.5 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
width2.03 mm

MAX9788EBP+T Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
19-0710; Rev 1; 11/07
KIT
ATION
EVALU
BLE
AVAILA
14V
P-P
, Class G Ceramic Speaker Driver
General Description
The MAX9788 features a mono Class G power amplifier
with an integrated inverting charge-pump power supply
specifically designed to drive the high capacitance of a
ceramic loudspeaker. The charge pump can supply
greater than 700mA of peak output current at 5.5VDC,
guaranteeing an output of 14V
P-P
.
The MAX9788 maximizes battery life by offering high-
performance efficiency. Maxim’s proprietary Class G
output stage provides efficiency levels greater than
Class AB devices without the EMI penalties commonly
associated with Class D amplifiers.
The MAX9788 is ideally suited to deliver the high out-
put-voltage swing required to drive ceramic/piezoelec-
tric speakers.
The device utilizes fully differential inputs and outputs,
comprehensive click-and-pop suppression, shutdown
control, and soft-start circuitry. The MAX9788 is fully spec-
ified over the -40°C to +85°C extended temperature range
and is available in small lead-free 28-pin TQFN (4mm x
4mm) or 20-bump UCSP™ (2mm x 2.5mm) packages.
Features
o
Integrated Charge-Pump Power Supply—No
Inductor Required
o
14V
P-P
Voltage Swing into Piezoelectric Speaker
o
2.7V to 5.5V Single-Supply Operation
o
Clickless/Popless Operation
o
Small Thermally Efficient Packages
4mm x 4mm 28-Pin TQFN
2mm x 2.5mm 20-Bump UCSP
MAX9788
Ordering Information
PART
MAX9788EBP+T*
MAX9788ETI+
TEMP RANGE
-40°C to +85°C
-40°C to +85°C
PIN-
PACKAGE
20 UCSP-20
28 TQFN-EP**
PKG
CODE
B20-7
T2844-1
Applications
Cell Phones
Smartphones
MP3 Players
Personal Media Players
Handheld Gaming
Consoles
Notebook Computers
+Denotes
lead-free package.
T = Tape and reel.
*Future
product—contact factory for availability.
**EP
= Exposed pad.
Typical Application Circuit/Functional Diagram and Pin
Configurations appear at end of data sheet.
UCSP is a trademark of Maxim Integrated Products, Inc.
Simplified Block Diagram
2.7V TO 5.5V
V
CC
FB+
CPV
DD
MAX9788
C
IN
R
IN+
R
FB+
IN+
IN-
C
IN
R
IN-
R
FB-
FB-
GND
CHARGE
PUMP
CPGND
+
-
CLASS G
OUTPUT
STAGE
OUT+
OUT-
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
14V
P-P
, Class G Ceramic Speaker Driver
MAX9788
ABSOLUTE MAXIMUM RATINGS
(Voltages with respect to GND.)
V
CC
, CPV
DD
.............................................................-0.3V to +6V
PV
SS
, SV
SS
...............................................................-6V to +0.3V
CPGND..................................................................-0.3V to +0.3V
OUT+, OUT-...................................(SV
SS
- 0.3V) to (V
CC
+ 0.3V)
IN+, IN-, FB+, FB- ......................................-0.3V to (V
CC
+ 0.3V)
C1N .........................................(PV
SS
- 0.3V) to (CPGND + 0.3V)
C1P ......................................(CPGND - 0.3V) to (CPV
DD
+ 0.3V)
FS,
SHDN
...................................................-0.3V to (V
CC
+ 0.3V)
Continuous Current Into/Out of
OUT+, OUT-, V
CC
, GND, SV
SS
.....................................800mA
CPV
DD
, CPGND, C1P, C1N, PV
SS
.................................800mA
Any Other Pin ..................................................................20mA
Continuous Power Dissipation (T
A
= +70°C)
20-Bump UCSP (derate 10.3mW/°C above +70°C) .....827mW
28-Pin TQFN (derate 20.8mW/°C above +70°C) ........1667mW
Operating Temperature Range ...........................-40°C to +85°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Bump Temperature (soldering) Reflow............................+235°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(V
CC
= CPV
DD
=
SHDN
= 3.6V, GND = CPGND = 0V, R
IN+
= R
IN-
= 10kΩ, R
FB+
= R
FB-
= 10kΩ, R
FS
= 100kΩ, C1 = 4.7µF, C2 = 10µF;
load connected between OUT+ and OUT-, Z
LOAD
= 10Ω + 1µF, unless otherwise stated; T
A
= T
MIN
to T
MAX
, unless otherwise noted.
Typical values are at T
A
= +25°C.) (Notes 1, 2)
PARAMETER
GENERAL
Supply Voltage Range
Quiescent Current
Shutdown Current
Turn-On Time
Input DC Bias Voltage
Charge-Pump Oscillator
Frequency
SHDN
Input Threshold
(Note 4)
SHDN
Input Leakage Current
SPEAKER AMPLIFIER
Output Offset Voltage
V
OS
T
A
= +25°C
T
MIN
≤
T
A
≤
T
MAX
Peak voltage into/out of shutdown
A-weighted, 32 samples per second
(Notes 5, 6)
(Notes 3, 7)
V
CC
= 5V
Output Voltage
V
OUT
f = 1kHz, 1% THD+N
V
CC
= 4.2V
V
CC
= 3.6V
V
CC
= 3.0V
11.5
-67
12
7.1
5.9
5.1
4.2
V
RMS
12.5
±3
±15
±20
mV
V
CC
I
CC
I
SHDN
t
ON
V
BIAS
SHDN
= GND
Time from shutdown or power-on to full
operation
IN_ inputs (Note 3)
I
LOAD
= 0mA (slow mode)
f
OSC
I
LOAD
> 100mA (normal mode)
V
IH
V
IL
230
1.4
0.4
±1
330
470
V
µA
1.1
55
Inferred from PSRR test
2.7
8
0.3
50
1.24
83
1.4
110
kHz
5.5
12
5
V
mA
µA
ms
V
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
Click-and-Pop Level
Voltage Gain
V
CP
A
V
dBV
dB
2
_______________________________________________________________________________________
14V
P-P
, Class G Ceramic Speaker Driver
ELECTRICAL CHARACTERISTICS (continued)
(V
CC
= CPV
DD
=
SHDN
= 3.6V, GND = CPGND = 0V, R
IN+
= R
IN-
= 10kΩ, R
FB+
= R
FB-
= 10kΩ, R
FS
= 100kΩ, C1 = 4.7µF, C2 = 10µF;
load connected between OUT+ and OUT-, Z
LOAD
= 10Ω + 1µF, unless otherwise stated; T
A
= T
MIN
to T
MAX
, unless otherwise noted.
Typical values are at T
A
= +25°C.) (Notes 1, 2)
PARAMETER
SYMBOL
CONDITIONS
V
CC
= 5V
Output Voltage
V
OUT
f = 10kHz, 1% THD+N,
Z
L
= 1µF + 10Ω, no load
V
CC
= 4.2V
V
CC
= 3.6V
V
CC
= 3.0V
V
CC
= 5V
Continuous Output Power
P
OUT
1% THD+N, f = 1kHz,
R
L
= 8Ω
V
CC
= 2.7V to 5.5V
Power-Supply Rejection Ratio
(Note 3)
PSRR
f = 217Hz, 200mV
P-P
ripple
f = 1kHz, 200mV
P-P
ripple
f = 20kHz, 200mV
P-P
ripple
Total Harmonic Distortion Plus
Noise
Signal-to-Noise Ratio
Common-Mode Rejection Ratio
Dynamic Range
THD+N
SNR
CMRR
DR
Z
L
= 1µF + 10Ω, V
OUT
= 1kHz / 1.9V
RMS
Z
L
= 1µF + 10Ω, V
OUT
= 1kHz / 4.0V
RMS
V
OUT
= 5.1V
RMS
, A-weighted
f
IN
= 1kHz (Note 8)
A-weighted (Note 9)
V
CC
= 5V
V
CC
= 3.6V
V
CC
= 4.2V
V
CC
= 3.6V
V
CC
= 3.0V
63
MIN
TYP
6.5
5.4
4.7
3.3
2.4
1.67
1.25
0.8
77
77
77
58
0.002
0.08
108
68
106
105
%
dB
dB
dB
dB
W
V
RMS
MAX
UNITS
MAX9788
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
Note 6:
Note 7:
Note 8:
Note 9:
All devices are 100% production tested at room temperature. All temperature limits are guaranteed by design.
Testing performed with resistive and capacitive loads to simulate an actual ceramic/piezoelectric speaker load,
Z
L
= 1µF + 10Ω.
Input DC bias voltage determines the maximum voltage swing of the input signal. Inputing a signal with a peak voltage
of greater than the input DC bias voltage results in clipping.
1.8V logic compatible.
Amplifier/inputs AC-coupled to GND.
Testing performed at room temperature with 10Ω resistive load in series with 1µF capacitive load connected across the BTL
output for speaker amplifier. Mode transitions are controlled by
SHDN.
V
CP
is the peak output transient expressed in dBV.
Voltage gain is defined as: [V
OUT+
- V
OUT-
] / [V
IN+
- V
IN-
].
PV
SS
is forced to -3.6V to simulate boosted rail.
Dynamic range is calculated by measuring the RMS voltage difference between a -60dBFS output signal and the noise
floor, then adding 60dB. Full scale is defined as the output signal needed to achieve 1% THD+N.
R
IN_
and R
FB_
have 0.5% tolerance. The Class G output stage has 12dB of gain. Any gain or attenuation at the input
stage will add to or subtract from the gain of the Class G output.
_______________________________________________________________________________________
3
14V
P-P
, Class G Ceramic Speaker Driver
MAX9788

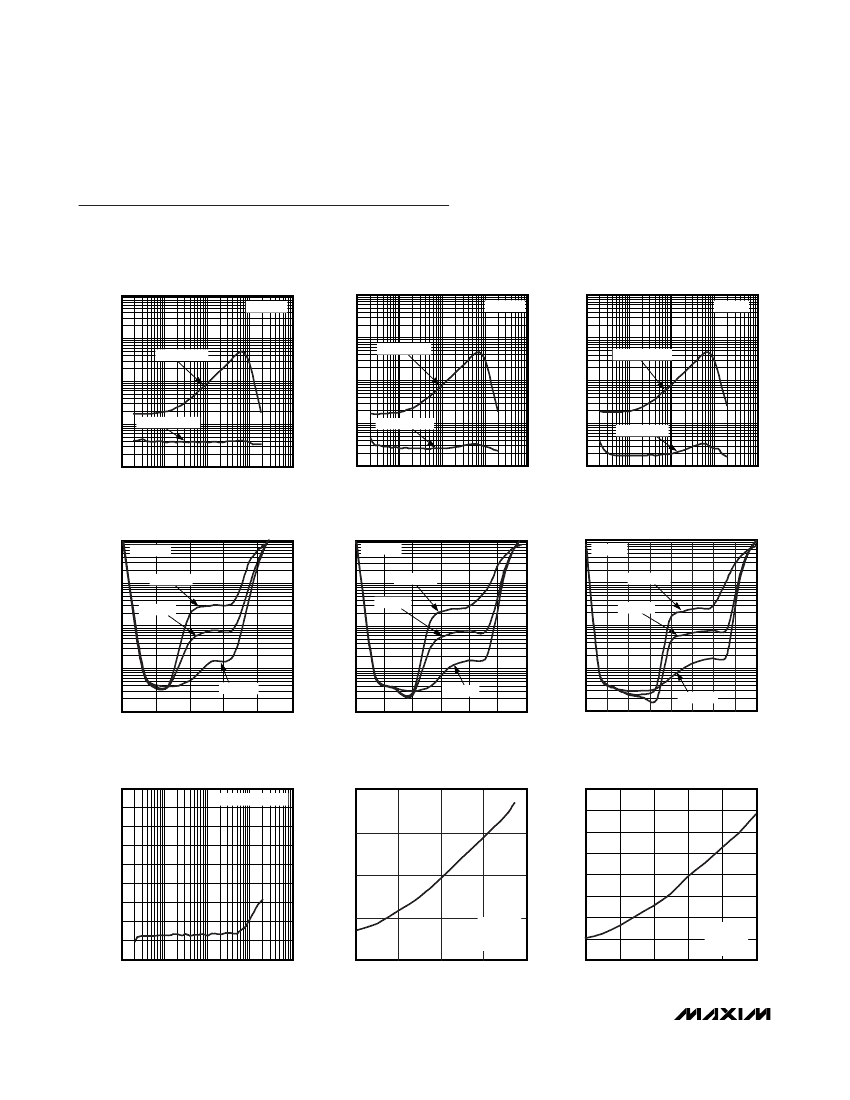

Typical Operating Characteristics
(V
CC
= CPV
DD
=
SHDN
= 3.6V, GND = CPGND = 0V, R
IN+
= R
IN-
= 10kΩ, R
FB+
= R
FB-
= 10kΩ, R
FS
= 100kΩ, C1 = 4.7µF, C2 = 10µF,
Z
L
= 1µF + 10Ω; load terminated between OUT+ and OUT-, unless otherwise stated; T
A
= T
MIN
to T
MAX
, unless otherwise noted.
Typical values are at T
A
= +25°C.) (Notes 1, 2)
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. FREQUENCY
MAX9788 toc01
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. FREQUENCY
MAX9788 toc02
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. FREQUENCY
V
CC
= 5V
1
MAX9788 toc03
10
V
CC
= 2.7V
1
10
V
CC
= 3.6V
1
THD+N (%)
10
THD+N (%)
0.1
0.1
THD+N (%)
V
OUT
= 3V
RMS
V
OUT
= 4V
RMS
0.1
V
OUT
= 5.9V
RMS
0.01
V
OUT
= 1.25V
RMS
0.01
V
OUT
= 1.9V
RMS
0.01
V
OUT
= 3V
RMS
0.001
10
100
1k
FREQUENCY (Hz)
10k
100k
0.001
10
100
1k
FREQUENCY (Hz)
10k
100k
0.001
10
100
1k
FREQUENCY (Hz)
10k
100k
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. OUTPUT VOLTAGE
MAX9788 toc04
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. OUTPUT VOLTAGE
V
CC
= 3.6V
f
IN
= 10kHz
f
IN
= 1kHz
0.1
MAX9788 toc05
TOTAL HARMONIC DISTORTION PLUS
NOISE vs. OUTPUT VOLTAGE
V
CC
= 5V
1
THD+N (%)
f
IN
= 10kHz
f
IN
= 1kHz
0.1
MAX9788 toc06
10
V
CC
= 2.7V
1
THD+N (%)
f
IN
= 10kHz
f
IN
= 1kHz
0.1
10
10
1
THD+N (%)
0.01
f
IN
= 20Hz
0.001
0
1
2
3
4
5
OUTPUT VOLTAGE (V
RMS
)
0.01
f
IN
= 20Hz
0.001
0
1
2
3
4
5
6
OUTPUT VOLTAGE (V
RMS
)
0.01
f
IN
= 20Hz
0.001
0
1
2
3
4
5
6
7
8
OUTPUT VOLTAGE (V
RMS)
POWER-SUPPLY REJECTION RATIO
vs. FREQUENCY
MAX9788 toc07
POWER CONSUMPTION
vs. OUTPUT VOLTAGE
MAX9788 toc08
POWER CONSUMPTION
vs. OUTPUT VOLTAGE
175
POWER CONSUMPTION (mW)
150
125
100
75
50
25
0
4
0
1
V
CC
= 3.6V
f
IN
= 1kHz
1% THD+N
2
3
4
OUTPUT VOLTAGE (V
RMS
)
5
MAX9788 toc09
0
-10
-20
-30
PSRR (dB)
-40
-50
-60
-70
-80
-90
10
100
1k
FREQUENCY (Hz)
10k
V
RIPPLE
= 200mV
P-P
100
200
POWER CONSUMPTION (mW)
75
50
25
V
CC
= 2.7V
f
IN
= 1kHz
1% THD+N
0
1
2
3
0
100k
OUTPUT VOLTAGE (V
RMS
)
4
_______________________________________________________________________________________
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

NE555 typical application circuit diagram (2)

Concentrated Typical Circuit for Reference Voltage a

Temperature controlled nickel-cadmium battery charger circuit

Open drinking machine circuit

Several wireless microphone circuits

Computer motherboard circuit diagram 810 2_04

How to put stm32+IAR5.3+ST latest library in RAM?
I have to download to FLASH every time I simulate. If I do this too many times, the FLASH may be damaged.Can I simulate directly in RAM?I use Wanli's ST LINK2 + a board I made myself...
haian_bch stm32/stm8
Can DMA1 and DMA2 of stm32f4 transfer data simultaneously?
When performing DMA transmission of the serial port, can DMA1 and DMA2 of stm32f4 transmit data at the same time? For example, if the data stream and channel corresponding to usart1 in DMA2 are turned...
shijizai stm32/stm8
Beijing Dream Vision Technology Co., Ltd. is recruiting engineers
Title Beijing Dream Vision Technology Co., Ltd. is recruiting engineers. Job requirements: 1. Bachelor degree or above, major in computer software, communication, electronics and related majors, with ...
151724 Embedded System
15075018luerdu
...
15075018luerdu MCU
[Sample] +BQ769400DBT+CC1200
[i=s]This post was last edited by dontium on 2015-1-23 11:37[/i] I received the sample from TI today. This time I mainly want to apply for the battery charging management chip BQ769400DBT. Considering...
billjing Analogue and Mixed Signal
National Tournament Prediction Questions
[i=s]This post was last edited by paulhyde on 2014-9-15 09:05[/i] National Games Prediction...
lsl_988 Electronics Design Contest
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. 1FHAX484-824G
  2. 2220F0160221MRR
  3. 8DA503W35SB
  4. MHO+31TDG-R80.0000MHZ
  5. MK-253-009-327-220S
  6. M55342K10B910HPT1V
  7. M80-4T11842F2-05-302-03-301
  8. D6A9990V20306EFB-G
  9. P6SMB91CA
  10. GDZJ33D-34T/R
  11. A2010-TP-H
  12. MPP155J4310919LC

Popular Articles

  1. How high-precision timing changes the game for 5G infrastructure
  2. Is there also a “chain of contempt” in the car manufacturing industry?
  3. DuPont expands Nikal™ BP electroplating chemicals range
  4. [Technical Expert Test Notes Series] Part 7: 2601B-PULSE gives confidence in VCSEL design
  5. 51 drive DC motor - PWM speed regulation
  6. Chipone is listed in the 2021 Beijing Private Enterprises Technology Innovation Top 100 List
  7. Digi-Key Partners with Siemens to Distribute Automation and Control Products
  8. Apple Pay launches in Qatar, first with QNB Group
  9. With a total investment of 1 billion yuan, Wanjilong Precision Circuit Board Project was signed and settled in Huangshi, Hubei
  10. Synopsys Acquires Concertio, a Leader in AI-Driven Real-Time Performance Optimization

Technical ResourceMore

  1. Design of Multi-mode PWM Flyback Converter
  2. [High frequency circuit related information]. Wiley.-.Ieee.-.Practical.Rf.System.Design.-.Egan
  3. ABB Switchgear Design Manual (11th Edition)
  4. LM2675-50 5V 2A high input DCDC regulated power supply, perfect sch+PCB
  5. Si Shoukui Mathematical Modeling Algorithm Courseware
  6. MATLAB Case 22 LVQ Neural Network Prediction - Face Orientation Recognition.rar
  7. Altium Designer schematic library simulation symbol.SCHLIB
  8. Practical C language programming and typical examples for AVR microcontrollers
  9. Introduction to ibis model files
  10. ucGUI Chinese Manual Tutorial

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1924  1058  2663  2086  2410  39  22  54  42  49
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
