QEN05BNBRFREQ datasheet, PDF - EEWORLD Datasheet

QEN05BNBRFREQ: DescriptionHCMOS/TTL Output Clock Oscillator, 1.544MHz Min, 125MHz Max, SMD, 4 PIN; CategoryPassive components oscillator; File Size475KB，5 Pages; ManufacturerRakon Limited; Environmental Compliance

Download Datasheet Parametric View All

QEN05BNBRFREQ Overview

HCMOS/TTL Output Clock Oscillator, 1.544MHz Min, 125MHz Max, SMD, 4 PIN

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rakon Limited
Reach Compliance Code	unknown
Other features	TAPE AND REEL; TRISTATE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	30 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	7 ns
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

FREQUENCY

QEN05

SMD 5x3.2 XO – Communications Equipment Application

Specification (Rev-B)

Electrical Characteristics ......................................................P01

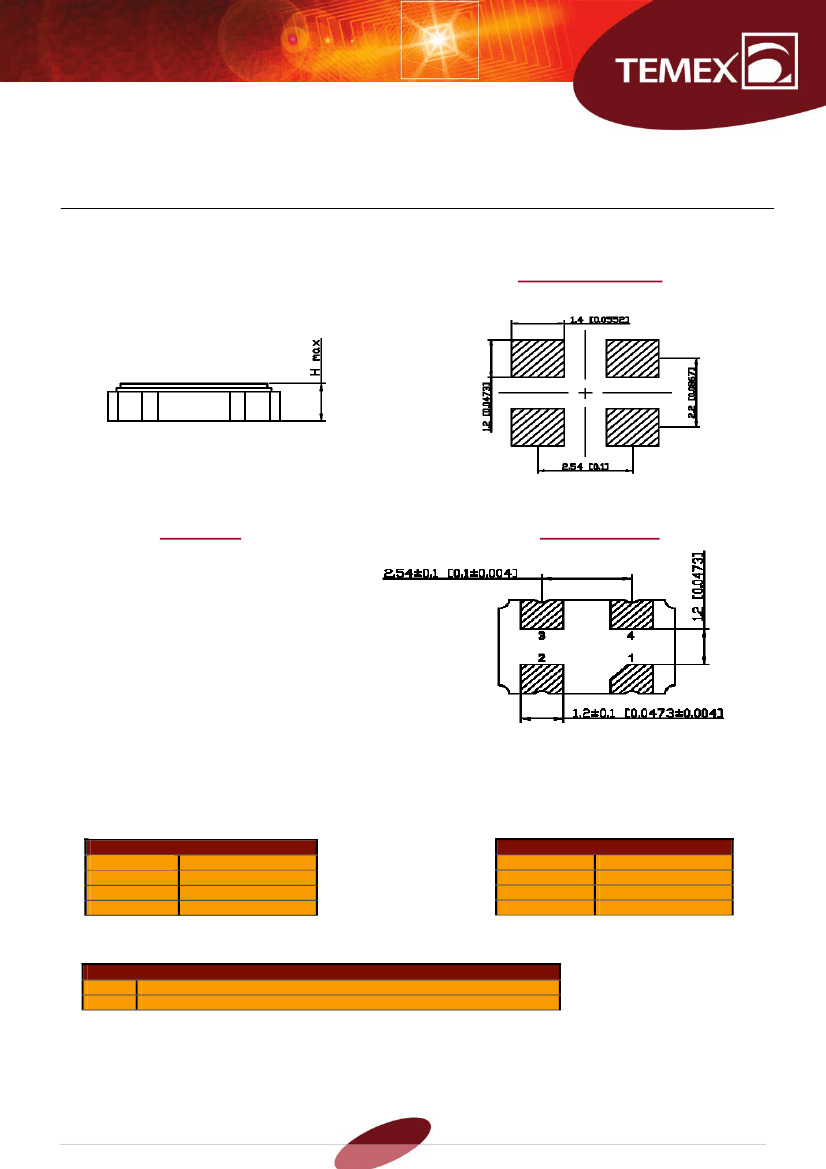

Mechanical Characteristics ...................................................P02

Ordering Information .............................................................P03

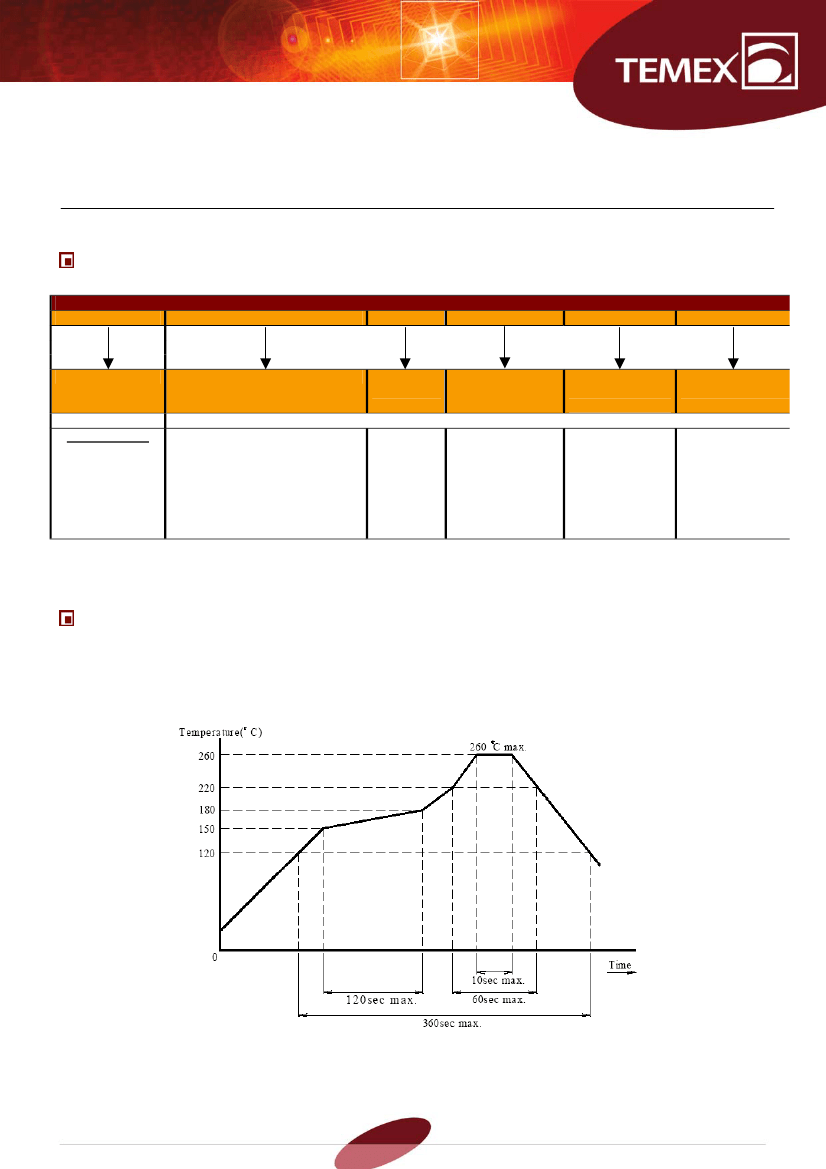

Suggested Reflow Soldering profile ......................................P03

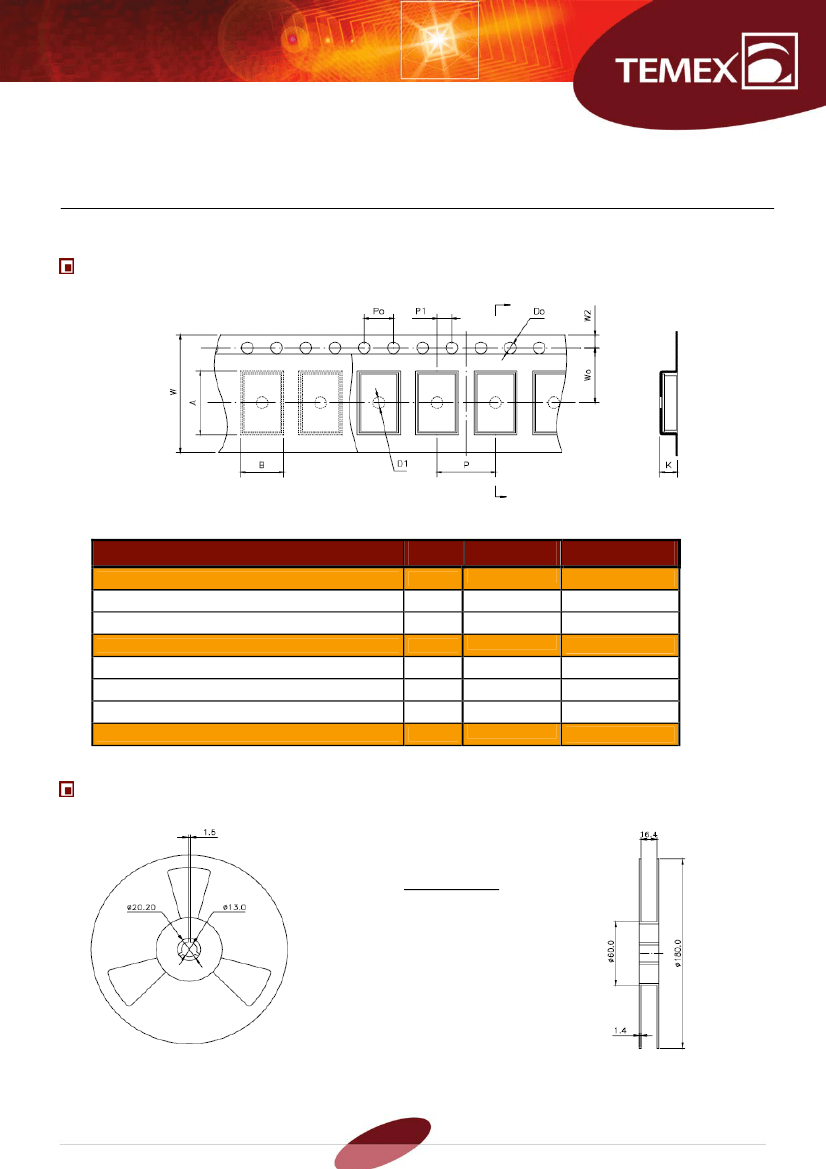

Tape Drawing........................................................................P04

Reel Drawing ........................................................................P04
