VN2406LRLRF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> VN2406LRLRF

Preview

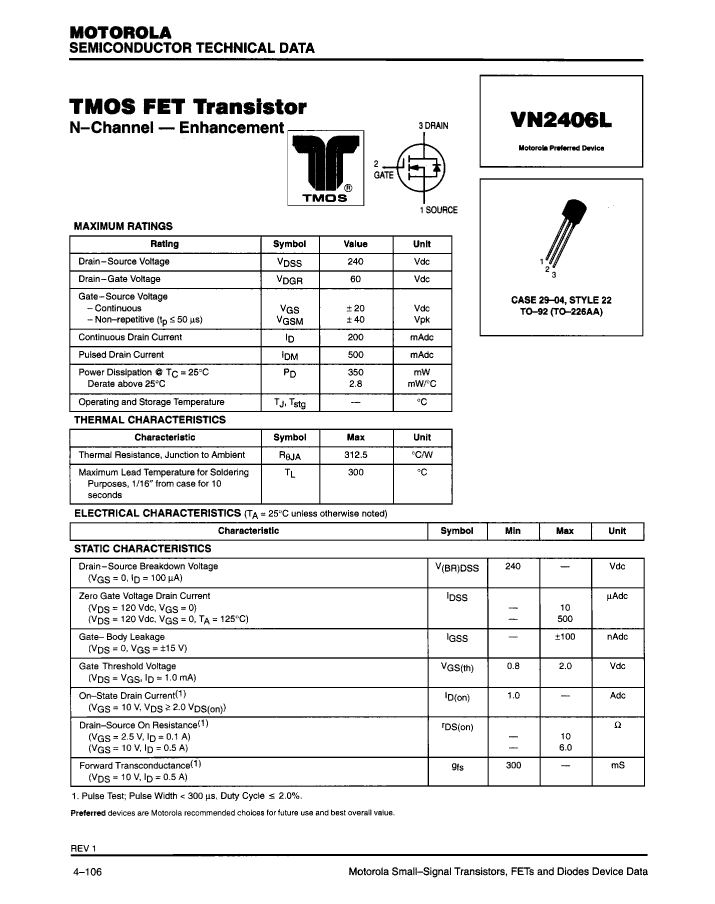

VN2406LRLRF: DescriptionSmall Signal Field-Effect Transistor, 0.2A I(D), 240V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92; CategoryDiscrete semiconductor The transistor; File Size42KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

VN2406LRLRF Overview

Small Signal Field-Effect Transistor, 0.2A I(D), 240V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92

VN2406LRLRF Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	240 V
Maximum drain current (ID)	0.2 A
Maximum drain-source on-resistance	6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	20 pF
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	0.35 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
