Silicon Power Transistors
2SC5129
DESCRIPTION
・With
TO-3P(H)IS package
・High
speed
・High
voltage
・Low
saturation voltage
APPLICATIONS
・Horizontal
deflection output for high
resolution display,colorTV
・High
speed switching applications
PINNING
PIN
1
2
3
Base
Collector
Emitter

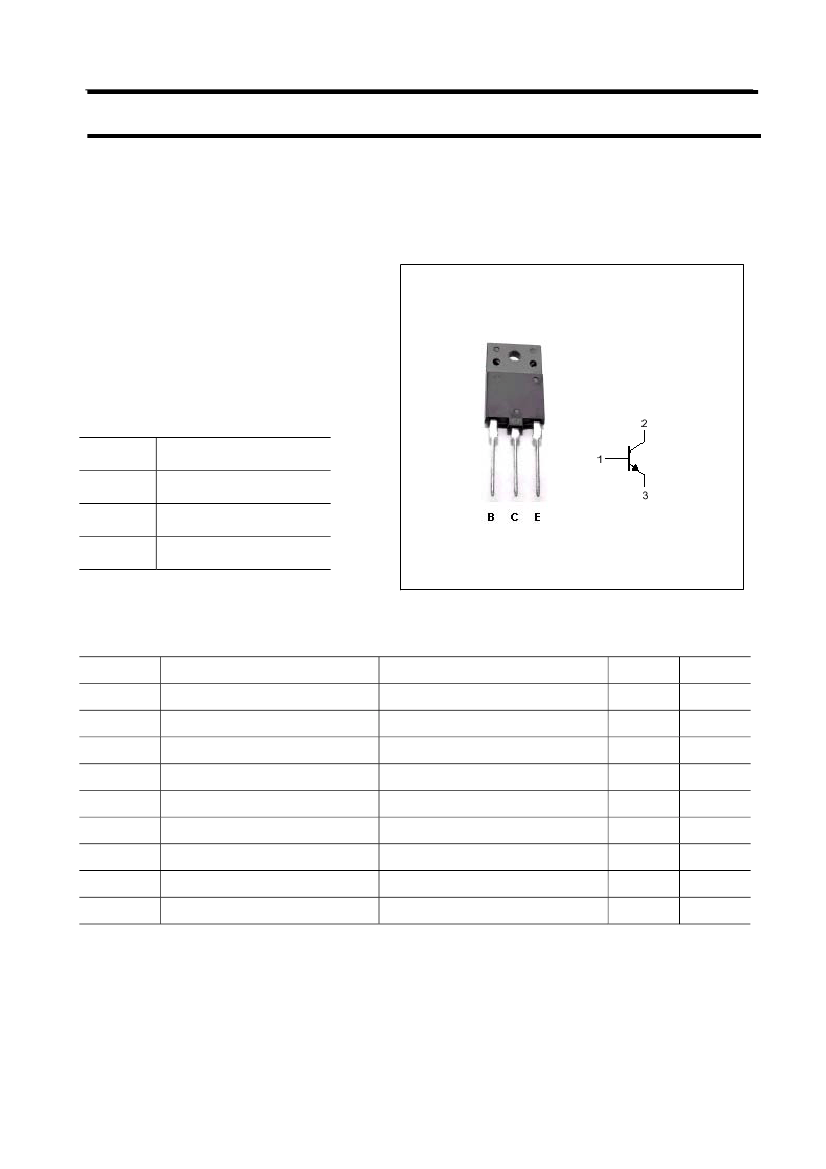

Fig.1 simplified outline (TO-3P(H)IS) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=25
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-Peak
Base current
Total power dissipation
Junction temperature
Storage temperature
T
C
=25℃
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
600
5
10
20
5
50
150
-55~150
UNIT
V
V
V
A
A
A
W
℃
℃
JMnic
Product Specification
www.jmnic.com
Silicon ower Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
V
CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
C
ob
f
T
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Collector output capacitance
Transition frequency
CONDITIONS
I
C
=10mA ;I
B
=0
I
C
=6A I
B
=1.5A
I
C
=6A I
B
=1.5A
V
CB
=1500V I
E
=0
V
EB
=5V; I
C
=0
I
C
=1A ; V
CE
=5V
I
C
=6A ; V
CE
=5V
I
E
=0 ; V
CB
=10V,f=1MHz
I
C
=0.1A ; V
CE
=10V
10
4
135
1.7
MIN
600
TYP.
2SC5129
MAX
UNIT
V
3.0
1.4
1
10
30
8
V
V
mA
μA
pF
MHz
Switching times (inductive load)
t
s
t
f
Storage time
Fall time
I
CP
=5A;I
B1
(end)
=2A
f
H
=64kHz
4.0
0.3
μs
μs
JMnic
Product Specification
www.jmnic.com
Silicon Power Transistors
PACKAGE OUTLINE
2SC5129

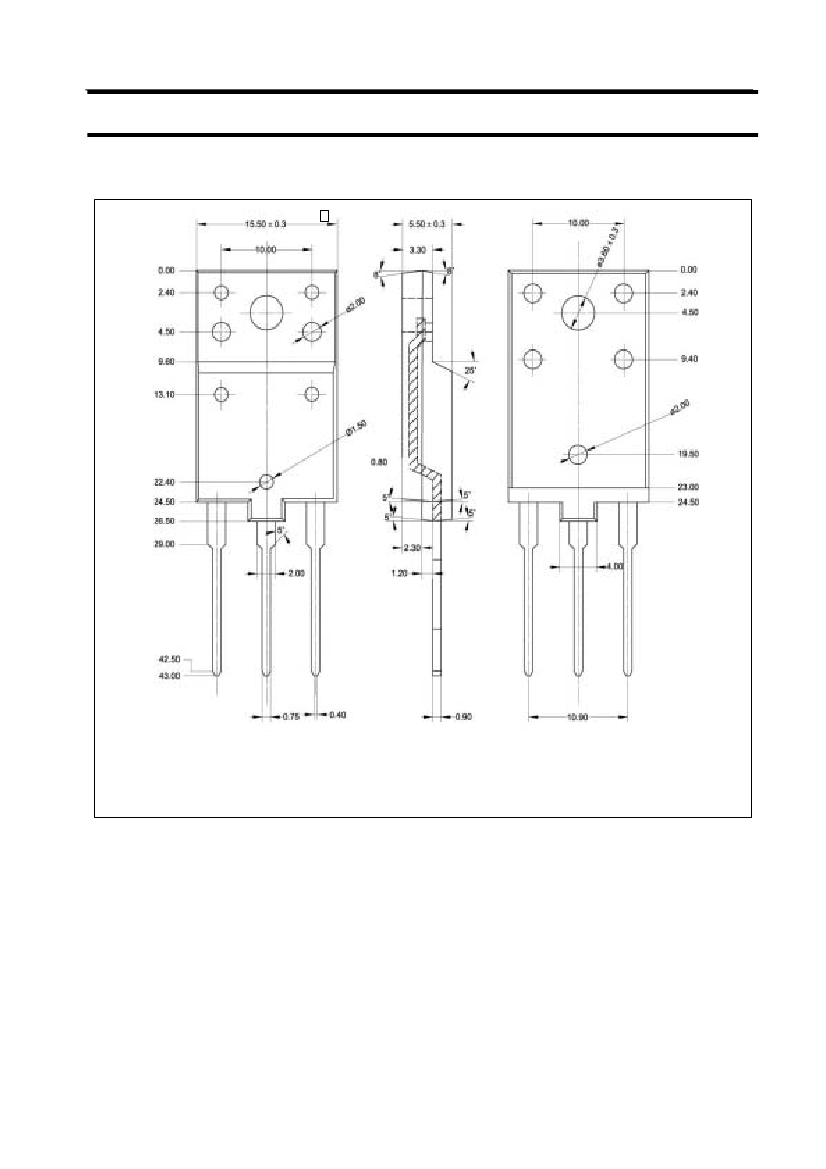

Fig.2 Outline dimensions (unindicated tolerance:±0.20 mm)
