This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0543342070
Active
crc_compact_robotic_connectors
CRC™ Shielded Rectangular I/O Receptacle Assembly Set, Wire-to-Wire/Panel Mount,
Female Terminal, Signal, 20 Circuits, Polarization Type Standard, Lead Free
Documents:

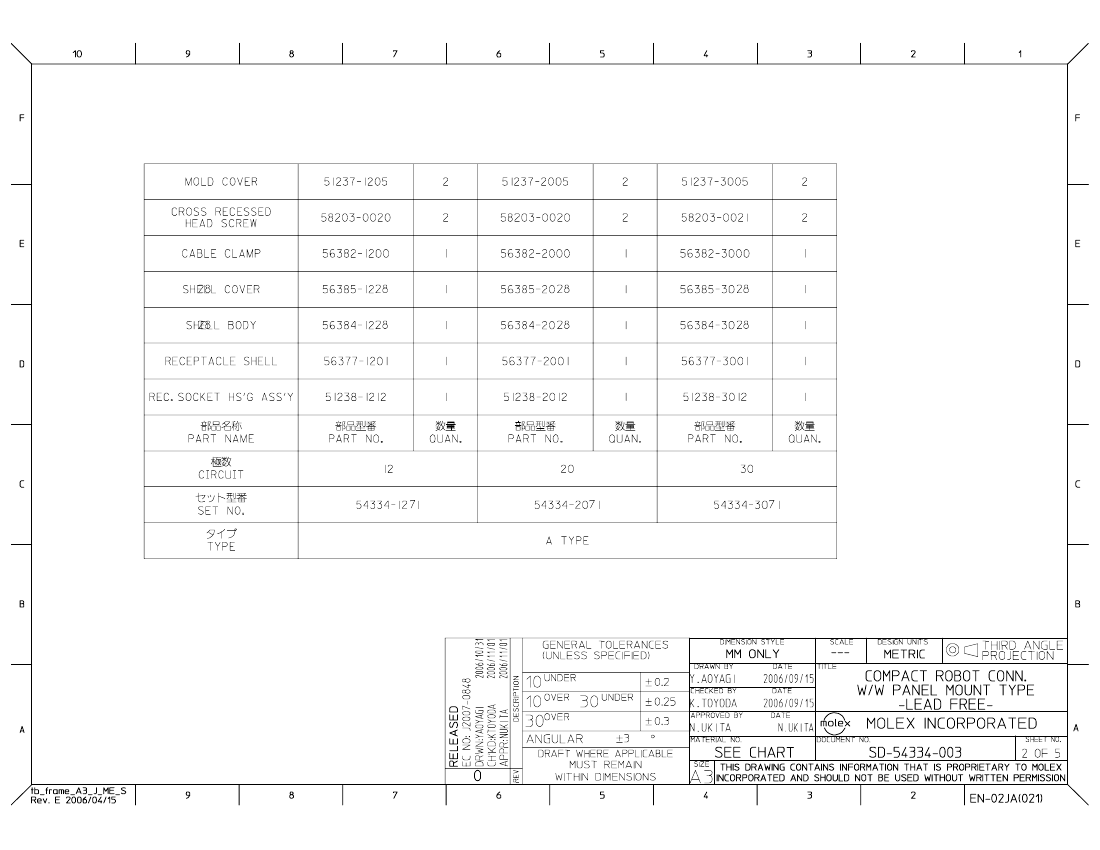

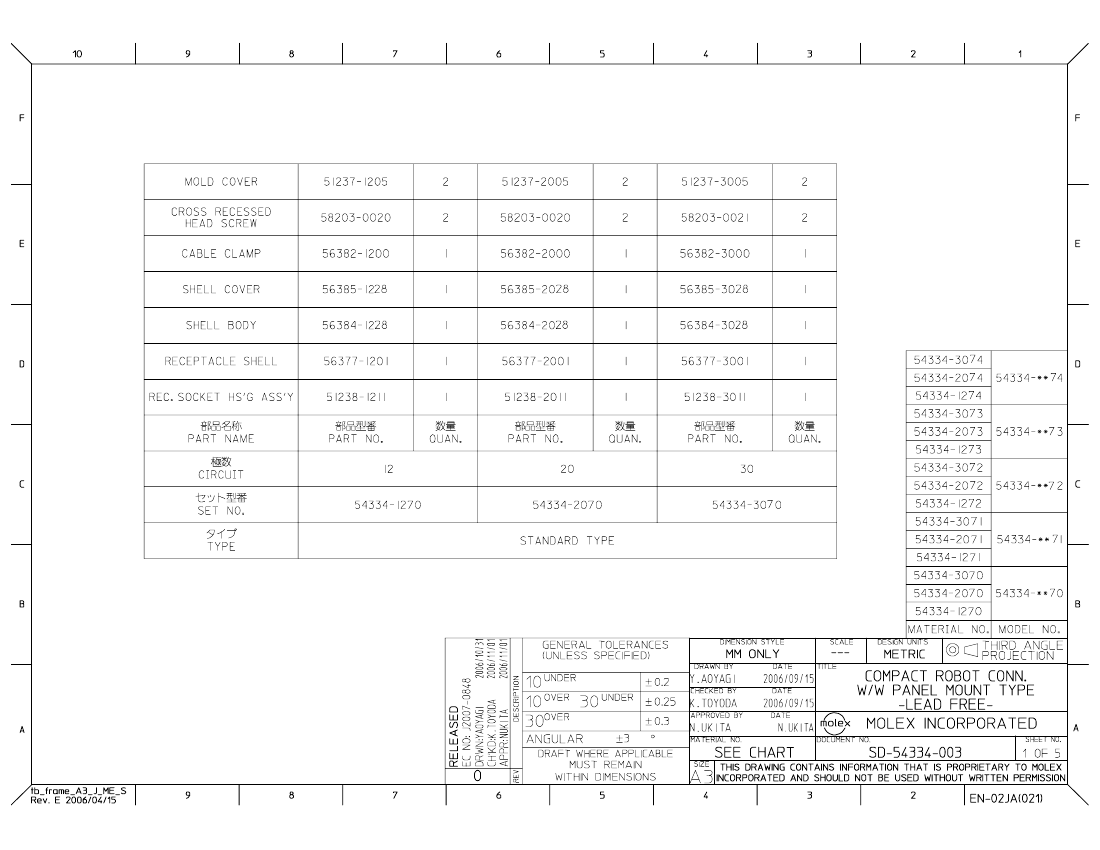

Drawing (PDF)
Product Specification PS-51238-018 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
I/O Connectors
54334
Panel-Mount, Wire-to-Wire
Kit
crc_compact_robotic_connectors
CRC™
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
N/A
N/A
20
Black, Gray
100
Female
Yes
Yes
Stainless Steel, Steel
Gold
Tin
Polycarbonate, Polyester
5
Vertical
Bag
Rear
1.181 In
3.00 mm
1.181 In
3.00 mm
Yes
1
No
-40°C to +105°C
Crimp or Compression
No
Search Parts in this Series
54334Series
Mates With
51234-2000 plug housing, 55836-2000 plug
assembly set
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
4A
Full Shield
Yes
250V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
PS-51238-018, RPS-51238-001
