TB31206FN-TP2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TB31206FN-TP2

TB31206FN-TP2: DescriptionIC PLL FREQUENCY SYNTHESIZER, 1100 MHz, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, PLL or Frequency Synthesis Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size264KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TB31206FN-TP2 Overview

IC PLL FREQUENCY SYNTHESIZER, 1100 MHz, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, PLL or Frequency Synthesis Circuit

TB31206FN-TP2 Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	LSSOP,
Contacts	16
Reach Compliance Code	unknown
Other features	6-BIT AUXILIARY INPUT COUNTER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16
length	5 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

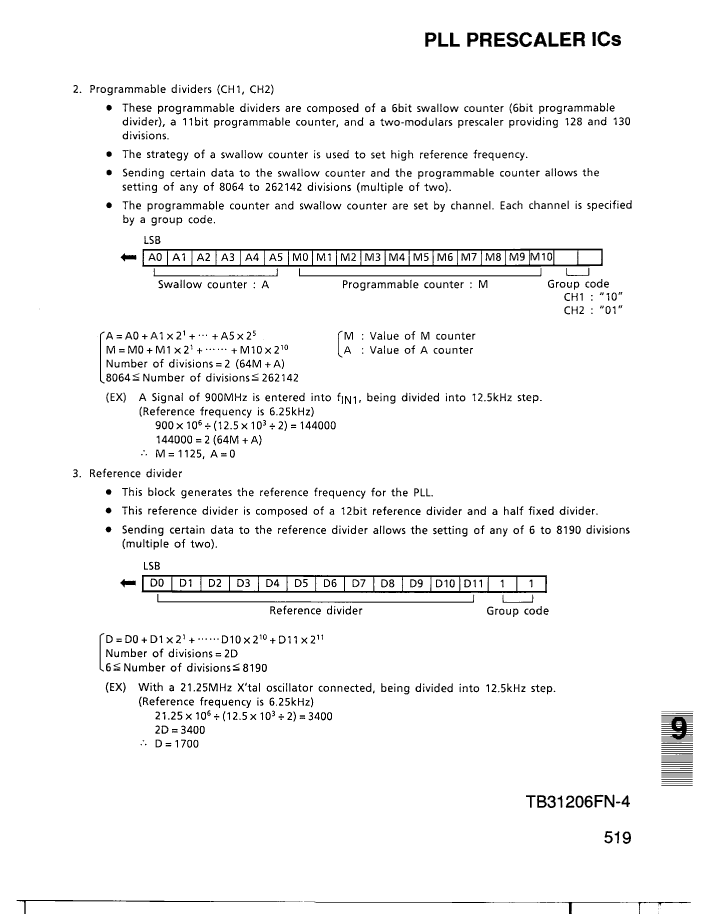

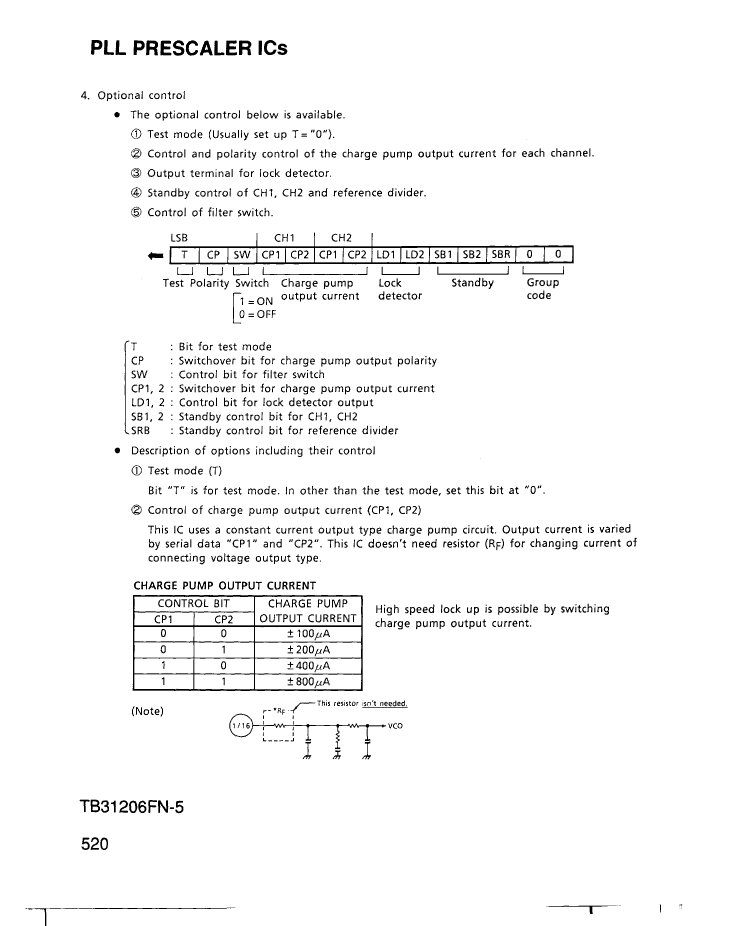

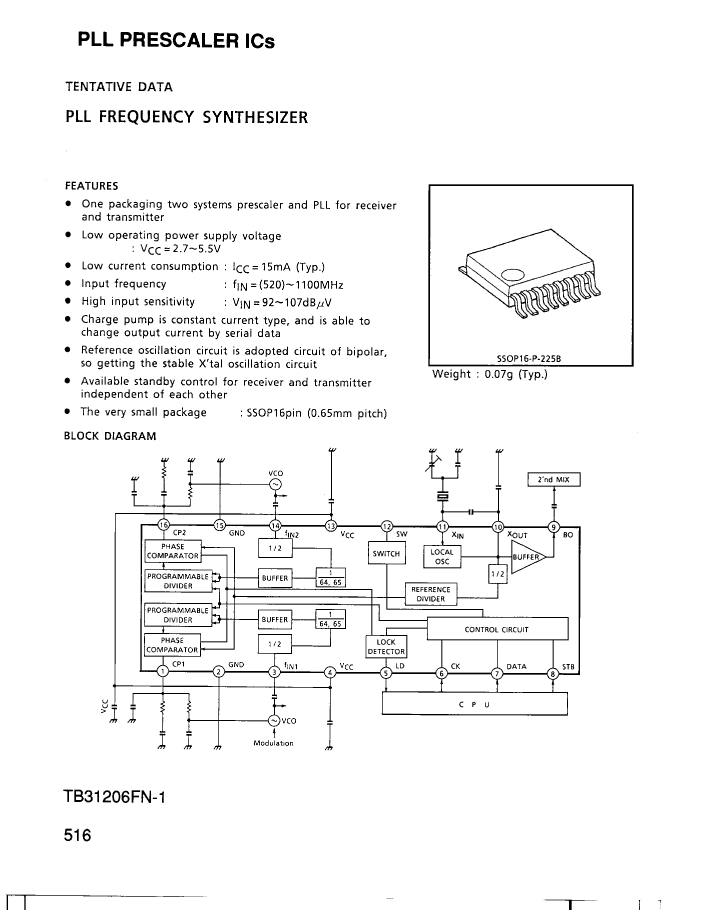

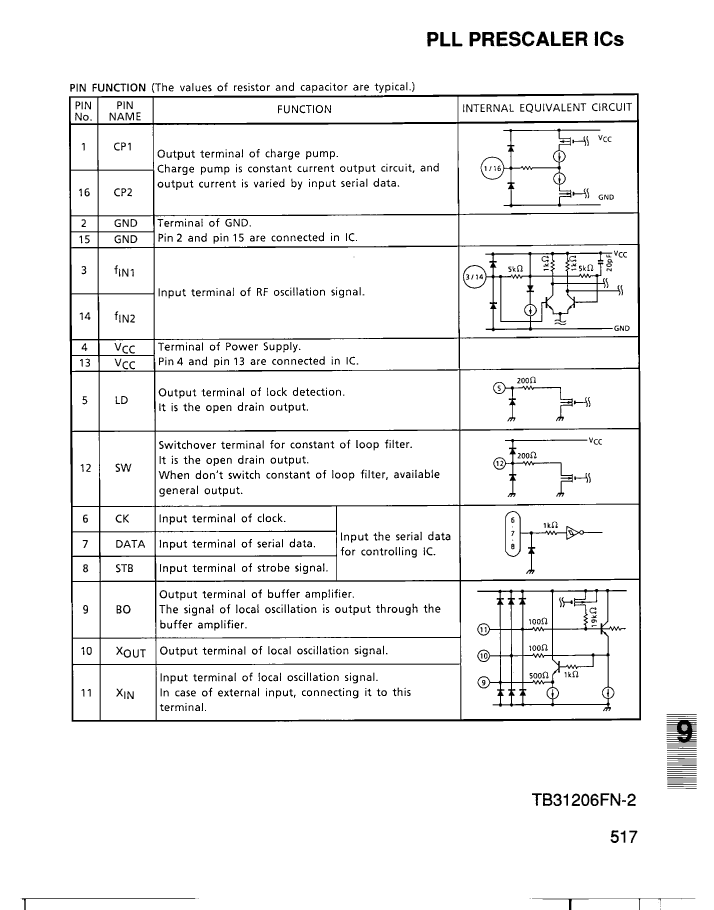

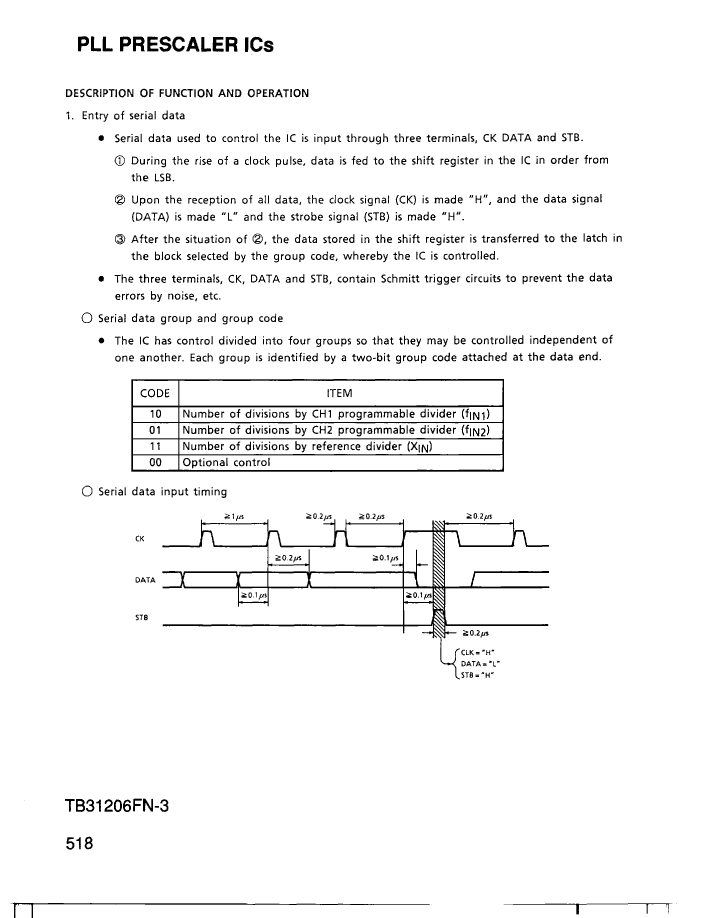

TB31206FN-TP2 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TB31206FN-TP2 Related Products

	TB31206FN-TP2	TB31206FN-TP1	TB31206FN(ER)
Description	IC PLL FREQUENCY SYNTHESIZER, 1100 MHz, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1100 MHz, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 1100 MHz, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, PLL or Frequency Synthesis Circuit
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC
package instruction	LSSOP,	LSSOP,	LSSOP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Other features	6-BIT AUXILIARY INPUT COUNTER	6-BIT AUXILIARY INPUT COUNTER	6-BIT AUXILIARY INPUT COUNTER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	5 mm	5 mm	5 mm
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V
surface mount	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm
