5.5 GHz Band Pass Filter
Detail Specification: 06/05/07
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
5450BP15T600
5150 - 5750
5.0 dB max.
9.5 dB min.
0 ~ 4000MHz
6750 ~ 7000MHz
7000 ~ 7250MHz
7250 ~ 7500MHz
7500 ~ 12000MHz
10 dB
20 dB
20 dB
15 dB
10 dB
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quanity
MSL
500 mW max.
50
Ω
-40 to +85°C
-40 to +85°C
4,000
2
P/N 5450BP15T600
Page 1 of 2
Terminal Configuration
No.
Function
GND
OUT
GND
IN
1
4
T
3
2

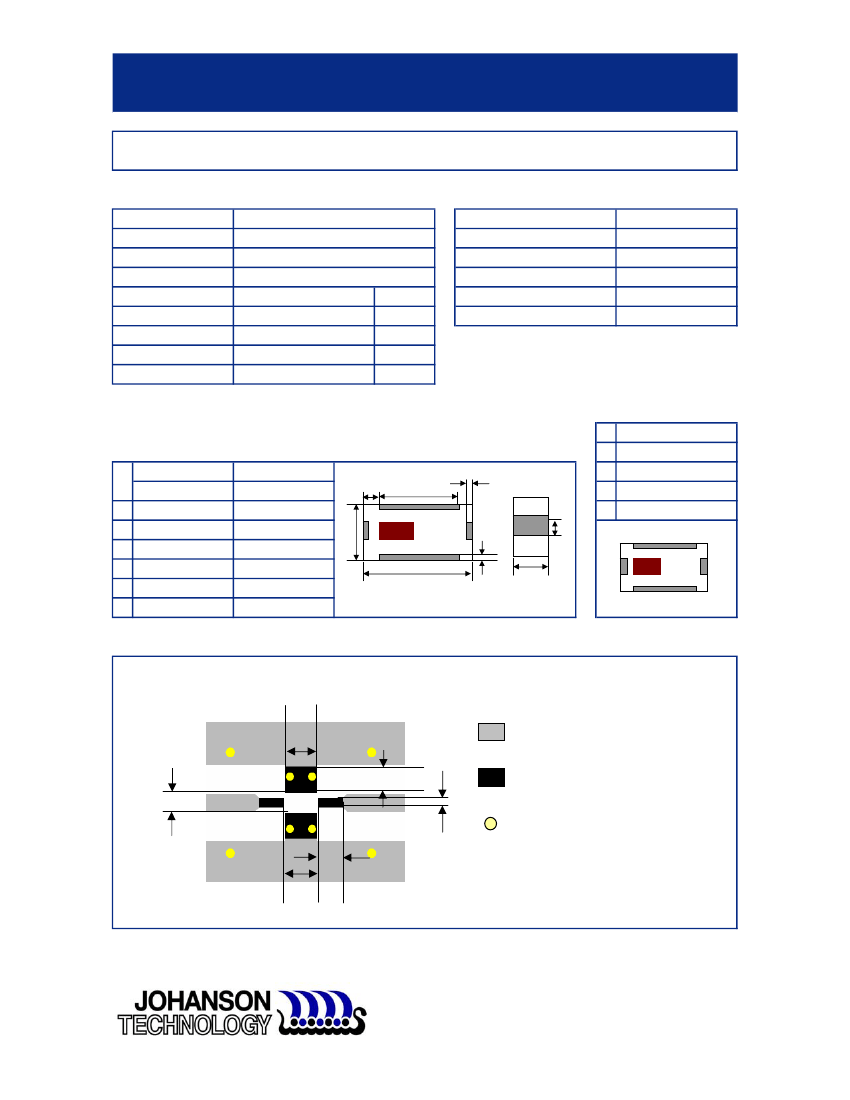

Mechanical Dimensions
In
L
W
T
a
b
c
g
0.079 ± 0.006
0.049 ± 0.004
0.037 ± 0.004
0.051 ± 0.006
0.012 ± 0.006
0.010 ± 0.006
0.014 ± 0.006
mm
2.00 ± 0.15
1.25 ± 0.10
0.95 ± 0.10
1.30 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
L
W
c
b
c
d
a
1
2
3
4
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
1.30
Solder Resist
1.00
0.80
0.35
Land
Through-hole (
φ
0.35)
1.00
1.40
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
PRELIMINARY
5.5 GHz Band Pass Filter
Detail Specification: 06/05/07

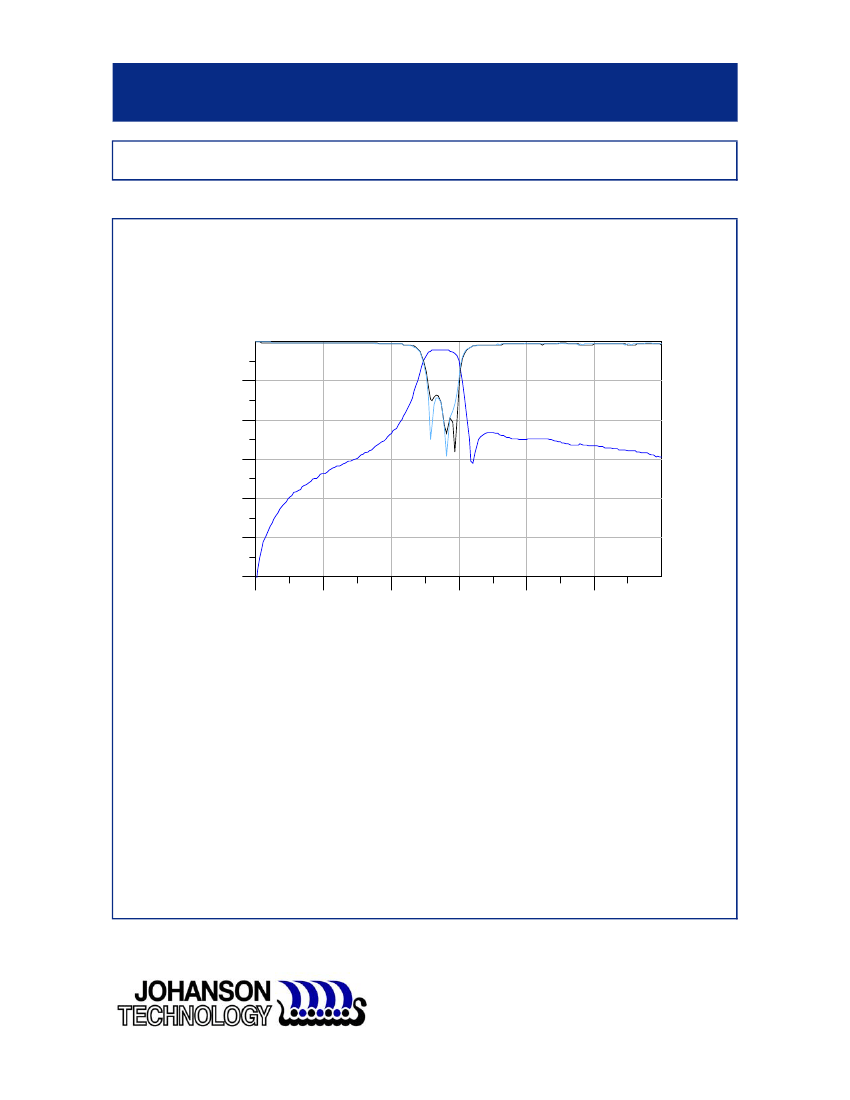

Typical Electrical Performance (T=25°C)
P/N 5450BP15T600
Page 2 of 2
)
)
)
)
)
)
)
)
)
Attenuation
)
)
)
)
0
-10
-20
-30
-40
-50
-60
0
2
4
6
freq, GHz
)
)
)
)
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
)
)
)
)
)
)
)
)
8
10
12
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
