KSM-914TH5E

Description
OPTICAL-RECEIVER OUTPUT PHOTO IC,LED-7B
CategoryLED optoelectronic/LED    photoelectric
File Size1MB,2 Pages
ManufacturerKODENSHI AUK
Websitehttp://auk.co.kr/
Download Datasheet Parametric View All

KSM-914TH5E Overview

OPTICAL-RECEIVER OUTPUT PHOTO IC,LED-7B

KSM-914TH5E Parametric

Parameter NameAttribute value
MakerKODENSHI AUK
Reach Compliance Codeunknown
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
Maximum slew rate0.0017 mA
Nominal supply voltage5 V
surface mountNO

KSM-914TH5E Preview

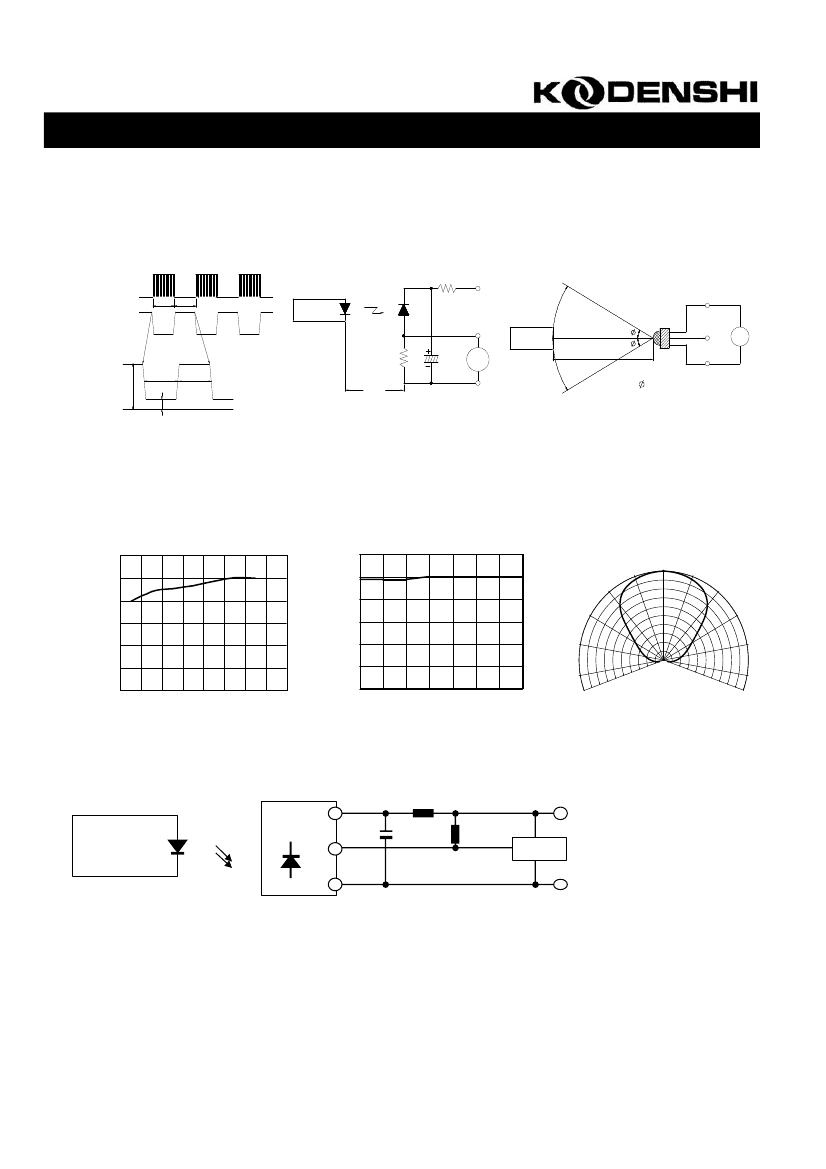

Infrared receiver modules
KSM-91□TH1E
The KSM-91□TH1E consist of a PIN Photodiode of high
speed and a preamplifier IC in the package as an receiver
for Infrared remote control systems
DIMENSIONS
Features
Wide angle design
Wide supply-voltage range : 2.7V to 5.5V
Shielded against electrical field disturbance
High immunity against ambient light disturbances
(Logic Controller Adaptation)
Available for carrier frequencies between 32.7KHz to 56.9KHz
TTL and CMOS compatible
Applications
Audio & Video Applications (TV, VTR, Audio, DVDP, CDP)
Home Appliances (Air conditioner, Computer, Camcoder)
Wireless Toys
Remote Control Equipment
Maximum Ratings
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Vcc
Topr
Tstg
Tsol
Ratings
6.0
-10 ~ +60
-20 ~ +75
260
(Max 5 sec)
[Ta=25℃]
Unit
V
B.P.F Center Frequency
Model No.
KSM-911TH5E
KSM-912TH5E
KSM-913TH5E
KSM-914TH5E
KSM-915TH5E
B.P.F Center Frequency(㎑)
40.0
36.7
37.9
32.7
56.9
[Ta=25℃, Vcc=5.0V(Vcc=3.0V)]
Electro-Optical Characteristics
Parameter
Recommended Supply Voltage
Current Consumption
Peak Wavelength
*1
B.P.F Center Frequency
Transmission Distance
High level Output voltage
Low level Output voltage
*1
*1
*1
Symbol
Vcc
Icc
λp
fo
L
V
OH
V
OL
T
WH
T
WL
Condition
No signal input
Min.
2.7
0.5
-
-
15
12
4.5(2.8)
-
500
250±50lx
30cm over
the ray axis
±30˚
Typ.
-
1.2(1.0)
940
37.9
-
-
5.0(3.0)
0.1
600
Max.
5.5
1.7
-
-
-
-
-
0.5
700
700
Unit
V
m
V
V
High level Output Pulse Width *1
Low level Output Pulse Width *1
Output Form
below against the standard transmitter.
1) Measuring place
Burst wave=600㎲
Period = 1.2㎳
500
600
Active Low Output
*1. It specifies the maxmum distance between emitter and detector that the output wave form satisfies the standard under the conditions
: Indoor without extreme reflection of light
high frequency lightning
3) Standard transmitter : Burst wave of standard transmitter shall be arranged to 50mVP-P under the measuring circuit
2) Ambient light source : Detecting surface illumination shall be irradiate 200±50lx under ordinary white fluorescence lamp without
1/2
Infrared receiver modules
KSM-91□TH1E
Measuring Method [Ta=25℃]
Output Pulse Width
Transmitter output
Carrier Frequency(fo)
Duty50%
Remocon output pulse
Standard Transmitter
Test Method of Transmission Distance
+5V
600us 600us
Standard
Tansmitter
10㏀
Vout
Transmitter
10㏀
10㎌
Vout
Arrival Distance : L
OSC
Vcc
GND
Indicates horizontal and
vertical directions
T
WL
V
H
T
HL
25Cm
V
L
Typical Characteristics Curve [Ta=25℃]
Relative reception distance Vs.
Supply voltage
120
[%]
Relative reception distance Vs.
Ambient temperature
120
[%]
100
Radiant pattern
Relative reception distance
Relative reception distance
100
80
60
40
20
0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
[V]
20
˚
40
˚
0
˚
-20
˚
-40˚
-60
˚
80
60
40
20
60
˚
80
˚
0
100
˚
50
100
50
-80
˚
-100
˚
100
0
-10
0
10
20
30
40
50
[
]
Supply voltage Vcc
Ambient temperature Ta
Relative Sensitivity (%)
Standard Application Circuit with R-C Decoupling Filter
R
Transmitter
Receiver
Module
Vcc
Vout
GND
*1 Recommended Circuit Description
1) Transmitter(IRED) drive current
: IFP = 300mA
P-P
~ 600mA
P-P
2) R-C Decoupling Filter with Lower Cut-off Frequency
: R=100Ω , C=47㎌
: 10kΩ over
fc = 1/2π RC = 33.9Hz
3) External pull-up resistor(optional)
Vcc
C
Rp
micom
GND
2/2
