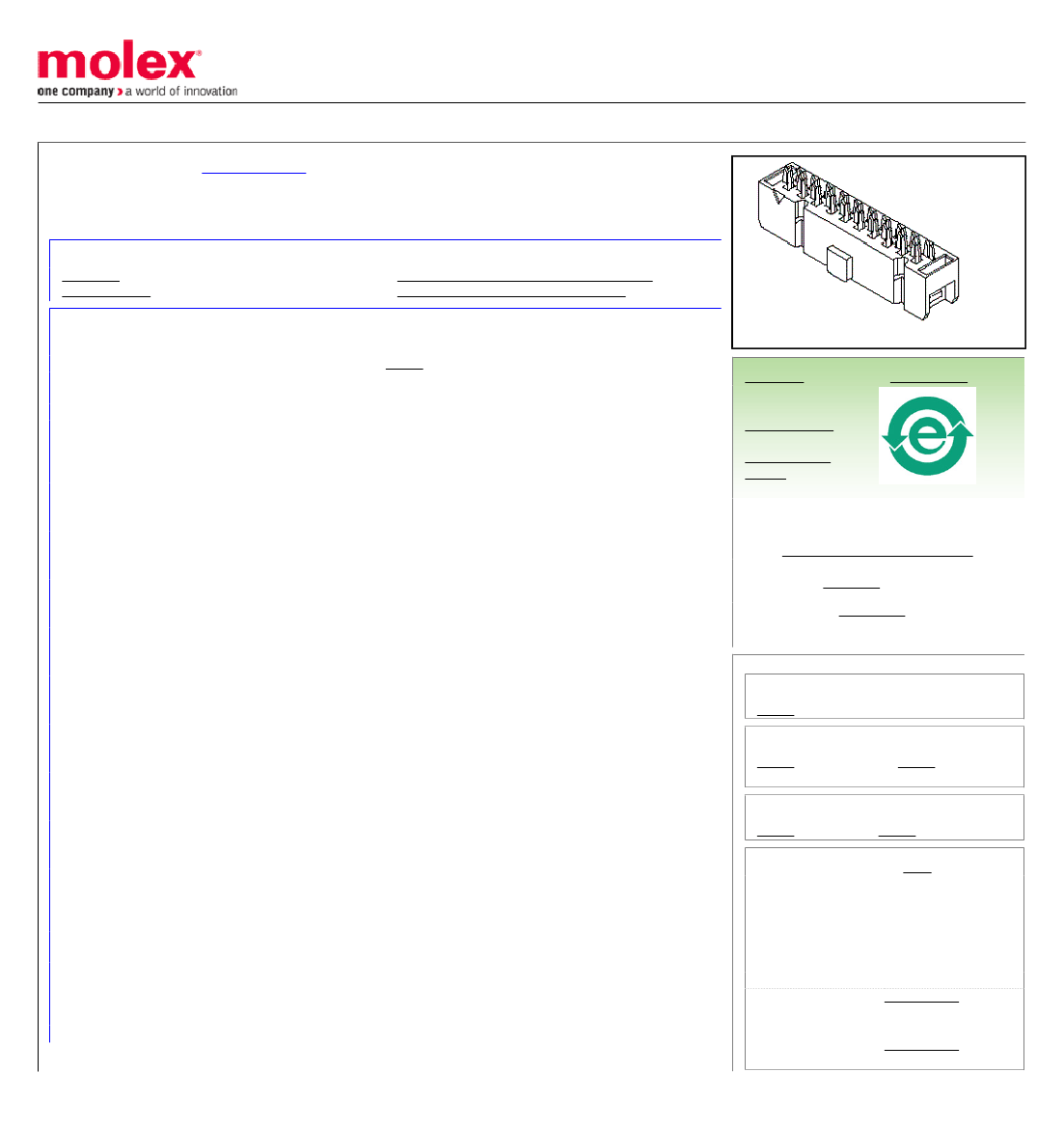

This document was generated on 04/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0545595011
Active
2.54mm (0.100") Pitch QF-50™ Flat Cable Receptacle Housing, 50 Circuits, Side
Mating Keys
Documents:
3D Model

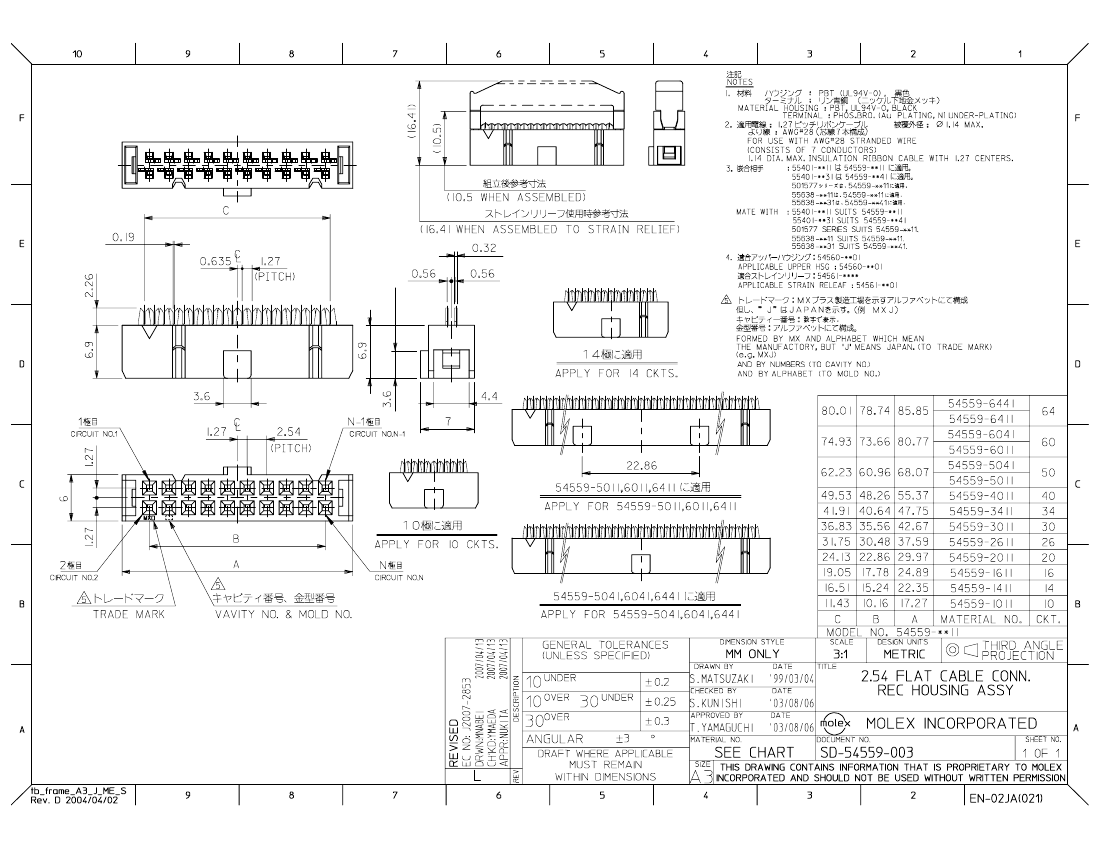

Drawing (PDF)
Product Specification PS-54559-004 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Ribbon Cable / Wire Trap Connectors
54559
Housing
No
QF-50™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Component Type
Glow-Wire Compliant
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
50
Black
500
90° Angle
Yes
Phosphor Bronze
Gold
Gold
Polyester
2
None
Tray
0.100 In
2.54 mm
12
0.3
12
0.3
Yes
No
N/A
-40°C to +85°C
IDT or Pierce
1.14mm (.045") max.
28
Ribbon Cable
Search Parts in this Series
54559Series
Mates With
55401 Vertical Header, 55638 Right Angle
Header
Use With
54561 Strain Relief, 54560 Upper Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
IDT Hand Tool
0572525000
Assembly For MIL
Connector
IDT Machine For MIL 0572527000
IDT Connector
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
300V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54559-004, RPS-501577-001, RPS-54559-008,
RPS-54559-012, RPS-54559-014, RPS-54559-015
SD-54559-003
