Part Number:
Status:
Description:
0545522016
Active
0.40mm (.016") Pitch Board-to-Board SlimStack™ Receptacle, SMT, Dual Row, without
Plastic Pegs, Right Angle, 20 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54552-024 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Receptacles
54552
Board-to-Board
SlimStack™

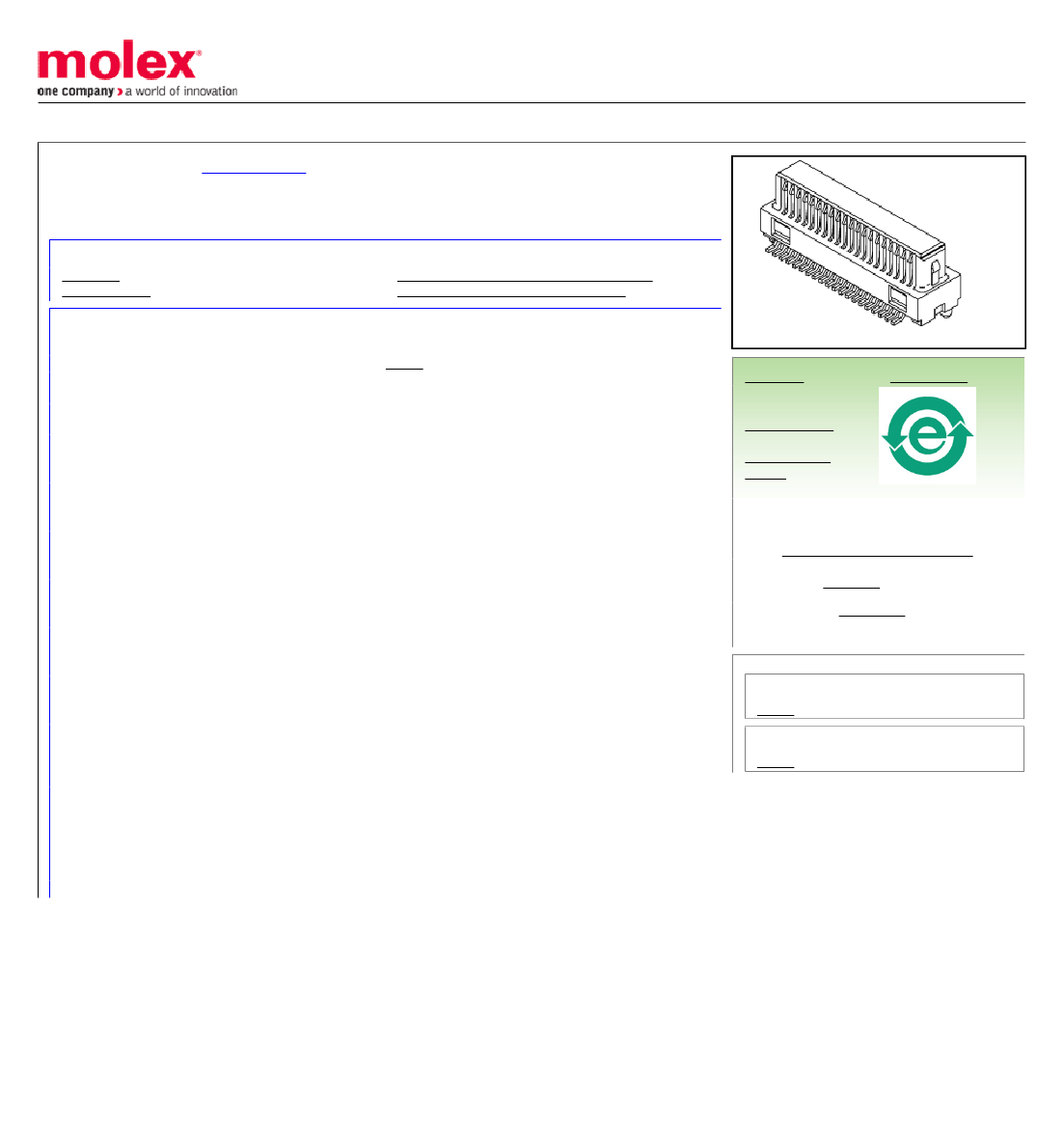

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
20
Brown
30
No
0.167 In
4.25 mm
Phosphor Bronze
Gold
Tin
2
Right Angle
No
None
Embossed Tape on Reel
0.016 In
0.40 mm
No
-40°C to +85°C
Surface Mount
Search Parts in this Series
54552Series
Mates With
55394 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
30V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54552-024

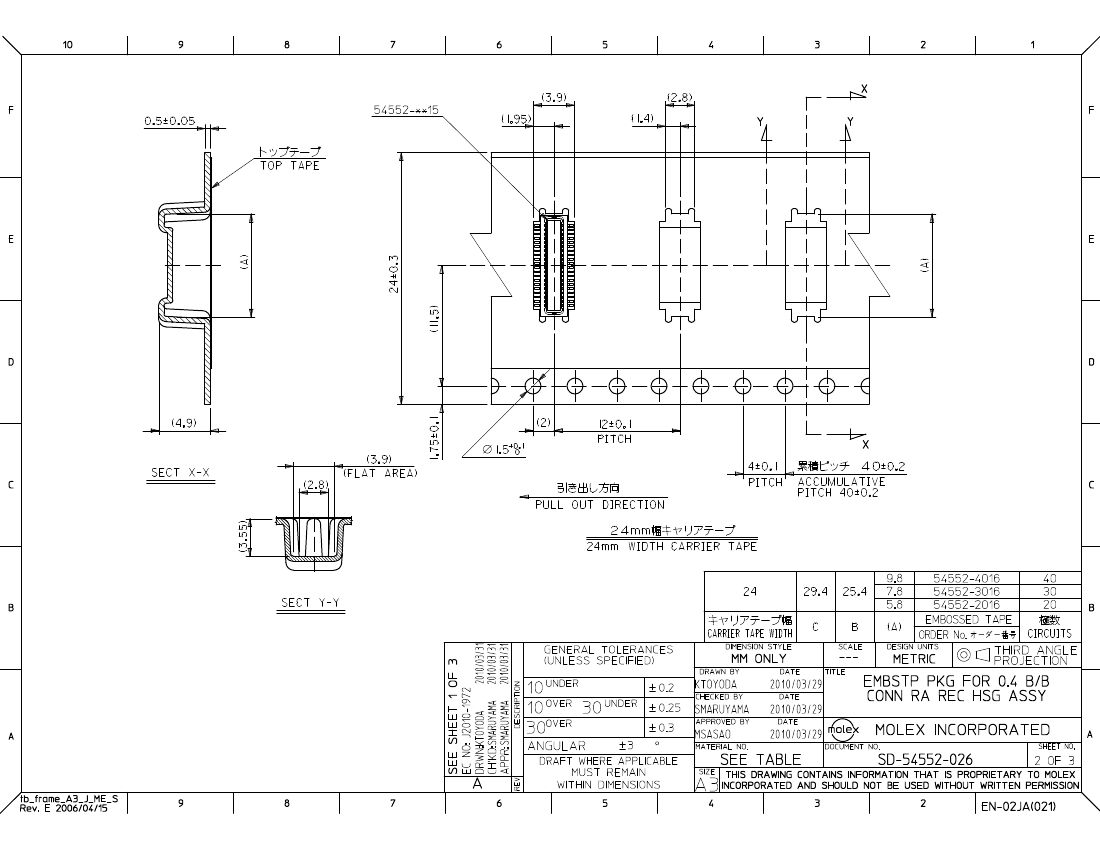

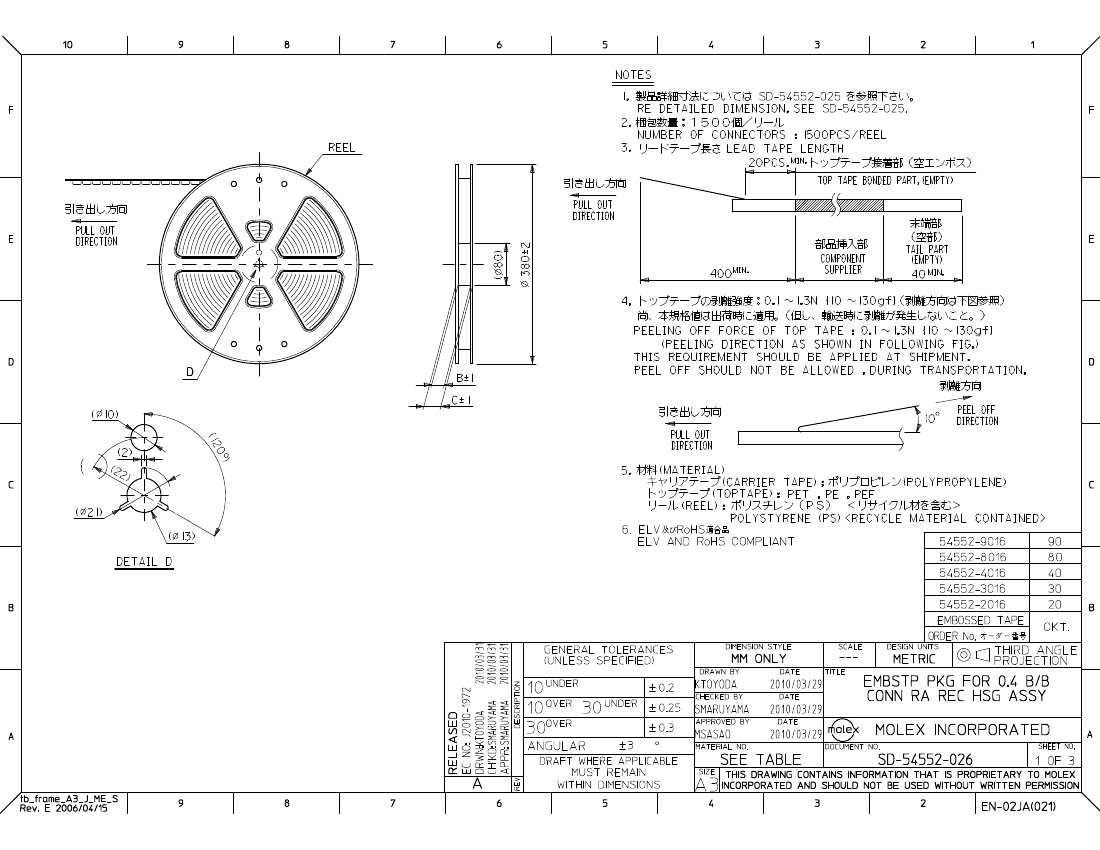

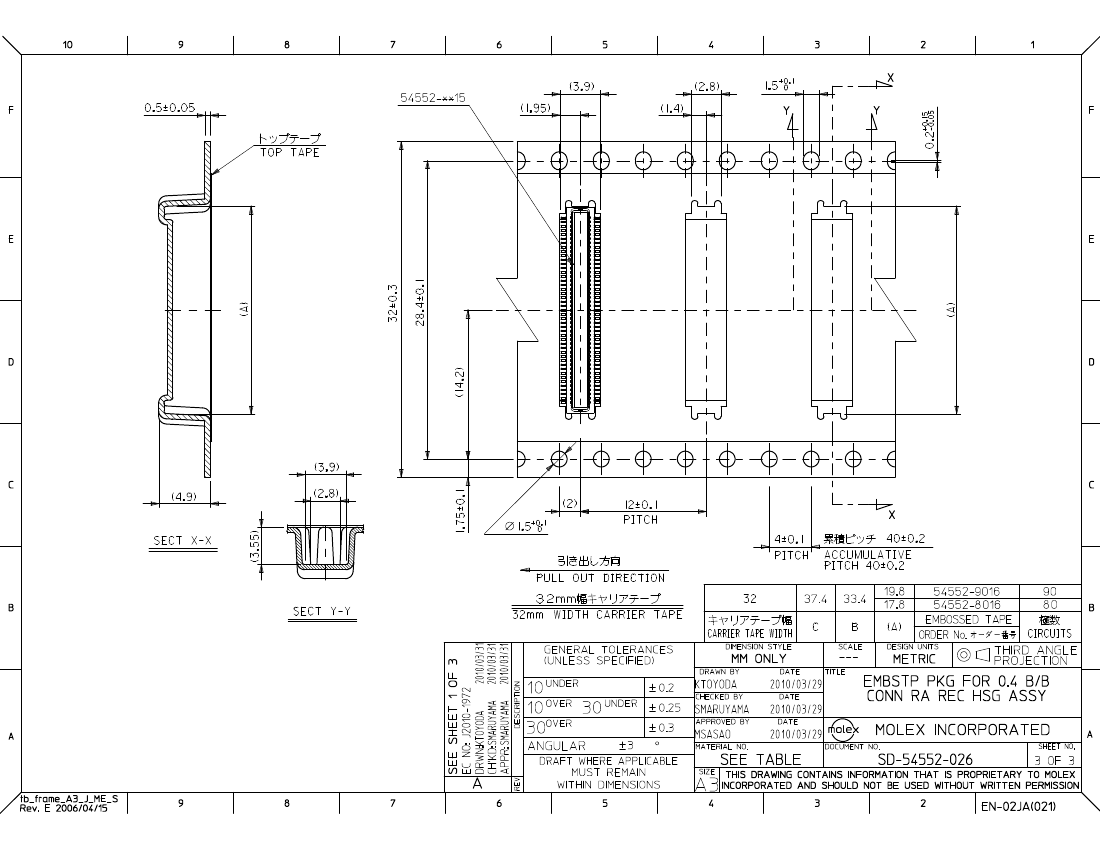

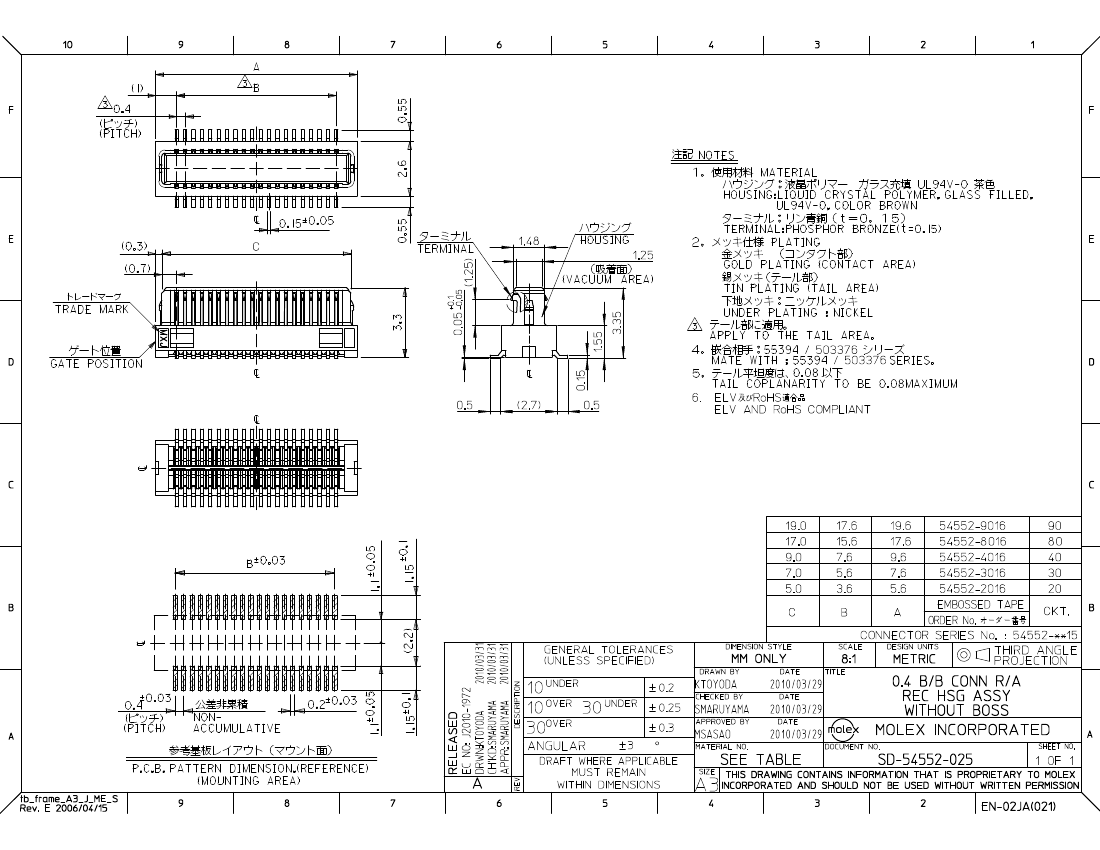

SD-54552-025, SD-54552-026
