• Ceramic construction assures the utmost thermal stability & high SRF
• Exceptionally high Q compared to non-wirewound
inductors, especially at high frequencies
• Inductance options from 1.6nH to 560nH
• Epoxy coating protects wound wire
RoHS
Compliant
1.80 x 1.12 x 1.02mm
FEATURES:
APPLICATIONS:
• Widely applied in VCO, SAW circuit for GSM,
and CDMA communications
ELECTRICAL SPECIFICATIONS:
Part Number
AISC-0603-
Units
Symbol
R0016
R0017
R0018
R0027
R0033
R0036
R0039
R0043
R0047
R0051
R0062
R0068
R0075
R0082
R0087
R0091
R0095
R010
R011
R012
R013
R015
R016
R018
R020
R022
R023
R024
R025
R027
R030
R033
R036
R039
R043
R047
R051
R056
R062
ABRACON IS
ISO9001:2008
CE RTIFIED
Inductance
nH
L
1.6
1.7
1.8
2.7
3.3
3.6
3.9
4.3
4.7
5.1
6.2
6.8
7.5
8.2
8.7
9.1
9.5
10
11
12
13
15
16
18
20
22
23
24
25
27
30
33
36
39
43
47
51
56
62
Tolerance
-
-
S,
K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
Min.
Quality
Factor
-
Q
22
16
18
25
25
25
25
25
25
21
29
29
33
31
31
30
26
30
35
35
35
37
37
37
37
38
40
40
40
38
38
40
40
40
40
36
35
38
36
L/Q Test
Freq.
MHz
Freq.
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
200
Max. DC
Resistance
Ω
DCR
0.035
0.043
0.043
0.043
0.059
0.059
0.059
0.059
0.065
0.130
0.095
0.095
0.095
0.095
0.095
0.120
0.160
0.130
0.130
0.130
0.130
0.150
0.150
0.150
0.150
0.190
0.190
0.190
0.190
0.190
0.210
0.210
0.220
0.220
0.270
0.270
0.300
0.350
0.380
Max. Rated
Current
mA
Ir
1150
1000
1000
1000
850
850
850
850
800
600
700
700
700
700
700
620
540
600
600
600
600
550
550
550
550
490
490
490
490
490
470
470
460
460
400
400
390
360
350
Min. Self-resonant
Frequency
MHz
S.R.F
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
6000
6000
6000
6000
6000
6000
6000
5500
5500
4900
4600
3800
3800
3700
3700
3300
3200
2900
2800
2700
2600
2400
2400
2300
Revised: 04.08.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
SMD CERAMIC WIRE-WOUND CHIP INDUCTORS
AISC-0603-xxx
ELECTRICAL SPECIFICATIONS (cont’d):
Part Number
AISC-0603-
Units
Symbol
R068
R072
R082
R091
R10
R11
R12
R15
R16
R18
R20
R22
R25
R27
R33
R39
R42
R47
R56
Inductance
nH
L
68
72
82
91
100
110
120
150
160
180
200
220
250
270
330
390
420
470
560
Tolerance
-
-
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
Min.
Quality
Factor
-
Q
36
34
34
34
31
32
32
32
32
25
25
25
25
26
26
27
27
27
27
L/Q Test
Freq.
MHz
Freq.
200
150
150
150
150
150
150
150
150
100
100
100
100
100
100
100
100
100
100
Max. DC
Resistance
Ω
DCR
0.380
0.430
0.500
0.520
0.660
0.730
0.750
1.120
1.120
1.380
1.900
2.100
2.800
3.000
4.200
4.500
5.400
5.700
8.100
Max. Rated
Current
mA
Ir
350
320
300
300
260
250
240
200
200
180
150
140
120
120
100
100
90
90
70
Min. Self-resonant
Frequency
MHz
S.R.F
2200
2100
2000
1900
1800
1700
1600
1400
1400
1300
1250
1200
1100
960
800
800
800
700
650
RoHS
Compliant
1.80 x 1.12 x 1.02mm
Definition of Rated Current (Ir): Ir is direct electric current as chip surface temperature rose just 20
º
C against chip initial surface temperature (Ta)
Operating Temperature:
-40ºC to +125ºC
Storage Temperature:
-10ºC to +40ºC, 70% RH max.

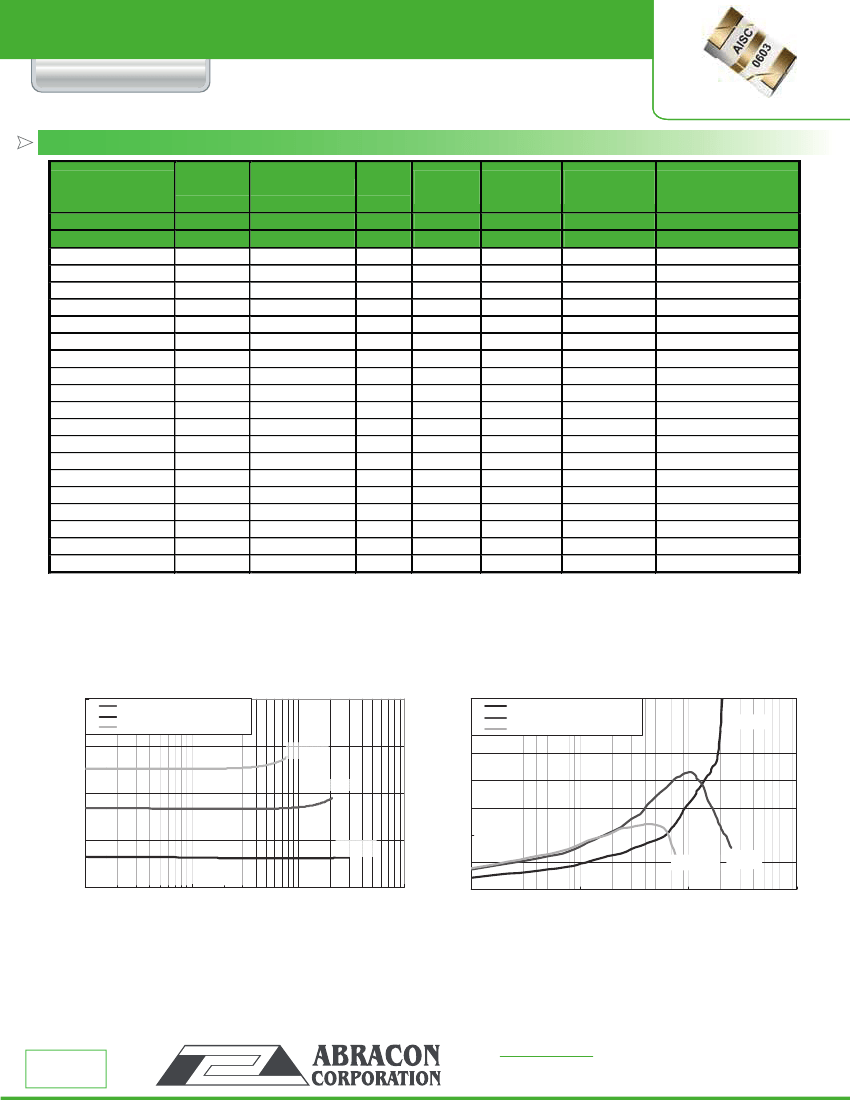

10000
SDWL1608C3N9□STF
R047
R0039
SDWL1608C47N□STF
R33
SDWL1608CR33□STF
330nH
140
120
100
80
Q
60
SDWL1608C3N9□STF
R047
R0039
SDWL1608C47N□STF
R33
SDWL1608CR33□STF
3.9nH
1000
100
47nH
10
40
3.9nH
20
330nH
47nH
1
10
100
1000
10000
0
10
100
1000
10000
Frequency (MHz)
Frequency (MHz)
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 04.08.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
SMD CERAMIC WIRE-WOUND CHIP INDUCTORS
AISC-0603-xxx
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
RoHS
Compliant
1.80 x 1.12 x 1.02mm
AISC-0603-
Inductance Code
Please
refer to the
Table
Tolerance
Code
C:
±
0.2nH
S:
±
0.3nH
D:
±
0.5nH
G:
±2%
J: ±5%
K: ±10%
-
Packaging
T:
3kpcs/reel

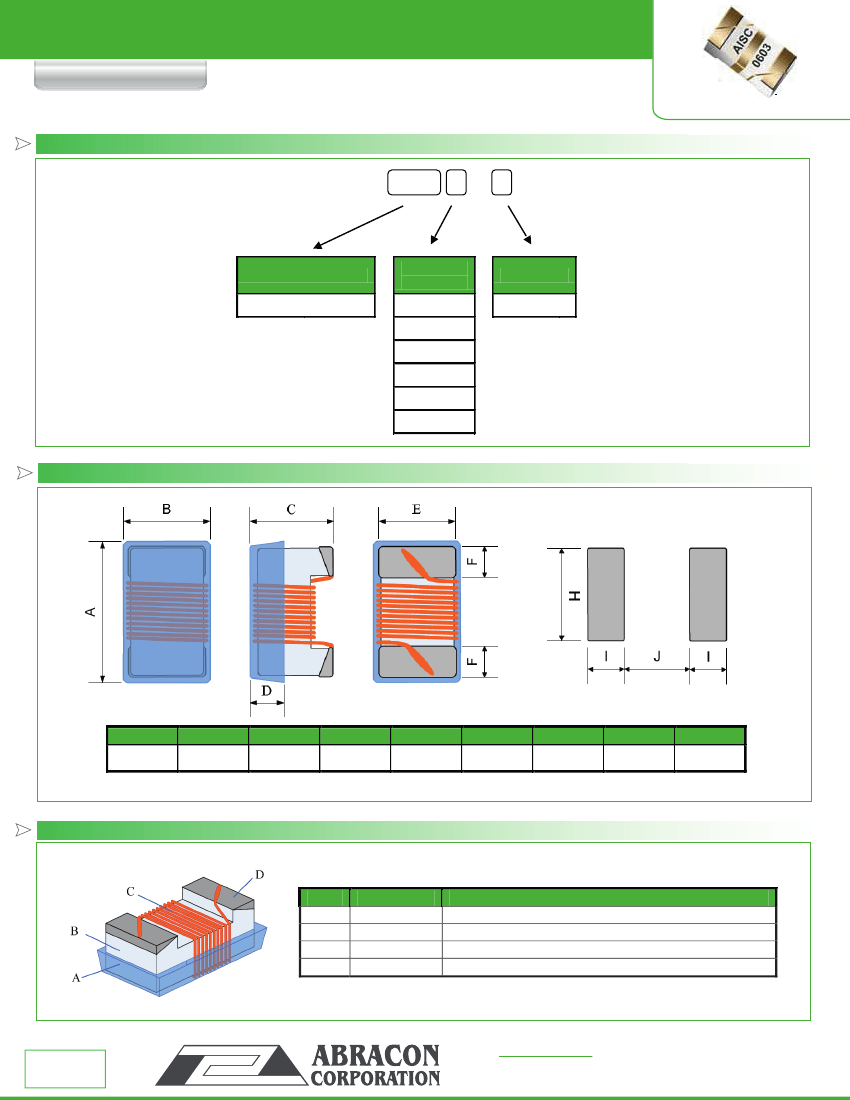

MECHANICAL DIMENSIONS:
A
MAX.
1.8
B
MAX.
1.12
C
MAX.
1.02
D
REF.
0.38
E
REF.
0.80
F
REF.
0.30
H
REF.
1.02
I
REF.
0.64
J
REF.
0.64
Dimension: mm
MATERIALS:
No.
A
B
C
D
Components
Coating
Core
Wire
Electrodes
Material
Ultraviolet epoxy resin
Ceramic
Polyurethane system enameled copper wire
Ag-Pd with Ni and Sn plating
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 04.08.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
SMD CERAMIC WIRE-WOUND CHIP INDUCTORS
AISC-0603-xxx

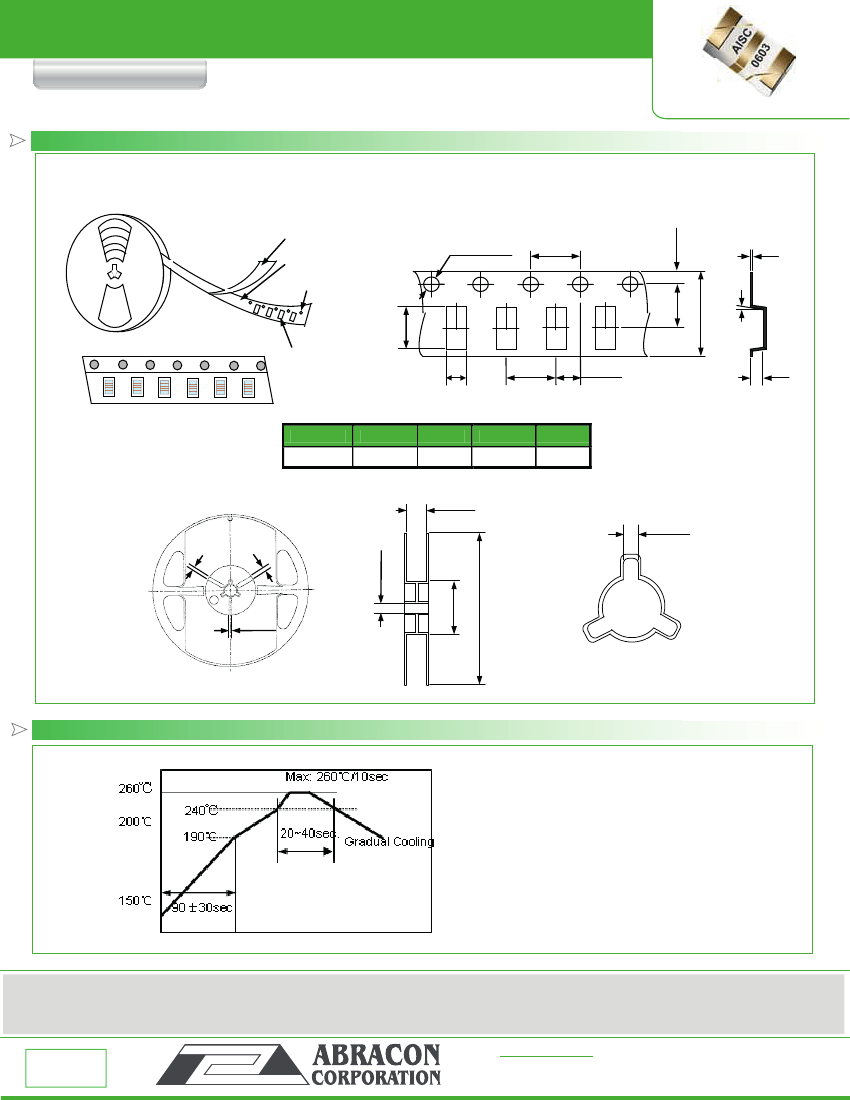

PACKING:
T= tape and reel (3,000pcs/reel)
Embossed Tape
1.75±0.1
RoHS
Compliant
1.80 x 1.12 x 1.02mm
Top Tape
Embossment
Sprocket Hole
Φ1.5(+0.1/-0)
4.0±0.1
T
3.5±0.1
8.0±0.3
5
0
°
5
Chip Cavity
B
A
P
2.0±0.1
K
A
1.12±0.05
B
1.80±0.05
P
4.0±0.1
10±1.5
K Max
0.96±0.05
T Max
0.3±0.1
2.45±0.2
4.0±0.1
5.0±0.1
13.5±0.2
3.0±0.1
Dimension: mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
178±2
58±2
• 1~2
ºC
/sec. Ramp
• Pre-heating: 150~190
ºC
/90±30 sec.
• Time above 240
ºC
: 20~40sec
• Peak temperature: 260
ºC
Max./10sec.
• Solder paste: Sn/3.0Ag/0.5Cu
• Max.2 times for re-flowing
、
Revised: 04.08.11
30332 Esperanza, Rancho Santa Margarita, California 92688
