BZT52-Series
Vishay Semiconductors
Small Signal Zener Diodes
Features
• Silicon Planar Power Zener Diodes
• These diodes are also available in other case
styles and other configurations including: the
SOT-23 case with type designation BZX84 series,
the dual zener diode common anode configuration
in the SOT-23 case with type designation AZ23
series and the dual zener diode common cathode
configuration in the SOT-23 case with type desig-
nation DZ23 series.
• The Zener voltages are graded according to the
international E 24 standard.
17431
Mechanical Data
Case:
SOD-123 Plastic case
Weight:
approx. 9.3 mg
Packaging Codes/Options:
GS18 / 10 k per 13 " reel (8 mm tape), 10 k/box
GS08 / 3 k per 7 " reel (8 mm tape), 15 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Zener current see table "
Characteristics "
Power dissipation
Power dissipation
1)
2)
Test condition
Symbol
Value
Unit
P
tot
P
tot
500
2)
410
1)
mW
mW
Diode on ceramic substrate 0.7 mm; 2.5 mm
2
pad areas
Diode on ceramic substrate 0.7 mm; 5 mm
2
pad areas
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to
ambient air
Junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
J
T
S
Value
300
1)
150
- 65 to + 150
Unit
°C/W
°C
°C
Valid provided that electrodes are kept at ambient temperature
Document Number 85760
Rev. 1.5, 13-Sep-04
www.vishay.com
1
BZT52-Series
Vishay Semiconductors
Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
18114
18117

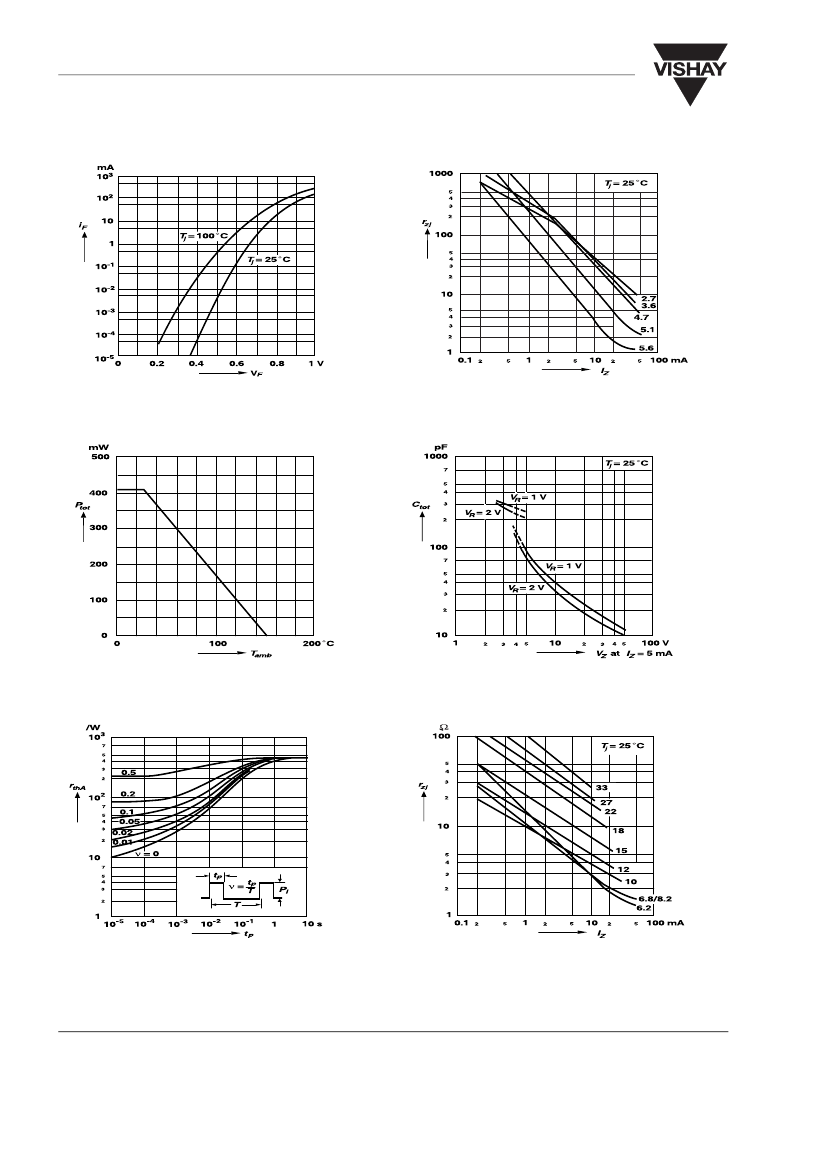

Figure 1. Forward characteristics
Figure 4. Dynamic Resistance vs. Zener Current
18888
18118
Figure 2. Admissible Power Dissipation vs. Ambient Temperature
Figure 5. Capacitance vs. Zener Voltage
°
C
18116
18119
Figure 3. Pulse Thermal Resistance vs. Pulse Duration
Figure 6. Dynamic Resistance vs. Zener Current
www.vishay.com
4
Document Number 85760
Rev. 1.5, 13-Sep-04
BZT52-Series
Vishay Semiconductors
°C
18120
18135
, =

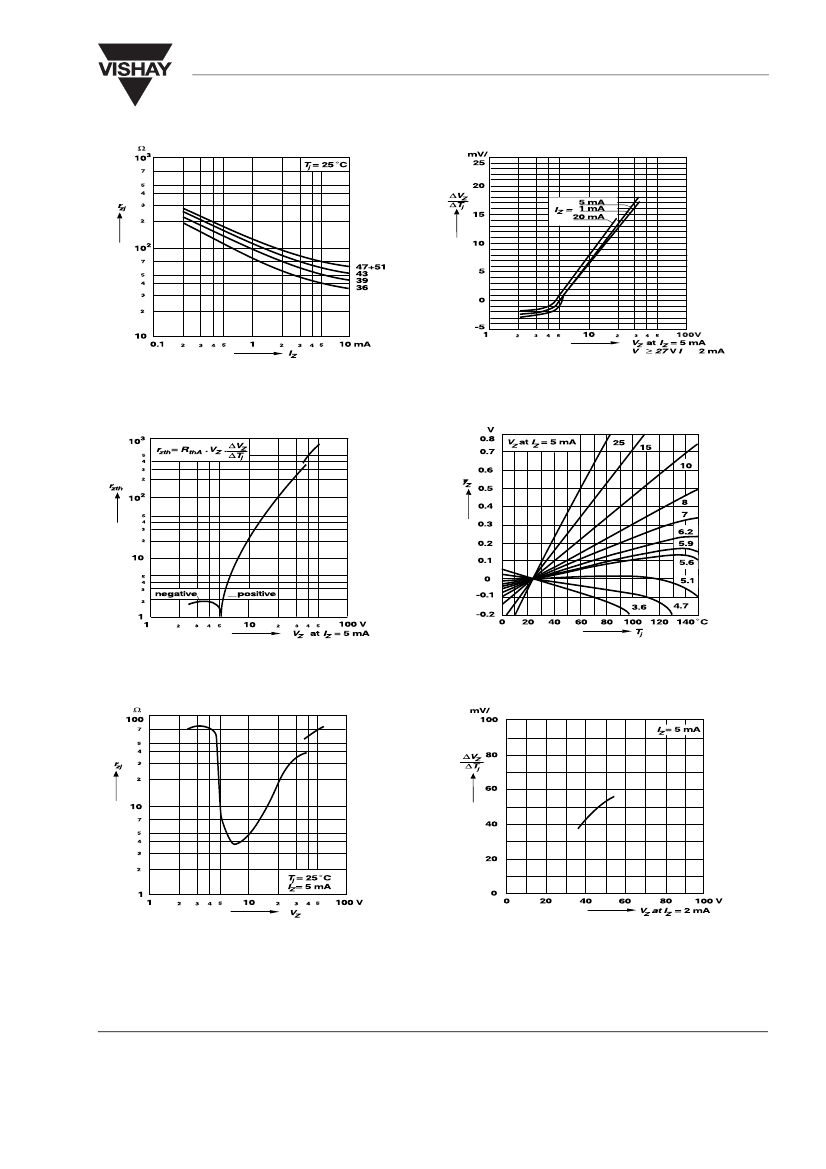

Figure 7. Dynamic Resistance vs. Zener Current
Figure 10. Temperature Dependence of Zener Voltage vs. Zener
Voltage
°C/W
18121
18124
Figure 8. Thermal Differential Resistance vs. Zener Voltage
Figure 11. Change of Zener Voltage vs. Junction Temperature
°C
18122
18136
Figure 9. Dynamic Resistance vs. Zener Voltage
Figure 12. Temperature Dependence of Zener Voltage vs. Zener
Voltage
Document Number 85760
Rev. 1.5, 13-Sep-04
www.vishay.com
5
