Voltage Controlled Crystal Oscillators
Data Sheet 0716B
Rev. C
AA-X36KXXX-X Series
PECL VCXO
Description
The AA-X36KXXX Series
of crystal oscillators (XO) provides low phase noise PECL/LVPECL
complementary outputs. The outputs can be disabled for test automation or combining multiple
clocks. The device packaged in a miniature, low profile, leadless FR-4 based package with gold
plated pads, which enhances compatibility with PCB material.
Applications and Features
•
•
•
•
•
Low Phase Noise
Wimax, Fiber Channel; 10 GbE; Infiniband; Network Processors; SOHO Routing
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions
Fast Rise and Fall times
Low cost
Creating a Part Number
AA - X 36K X X X - X
Package code
AA 6 pad 7.5x5.2mm SMD
Environmental
L Contains a level of lead that is in
excess of RoHS directive and is
not designed for reflow
R RoHS compliant
Operating Voltage
0 5.0 V ± 5%
A 3.3 V ± 5%
Enable Option
L Enable Low
N N/C
Temperature Range, ºC
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9 Customer Specific
Absolute Pull Range (APR), ppm
E ±20
F ±32
G ±50
H ±100
9 Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
Voltage Controlled Crystal Oscillators
AA-X36KXXX-X Series

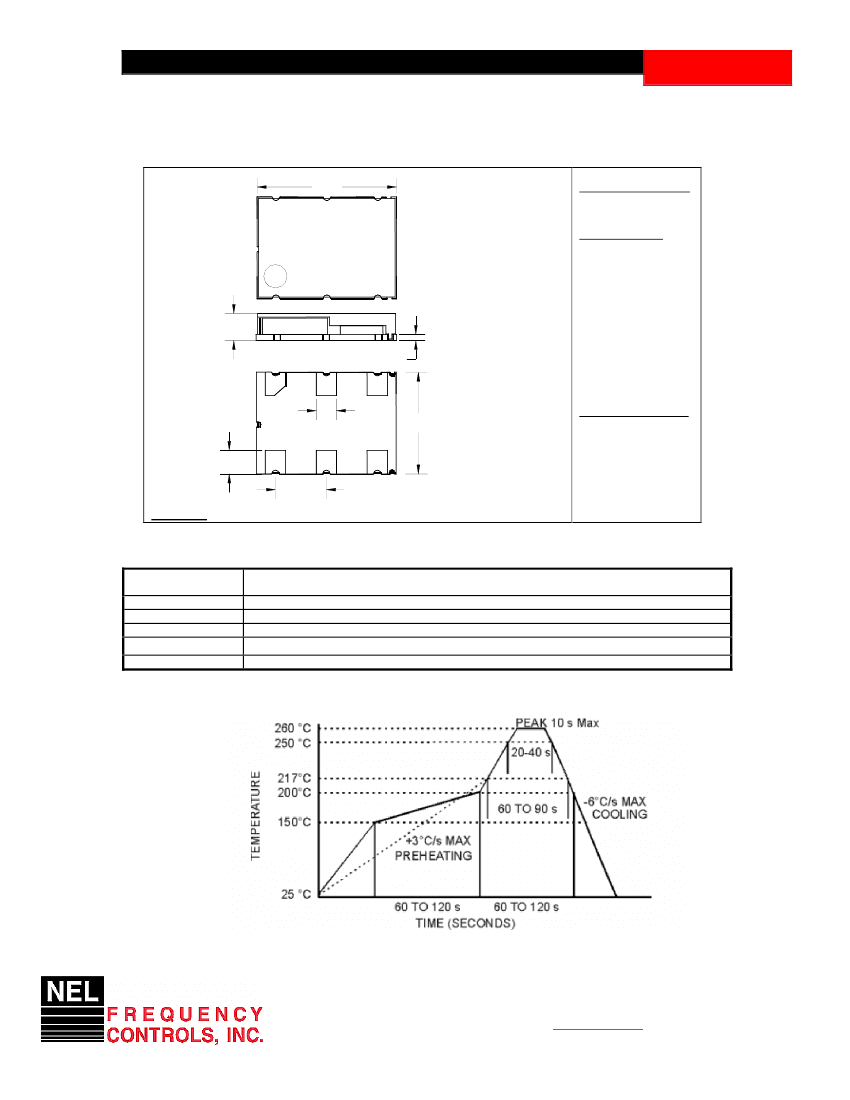

Drawing Specification
7.5
Data Sheet 0716B
Rev. C
OUTLINE TOLERANCE:
Dimension are typical
in mm
PIN FUNCTIONS:
[1] Vc
[2] En/Dis or N/C
[3] Gnd
[4] OUTPUT
[5] /OUTPUT
[6] Vcc
NEL
2.0
0.5
1
2
3
1.37
5.20
MARKING (EXAMPLE):
AA-XXXX
1.37
6
2.540
5
4
Environmental and Mechanical Characteristics
Operating temp.
Range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium , crystal only.
See MAX reflow profile below
MAX Reflow Profile
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
Voltage Controlled Crystal Oscillators
AA-X36KXXX-X Series
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Control Voltage
Enable/Disable Voltage
Data Sheet 0716B
Rev. C
Symbol
To
Tst
Vcc
Vc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 5.5
-0.5 to 5.5
0 to Vcc
Unit
ºC
ºC
V
V
Electrical Parameters
Parameter
Nominal Frequency
Supply Voltage
Supply current
Output Logic Type
Load
Output Levels
Duty Cycle (Symmetry)
Rise/Fall Time
Integrated
Jitter
Tr/Tf
J
Voh
Vol
At 50% of output voltage
swing
20 to 80, 80 to 20 %
Integrated from Phase Noise,
12 KHz to 20 MHz , RMS
100Hz to 80KHz,RMS
50 KHz to 80 MHz
Random
period,
Accumul.,
pk-to-pk
Determin.
F>52 MHz
F > 52 MHz
155.52
@ 10 Hz
MHz,
@100 Hz
@1 KHz
@10KHz
@100KHz
@>1MHz
Overall, including
temperature, aging 10 years,
shock and vibration
@Vc=Vcc/2;
APR 50 ppm, or less
Vc to set the F at Fo; T, Vcc,
load – nominal, as shipped
Over all conditions, see part
# creation
@ Fmod < 100 KHz
At Vc = Vcc/2, -3dB
Pin 2 = Low, 0 to
Vcc-1.62 V, or floating
Pin 2 = High, Vcc-1.025 V to
Vcc
45/55
50/50
0.5
0.1
0.3
2.5
17
6
-50
-70
-100
-125
-140
-145
-145
±30
-42
Symb
Fo
Vcc
Icc
Conditions, Note
Code 0
Code A
MIN
1
4.75
3.135
TYP
5.0
3.3
60
PECL/
LVPECL
50
MAX
260
5.25
3.465
80
Unit
MHz
V
mA
Ohm
V
Output to Vcc-2V, or
Thevenin Equivalent
overall
Vcc-1.025
Vcc-1.620
55/45
0.7
0.2
1.0
%
ns
ps
ps
ps
ps
ps
ps
dBc
dBc/Hz
Wavecrest
characterized
Sub-harmonics
Phase Noise
£(Δf)
Frequency Stability, usually
not specified – unless
necessary, APR is specified
to incorporate stability
Control Voltage Range
Setability
Absolute Pull Range
Input impedance
Modulation Bandwidth
Enable
Disable
ΔF/F
±20
ppm
Vc
Vcs
APR
Zin
0V
0.4 Vcc
20, 32, 50,
100
50
20
0.5 Vcc
Vcc
0.6 Vcc
V
V
ppm
KOhm
KHz
Enabled
V
Disabled, Pin4 = Logic “1”,
Pin5 = Logic “0”
V
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
